The Smart-Way installation accessories are a new addition making installing, connecting to and routing cables to the raceway as smooth as possible. Whether you're looking to use a 2- or 3-Gang wall plate or a way to neatly feed your cables from the underside of a table to a Smart-Way device box. We now have product options that can do all that and more.
Raceway Installation Accessories
Item #
Part #
Description
18360
SW-RWK-5
5' long wall track extension kit with coupler
18206
SW-END-SLT
Raceway End Stop - Slate *Required at the end of the raceway, must order with system.*
Block Mounting Bracket kit with Block under-table channel included for attachment to SW Device Box to table
18277
SW-CVR-TOOL
Smart-Way Cover Removal Tool
18327
SW-TPE-NO
No Transition Flush Plastic Edge - 4 - 36" Lengths
The 2- and 3-Gang extension covers are an added component to the Smart-Way system, providing more space for extra-deep gang products.*Device Box sold separately
To keep cables protected as they feed-through the device box data passage we offer a brush insert for the Decora opening.
The Block cable pathway can can now interface with a Smart-Way device box using our new mounting bracket kit. Kit includes both the moutning bracket and Block cable pathway. Cables can now be routed from the underside of a table down to a Smart-Way device box to maintain an aesthetic appearance.
The Smart-Way cover removal tool makes accessing and managing your wires within the raceway effortless.
FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Build America Buy America Act (BABAA) compliant. Look for this logo on our website:
TAA Compliance
FSR Smart-Way raceway products meet TAA and BABAA requirements.
*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.
Designed to fit today's working environments, Smart-Way prioritizes functionality without sacrificing good design or beauty. Our Smart-Way raceway system is configurable for either on top of (vinyl, carpet, wood) or in any flooring (carpet, wood, tile, laminate) with the provided edging. The Smart-Way system reshapes how cables are routed across the floor or down the wall to where they're needed. With its crisp lines and sophistication, the raceway will leave a lasting impression of timeless quality.
The provided edgings make the Smart-Way dual-purpose. Every raceway will be shipped with two edging pairs, allowing it to go on- or in-floor without purchasing additional parts. The in-floor edging will enable you to install the raceway in any floor .21"-.38" high. A no-transition option is also available, which allows two raceways to be side-by-side (See bottom graphic on the right) or to run the raceway along the wall. The no-transition edging option is available in 3-foot lengths for usage in any flooring .38"-.50" high.
ON- AND IN-FLOOR EDGING PROVIDED
*End stop (SW-END-SLT Installation Accessories) is required at the end of the raceway. Must order with system.*
Configure A Smart-Way Raceway Online Today
Features:
Raceway compartments provide ample space for power, communications, and A/V requirements
ADA Compliant
Perfect for offices, conference rooms, collaborative work environments, and anywhere wire management is needed with access to power and data
Raceway is sold in 6-foot sections
Designed with centering V-grooves in track to assist in locating the drilling of pilot/clearance holes for securing fasteners, ensuring ease of installation
Device box options provide power, communication, and A/V connectivity
Ultra-low profile
Installs on top of or in any flooring for a quick installation
Available in slate-grey or bright aluminum
Ability to run cables down the wall with the Smart-Way wall raceway kit
IMPORTANT DETAILS The Smart-Way floor raceway is provided with two types of edging, giving you the ability to go either on or in your flooring. To view raceway options, device boxes, in-feeds, fittings and accessories, select from the drop-down.
,
Smart-Way Floor Raceway: Wall Raceway Kit
SW-FR_2085
The Smart-Way wall raceway kit solves the challenge when in-wall access is an issue. This kit allows you to route on the wall from the ceiling down to the baseboard and into the floor raceway. The wall raceway kit provides a solution for walls that are fire rated, brick, concrete, solid columns, exterior walls and walls with interior blocking.
The kits include aesthetically pleasing designer-style edging for the raceway. They are available in slate gray or aluminum finishes.
ORDERING INSTRUCTIONS
ITEM
PART#
DESCRIPTION
18670
SW-WF-CFK-A
Aluminum kit consist of edging for wall raceway, floor to wall transition, and ceiling to wall raceway feed
18671
SW-WF-CFK-S
Slate kit consist of edging for wall raceway, floor to wall transition, and ceiling to wall raceway feed
Features:
Routes cables from the ceiling to the floor when interior wall access isn’t feasible
Seamless design makes running cabling down the wall attractive
Provides an attractive on-wall cable management solution in Slate Gray or Aluminum finishes
Raceway compartments offer ample space for power, Communications, and A/V requirements
Design this into your space and watch it disappear
Aluminum raceway is suitable for over painting to match interior wall color
Applications:
Concrete columns
Brick walls
Fire-Rated walls
Exposed block walls
BABAA Compliance
FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Build America Buy America Act (BABAA) compliant. Look for this logo on our website:
TAA Compliance
FSR Smart-Way raceway products meet TAA and BABAA requirements.
*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.
IMPORTANT DETAILS Wall raceway kit routes on the wall from the ceiling down to the baseboard and into the floor raceway.
18670-SW-WF-CFK-A, 18671-SW-WF-CFK-S
,
Smart-Way Floor Raceway: In-Feeds
SW-FR_2086
In-Feeds
The Smart-Way in-feed boxes aid in transitioning your cables from the raceway to the wall with four different options. We offer a low profile, high profile, on-wall feed and a wall feed rough in box. Our focus was to make a box that was not only functional, but also elegant, with its geometric form and defining angular lines.
Nested In-Feeds
Smart-Way's nested in-feeds and paralleled raceways allow you to run more power and data and stay ADA-compliant.
BABAA Compliance
FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Build America Buy America Act (BABAA) compliant. Look for this logo on our website:
TAA Compliance
FSR Smart-Way raceway products meet TAA and BABAA requirements.
*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.
In-Feeds
Item #
Part #
Description
18217
SW-WF-LP-ALM
In-Feed Box Low Profile - Aluminum (CE Compliant)
18218
SW-WF-HP-ALM
In-Feed Box High Profile - Aluminum (CE Compliant)
18219
SW-WF-LP-SLT
In-Feed Box Low Profile - Slate (CE Compliant)
18220
SW-WF-HP-SLT
In-Feed Box High Profile - Slate (CE Compliant)
18613
SW-WF-HP-C-SLT
Center Nested In-Feed Box High Profile - Slate (CE Compliant)
18614
SW-WF-HP-C-ALM
Center Nested In-Feed Box High Profile - Aluminum (CE Compliant)
18332
SW-WF-WLP-SLT
In-Feed Wedge for metal stud only with1 or 2 circuits of power per channel and low voltage. (CE Compliant)
On-wall in-feed with cover. Use with SW-WF-RIN in-wall rough-in feed to pass wires through and into the raceway.(New Construction)
18334
SW-WF-RINLP-SLT
On-wall in-feed with cover. Use with SW-WF-RIN in-wall rough-in feed to pass wires through and into the raceway.(New Construction)
18320
SW-FCT-SLT
Flexible conduit transition with removable dividers. Its small design allows wires and cables to transition from the Smart-Way raceway to tables via conduit. ¾” Rubber bushing provided. (For Surface Mount Applications) (CE Compliant)
18718
SW-WF-FLSH-WHT

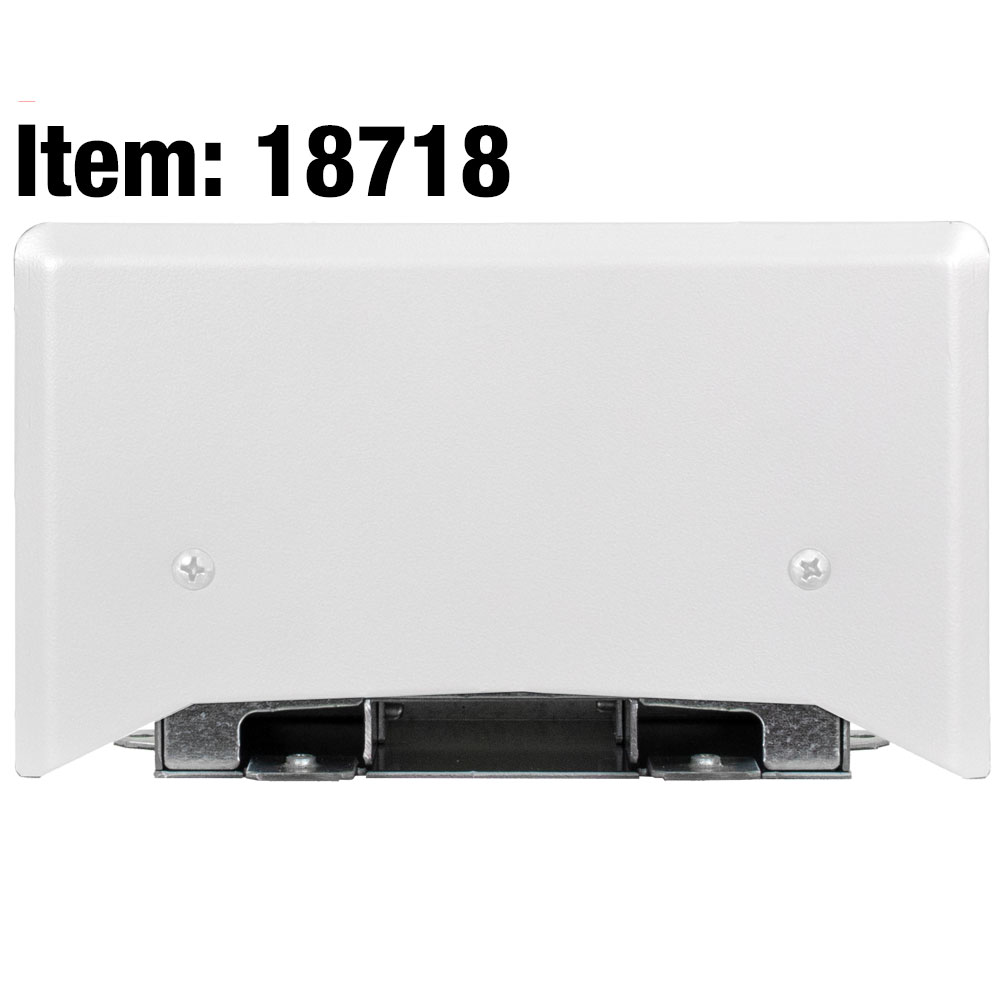

Flush In-Wall Feed Box - White
18719
SW-WF-FLSH-SLT
Flush In-Wall Feed Box - Slate
IMPORTANT DETAILS In-feeds are your starting/entry point. Options include low profile, high profile, on-wall feed and a wall feed rough in box. Color options include slate and aluminum.
,
Smart-Way Floor Raceway: Raceway Options
SW-FR_1857
The raceway provides three compartments of capacity and access to power, data and A/V connectivity options. The Smart-Way is a simple, affordable and effective way to clean up messy cables and wires.
Wire space isn't an issue with the Smart-Way system. The raceway has the capacity to hold (14) 12 AWG (.130" diameter) power conductors, and (9) CAT 5E (.215" diameter), or (5) CAT 6A (.250" diameter) data cables.
Each kit includes a 6’ base and cover, two couplers, moveable wire guides, raceway base edges, and a hex tool for installation. Additional raceway lengths are available in 3-foot, 1-foot and a three part (1', 2', 3') saw-less installation kit (See table on bottom for raceway length information).
How To Install The Smart-Way Raceway Edging
*End stop (SW-END-SLT) is required at the end of the raceway. Must order with system.*
*- Tire load test mandrel, rubber faced 16.5” x 4”; **- Concentrated load test mandrel, 3” round rubber faced.
Note:
1. Raceway mounted directly to a hard surface simulating an In-Carpet or On-Concrete installation. 2. The raceway is designed for light vehicle roll over and pedestrian traffic.
FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Build America Buy America Act (BABAA) compliant. Look for this logo on our website:
TAA Compliance
FSR Smart-Way raceway products meet TAA and BABAA requirements.
*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.
IMPORTANT DETAILS To make ordering easier determine your total linear feet needed in raceway. The raceway comes in 6' sections, but is also available in length's 1', 3' or a three part (1',2',3') saw-less installation kit. Raceways are available in aluminum and slate. *(SW-END-SLT) End stop is required at the end of each raceway.
,
Smart-Way Floor Raceway: Corners & TEE Fittings
SW-FR_1858
Raceway Fittings & Corners
Changing direction with your cables along the floor now becomes seamless with our new raceway corners and fitting options. The two part tee allows cables to go in both directions to reach the required destination without any complications. Both outer power channels are used to deliver AC to each leg independently.
Need your cables to make a 45° or 90° turn? We now provide both a 45° and 90° corner in aluminum and slate to accomplish this task. The angled turn doesn't compromise the minimum bend radius of the cables, so your cables stay damage-free.
FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Build America Buy America Act (BABAA) compliant. Look for this logo on our website:
TAA Compliance
FSR Smart-Way raceway products meet TAA and BABAA requirements.
*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.
Smart-Way Raceway Fittings
Item #
Part #
Description
18303
SW-L45-ALM
45 degree corner - Aluminum (CE Compliant)
18304
SW-L45-SLT
45 degree corner - Slate (CE Compliant)
18207
SW-L90-ALM
90 degree corner - Aluminum (CE Compliant)
18208
SW-L90-SLT
90 degree corner - Slate (CE Compliant)
18305
SW-TEE-ALM
2 part tee - Aluminum (CE Compliant)
18306
SW-TEE-SLT
2 part tee - Slate (CE Compliant)
IMPORTANT DETAILS Both a 45-degree (Item's 18303 & 18304) and 90-degree (Item's 18207 & 18208) elbow kit is available for making corner turns. The two-part tee (Item's 18305 & 18306) allows cables to travel in either direction. Both fittings and corners are available in aluminum and slate. See table at bottom for detailed ordering information.
,
Smart-Way Floor Raceway: Device Boxes
SW-FR_1860
Device Boxes
The Smart-Way system device boxes offer the versatility of power and/ or data in a stylish multi-color finish. We have several device boxes to choose from to fit your application needs, while maximizing efficiency and productivity with your environment. Whether you're looking for data, power, hardwired power, conduit transitions or to interface with our poke-throughs, Smart-Way device boxes will get your connection where it needs to be.
FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Build America Buy America Act (BABAA) compliant. Look for this logo on our website:
TAA Compliance
FSR Smart-Way raceway products meet TAA and BABAA requirements.
*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.
Device Boxes
Item #
Part #
Description
18211
SW-DB-1P1D
Device Box 2 Gang 1 Power 1 Data
18212
SW-DB-2P
Device Box 2 Gang 2 Power
18213
SW-DB-2D
Device Box 2 Gang 2 Data
18214
SW-DB-2P1D
Device Box 3 Gang 2 Power 1 Data
18215
SW-DB-1P2D
Device Box 3 Gang 1 Power 2 Data
18441
SW-DB-3P1D
4 gang device box with 3 power and 1 low voltage Decora opening
18605
SW-DB-2DO
2 gang data only device box for data in all three raceway channels
18216
SW-DB-1HWP1D
Device Box 2 Gang 1 Hardwired Power 1 Data
18328
SW-DB-HPP
Power Pole to Smart-Way In-Feed. Feed power and data to the raceway from the ceiling with a power pole. To be used with Hubbell aluminum service pole HBLPP- .
18326
SW-PKF-SFIT4
Poke-thru(Sold Separately)to Smart-Way In-Feed. Allows power and data to feed the raceway through fire rated concrete floors. To be used with FSR 4" SF-CPT-FF-ALM poke through.
IMPORTANT DETAILS Next determine which device box fits your project needs. Smart-Way's device boxes can be used for data, power, hardwired power, conduit transitions, or to feed to a 4" Poke-Thru. We now have International device box solutions too (choose from the drop down to view)!
,
Smart-Way Floor Raceway: International Device Boxes
SW-FR_1980
The below Smart-Way device boxes are now CE compliant, giving you the versatility of power and/or data in a stylish multi-color finish. An added feature to these CE compliant device boxes is the ability to install a 45mm universal socket in the housing. We offer three different international device box options that can be used with our dual or single 45mm device plate.
BABAA Compliance
FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Build America Buy America Act (BABAA) compliant. Look for this logo on our website:
TAA Compliance
FSR Smart-Way raceway products meet TAA and BABAA requirements.
*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.
International device boxes, plate inserts and power receptacles
Item #
Part #
Description
18337
SW-IDB-2P
International Device Box with 2 openings for power Insert * Will require either part 18340 SW-IDB-D45I or part 18341 SW-IDB-S45I*
18338
SW-IDB-1P1D
International Device Box with openings for 1 power insert/ 1 Decora opening * Will require either part 18340 SW-IDB-D45I or part 18341 SW-IDB-S45I*
18339
SW-IDB-1P2D
International Device Box with 1 openings for power Insert/ 2 Decora openings * Will require either part 18340 SW-IDB-D45I or part 18341 SW-IDB-S45I*
Plate Inserts
18340
SW-IDB-D45I
Device Plate Insert w/ 2-45mm opening for power receptacle (Sold Separately)
18341
SW-IDB-S45I
Device Plate Insert w/ 45mm opening for power receptacle (Sold Separately)
Power Receptacles
18653
SOC45-UN-B
45mm Universal Socket (Sold Separately)
18654
SOC45-TF-B
45mm Type F SCHUKO - Europe & Russia (Sold Separately)
18655
SOC45-TI-B
45mm Type I - Australia, New Zealand, China & Argentina (Sold Separately)
18656
SOC45-TG-B
45mm Type G - UK, Ireland, Malta, Malaysia & Singapore (Sold Separately)
IMPORTANT DETAILS CE compliant device boxes are now available with the ability to fit a 45mm receptacle in the housing.
,
Smart-Way Floor Raceway: Installation Accessories (Includes End Stop)
SW-FR_1859
Raceway Installation Accessories
The Smart-Way installation accessories are a new addition making installing, connecting to and routing cables to the raceway as smooth as possible. Whether you're looking to use a 2- or 3-Gang wall plate or a way to neatly feed your cables from the underside of a table to a Smart-Way device box. We now have product options that can do all that and more.
Raceway Installation Accessories
Item #
Part #
Description
18360
SW-RWK-5
5' long wall track extension kit with coupler
18206
SW-END-SLT
Raceway End Stop - Slate *Required at the end of the raceway, must order with system.*
Block Mounting Bracket kit with Block under-table channel included for attachment to SW Device Box to table
18277
SW-CVR-TOOL
Smart-Way Cover Removal Tool
18327
SW-TPE-NO
No Transition Flush Plastic Edge - 4 - 36" Lengths
The 2- and 3-Gang extension covers are an added component to the Smart-Way system, providing more space for extra-deep gang products.*Device Box sold separately
To keep cables protected as they feed-through the device box data passage we offer a brush insert for the Decora opening.
The Block cable pathway can can now interface with a Smart-Way device box using our new mounting bracket kit. Kit includes both the moutning bracket and Block cable pathway. Cables can now be routed from the underside of a table down to a Smart-Way device box to maintain an aesthetic appearance.
The Smart-Way cover removal tool makes accessing and managing your wires within the raceway effortless.
FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Build America Buy America Act (BABAA) compliant. Look for this logo on our website:
TAA Compliance
FSR Smart-Way raceway products meet TAA and BABAA requirements.
*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.
IMPORTANT DETAILS We have introduced a variety of installation accessories to aid in making connectivity as simple as possible. The end stop (Item: 18206) is a required part for the end of the raceway system. See chart below for the full list of installation accessories.
Every raceway will be shipped with two edging pairs, allowing it to go on- or in-floor without purchasing additional parts. The in-floor edging will enable you to install the raceway in any floor .21"-.38" high. A no-transition option is also available, which allows two raceways to be side-by-side (See bottom graphic on the right) or to run the raceway along the wall. The no-transition edging option is available in 3-foot lengths for usage in any flooring .38"-.50" high.
