- Description
- Specifications
This high quality FL-500P Cover has a hinged door in Oak Sandtex with our unique tool-less lift off door.
The cable access door can be easily removed by lifting the integrated U-Access handle to quickly access the interior compartment, connectors, and cables.
• 11-gauge finished steel cover with choice of carpet edging
• Mitered brass or aluminum carpet edging .5” or .25” high
• Stainless steel compression latches
• Lift-off full access door
Flanging: Height: .25” or .5”
There are a variety of covers to choose from. Options include integrated carpet edging, flat covers for non-carpeted, bare floor applications, and different finishes. The lift-off section of the cover allows full access to internal connector plates and stored cables. The hinged cable exit door flips back to allow the cover to remain in place after connections are made and cables are routed through it. The 0.25” and 0.5” raised edge style and solid covers are UL scrub water approved.
The FL-500P floor box is not only UL and CUL Listed but has also passed the latest UL test for scrub water. Because of FSR's unique engineering and manufacturing ability, FSR floor boxes pass for carpeted floors as well as tile and wood!
The lift-off section of the cover allows full access to internal connector plates and stored cables, and the smaller hinged cable access door flips back to create the cable exit. When the floor box is not in use, the cover is completely closed allowing unencumbered travel in the area with only the hand mitered, elegant carpet edge visible. The low profile edging is 1/4” or 1/2” high and is available in brass or aluminum.
BAA Compliance
FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Buy America/ Build America Act (BABAA) compliant. Look for this logo on our website:
TAA Compliance
FSR floor box products meet TAA and BABAA requirements.
*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.
Part # | Description |
---|---|
U-Access Covers - UL Scrub Water Rated for Tile and Carpet Installations | |
FL-500P-B-C | FL-500P Cover With 1/2" Brass Square Flange (Lift off door) |
FL-500P-BLP-C | FL-500P Cover With 1/4" Brass Beveled Flange (Lift off door) |
FL-500P-BSQ-C | FL-500P Cover With 1/4" Brass Square Flange (Lift off door) |
FL-500P-S-C | FL-500P Cover With 1/2" Aluminum Square Flange (Lift off door) |
FL-500P-SLP-C | FL-500P Cover With 1/4" Aluminum Beveled Flange (Lift off door) |
FL-500P-SSQ-C | FL-500P Cover With 1/4" Aluminum Square Flange (Lift off door) |
FL-500P-PLP-GRY-C | FL-500P Cover With 1/4" Painted Beveled Flange - Gray (Lift off door) |
FL-500P-PLP-CLY-C | FL-500P Cover With 1/4" Painted Beveled Flange - Clay (Lift off door) |
FL-500P-PLP-BLK-C | FL-500P Cover With 1/4" Painted Beveled Flange - Black (Lift off door) |
U-Access Covers - UL Scrub Water Rated - No Carpet Trim** | |
FL-500P-SLD-ALM-C | FL-500P Solid Cover With Cable Exit (No Flange)- Aluminum **Shim kits may be required |
FL-500P-SLD-BLK-C | FL-500P Solid Cover With Cable Exit (No Flange)- Black **Shim kits may be required |
FL-500P-SLD-CLY-C | FL-500P Solid Cover With Cable Exit (No Flange)- Clay **Shim kits may be required |
FL-500P-SLD-GRY-C | FL-500P Solid Cover With Cable Exit (No Flange)- Gray **Shim kits may be required |
Covers | |
FL-500P-BLK-C | Cover (No Flange) With Hinged Door in Black Sandtex |
FL-500P-OAK-C | Cover (No Flange) With Hinged Door in Lt. Oak Sandtex |
FL-500P-SS-C |
Stainless Steel Cover (No Flange) With Hinged Door |
Cover (No Flange) w/ Hinged Door in Lt. Oak Sandtex |
This high quality FL-500P Cover has a hinged door in Oak Sandtex with our unique tool-less lift off door.
The cable access door can be easily removed by lifting the integrated U-Access handle to quickly access the interior compartment, connectors, and cables.
• 11-gauge finished steel cover with choice of carpet edging
• Mitered brass or aluminum carpet edging .5” or .25” high
• Stainless steel compression latches
• Lift-off full access door
Flanging: Height: .25” or .5”
There are a variety of covers to choose from. Options include integrated carpet edging, flat covers for non-carpeted, bare floor applications, and different finishes. The lift-off section of the cover allows full access to internal connector plates and stored cables. The hinged cable exit door flips back to allow the cover to remain in place after connections are made and cables are routed through it. The 0.25” and 0.5” raised edge style and solid covers are UL scrub water approved.
The FL-500P floor box is not only UL and CUL Listed but has also passed the latest UL test for scrub water. Because of FSR's unique engineering and manufacturing ability, FSR floor boxes pass for carpeted floors as well as tile and wood!
The lift-off section of the cover allows full access to internal connector plates and stored cables, and the smaller hinged cable access door flips back to create the cable exit. When the floor box is not in use, the cover is completely closed allowing unencumbered travel in the area with only the hand mitered, elegant carpet edge visible. The low profile edging is 1/4” or 1/2” high and is available in brass or aluminum.
BAA Compliance
FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Buy America/ Build America Act (BABAA) compliant. Look for this logo on our website:
TAA Compliance
FSR floor box products meet TAA and BABAA requirements.
*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.
Part # | Description |
---|---|
U-Access Covers - UL Scrub Water Rated for Tile and Carpet Installations | |
FL-500P-B-C | FL-500P Cover With 1/2" Brass Square Flange (Lift off door) |
FL-500P-BLP-C | FL-500P Cover With 1/4" Brass Beveled Flange (Lift off door) |
FL-500P-BSQ-C | FL-500P Cover With 1/4" Brass Square Flange (Lift off door) |
FL-500P-S-C | FL-500P Cover With 1/2" Aluminum Square Flange (Lift off door) |
FL-500P-SLP-C | FL-500P Cover With 1/4" Aluminum Beveled Flange (Lift off door) |
FL-500P-SSQ-C | FL-500P Cover With 1/4" Aluminum Square Flange (Lift off door) |
FL-500P-PLP-GRY-C | FL-500P Cover With 1/4" Painted Beveled Flange - Gray (Lift off door) |
FL-500P-PLP-CLY-C | FL-500P Cover With 1/4" Painted Beveled Flange - Clay (Lift off door) |
FL-500P-PLP-BLK-C | FL-500P Cover With 1/4" Painted Beveled Flange - Black (Lift off door) |
U-Access Covers - UL Scrub Water Rated - No Carpet Trim** | |
FL-500P-SLD-ALM-C | FL-500P Solid Cover With Cable Exit (No Flange)- Aluminum **Shim kits may be required |
FL-500P-SLD-BLK-C | FL-500P Solid Cover With Cable Exit (No Flange)- Black **Shim kits may be required |
FL-500P-SLD-CLY-C | FL-500P Solid Cover With Cable Exit (No Flange)- Clay **Shim kits may be required |
FL-500P-SLD-GRY-C | FL-500P Solid Cover With Cable Exit (No Flange)- Gray **Shim kits may be required |
Covers | |
FL-500P-BLK-C | Cover (No Flange) With Hinged Door in Black Sandtex |
FL-500P-OAK-C | Cover (No Flange) With Hinged Door in Lt. Oak Sandtex |
FL-500P-SS-C |
Stainless Steel Cover (No Flange) With Hinged Door |
Cover (No Flange) w/ Hinged Door in Lt. Oak Sandtex |
FSR's Flagship UL Listed Floor Box. The FL-500P floor box combines rugged construction and an elegant design for use in carpet, tile or wood covered floors over poured concrete applications. This floor box has ample compartment room to accommodate power, audio, video, telecommunications and data in one elegant and practical box.
These floor boxes are not only UL and CUL listed but has also passed the latest UL test for scrub water. The standard only applied to boxes installed in concrete, not raised-access boxes. Because of our unique engineering and manufacturing ability, FSR floor boxes pass for carpeted floors as well as tile and wood! The hinged door section of the cover allows full access to internal connector plates and stored cables, and the smaller hinged cable access door flips back to create the cable exit. When the floor box is not in use, the cover is completely closed allowing unencumbered travel in the area with only the hand mitered, elegant carpet edge visible. The low profile edging is 1/4” or 1/2” high and is available in brass or aluminum.

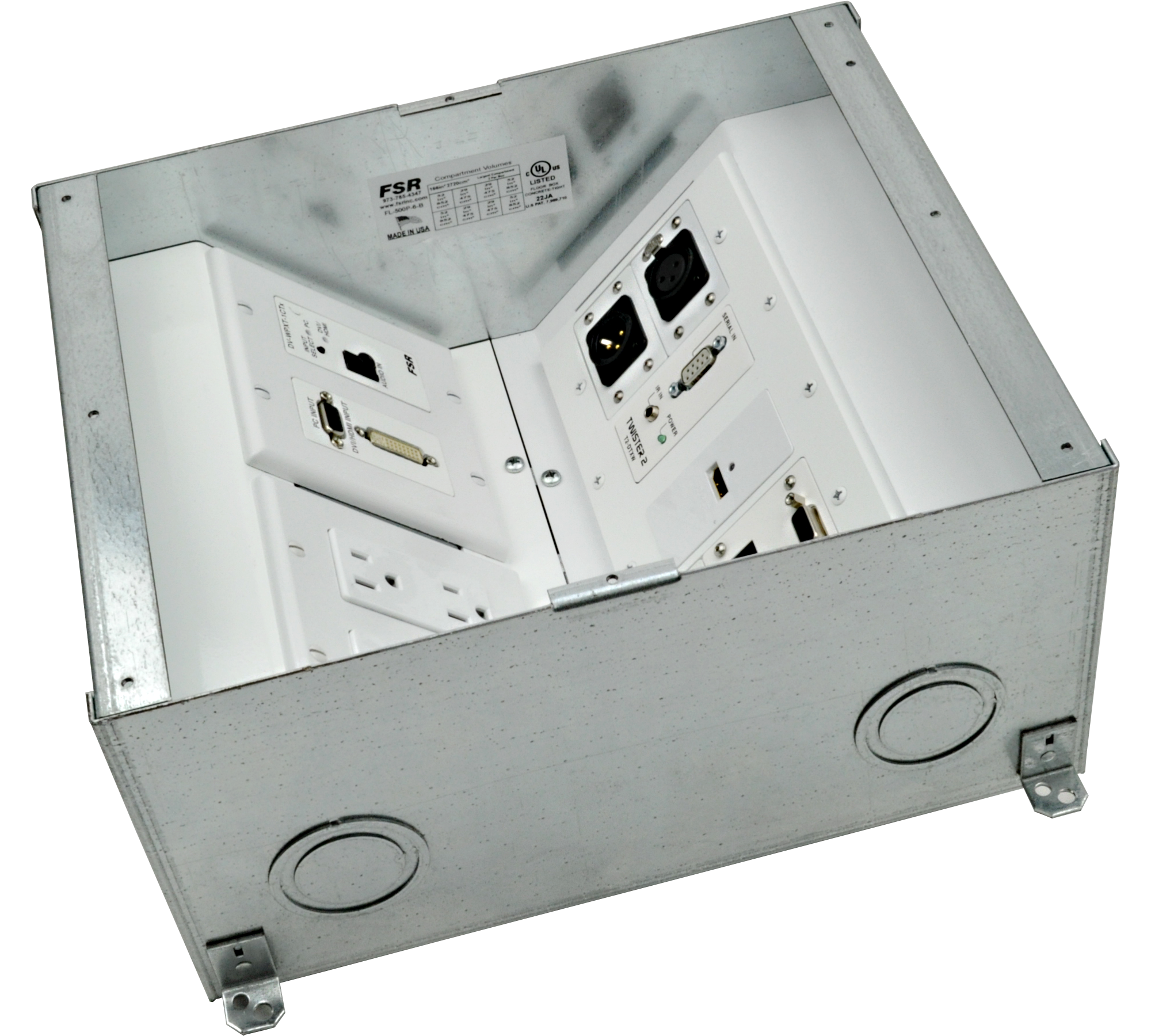

The innovation continues to the configurable
back box. The FL-500P's internal brackets can be arranged to provide numerous options for both high and low voltage standard gang openings making it the most flexible and easiest to install floor box available. The FL-500P floor box is designed to handle the rigors of a floor environment and still maintains flexibility and elegance.
The Floor Boxes are available in the following depths: 2.25, 3, 4, 6, 8, 10". The 2.25 and 3" depths have special gang configurations. Each floor box comes with a temporary construction cover. Boxes and covers are sold separately.
6, 8, 10"- U.S. PAT. 7,989,710
Notes: This floor box is not applicable for direct contact with grade (soil or gravel). For grade applications, use the FL-GRD2/4 pour pan as a foundation before box installation.
BAA Compliance
FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Buy America/ Build America Act (BABAA) compliant. Look for this logo on our website:
TAA Compliance
FSR floor box products meet TAA and BABAA requirements.
*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.
The FL-500-SF8-C accessory bracket shown below enables usage of a round cover with our FL-500 floor box.
KNOCKOUT SPECIFICATIONS
FL-500P-2.25" | QTY/BOX |
KO TRADE SIZE | |
1/2" / 3/4" CONCENTRIC | 12 |
FL-500P-3" | QTY/BOX |
KO TRADE SIZE | |
1/2" | 8 |
1.00"/ 1-1/4" CONCENTRIC | 4 |
FL-500P-4" | QTY/BOX |
KO TRADE SIZE | |
3/4" | 8 |
1.00" / 1-1/4" CONCENTRIC | 4 |
1.00" / 1-1/4" / 1-1/2" CONCENTRIC | 8 |
FL-500P-5" THRU 10" | QTY/BOX |
KO TRADE SIZE | |
3/4" | 8 |
1.00" / 1-1/4" / 1-1/2" CONCENTRIC | 12 |
Choose your Box Size and Cover from the drop down |

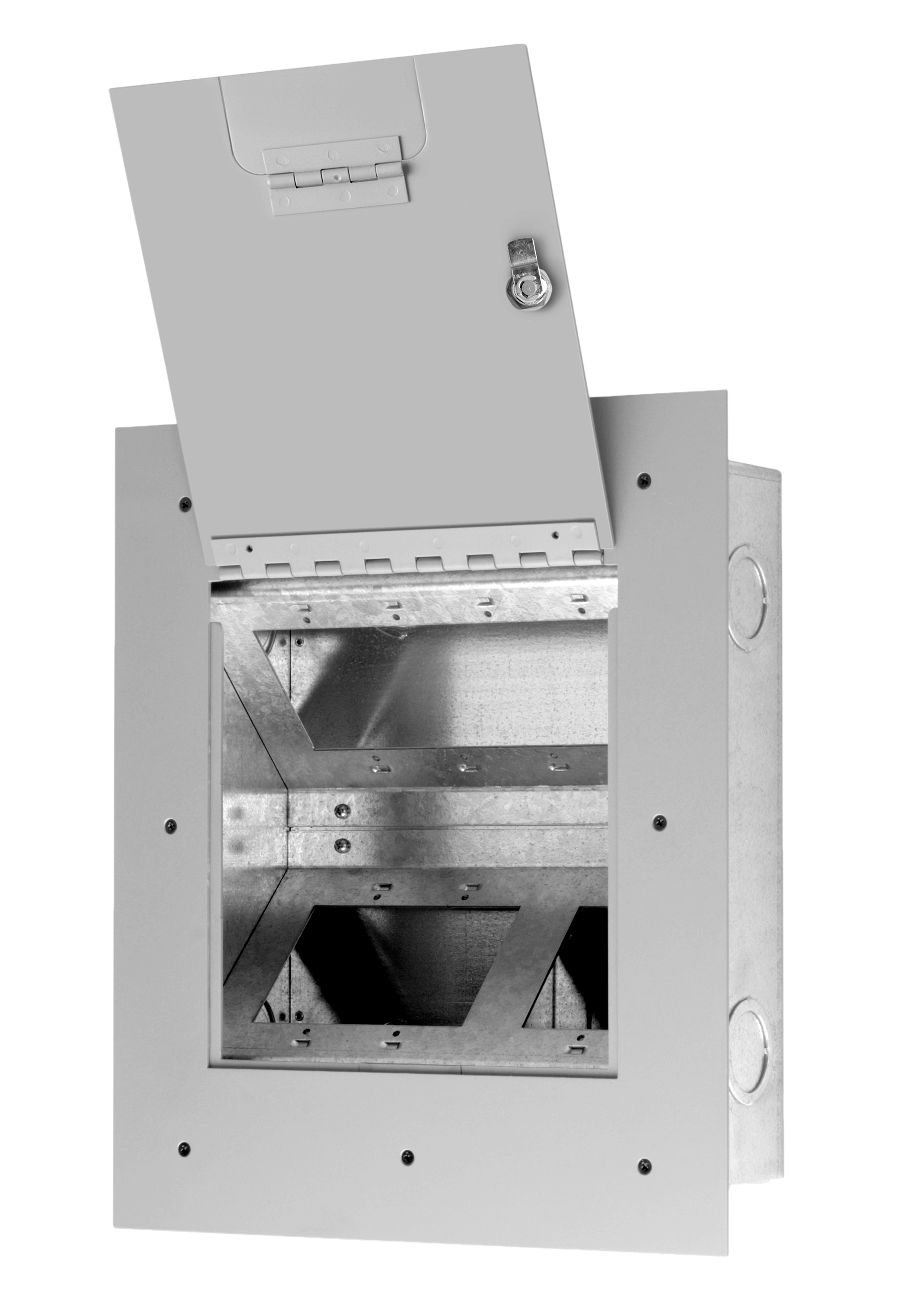

This high quality FL-500P cover has a hinged door in black sandtex with our unique hinged U-Access door.
The cable access door can be easily opened by lifting the integrated U-Access handle to quickly access the interior compartment, connectors, and cables.
• 11-gauge finished steel cover with choice of carpet edging
• Mitered brass or aluminum carpet edging .5” or .25” high
• Stainless steel compression latches
• Hinged U-Access door
Flanging: Height: .25” or .5”
There are a variety of covers to choose from. Options include integrated carpet edging, flat covers for non-carpeted, bare floor applications, and different finishes. The hinged cover allows full access to internal connector plates and stored cables. The hinged cable exit door flips back to allow the cover to remain in place after connections are made and cables are routed through it. The 0.25” and 0.5” raised edge style and solid covers are UL scrub water approved.
The FL-500P floor box is not only UL and CUL Listed but has also passed the latest UL test for scrub water. Because of FSR's unique engineering and manufacturing ability, FSR floor boxes pass for carpeted floors as well as tile and wood!
The hinged cover allows full access to internal connector plates and stored cables, and the smaller hinged cable access door flips back to create the cable exit. When the floor box is not in use, the cover is completely closed allowing unencumbered travel in the area with only the hand mitered, elegant carpet edge visible. The low profile edging is 1/4” or 1/2” high and is available in brass or aluminum.
BAA Compliance
FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Buy America/ Build America Act (BABAA) compliant. Look for this logo on our website:
TAA Compliance
FSR floor box products meet TAA and BABAA requirements.
*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.
Part # | Description |
---|---|
Hinged U-Access Covers - UL Scrub Water Rated for Tile and Carpet Installations | |
FL-500P-B-C | FL-500P Cover With 1/2" Brass Square Flange |
FL-500P-BLP-C | FL-500P Cover With 1/4" Brass Beveled Flange |
FL-500P-BSQ-C | FL-500P Cover With 1/4" Brass Square Flange |
FL-500P-S-C | FL-500P Cover With 1/2" Aluminum Square Flange |
FL-500P-SLP-C | FL-500P Hinged U-Access Cover With 1/4" Aluminum Beveled Flange |
FL-500P-SSQ-C | FL-500P Cover With 1/4" Aluminum Square Flange |
FL-500P-PLP-GRY-C | FL-500P Cover With 1/4" Painted Beveled Flange - Gray |
FL-500P-PLP-CLY-C | FL-500P Cover With 1/4" Painted Beveled Flange - Clay |
FL-500P-PLP-BLK-C | FL-500P Cover With 1/4" Painted Beveled Flange - Black |
Hinged U-Access Covers - UL Scrub Water Rated - No Carpet Trim** | |
FL-500P-SLD-ALM-C | FL-500P Solid Cover With Cable Exit (No Flange)- Aluminum **Shim kits may be required |
FL-500P-SLD-BLK-C | FL-500P Solid Cover With Cable Exit (No Flange)- Black **Shim kits may be required |
FL-500P-SLD-CLY-C | FL-500P Solid Cover With Cable Exit (No Flange)- Clay **Shim kits may be required |
FL-500P-SLD-GRY-C | FL-500P Solid Cover With Cable Exit (No Flange)- Gray **Shim kits may be required |
Covers | |
FL-500P-BLK-C | Cover (No Flange) With Hinged Door in Black Sandtex |
FL-500P-SS-C | Stainless Steel Cover (No Flange) With Hinged Door |
FL-500P-PTSLV-C | Painted Steel Cover (No Flange) With Hinged Door |
FL-500P-BRS-C | Brass Cover (No Flange) With Hinged Door |
15075 | |
Cover (No Flange) w/ Hinged Door in Black Sandtex *maximum permissible static load is 1,000 lbs* |
This high quality FL-500P Cover is flat painted silver with our unique hinged U-Access door.
The cable access door can be easily opened by lifting the integrated U-Access handle to quickly access the interior compartment, connectors, and cables.
• 11-gauge finished steel cover with choice of carpet edging
• Mitered brass or aluminum carpet edging .5” or .25” high
• Stainless steel compression latches
• Hinged U-Access door
Flanging: Height: .25” or .5”
There are a variety of covers to choose from. Options include integrated carpet edging, flat covers for non-carpeted, bare floor applications, and different finishes. The hinged cover allows full access to internal connector plates and stored cables. The hinged cable exit door flips back to allow the cover to remain in place after connections are made and cables are routed through it. The 0.25” and 0.5” raised edge style and solid covers are UL scrub water approved.
The FL-500P floor box is not only UL and CUL Listed but has also passed the latest UL test for scrub water. Because of FSR's unique engineering and manufacturing ability, FSR floor boxes pass for carpeted floors as well as tile and wood!
The hinged cover allows full access to internal connector plates and stored cables, and the smaller hinged cable access door flips back to create the cable exit. When the floor box is not in use, the cover is completely closed allowing unencumbered travel in the area with only the hand mitered, elegant carpet edge visible. The low profile edging is 1/4” or 1/2” high and is available in brass or aluminum.
BAA Compliance
FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Buy America/ Build America Act (BABAA) compliant. Look for this logo on our website:
TAA Compliance
FSR floor box products meet TAA and BABAA requirements.
*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.
Part # | Description |
---|---|
Hinged U-Access Covers - UL Scrub Water Rated for Tile and Carpet Installations | |
FL-500P-B-C | FL-500P Cover With 1/2" Brass Square Flange |
FL-500P-BLP-C | FL-500P Cover With 1/4" Brass Beveled Flange |
FL-500P-BSQ-C | FL-500P Cover With 1/4" Brass Square Flange |
FL-500P-S-C | FL-500P Cover With 1/2" Aluminum Square Flange |
FL-500P-SLP-C | FL-500P Hinged U-Access Cover With 1/4" Aluminum Beveled Flange |
FL-500P-SSQ-C | FL-500P Cover With 1/4" Aluminum Square Flange |
FL-500P-PLP-GRY-C | FL-500P Cover With 1/4" Painted Beveled Flange - Gray |
FL-500P-PLP-CLY-C | FL-500P Cover With 1/4" Painted Beveled Flange - Clay |
FL-500P-PLP-BLK-C | FL-500P Cover With 1/4" Painted Beveled Flange - Black |
Hinged U-Access Covers - UL Scrub Water Rated - No Carpet Trim** | |
FL-500P-SLD-ALM-C | FL-500P Solid Cover With Cable Exit (No Flange)- Aluminum **Shim kits may be required |
FL-500P-SLD-BLK-C | FL-500P Solid Cover With Cable Exit (No Flange)- Black **Shim kits may be required |
FL-500P-SLD-CLY-C | FL-500P Solid Cover With Cable Exit (No Flange)- Clay **Shim kits may be required |
FL-500P-SLD-GRY-C | FL-500P Solid Cover With Cable Exit (No Flange)- Gray **Shim kits may be required |
Covers | |
FL-500P-BLK-C | Cover (No Flange) With Hinged Door in Black Sandtex |
FL-500P-SS-C | Stainless Steel Cover (No Flange) With Hinged Door |
FL-500P-PTSLV-C | Painted Steel Cover (No Flange) With Hinged Door |
FL-500P-BRS-C | Brass Cover (No Flange) With Hinged Door |
18153 | |
Flat Painted Silver Cover |
This high quality FL-500P Cover is stainless steel with our unique hinged U-Access door.
The cable access door can be easily opened by lifting the integrated U-Access handle to quickly access the interior compartment, connectors, and cables.
• 11-gauge finished steel cover with choice of carpet edging
• Mitered brass or aluminum carpet edging .5” or .25” high
• Stainless steel compression latches
• Hinged U-Access door
Flanging: Height: .25” or .5”
There are a variety of covers to choose from. Options include integrated carpet edging, flat covers for non-carpeted, bare floor applications, and different finishes. The hinged cover allows full access to internal connector plates and stored cables. The hinged cable exit door flips back to allow the cover to remain in place after connections are made and cables are routed through it. The 0.25” and 0.5” raised edge style and solid covers are UL scrub water approved.
The FL-500P floor box is not only UL and CUL Listed but has also passed the latest UL test for scrub water. Because of FSR's unique engineering and manufacturing ability, FSR floor boxes pass for carpeted floors as well as tile and wood!
The hinged cover allows full access to internal connector plates and stored cables, and the smaller hinged cable access door flips back to create the cable exit. When the floor box is not in use, the cover is completely closed allowing unencumbered travel in the area with only the hand mitered, elegant carpet edge visible. The low profile edging is 1/4” or 1/2” high and is available in brass or aluminum.
BAA Compliance
FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Buy America/ Build America Act (BABAA) compliant. Look for this logo on our website:
TAA Compliance
FSR floor box products meet TAA and BABAA requirements.
*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.
Part # | Description |
---|---|
Hinged U-Access Covers - UL Scrub Water Rated for Tile and Carpet Installations | |
FL-500P-B-C | FL-500P Cover With 1/2" Brass Square Flange |
FL-500P-BLP-C | FL-500P Cover With 1/4" Brass Beveled Flange |
FL-500P-BSQ-C | FL-500P Cover With 1/4" Brass Square Flange |
FL-500P-S-C | FL-500P Cover With 1/2" Aluminum Square Flange |
FL-500P-SLP-C | FL-500P Hinged U-Access Cover With 1/4" Aluminum Beveled Flange |
FL-500P-SSQ-C | FL-500P Cover With 1/4" Aluminum Square Flange |
FL-500P-PLP-GRY-C | FL-500P Cover With 1/4" Painted Beveled Flange - Gray |
FL-500P-PLP-CLY-C | FL-500P Cover With 1/4" Painted Beveled Flange - Clay |
FL-500P-PLP-BLK-C | FL-500P Cover With 1/4" Painted Beveled Flange - Black |
Hinged U-Access Covers - UL Scrub Water Rated - No Carpet Trim** | |
FL-500P-SLD-ALM-C | FL-500P Solid Cover With Cable Exit (No Flange)- Aluminum **Shim kits may be required |
FL-500P-SLD-BLK-C | FL-500P Solid Cover With Cable Exit (No Flange)- Black **Shim kits may be required |
FL-500P-SLD-CLY-C | FL-500P Solid Cover With Cable Exit (No Flange)- Clay **Shim kits may be required |
FL-500P-SLD-GRY-C | FL-500P Solid Cover With Cable Exit (No Flange)- Gray **Shim kits may be required |
Covers | |
FL-500P-BLK-C | Cover (No Flange) With Hinged Door in Black Sandtex |
FL-500P-SS-C | Stainless Steel Cover (No Flange) With Hinged Door |
FL-500P-PTSLV-C | Painted Steel Cover (No Flange) With Hinged Door |
FL-500P-BRS-C | Brass Cover (No Flange) With Hinged Door |
15526 | |
Stainless Steel Cover (No Flange) w/ Hinged Door |
This high quality FL-500P Brass Cover has our unique hinged U-Access door.
The cable access door can be easily opened by lifting the integrated U-Access handle to quickly access the interior compartment, connectors, and cables.
• 11-gauge finished steel cover with choice of carpet edging
• Mitered brass or aluminum carpet edging .5” or .25” high
• Stainless steel compression latches
• Hinged U-Access door
Flanging: Height: .25” or .5”
There are a variety of covers to choose from. Options include integrated carpet edging, flat covers for non-carpeted, bare floor applications, and different finishes. The hinged cover allows full access to internal connector plates and stored cables. The hinged cable exit door flips back to allow the cover to remain in place after connections are made and cables are routed through it. The 0.25” and 0.5” raised edge style and solid covers are UL scrub water approved.
The FL-500P floor box is not only UL and CUL Listed but has also passed the latest UL test for scrub water. Because of FSR's unique engineering and manufacturing ability, FSR floor boxes pass for carpeted floors as well as tile and wood!
The hinged cover allows full access to internal connector plates and stored cables, and the smaller hinged cable access door flips back to create the cable exit. When the floor box is not in use, the cover is completely closed allowing unencumbered travel in the area with only the hand mitered, elegant carpet edge visible. The low profile edging is 1/4” or 1/2” high and is available in brass or aluminum.
BAA Compliance
FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Buy America/ Build America Act (BABAA) compliant. Look for this logo on our website:
TAA Compliance
FSR floor box products meet TAA and BABAA requirements.
*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.
Part # | Description |
---|---|
Hinged U-Access Covers - UL Scrub Water Rated for Tile and Carpet Installations | |
FL-500P-B-C | FL-500P Cover With 1/2" Brass Square Flange |
FL-500P-BLP-C | FL-500P Cover With 1/4" Brass Beveled Flange |
FL-500P-BSQ-C | FL-500P Cover With 1/4" Brass Square Flange |
FL-500P-S-C | FL-500P Cover With 1/2" Aluminum Square Flange |
FL-500P-SLP-C | FL-500P Hinged U-Access Cover With 1/4" Aluminum Beveled Flange |
FL-500P-SSQ-C | FL-500P Cover With 1/4" Aluminum Square Flange |
FL-500P-PLP-GRY-C | FL-500P Cover With 1/4" Painted Beveled Flange - Gray |
FL-500P-PLP-CLY-C | FL-500P Cover With 1/4" Painted Beveled Flange - Clay |
FL-500P-PLP-BLK-C | FL-500P Cover With 1/4" Painted Beveled Flange - Black |
Hinged U-Access Covers - UL Scrub Water Rated - No Carpet Trim** | |
FL-500P-SLD-ALM-C | FL-500P Solid Cover With Cable Exit (No Flange)- Aluminum **Shim kits may be required |
FL-500P-SLD-BLK-C | FL-500P Solid Cover With Cable Exit (No Flange)- Black **Shim kits may be required |
FL-500P-SLD-CLY-C | FL-500P Solid Cover With Cable Exit (No Flange)- Clay **Shim kits may be required |
FL-500P-SLD-GRY-C | FL-500P Solid Cover With Cable Exit (No Flange)- Gray **Shim kits may be required |
Covers | |
FL-500P-BLK-C | Cover (No Flange) With Hinged Door in Black Sandtex |
FL-500P-SS-C | Stainless Steel Cover (No Flange) With Hinged Door |
FL-500P-PTSLV-C | Painted Steel Cover (No Flange) With Hinged Door |
FL-500P-BRS-C | Brass Cover (No Flange) With Hinged Door |
16221 | |
FL-500P Cover Flat- Brass |
This high quality FL-500P Cover has a 1/4" Brass Carpet Flange with our unique hinged U-Access door.
The cable access door can be easily removed by lifting the integrated U-Access handle to quickly access the interior compartment, connectors, and cables.
• 11-gauge finished steel cover with choice of carpet edging
• Mitered brass or aluminum carpet edging .5” or .25” high
• Stainless steel compression latches
• Hinged U-Access door
Flanging: Height: .25” or .5”
There are a variety of covers to choose from. Options include integrated carpet edging, flat covers for non-carpeted, bare floor applications, and different finishes. The hinged cover allows full access to internal connector plates and stored cables. The hinged cable exit door flips back to allow the cover to remain in place after connections are made and cables are routed through it. The 0.25” and 0.5” raised edge style and solid covers are UL scrub water approved.
The FL-500P floor box is not only UL and CUL Listed but has also passed the latest UL test for scrub water. Because of FSR's unique engineering and manufacturing ability, FSR floor boxes pass for carpeted floors as well as tile and wood!
The hinged cover allows full access to internal connector plates and stored cables, and the smaller hinged cable access door flips back to create the cable exit. When the floor box is not in use, the cover is completely closed allowing unencumbered travel in the area with only the hand mitered, elegant carpet edge visible. The low profile edging is 1/4” or 1/2” high and is available in brass or aluminum.
BAA Compliance
FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Buy America/ Build America Act (BABAA) compliant. Look for this logo on our website:
TAA Compliance
FSR floor box products meet TAA and BABAA requirements.
*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.
Part # | Description |
---|---|
Hinged U-Access Covers - UL Scrub Water Rated for Tile and Carpet Installations | |
FL-500P-B-C | FL-500P Cover With 1/2" Brass Square Flange |
FL-500P-BLP-C | FL-500P Cover With 1/4" Brass Beveled Flange |
FL-500P-BSQ-C | FL-500P Cover With 1/4" Brass Square Flange |
FL-500P-S-C | FL-500P Cover With 1/2" Aluminum Square Flange |
FL-500P-SLP-C | FL-500P Cover With 1/4" Aluminum Beveled Flange |
FL-500P-SSQ-C | FL-500P Cover With 1/4" Aluminum Square Flange |
FL-500P-PLP-GRY-C | FL-500P Cover With 1/4" Painted Beveled Flange - Gray |
FL-500P-PLP-CLY-C | FL-500P Cover With 1/4" Painted Beveled Flange - Clay |
FL-500P-PLP-BLK-C | FL-500P Cover With 1/4" Painted Beveled Flange - Black |
Hinged U-Access Covers - UL Scrub Water Rated - No Carpet Trim** | |
FL-500P-SLD-ALM-C | FL-500P Solid Cover With Cable Exit (No Flange)- Aluminum **Shim kits may be required |
FL-500P-SLD-BLK-C | FL-500P Solid Cover With Cable Exit (No Flange)- Black **Shim kits may be required |
FL-500P-SLD-CLY-C | FL-500P Solid Cover With Cable Exit (No Flange)- Clay **Shim kits may be required |
FL-500P-SLD-GRY-C | FL-500P Solid Cover With Cable Exit (No Flange)- Gray **Shim kits may be required |
Covers | |
FL-500P-BLK-C | Cover (No Flange) With Hinged Door in Black Sandtex |
FL-500P-SS-C | Stainless Steel Cover (No Flange) With Hinged Door |
FL-500P-PTSLV-C | Painted Steel Cover (No Flange) With Hinged Door |
FL-500P-BRS-C | Brass Cover (No Flange) With Hinged Door |
18442 | |
FL-500P Hinged Cover w/ 1/4" Brass Carpet Flange |
This high quality FL-500P Cover has a 1/2" Brass Carpet Flange with our unique hinged U-Access door.
The cable access door can be easily removed by lifting the integrated U-Access handle to quickly access the interior compartment, connectors, and cables.
• 11-gauge finished steel cover with choice of carpet edging
• Mitered brass or aluminum carpet edging .5” or .25” high
• Stainless steel compression latches
• Hinged U-Access door
Flanging: Height: .25” or .5”
There are a variety of covers to choose from. Options include integrated carpet edging, flat covers for non-carpeted, bare floor applications, and different finishes. The hinged cover allows full access to internal connector plates and stored cables. The hinged cable exit door flips back to allow the cover to remain in place after connections are made and cables are routed through it. The 0.25” and 0.5” raised edge style and solid covers are UL scrub water approved.
The FL-500P floor box is not only UL and CUL Listed but has also passed the latest UL test for scrub water. Because of FSR's unique engineering and manufacturing ability, FSR floor boxes pass for carpeted floors as well as tile and wood!
The hinged cover allows full access to internal connector plates and stored cables, and the smaller hinged cable access door flips back to create the cable exit. When the floor box is not in use, the cover is completely closed allowing unencumbered travel in the area with only the hand mitered, elegant carpet edge visible. The low profile edging is 1/4” or 1/2” high and is available in brass or aluminum.
BAA Compliance
FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Buy America/ Build America Act (BABAA) compliant. Look for this logo on our website:
TAA Compliance
FSR floor box products meet TAA and BABAA requirements.
*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.
Part # | Description |
---|---|
Hinged U-Access Covers - UL Scrub Water Rated for Tile and Carpet Installations | |
FL-500P-B-C | FL-500P Cover With 1/2" Brass Square Flange |
FL-500P-BLP-C | FL-500P Cover With 1/4" Brass Beveled Flange |
FL-500P-BSQ-C | FL-500P Cover With 1/4" Brass Square Flange |
FL-500P-S-C | FL-500P Cover With 1/2" Aluminum Square Flange |
FL-500P-SLP-C | FL-500P Cover With 1/4" Aluminum Beveled Flange |
FL-500P-SSQ-C | FL-500P Cover With 1/4" Aluminum Square Flange |
FL-500P-PLP-GRY-C | FL-500P Cover With 1/4" Painted Beveled Flange - Gray |
FL-500P-PLP-CLY-C | FL-500P Cover With 1/4" Painted Beveled Flange - Clay |
FL-500P-PLP-BLK-C | FL-500P Cover With 1/4" Painted Beveled Flange - Black |
Hinged U-Access Covers - UL Scrub Water Rated - No Carpet Trim** | |
FL-500P-SLD-ALM-C | FL-500P Solid Cover With Cable Exit (No Flange)- Aluminum **Shim kits may be required |
FL-500P-SLD-BLK-C | FL-500P Solid Cover With Cable Exit (No Flange)- Black **Shim kits may be required |
FL-500P-SLD-CLY-C | FL-500P Solid Cover With Cable Exit (No Flange)- Clay **Shim kits may be required |
FL-500P-SLD-GRY-C | FL-500P Solid Cover With Cable Exit (No Flange)- Gray **Shim kits may be required |
Covers | |
FL-500P-BLK-C | Cover (No Flange) With Hinged Door in Black Sandtex |
FL-500P-SS-C | Stainless Steel Cover (No Flange) With Hinged Door |
FL-500P-PTSLV-C | Painted Steel Cover (No Flange) With Hinged Door |
FL-500P-BRS-C | Brass Cover (No Flange) With Hinged Door |
18444 | |
FL-500P Hinged Cover w/ 1/2" Brass Carpet Flange |
This high quality FL-500P Cover has a 1/2" Aluminum Carpet Flange with our unique hinged U-Access door.
The cable access door can be easily removed by lifting the integrated U-Access handle to quickly access the interior compartment, connectors, and cables.
• 11-gauge finished steel cover with choice of carpet edging
• Mitered brass or aluminum carpet edging .5” or .25” high
• Stainless steel compression latches
• Hinged U-Access door
Flanging: Height: .25” or .5”
There are a variety of covers to choose from. Options include integrated carpet edging, flat covers for non-carpeted, bare floor applications, and different finishes. The hinged cover allows full access to internal connector plates and stored cables. The hinged cable exit door flips back to allow the cover to remain in place after connections are made and cables are routed through it. The 0.25” and 0.5” raised edge style and solid covers are UL scrub water approved.
The FL-500P floor box is not only UL and CUL Listed but has also passed the latest UL test for scrub water. Because of FSR's unique engineering and manufacturing ability, FSR floor boxes pass for carpeted floors as well as tile and wood!
The hinged cover allows full access to internal connector plates and stored cables, and the smaller hinged cable access door flips back to create the cable exit. When the floor box is not in use, the cover is completely closed allowing unencumbered travel in the area with only the hand mitered, elegant carpet edge visible. The low profile edging is 1/4” or 1/2” high and is available in brass or aluminum.
BAA Compliance
FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Buy America/ Build America Act (BABAA) compliant. Look for this logo on our website:
TAA Compliance
FSR floor box products meet TAA and BABAA requirements.
*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.
Part # | Description |
---|---|
Hinged U-Access Covers - UL Scrub Water Rated for Tile and Carpet Installations | |
FL-500P-B-C | FL-500P Cover With 1/2" Brass Square Flange |
FL-500P-BLP-C | FL-500P Cover With 1/4" Brass Beveled Flange |
FL-500P-BSQ-C | FL-500P Cover With 1/4" Brass Square Flange |
FL-500P-S-C | FL-500P Cover With 1/2" Aluminum Square Flange |
FL-500P-SLP-C | FL-500P Cover With 1/4" Aluminum Beveled Flange |
FL-500P-SSQ-C | FL-500P Cover With 1/4" Aluminum Square Flange |
FL-500P-PLP-GRY-C | FL-500P Cover With 1/4" Painted Beveled Flange - Gray |
FL-500P-PLP-CLY-C | FL-500P Cover With 1/4" Painted Beveled Flange - Clay |
FL-500P-PLP-BLK-C | FL-500P Cover With 1/4" Painted Beveled Flange - Black |
Hinged U-Access Covers - UL Scrub Water Rated - No Carpet Trim** | |
FL-500P-SLD-ALM-C | FL-500P Solid Cover With Cable Exit (No Flange)- Aluminum **Shim kits may be required |
FL-500P-SLD-BLK-C | FL-500P Solid Cover With Cable Exit (No Flange)- Black **Shim kits may be required |
FL-500P-SLD-CLY-C | FL-500P Solid Cover With Cable Exit (No Flange)- Clay **Shim kits may be required |
FL-500P-SLD-GRY-C | FL-500P Solid Cover With Cable Exit (No Flange)- Gray **Shim kits may be required |
Covers | |
FL-500P-BLK-C | Cover (No Flange) With Hinged Door in Black Sandtex |
FL-500P-SS-C | Stainless Steel Cover (No Flange) With Hinged Door |
FL-500P-PTSLV-C | Painted Steel Cover (No Flange) With Hinged Door |
FL-500P-BRS-C | Brass Cover (No Flange) With Hinged Door |
18446 | |
FL-500P Hinged Cover w/ 1/2" Aluminum Carpet Flange |
This high quality FL-500P Cover has a 1/4" Aluminum Carpet Flange with our unique hinged U-Access door.
The cable access door can be easily opened by lifting the integrated U-Access handle to quickly access the interior compartment, connectors, and cables.
• 11-gauge finished steel cover with choice of carpet edging
• Mitered brass or aluminum carpet edging .5” or .25” high
• Stainless steel compression latches
• Hinged U-Access door
Flanging: Height: .25” or .5”
There are a variety of covers to choose from. Options include integrated carpet edging, flat covers for non-carpeted, bare floor applications, and different finishes. The hinged cover allows full access to internal connector plates and stored cables. The hinged cable exit door flips back to allow the cover to remain in place after connections are made and cables are routed through it. The 0.25” and 0.5” raised edge style and solid covers are UL scrub water approved.
The FL-500P floor box is not only UL and CUL Listed but has also passed the latest UL test for scrub water. Because of FSR's unique engineering and manufacturing ability, FSR floor boxes pass for carpeted floors as well as tile and wood!
The hinged cover allows full access to internal connector plates and stored cables, and the smaller hinged cable access door flips back to create the cable exit. When the floor box is not in use, the cover is completely closed allowing unencumbered travel in the area with only the hand mitered, elegant carpet edge visible. The low profile edging is 1/4” or 1/2” high and is available in brass or aluminum.
BAA Compliance
FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Buy America/ Build America Act (BABAA) compliant. Look for this logo on our website:
TAA Compliance
FSR floor box products meet TAA and BABAA requirements.
*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.
Part # | Description |
---|---|
Hinged U-Access Covers - UL Scrub Water Rated for Tile and Carpet Installations | |
FL-500P-B-C | FL-500P Cover With 1/2" Brass Square Flange |
FL-500P-BLP-C | FL-500P Cover With 1/4" Brass Beveled Flange |
FL-500P-BSQ-C | FL-500P Cover With 1/4" Brass Square Flange |
FL-500P-S-C | FL-500P Cover With 1/2" Aluminum Square Flange |
FL-500P-SLP-C | FL-500P Hinged U-Access Cover With 1/4" Aluminum Beveled Flange |
FL-500P-SSQ-C | FL-500P Cover With 1/4" Aluminum Square Flange |
FL-500P-PLP-GRY-C | FL-500P Cover With 1/4" Painted Beveled Flange - Gray |
FL-500P-PLP-CLY-C | FL-500P Cover With 1/4" Painted Beveled Flange - Clay |
FL-500P-PLP-BLK-C | FL-500P Cover With 1/4" Painted Beveled Flange - Black |
Hinged U-Access Covers - UL Scrub Water Rated - No Carpet Trim** | |
FL-500P-SLD-ALM-C | FL-500P Solid Cover With Cable Exit (No Flange)- Aluminum **Shim kits may be required |
FL-500P-SLD-BLK-C | FL-500P Solid Cover With Cable Exit (No Flange)- Black **Shim kits may be required |
FL-500P-SLD-CLY-C | FL-500P Solid Cover With Cable Exit (No Flange)- Clay **Shim kits may be required |
FL-500P-SLD-GRY-C | FL-500P Solid Cover With Cable Exit (No Flange)- Gray **Shim kits may be required |
Covers | |
FL-500P-BLK-C | Cover (No Flange) With Hinged Door in Black Sandtex |
FL-500P-SS-C | Stainless Steel Cover (No Flange) With Hinged Door |
FL-500P-PTSLV-C | Painted Steel Cover (No Flange) With Hinged Door |
FL-500P-BRS-C | Brass Cover (No Flange) With Hinged Door |
18353 | |
FL-500P Hinged U-Access Cover w/ 1/4" Aluminum Carpet Flange |
This high quality FL-500P Cover has a 1/4" Painted Gray Carpet Flange with our unique hinged U-Access door.
The cable access door can be easily opened by lifting the integrated U-Access handle to quickly access the interior compartment, connectors, and cables.
• 11-gauge finished steel cover with choice of carpet edging
• Mitered brass or aluminum carpet edging .5” or .25” high
• Stainless steel compression latches
• Hinged U-Access door
Flanging: Height: .25” or .5”
There are a variety of covers to choose from. Options include integrated carpet edging, flat covers for non-carpeted, bare floor applications, and different finishes. The hinged cover allows full access to internal connector plates and stored cables. The hinged cable exit door flips back to allow the cover to remain in place after connections are made and cables are routed through it. The 0.25” and 0.5” raised edge style and solid covers are UL scrub water approved.
The FL-500P floor box is not only UL and CUL Listed but has also passed the latest UL test for scrub water. Because of FSR's unique engineering and manufacturing ability, FSR floor boxes pass for carpeted floors as well as tile and wood!
The hinged cover allows full access to internal connector plates and stored cables, and the smaller hinged cable access door flips back to create the cable exit. When the floor box is not in use, the cover is completely closed allowing unencumbered travel in the area with only the hand mitered, elegant carpet edge visible. The low profile edging is 1/4” or 1/2” high and is available in brass or aluminum.
BAA Compliance
FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Buy America/ Build America Act (BABAA) compliant. Look for this logo on our website:
TAA Compliance
FSR floor box products meet TAA and BABAA requirements.
*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.
Part # | Description |
---|---|
Hinged U-Access Covers - UL Scrub Water Rated for Tile and Carpet Installations | |
FL-500P-B-C | FL-500P Cover With 1/2" Brass Square Flange |
FL-500P-BLP-C | FL-500P Cover With 1/4" Brass Beveled Flange |
FL-500P-BSQ-C | FL-500P Cover With 1/4" Brass Square Flange |
FL-500P-S-C | FL-500P Cover With 1/2" Aluminum Square Flange |
FL-500P-SLP-C | FL-500P Hinged U-Access Cover With 1/4" Aluminum Beveled Flange |
FL-500P-SSQ-C | FL-500P Cover With 1/4" Aluminum Square Flange |
FL-500P-PLP-GRY-C | FL-500P Cover With 1/4" Painted Beveled Flange - Gray |
FL-500P-PLP-CLY-C | FL-500P Cover With 1/4" Painted Beveled Flange - Clay |
FL-500P-PLP-BLK-C | FL-500P Cover With 1/4" Painted Beveled Flange - Black |
Hinged U-Access Covers - UL Scrub Water Rated - No Carpet Trim** | |
FL-500P-SLD-ALM-C | FL-500P Solid Cover With Cable Exit (No Flange)- Aluminum **Shim kits may be required |
FL-500P-SLD-BLK-C | FL-500P Solid Cover With Cable Exit (No Flange)- Black **Shim kits may be required |
FL-500P-SLD-CLY-C | FL-500P Solid Cover With Cable Exit (No Flange)- Clay **Shim kits may be required |
FL-500P-SLD-GRY-C | FL-500P Solid Cover With Cable Exit (No Flange)- Gray **Shim kits may be required |
Covers | |
FL-500P-BLK-C | Cover (No Flange) With Hinged Door in Black Sandtex |
FL-500P-SS-C | Stainless Steel Cover (No Flange) With Hinged Door |
FL-500P-PTSLV-C | Painted Steel Cover (No Flange) With Hinged Door |
FL-500P-BRS-C | Brass Cover (No Flange) With Hinged Door |
18449 | |
FL-500P Hinged Cover w/ 1/4" Painted Carpet Flange- Gray |
*Limited Stock*
This high quality FL-500P Cover has a 1/4" Painted Clay Carpet Flange with our hinged U-Access door.
The cable access door can be easily opened by lifting the integrated U-Access handle to quickly access the interior compartment, connectors, and cables.
• 11-gauge finished steel cover with choice of carpet edging
• Mitered brass or aluminum carpet edging .5” or .25” high
• Stainless steel compression latches
• Hinged U-Access door
Flanging: Height: .25” or .5”
There are a variety of covers to choose from. Options include integrated carpet edging, flat covers for non-carpeted, bare floor applications, and different finishes. The hinged cover allows full access to internal connector plates and stored cables. The hinged cable exit door flips back to allow the cover to remain in place after connections are made and cables are routed through it. The 0.25” and 0.5” raised edge style and solid covers are UL scrub water approved.
The FL-500P floor box is not only UL and CUL Listed but has also passed the latest UL test for scrub water. Because of FSR's unique engineering and manufacturing ability, FSR floor boxes pass for carpeted floors as well as tile and wood!
The hinged cover allows full access to internal connector plates and stored cables, and the smaller hinged cable access door flips back to create the cable exit. When the floor box is not in use, the cover is completely closed allowing unencumbered travel in the area with only the hand mitered, elegant carpet edge visible. The low profile edging is 1/4” or 1/2” high and is available in brass or aluminum.
BAA Compliance
FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Buy America/ Build America Act (BABAA) compliant. Look for this logo on our website:
TAA Compliance
FSR floor box products meet TAA and BABAA requirements.
*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.
Part # | Description |
---|---|
Hinged U-Access Covers - UL Scrub Water Rated for Tile and Carpet Installations | |
FL-500P-B-C | FL-500P Cover With 1/2" Brass Square Flange |
FL-500P-BLP-C | FL-500P Cover With 1/4" Brass Beveled Flange |
FL-500P-BSQ-C | FL-500P Cover With 1/4" Brass Square Flange |
FL-500P-S-C | FL-500P Cover With 1/2" Aluminum Square Flange |
FL-500P-SLP-C | FL-500P Hinged U-Access Cover With 1/4" Aluminum Beveled Flange |
FL-500P-SSQ-C | FL-500P Cover With 1/4" Aluminum Square Flange |
FL-500P-PLP-GRY-C | FL-500P Cover With 1/4" Painted Beveled Flange - Gray |
FL-500P-PLP-CLY-C | FL-500P Cover With 1/4" Painted Beveled Flange - Clay |
FL-500P-PLP-BLK-C | FL-500P Cover With 1/4" Painted Beveled Flange - Black |
Hinged U-Access Covers - UL Scrub Water Rated - No Carpet Trim** | |
FL-500P-SLD-ALM-C | FL-500P Solid Cover With Cable Exit (No Flange)- Aluminum **Shim kits may be required |
FL-500P-SLD-BLK-C | FL-500P Solid Cover With Cable Exit (No Flange)- Black **Shim kits may be required |
FL-500P-SLD-CLY-C | FL-500P Solid Cover With Cable Exit (No Flange)- Clay **Shim kits may be required |
FL-500P-SLD-GRY-C | FL-500P Solid Cover With Cable Exit (No Flange)- Gray **Shim kits may be required |
Covers | |
FL-500P-BLK-C | Cover (No Flange) With Hinged Door in Black Sandtex |
FL-500P-SS-C | Stainless Steel Cover (No Flange) With Hinged Door |
FL-500P-PTSLV-C | Painted Steel Cover (No Flange) With Hinged Door |
FL-500P-BRS-C | Brass Cover (No Flange) With Hinged Door |
17553 | |
FL-500P Cover w/ 1/4"Painted Carpet Flange- Clay |
This high quality FL-500P Cover has a 1/4" Painted Black Carpet Flange with our unique hinged U-Access door.
The cable access door can be easily opened by lifting the integrated U-Access handle to quickly access the interior compartment, connectors, and cables.
• 11-gauge finished steel cover with choice of carpet edging
• Mitered brass or aluminum carpet edging .5” or .25” high
• Stainless steel compression latches
• Hinged U-Access door
Flanging: Height: .25” or .5”
There are a variety of covers to choose from. Options include integrated carpet edging, flat covers for non-carpeted, bare floor applications, and different finishes. The hinged cover allows full access to internal connector plates and stored cables. The hinged cable exit door flips back to allow the cover to remain in place after connections are made and cables are routed through it. The 0.25” and 0.5” raised edge style and solid covers are UL scrub water approved.
The FL-500P floor box is not only UL and CUL Listed but has also passed the latest UL test for scrub water. Because of FSR's unique engineering and manufacturing ability, FSR floor boxes pass for carpeted floors as well as tile and wood!
The hinged cover allows full access to internal connector plates and stored cables, and the smaller hinged cable access door flips back to create the cable exit. When the floor box is not in use, the cover is completely closed allowing unencumbered travel in the area with only the hand mitered, elegant carpet edge visible. The low profile edging is 1/4” or 1/2” high and is available in brass or aluminum.
BAA Compliance
FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Buy America/ Build America Act (BABAA) compliant. Look for this logo on our website:
TAA Compliance
FSR floor box products meet TAA and BABAA requirements.
*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.
Part # | Description |
---|---|
Hinged U-Access Covers - UL Scrub Water Rated for Tile and Carpet Installations | |
FL-500P-B-C | FL-500P Cover With 1/2" Brass Square Flange |
FL-500P-BLP-C | FL-500P Cover With 1/4" Brass Beveled Flange |
FL-500P-BSQ-C | FL-500P Cover With 1/4" Brass Square Flange |
FL-500P-S-C | FL-500P Cover With 1/2" Aluminum Square Flange |
FL-500P-SLP-C | FL-500P Hinged U-Access Cover With 1/4" Aluminum Beveled Flange |
FL-500P-SSQ-C | FL-500P Cover With 1/4" Aluminum Square Flange |
FL-500P-PLP-GRY-C | FL-500P Cover With 1/4" Painted Beveled Flange - Gray |
FL-500P-PLP-CLY-C | FL-500P Cover With 1/4" Painted Beveled Flange - Clay |
FL-500P-PLP-BLK-C | FL-500P Cover With 1/4" Painted Beveled Flange - Black |
Hinged U-Access Covers - UL Scrub Water Rated - No Carpet Trim** | |
FL-500P-SLD-ALM-C | FL-500P Solid Cover With Cable Exit (No Flange)- Aluminum **Shim kits may be required |
FL-500P-SLD-BLK-C | FL-500P Solid Cover With Cable Exit (No Flange)- Black **Shim kits may be required |
FL-500P-SLD-CLY-C | FL-500P Solid Cover With Cable Exit (No Flange)- Clay **Shim kits may be required |
FL-500P-SLD-GRY-C | FL-500P Solid Cover With Cable Exit (No Flange)- Gray **Shim kits may be required |
Covers | |
FL-500P-BLK-C | Cover (No Flange) With Hinged Door in Black Sandtex |
FL-500P-SS-C | Stainless Steel Cover (No Flange) With Hinged Door |
FL-500P-PTSLV-C | Painted Steel Cover (No Flange) With Hinged Door |
FL-500P-BRS-C | Brass Cover (No Flange) With Hinged Door |
18447 | |
FL-500P Cover with 1/4" Painted Carpet Flange- Black |
This high quality FL-500P Cover is an Aluminum Solid Cover with our unique hinged U-Access door.
The cable access door can be easily opened by lifting the integrated U-Access handle to quickly access the interior compartment, connectors, and cables.
• 11-gauge finished steel cover with choice of carpet edging
• Mitered brass or aluminum carpet edging .5” or .25” high
• Stainless steel compression latches
• Hinged U-Access door
Flanging: Height: .25” or .5”
There are a variety of covers to choose from. Options include integrated carpet edging, flat covers for non-carpeted, bare floor applications, and different finishes. The hinged cover allows full access to internal connector plates and stored cables. The hinged cable exit door flips back to allow the cover to remain in place after connections are made and cables are routed through it. The 0.25” and 0.5” raised edge style and solid covers are UL scrub water approved.
The FL-500P floor box is not only UL and CUL Listed but has also passed the latest UL test for scrub water. Because of FSR's unique engineering and manufacturing ability, FSR floor boxes pass for carpeted floors as well as tile and wood!
The hinged cover allows full access to internal connector plates and stored cables, and the smaller hinged cable access door flips back to create the cable exit. When the floor box is not in use, the cover is completely closed allowing unencumbered travel in the area with only the hand mitered, elegant carpet edge visible. The low profile edging is 1/4” or 1/2” high and is available in brass or aluminum.
BAA Compliance
FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Buy America/ Build America Act (BABAA) compliant. Look for this logo on our website:
TAA Compliance
FSR floor box products meet TAA and BABAA requirements.
*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.
Part # | Description |
---|---|
Hinged U-Access Covers - UL Scrub Water Rated for Tile and Carpet Installations | |
FL-500P-B-C | FL-500P Cover With 1/2" Brass Square Flange |
FL-500P-BLP-C | FL-500P Cover With 1/4" Brass Beveled Flange |
FL-500P-BSQ-C | FL-500P Cover With 1/4" Brass Square Flange |
FL-500P-S-C | FL-500P Cover With 1/2" Aluminum Square Flange |
FL-500P-SLP-C | FL-500P Hinged U-Access Cover With 1/4" Aluminum Beveled Flange |
FL-500P-SSQ-C | FL-500P Cover With 1/4" Aluminum Square Flange |
FL-500P-PLP-GRY-C | FL-500P Cover With 1/4" Painted Beveled Flange - Gray |
FL-500P-PLP-CLY-C | FL-500P Cover With 1/4" Painted Beveled Flange - Clay |
FL-500P-PLP-BLK-C | FL-500P Cover With 1/4" Painted Beveled Flange - Black |
Hinged U-Access Covers - UL Scrub Water Rated - No Carpet Trim** | |
FL-500P-SLD-ALM-C | FL-500P Solid Cover With Cable Exit (No Flange)- Aluminum **Shim kits may be required |
FL-500P-SLD-BLK-C | FL-500P Solid Cover With Cable Exit (No Flange)- Black **Shim kits may be required |
FL-500P-SLD-CLY-C | FL-500P Solid Cover With Cable Exit (No Flange)- Clay **Shim kits may be required |
FL-500P-SLD-GRY-C | FL-500P Solid Cover With Cable Exit (No Flange)- Gray **Shim kits may be required |
Covers | |
FL-500P-BLK-C | Cover (No Flange) With Hinged Door in Black Sandtex |
FL-500P-SS-C | Stainless Steel Cover (No Flange) With Hinged Door |
FL-500P-PTSLV-C | Painted Steel Cover (No Flange) With Hinged Door |
FL-500P-BRS-C | Brass Cover (No Flange) With Hinged Door |
18450 | |
FL-500P Solid Hinged Cover w/ Cable Exit (No Trim) - Aluminum |
This high quality FL-500P Cover is a Black Solid Cover with our unique hinged U-Access door.
The cable access door can be easily opened by lifting the integrated U-Access handle to quickly access the interior compartment, connectors, and cables.
• 11-gauge finished steel cover with choice of carpet edging
• Mitered brass or aluminum carpet edging .5” or .25” high
• Stainless steel compression latches
• Hinged U-Access door
Flanging: Height: .25” or .5”
There are a variety of covers to choose from. Options include integrated carpet edging, flat covers for non-carpeted, bare floor applications, and different finishes. The hinged cover allows full access to internal connector plates and stored cables. The hinged cable exit door flips back to allow the cover to remain in place after connections are made and cables are routed through it. The 0.25” and 0.5” raised edge style and solid covers are UL scrub water approved.
The FL-500P floor box is not only UL and CUL Listed but has also passed the latest UL test for scrub water. Because of FSR's unique engineering and manufacturing ability, FSR floor boxes pass for carpeted floors as well as tile and wood!
The hinged cover allows full access to internal connector plates and stored cables, and the smaller hinged cable access door flips back to create the cable exit. When the floor box is not in use, the cover is completely closed allowing unencumbered travel in the area with only the hand mitered, elegant carpet edge visible. The low profile edging is 1/4” or 1/2” high and is available in brass or aluminum.
BAA Compliance
FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Buy America/ Build America Act (BABAA) compliant. Look for this logo on our website:
TAA Compliance
FSR floor box products meet TAA and BABAA requirements.
*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.
Part # | Description |
---|---|
Hinged U-Access Covers - UL Scrub Water Rated for Tile and Carpet Installations | |
FL-500P-B-C | FL-500P Cover With 1/2" Brass Square Flange |
FL-500P-BLP-C | FL-500P Cover With 1/4" Brass Beveled Flange |
FL-500P-BSQ-C | FL-500P Cover With 1/4" Brass Square Flange |
FL-500P-S-C | FL-500P Cover With 1/2" Aluminum Square Flange |
FL-500P-SLP-C | FL-500P Hinged U-Access Cover With 1/4" Aluminum Beveled Flange |
FL-500P-SSQ-C | FL-500P Cover With 1/4" Aluminum Square Flange |
FL-500P-PLP-GRY-C | FL-500P Cover With 1/4" Painted Beveled Flange - Gray |
FL-500P-PLP-CLY-C | FL-500P Cover With 1/4" Painted Beveled Flange - Clay |
FL-500P-PLP-BLK-C | FL-500P Cover With 1/4" Painted Beveled Flange - Black |
Hinged U-Access Covers - UL Scrub Water Rated - No Carpet Trim** | |
FL-500P-SLD-ALM-C | FL-500P Solid Cover With Cable Exit (No Flange)- Aluminum **Shim kits may be required |
FL-500P-SLD-BLK-C | FL-500P Solid Cover With Cable Exit (No Flange)- Black **Shim kits may be required |
FL-500P-SLD-CLY-C | FL-500P Solid Cover With Cable Exit (No Flange)- Clay **Shim kits may be required |
FL-500P-SLD-GRY-C | FL-500P Solid Cover With Cable Exit (No Flange)- Gray **Shim kits may be required |
Covers | |
FL-500P-BLK-C | Cover (No Flange) With Hinged Door in Black Sandtex |
FL-500P-SS-C | Stainless Steel Cover (No Flange) With Hinged Door |
FL-500P-PTSLV-C | Painted Steel Cover (No Flange) With Hinged Door |
FL-500P-BRS-C | Brass Cover (No Flange) With Hinged Door |
18451 | |
FL-500P Solid Hinged Cover w/ Cable Exit (No Trim) - Black |
*Limited Stock*
This high quality FL-500P Cover is a Clay Solid Cover with our unique hinged U-access door.
The cable access door can be easily opened by lifting the integrated U-Access handle to quickly access the interior compartment, connectors, and cables.
• 11-gauge finished steel cover with choice of carpet edging
• Mitered brass or aluminum carpet edging .5” or .25” high
• Stainless steel compression latches
• Hinged U-Access door
Flanging: Height: .25” or .5”
There are a variety of covers to choose from. Options include integrated carpet edging, flat covers for non-carpeted, bare floor applications, and different finishes. The hinged cover allows full access to internal connector plates and stored cables. The hinged cable exit door flips back to allow the cover to remain in place after connections are made and cables are routed through it. The 0.25” and 0.5” raised edge style and solid covers are UL scrub water approved.
The FL-500P floor box is not only UL and CUL Listed but has also passed the latest UL test for scrub water. Because of FSR's unique engineering and manufacturing ability, FSR floor boxes pass for carpeted floors as well as tile and wood!
The hinged cover allows full access to internal connector plates and stored cables, and the smaller hinged cable access door flips back to create the cable exit. When the floor box is not in use, the cover is completely closed allowing unencumbered travel in the area with only the hand mitered, elegant carpet edge visible. The low profile edging is 1/4” or 1/2” high and is available in brass or aluminum.
BAA Compliance
FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Buy America/ Build America Act (BABAA) compliant. Look for this logo on our website:
TAA Compliance
FSR floor box products meet TAA and BABAA requirements.
*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.
Part # | Description |
---|---|
Hinged U-Access Covers - UL Scrub Water Rated for Tile and Carpet Installations | |
FL-500P-B-C | FL-500P Cover With 1/2" Brass Square Flange |
FL-500P-BLP-C | FL-500P Cover With 1/4" Brass Beveled Flange |
FL-500P-BSQ-C | FL-500P Cover With 1/4" Brass Square Flange |
FL-500P-S-C | FL-500P Cover With 1/2" Aluminum Square Flange |
FL-500P-SLP-C | FL-500P Hinged U-Access Cover With 1/4" Aluminum Beveled Flange |
FL-500P-SSQ-C | FL-500P Cover With 1/4" Aluminum Square Flange |
FL-500P-PLP-GRY-C | FL-500P Cover With 1/4" Painted Beveled Flange - Gray |
FL-500P-PLP-CLY-C | FL-500P Cover With 1/4" Painted Beveled Flange - Clay |
FL-500P-PLP-BLK-C | FL-500P Cover With 1/4" Painted Beveled Flange - Black |
Hinged U-Access Covers - UL Scrub Water Rated - No Carpet Trim** | |
FL-500P-SLD-ALM-C | FL-500P Solid Cover With Cable Exit (No Flange)- Aluminum **Shim kits may be required |
FL-500P-SLD-BLK-C | FL-500P Solid Cover With Cable Exit (No Flange)- Black **Shim kits may be required |
FL-500P-SLD-CLY-C | FL-500P Solid Cover With Cable Exit (No Flange)- Clay **Shim kits may be required |
FL-500P-SLD-GRY-C | FL-500P Solid Cover With Cable Exit (No Flange)- Gray **Shim kits may be required |
Covers | |
FL-500P-BLK-C | Cover (No Flange) With Hinged Door in Black Sandtex |
FL-500P-SS-C | Stainless Steel Cover (No Flange) With Hinged Door |
FL-500P-PTSLV-C | Painted Steel Cover (No Flange) With Hinged Door |
FL-500P-BRS-C | Brass Cover (No Flange) With Hinged Door |
17557 | |
FL-500P Solid Cover w/ Cable Exit (No Trim) - Clay |
This high quality FL-500P Cover is a Grey Solid Cover with our unique hinged U-Access door.
The cable access door can be easily opened by lifting the integrated U-Access handle to quickly access the interior compartment, connectors, and cables.
• 11-gauge finished steel cover with choice of carpet edging
• Mitered brass or aluminum carpet edging .5” or .25” high
• Stainless steel compression latches
• Hinged U-Access door
Flanging: Height: .25” or .5”
There are a variety of covers to choose from. Options include integrated carpet edging, flat covers for non-carpeted, bare floor applications, and different finishes. The hinged cover allows full access to internal connector plates and stored cables. The hinged cable exit door flips back to allow the cover to remain in place after connections are made and cables are routed through it. The 0.25” and 0.5” raised edge style and solid covers are UL scrub water approved.
The FL-500P floor box is not only UL and CUL Listed but has also passed the latest UL test for scrub water. Because of FSR's unique engineering and manufacturing ability, FSR floor boxes pass for carpeted floors as well as tile and wood!
The hinged cover allows full access to internal connector plates and stored cables, and the smaller hinged cable access door flips back to create the cable exit. When the floor box is not in use, the cover is completely closed allowing unencumbered travel in the area with only the hand mitered, elegant carpet edge visible. The low profile edging is 1/4” or 1/2” high and is available in brass or aluminum.
BAA Compliance
FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Buy America/ Build America Act (BABAA) compliant. Look for this logo on our website:
TAA Compliance
FSR floor box products meet TAA and BABAA requirements.
*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.
Part # | Description |
---|---|
Hinged U-Access Covers - UL Scrub Water Rated for Tile and Carpet Installations | |
FL-500P-B-C | FL-500P Cover With 1/2" Brass Square Flange |
FL-500P-BLP-C | FL-500P Cover With 1/4" Brass Beveled Flange |
FL-500P-BSQ-C | FL-500P Cover With 1/4" Brass Square Flange |
FL-500P-S-C | FL-500P Cover With 1/2" Aluminum Square Flange |
FL-500P-SLP-C | FL-500P Hinged U-Access Cover With 1/4" Aluminum Beveled Flange |
FL-500P-SSQ-C | FL-500P Cover With 1/4" Aluminum Square Flange |
FL-500P-PLP-GRY-C | FL-500P Cover With 1/4" Painted Beveled Flange - Gray |
FL-500P-PLP-CLY-C | FL-500P Cover With 1/4" Painted Beveled Flange - Clay |
FL-500P-PLP-BLK-C | FL-500P Cover With 1/4" Painted Beveled Flange - Black |
Hinged U-Access Covers - UL Scrub Water Rated - No Carpet Trim** | |
FL-500P-SLD-ALM-C | FL-500P Solid Cover With Cable Exit (No Flange)- Aluminum **Shim kits may be required |
FL-500P-SLD-BLK-C | FL-500P Solid Cover With Cable Exit (No Flange)- Black **Shim kits may be required |
FL-500P-SLD-CLY-C | FL-500P Solid Cover With Cable Exit (No Flange)- Clay **Shim kits may be required |
FL-500P-SLD-GRY-C | FL-500P Solid Cover With Cable Exit (No Flange)- Gray **Shim kits may be required |
Covers | |
FL-500P-BLK-C | Cover (No Flange) With Hinged Door in Black Sandtex |
FL-500P-SS-C | Stainless Steel Cover (No Flange) With Hinged Door |
FL-500P-PTSLV-C | Painted Steel Cover (No Flange) With Hinged Door |
FL-500P-BRS-C | Brass Cover (No Flange) With Hinged Door |
18453 | |
FL-500P Solid Hinged Cover w/ Cable Exit (No Trim) - Grey |
This high quality FL-500P Cover has a 1/4" Square Aluminum Flange with our unique hinged U-Access door.
The cable access door can be easily opened by lifting the integrated U-Access handle to quickly access the interior compartment, connectors, and cables.
• 11-gauge finished steel cover with choice of carpet edging
• Mitered brass or aluminum carpet edging .5” or .25” high
• Stainless steel compression latches
• Hinged U-Access door
Flanging: Height: .25” or .5”
There are a variety of covers to choose from. Options include integrated carpet edging, flat covers for non-carpeted, bare floor applications, and different finishes. The hinged cover allows full access to internal connector plates and stored cables. The hinged cable exit door flips back to allow the cover to remain in place after connections are made and cables are routed through it. The 0.25” and 0.5” raised edge style and solid covers are UL scrub water approved.
The FL-500P floor box is not only UL and CUL Listed but has also passed the latest UL test for scrub water. Because of FSR's unique engineering and manufacturing ability, FSR floor boxes pass for carpeted floors as well as tile and wood!
The hinged cover allows full access to internal connector plates and stored cables, and the smaller hinged cable access door flips back to create the cable exit. When the floor box is not in use, the cover is completely closed allowing unencumbered travel in the area with only the hand mitered, elegant carpet edge visible. The low profile edging is 1/4” or 1/2” high and is available in brass or aluminum.
BAA Compliance
FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Buy America/ Build America Act (BABAA) compliant. Look for this logo on our website:
TAA Compliance
FSR floor box products meet TAA and BABAA requirements.
*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.
Part # | Description |
---|---|
Hinged U-Access Covers - UL Scrub Water Rated for Tile and Carpet Installations | |
FL-500P-B-C | FL-500P Cover With 1/2" Brass Square Flange |
FL-500P-BLP-C | FL-500P Cover With 1/4" Brass Beveled Flange |
FL-500P-BSQ-C | FL-500P Cover With 1/4" Brass Square Flange |
FL-500P-S-C | FL-500P Cover With 1/2" Aluminum Square Flange |
FL-500P-SLP-C | FL-500P Hinged U-Access Cover With 1/4" Aluminum Beveled Flange |
FL-500P-SSQ-C | FL-500P Cover With 1/4" Aluminum Square Flange |
FL-500P-PLP-GRY-C | FL-500P Cover With 1/4" Painted Beveled Flange - Gray |
FL-500P-PLP-CLY-C | FL-500P Cover With 1/4" Painted Beveled Flange - Clay |
FL-500P-PLP-BLK-C | FL-500P Cover With 1/4" Painted Beveled Flange - Black |
Hinged U-Access Covers - UL Scrub Water Rated - No Carpet Trim** | |
FL-500P-SLD-ALM-C | FL-500P Solid Cover With Cable Exit (No Flange)- Aluminum **Shim kits may be required |
FL-500P-SLD-BLK-C | FL-500P Solid Cover With Cable Exit (No Flange)- Black **Shim kits may be required |
FL-500P-SLD-CLY-C | FL-500P Solid Cover With Cable Exit (No Flange)- Clay **Shim kits may be required |
FL-500P-SLD-GRY-C | FL-500P Solid Cover With Cable Exit (No Flange)- Gray **Shim kits may be required |
Covers | |
FL-500P-BLK-C | Cover (No Flange) With Hinged Door in Black Sandtex |
FL-500P-SS-C | Stainless Steel Cover (No Flange) With Hinged Door |
FL-500P-PTSLV-C | Painted Steel Cover (No Flange) With Hinged Door |
FL-500P-BRS-C | Brass Cover (No Flange) With Hinged Door |
18445 | |
FL-500P Hinged Cover w/ 1/4" Square Aluminum Flange |
This high quality FL-500P Cover has a 1/4" Square Brass Flange with our unique tool-less lift off door.
The cable access door can be easily removed by lifting the integrated U-Access handle to quickly access the interior compartment, connectors, and cables.
• 11-gauge finished steel cover with choice of carpet edging
• Mitered brass or aluminum carpet edging .5” or .25” high
• Stainless steel compression latches
• Lift-off full access door
Flanging: Height: .25” or .5”
There are a variety of covers to choose from. Options include integrated carpet edging, flat covers for non-carpeted, bare floor applications, and different finishes. The lift-off section of the cover allows full access to internal connector plates and stored cables. The hinged cable exit door flips back to allow the cover to remain in place after connections are made and cables are routed through it. The 0.25” and 0.5” raised edge style and solid covers are UL scrub water approved.
The FL-500P floor box is not only UL and CUL Listed but has also passed the latest UL test for scrub water. Because of FSR's unique engineering and manufacturing ability, FSR floor boxes pass for carpeted floors as well as tile and wood!
The lift-off section of the cover allows full access to internal connector plates and stored cables, and the smaller hinged cable access door flips back to create the cable exit. When the floor box is not in use, the cover is completely closed allowing unencumbered travel in the area with only the hand mitered, elegant carpet edge visible. The low profile edging is 1/4” or 1/2” high and is available in brass or aluminum.
BAA Compliance
FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Buy America/ Build America Act (BABAA) compliant. Look for this logo on our website:
TAA Compliance
FSR floor box products meet TAA and BABAA requirements.
*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.
Part # | Description |
---|---|
U-Access Covers - UL Scrub Water Rated for Tile and Carpet Installations | |
FL-500P-B-C | FL-500P Cover With 1/2" Brass Square Flange (Lift off door) |
FL-500P-BLP-C | FL-500P Cover With 1/4" Brass Beveled Flange (Lift off door) |
FL-500P-BSQ-C | FL-500P Cover With 1/4" Brass Square Flange (Lift off door) |
FL-500P-S-C | FL-500P Cover With 1/2" Aluminum Square Flange (Lift off door) |
FL-500P-SLP-C | FL-500P Cover With 1/4" Aluminum Beveled Flange (Lift off door) |
FL-500P-SSQ-C | FL-500P Cover With 1/4" Aluminum Square Flange (Lift off door) |
FL-500P-PLP-GRY-C | FL-500P Cover With 1/4" Painted Beveled Flange - Gray (Lift off door) |
FL-500P-PLP-CLY-C | FL-500P Cover With 1/4" Painted Beveled Flange - Clay (Lift off door) |
FL-500P-PLP-BLK-C | FL-500P Cover With 1/4" Painted Beveled Flange - Black (Lift off door) |
U-Access Covers - UL Scrub Water Rated - No Carpet Trim** | |
FL-500P-SLD-ALM-C | FL-500P Solid Cover With Cable Exit (No Flange)- Aluminum **Shim kits may be required |
FL-500P-SLD-BLK-C | FL-500P Solid Cover With Cable Exit (No Flange)- Black **Shim kits may be required |
FL-500P-SLD-CLY-C | FL-500P Solid Cover With Cable Exit (No Flange)- Clay **Shim kits may be required |
FL-500P-SLD-GRY-C | FL-500P Solid Cover With Cable Exit (No Flange)- Gray **Shim kits may be required |
Covers | |
FL-500P-BLK-C | Cover (No Flange) With Hinged Door in Black Sandtex |
FL-500P-OAK-C | Cover (No Flange) With Hinged Door in Lt. Oak Sandtex |
FL-500P-SS-C | Stainless Steel Cover (No Flange) With Hinged Door |
FL-500P-PTSLV-C | Painted Steel Cover (No Flange) With Hinged Door |
FL-500P-BRS-C | Brass Cover (No Flange) With Hinged Door |
18443 | |
FL-500P Cover w/ 1/4" Square Brass Flange (Lift off door) |
The FL-500P-2.25 floor box combines rugged construction and an elegant design for use in carpet, tile or wood covered floors over poured concrete applications. This floor box has ample compartment room to accommodate power, audio, video, telecommunications and data in one elegant and practical box.
The innovation continues to the configurable
back box. The FL-500P's internal brackets can be arranged to provide numerous options for both high and low voltage standard gang openings making it the most flexible and easiest to install floor box available. The FL-500P floor box is designed to handle the rigors of a floor environment and still maintains flexibility and elegance.
The 2.25 depths have special gang configurations.
Notes: This floor box is not applicable for direct contact with grade (soil or gravel). For grade applications, use the FL-GRD2/4 pour pan as a foundation before box installation. These floor boxes are designed for the UL safety standard for scrub water. The standard only applied to boxed installed in concrete, not raised access boxes.
Applications:
- Hotel Lobbies
- Conference Centers
- Board Rooms
- Cruise Ship
- Anywhere an upscale, richly finished look is required
FL-500P-2.25" | QTY/BOX |
KO TRADE SIZE | |
1/2" / 3/4" CONCENTRIC | 12 |
There are a variety of covers to choose from. Options include integrated carpet edging, flat covers for non-carpeted, bare floor applications, and different finishes. The hinged u-access cover allows full access to internal connector plates and stored cables. The hinged cable exit door flips back to allow the cover to remain in place after connections are made and cables are routed through it. The 0.25” and 0.5” raised edge style and solid covers are UL scrub water approved.
BAA Compliance
FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Buy America/ Build America Act (BABAA) compliant. Look for this logo on our website:
TAA Compliance
FSR floor box products meet TAA and BABAA requirements.
*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.
15357 | |
2.25" Deep FL-500P Box |
The FL-500P-2.25 floor box combines rugged construction and an elegant design for use in carpet, tile or wood covered floors over poured concrete applications. This floor box has ample compartment room to accommodate power, audio, video, telecommunications and data in one elegant and practical box.
The FL-500P floor box is not only UL and CUL Listed but has also passed the latest UL test for scrub water. Because of FSR's unique engineering and manufacturing ability, FSR floor boxes pass for carpeted floors as well as tile and wood! The lift-off section of the cover allows full access to internal connector plates and stored cables, and the smaller hinged cable access door flips back to create the cableexit. When the floor box is not in use, the cover is completely closed allowing unencumbered travel in the area with only the handmitered, elegant carpet edge visible. The low profile edging is 1/4” or 1/2” high and is available in brass or aluminum.
The innovation continues to the configurable
back box. The FL-500P's internal brackets can be arranged to provide numerous options for both high and low voltage standard gang openings making it the most flexible and easiest to install floor box available. The FL-500P floor box is designed to handle the rigors of a floor environment and still maintains flexibility and elegance.
The 2.25 depth have special gang configurations.
Notes: This floor box is not applicable for direct contact with grade (soil or gravel). For grade applications, use the FL-GRD2/4pour pan as a foundation before box installation. Each floorbox comes with a temporary construction cover. Boxes and covers are sold separately. These floor boxes are designed for the UL safety standard for scrub water. The standard only applied to boxed installed in concrete, not raised access boxes.
Applications:
- Hotel Lobbies
- Conference Centers
- Board Rooms
- Cruise Ship
- Anywhere an upscale, richly finished look is required
BAA Compliance
FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Buy America/ Build America Act (BABAA) compliant. Look for this logo on our website:
TAA Compliance
FSR floor box products meet TAA and BABAA requirements.
*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.
FL-500P-2.25" | QTY/BOX |
KO TRADE SIZE | |
1/2" / 3/4" CONCENTRIC | 12 |
15357 | |
2.25" Deep FL-500P Box with a temporary cover (thickness of .12") |
The FL-500P-2.25 floor box combines rugged construction and an elegant design for use in carpet, tile or wood covered floors over poured concrete applications. This floor box has ample compartment room to accommodate power, audio, video, telecommunications and data in one elegant and practical box.
The innovation continues to the configurable
back box. The FL-500P's internal brackets can be arranged to provide numerous options for both high and low voltage standard gang openings making it the most flexible and easiest to install floor box available. The FL-500P floor box is designed to handle the rigors of a floor environment and still maintains flexibility and elegance.
The 2.25 depth have special gang configurations.
Notes: This floor box is not applicable for direct contact with grade (soil or gravel). For grade applications, use the FL-GRD2/4 pour pan as a foundation before box installation. These floor boxes are designed for the UL safety standard for scrub water. The standard only applied to boxed installed in concrete, not raised access boxes.
Applications:
- Hotel Lobbies
- Conference Centers
- Board Rooms
- Cruise Ship
- Anywhere an upscale, richly finished look is required
FL-500P-2.25" | QTY/BOX |
KO TRADE SIZE | |
1/2" / 3/4" CONCENTRIC | 12 |
This high quality FL-500P Black Sandtex Cover has our unique tool-less hinged U-Access door.
• 11-gauge finished steel cover with choice of carpet edging
• Mitered brass or aluminum carpet edging .5” or .25” high
• Stainless steel compression latches
• Hinged U-Access door
Flanging: Height: .25” or .5”
There are a variety of covers to choose from. Options include integrated carpet edging, flat covers for non-carpeted, bare floor applications, and different finishes. The hinged door of the cover allows full access to internal connector plates and stored cables. The hinged cable exit door flips back to allow the cover to remain in place after connections are made and cables are routed through it. The 0.25” and 0.5” raised edge style and solid covers are UL scrub water approved.
BAA Compliance
FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Buy America/ Build America Act (BABAA) compliant. Look for this logo on our website:
TAA Compliance
FSR floor box products meet TAA and BABAA requirements.
*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.
15357, 15075 | |
2.25" Deep FL-500P Box w/ Hinged Door in Black Sandtex |
The FL-500P-2.25 floor box combines rugged construction and an elegant design for use in carpet, tile or wood covered floors over poured concrete applications. This floor box has ample compartment room to accommodate power, audio, video, telecommunications and data in one elegant and practical box.
BAA Compliance
FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Buy America/ Build America Act (BABAA) compliant. Look for this logo on our website:
TAA Compliance
FSR floor box products meet TAA and BABAA requirements.
*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.
15357, 18153 | |
2.25" Deep FL-500P Box w/ Painted Silver Cover |
The FL-500P-2.25 floor box combines rugged construction and an elegant design for use in carpet, tile or wood covered floors over poured concrete applications. This floor box has ample compartment room to accommodate power, audio, video, telecommunications and data in one elegant and practical box.
The innovation continues to the configurable
back box. The FL-500P's internal brackets can be arranged to provide numerous options for both high and low voltage standard gang openings making it the most flexible and easiest to install floor box available. The FL-500P floor box is designed to handle the rigors of a floor environment and still maintains flexibility and elegance.
The 2.25 depth have special gang configurations.
Notes: This floor box is not applicable for direct contact with grade (soil or gravel). For grade applications, use the FL-GRD2/4pour pan as a foundation before box installation. These floor boxes are designed for the UL safety standard for scrub water. The standard only applied to boxed installed in concrete, not raised access boxes.
Applications:
- Hotel Lobbies
- Conference Centers
- Board Rooms
- Cruise Ship
- Anywhere an upscale, richly finished look is required
FL-500P-2.25" | QTY/BOX |
KO TRADE SIZE | |
1/2" / 3/4" CONCENTRIC | 12 |
This high quality FL-500P Stainless Steel Cover has our unique hinged U-Access door.
The cable access door can be easily removed by lifting the integrated U-Access handle to quickly access the interior compartment, connectors, and cables.
• 11-gauge finished steel cover with choice of carpet edging
• Mitered brass or aluminum carpet edging .5” or .25” high
• Stainless steel compression latches
• Hinged U-Access door
Flanging: Height: .25” or .5”
There are a variety of covers to choose from. Options include integrated carpet edging, flat covers for non-carpeted, bare floor applications, and different finishes. The hinged door of the cover allows full access to internal connector plates and stored cables. The hinged cable exit door flips back to allow the cover to remain in place after connections are made and cables are routed through it. The 0.25” and 0.5” raised edge style and solid covers are UL scrub water approved.
BAA Compliance
FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Buy America/ Build America Act (BABAA) compliant. Look for this logo on our website:
TAA Compliance
FSR floor box products meet TAA and BABAA requirements.
*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.
15357, 15526 | |
2.25" Deep FL-500P Box w/ Stainless Steel Cover (No Flange) w/ Hinged Door |
The FL-500P-2.25 floor box combines rugged construction and an elegant design for use in carpet, tile or wood covered floors over poured concrete applications. This floor box has ample compartment room to accommodate power, audio, video, telecommunications and data in one elegant and practical box.
The innovation continues to the configurable
back box. The FL-500P's internal brackets can be arranged to provide numerous options for both high and low voltage standard gang openings making it the most flexible and easiest to install floor box available. The FL-500P floor box is designed to handle the rigors of a floor environment and still maintains flexibility and elegance.
The 2.25 depth have special gang configurations.
Notes: This floor box is not applicable for direct contact with grade (soil or gravel). For grade applications, use the FL-GRD2/4pour pan as a foundation before box installation. These floor boxes are designed for the UL safety standard for scrub water. The standard only applied to boxed installed in concrete, not raised access boxes.
Applications:
- Hotel Lobbies
- Conference Centers
- Board Rooms
- Cruise Ship
- Anywhere an upscale, richly finished look is required
FL-500P-2.25" | QTY/BOX |
KO TRADE SIZE | |
1/2" / 3/4" CONCENTRIC | 12 |
This high quality FL-500P Solid Brass Cover has our unique hinged U-Access door.
The cable access door can be easily removed by lifting the integrated U-Access handle to quickly access the interior compartment, connectors, and cables.
• 11-gauge finished steel cover with choice of carpet edging
• Mitered brass or aluminum carpet edging .5” or .25” high
• Stainless steel compression latches
• Hinged U-Access door
Flanging: Height: .25” or .5”
There are a variety of covers to choose from. Options include integrated carpet edging, flat covers for non-carpeted, bare floor applications, and different finishes. The hinged door of the cover allows full access to internal connector plates and stored cables. The hinged cable exit door flips back to allow the cover to remain in place after connections are made and cables are routed through it. The 0.25” and 0.5” raised edge style and solid covers are UL scrub water approved.
BAA Compliance
FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Buy America/ Build America Act (BABAA) compliant. Look for this logo on our website:
TAA Compliance
FSR floor box products meet TAA and BABAA requirements.
*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.
15357, 16221 | |
2.25" Deep FL-500P Box w/ Brass Solid Cover |
The FL-500P-2.25 floor box combines rugged construction and an elegant design for use in carpet, tile or wood covered floors over poured concrete applications. This floor box has ample compartment room to accommodate power, audio, video, telecommunications and data in one elegant and practical box.
The innovation continues to the configurable
back box. The FL-500P's internal brackets can be arranged to provide numerous options for both high and low voltage standard gang openings making it the most flexible and easiest to install floor box available. The FL-500P floor box is designed to handle the rigors of a floor environment and still maintains flexibility and elegance.
The 2.25 depth have special gang configurations.
Notes: This floor box is not applicable for direct contact with grade (soil or gravel). For grade applications, use the FL-GRD2/4pour pan as a foundation before box installation. These floor boxes are designed for the UL safety standard for scrub water. The standard only applied to boxed installed in concrete, not raised access boxes.
Applications:
- Hotel Lobbies
- Conference Centers
- Board Rooms
- Cruise Ship
- Anywhere an upscale, richly finished look is required
FL-500P-2.25" | QTY/BOX |
KO TRADE SIZE | |
1/2" / 3/4" CONCENTRIC | 12 |
This high quality FL-500P Cover has a 1/4" Brass Carpet Flange with our unique hinged U-Access door.
The cable access door can be easily removed by lifting the integrated U-Access handle to quickly access the interior compartment, connectors, and cables.
• 11-gauge finished steel cover with choice of carpet edging
• Mitered brass or aluminum carpet edging .5” or .25” high
• Stainless steel compression latches
• Hinged U-Access door
Flanging: Height: .25” or .5”
There are a variety of covers to choose from. Options include integrated carpet edging, flat covers for non-carpeted, bare floor applications, and different finishes. The hinged door of the cover allows full access to internal connector plates and stored cables. The hinged cable exit door flips back to allow the cover to remain in place after connections are made and cables are routed through it. The 0.25” and 0.5” raised edge style and solid covers are UL scrub water approved.
BAA Compliance
FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Buy America/ Build America Act (BABAA) compliant. Look for this logo on our website:
TAA Compliance
FSR floor box products meet TAA and BABAA requirements.
*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.
15357, 18442 | |
2.25" Deep FL-500P Box w/ Hinged Cover 1/4" Brass Carpet Flange |
The FL-500P-2.25 floor box combines rugged construction and an elegant design for use in carpet, tile or wood covered floors over poured concrete applications. This floor box has ample compartment room to accommodate power, audio, video, telecommunications and data in one elegant and practical box.
The innovation continues to the configurable
back box. The FL-500P's internal brackets can be arranged to provide numerous options for both high and low voltage standard gang openings making it the most flexible and easiest to install floor box available. The FL-500P floor box is designed to handle the rigors of a floor environment and still maintains flexibility and elegance.
The 2.25 depth have special gang configurations.
Notes: This floor box is not applicable for direct contact with grade (soil or gravel). For grade applications, use the FL-GRD2/4pour pan as a foundation before box installation. These floor boxes are designed for the UL safety standard for scrub water. The standard only applied to boxed installed in concrete, not raised access boxes.
Applications:
- Hotel Lobbies
- Conference Centers
- Board Rooms
- Cruise Ship
- Anywhere an upscale, richly finished look is required
FL-500P-2.25" | QTY/BOX |
KO TRADE SIZE | |
1/2" / 3/4" CONCENTRIC | 12 |
• 11-gauge finished steel cover with choice of carpet edging
• Mitered brass or aluminum carpet edging .5” or .25” high
• Stainless steel compression latches
• Hinged U-Access door
Flanging: Height: .25” or .5”
There are a variety of covers to choose from. Options include integrated carpet edging, flat covers for non-carpeted, bare floor applications, and different finishes. The hinged door of the cover allows full access to internal connector plates and stored cables. The hinged cable exit door flips back to allow the cover to remain in place after connections are made and cables are routed through it. The 0.25” and 0.5” raised edge style and solid covers are UL scrub water approved.
BAA Compliance
FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Buy America/ Build America Act (BABAA) compliant. Look for this logo on our website:
TAA Compliance
FSR floor box products meet TAA and BABAA requirements.
*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.
15357, 18444 | |
2.25" Deep FL-500P Box w/ Hinged Cover 1/2" Brass Carpet Flange |
The FL-500P-2.25 floor box combines rugged construction and an elegant design for use in carpet, tile or wood covered floors over poured concrete applications. This floor box has ample compartment room to accommodate power, audio, video, telecommunications and data in one elegant and practical box.
The innovation continues to the configurable
back box. The FL-500P's internal brackets can be arranged to provide numerous options for both high and low voltage standard gang openings making it the most flexible and easiest to install floor box available. The FL-500P floor box is designed to handle the rigors of a floor environment and still maintains flexibility and elegance.
The 2.25 depth have special gang configurations.
Notes: This floor box is not applicable for direct contact with grade (soil or gravel). For grade applications, use the FL-GRD2/4pour pan as a foundation before box installation. These floor boxes are designed for the UL safety standard for scrub water. The standard only applied to boxed installed in concrete, not raised access boxes.
Applications:
- Hotel Lobbies
- Conference Centers
- Board Rooms
- Cruise Ship
- Anywhere an upscale, richly finished look is required
FL-500P-2.25" | QTY/BOX |
KO TRADE SIZE | |
1/2" / 3/4" CONCENTRIC | 12 |
• 11-gauge finished steel cover with choice of carpet edging
• Mitered brass or aluminum carpet edging .5” or .25” high
• Stainless steel compression latches
• Hinged U-Access door
Flanging: Height: .25” or .5”
There are a variety of covers to choose from. Options include integrated carpet edging, flat covers for non-carpeted, bare floor applications, and different finishes. The hinged door of the cover allows full access to internal connector plates and stored cables. The hinged cable exit door flips back to allow the cover to remain in place after connections are made and cables are routed through it. The 0.25” and 0.5” raised edge style and solid covers are UL scrub water approved.
BAA Compliance
FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Buy America/ Build America Act (BABAA) compliant. Look for this logo on our website:
TAA Compliance
FSR floor box products meet TAA and BABAA requirements.
*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.
15357, 18446 | |
2.25" Deep FL-500P Box w/ Hinged Cover w/ 1/2" Aluminum Carpet Flange |
The FL-500P-2.25 floor box combines rugged construction and an elegant design for use in carpet, tile or wood covered floors over poured concrete applications. This floor box has ample compartment room to accommodate power, audio, video, telecommunications and data in one elegant and practical box.
The innovation continues to the configurable
back box. The FL-500P's internal brackets can be arranged to provide numerous options for both high and low voltage standard gang openings making it the most flexible and easiest to install floor box available. The FL-500P floor box is designed to handle the rigors of a floor environment and still maintains flexibility and elegance.
The 2.25 depth have special gang configurations.
Notes: This floor box is not applicable for direct contact with grade (soil or gravel). For grade applications, use the FL-GRD2/4pour pan as a foundation before box installation. These floor boxes are designed for the UL safety standard for scrub water. The standard only applied to boxed installed in concrete, not raised access boxes.
Applications:
- Hotel Lobbies
- Conference Centers
- Board Rooms
- Cruise Ship
- Anywhere an upscale, richly finished look is required
FL-500P-2.25" | QTY/BOX |
KO TRADE SIZE | |
1/2" / 3/4" CONCENTRIC | 12 |
• 11-gauge finished steel cover with choice of carpet edging
• Mitered brass or aluminum carpet edging .5” or .25” high
• Stainless steel compression latches
• Hinged U-Access door
Flanging: Height: .25” or .5”
There are a variety of covers to choose from. Options include integrated carpet edging, flat covers for non-carpeted, bare floor applications, and different finishes. The hinged door of the cover allows full access to internal connector plates and stored cables. The hinged cable exit door flips back to allow the cover to remain in place after connections are made and cables are routed through it. The 0.25” and 0.5” raised edge style and solid covers are UL scrub water approved.
BAA Compliance
FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Buy America/ Build America Act (BABAA) compliant. Look for this logo on our website:
TAA Compliance
FSR floor box products meet TAA and BABAA requirements.
*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.
15357, 18353 | |
2.25" Deep FL-500P Box w/ Hinged U-Access Cover 1/4" Aluminum Carpet Flange |
The FL-500P-2.25 floor box combines rugged construction and an elegant design for use in carpet, tile or wood covered floors over poured concrete applications. This floor box has ample compartment room to accommodate power, audio, video, telecommunications and data in one elegant and practical box.
The innovation continues to the configurable
back box. The FL-500P's internal brackets can be arranged to provide numerous options for both high and low voltage standard gang openings making it the most flexible and easiest to install floor box available. The FL-500P floor box is designed to handle the rigors of a floor environment and still maintains flexibility and elegance.
The 2.25 depth have special gang configurations.
Notes: This floor box is not applicable for direct contact with grade (soil or gravel). For grade applications, use the FL-GRD2/4pour pan as a foundation before box installation. These floor boxes are designed for the UL safety standard for scrub water. The standard only applied to boxed installed in concrete, not raised access boxes.
Applications:
- Hotel Lobbies
- Conference Centers
- Board Rooms
- Cruise Ship
- Anywhere an upscale, richly finished look is required
FL-500P-2.25" | QTY/BOX |
KO TRADE SIZE | |
1/2" / 3/4" CONCENTRIC | 12 |
This high quality FL-500P Cover has a 1/4" Grey Painted Carpet Flange with our unique hinged U-Access door.
The cable access door can be easily removed by lifting the integrated U-Access handle to quickly access the interior compartment, connectors, and cables.
• 11-gauge finished steel cover with choice of carpet edging
• Mitered brass or aluminum carpet edging .5” or .25” high
• Stainless steel compression latches
• Hinged U-Access door
Flanging: Height: .25” or .5”
There are a variety of covers to choose from. Options include integrated carpet edging, flat covers for non-carpeted, bare floor applications, and different finishes. The hinged door of the cover allows full access to internal connector plates and stored cables. The hinged cable exit door flips back to allow the cover to remain in place after connections are made and cables are routed through it. The 0.25” and 0.5” raised edge style and solid covers are UL scrub water approved.
BAA Compliance
FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Buy America/ Build America Act (BABAA) compliant. Look for this logo on our website:
TAA Compliance
FSR floor box products meet TAA and BABAA requirements.
*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.
15357, 18449 | |
2.25" Deep Fl-500P Box w/ Hinged Cover w/ 1/4" Painted Carpet Flange- Gray |
The FL-500P-2.25 floor box combines rugged construction and an elegant design for use in carpet, tile or wood covered floors over poured concrete applications. This floor box has ample compartment room to accommodate power, audio, video, telecommunications and data in one elegant and practical box.
The innovation continues to the configurable
back box. The FL-500P's internal brackets can be arranged to provide numerous options for both high and low voltage standard gang openings making it the most flexible and easiest to install floor box available. The FL-500P floor box is designed to handle the rigors of a floor environment and still maintains flexibility and elegance.
The 2.25 depth have special gang configurations.
Notes: This floor box is not applicable for direct contact with grade (soil or gravel). For grade applications, use the FL-GRD2/4pour pan as a foundation before box installation. These floor boxes are designed for the UL safety standard for scrub water. The standard only applied to boxed installed in concrete, not raised access boxes.
Applications:
- Hotel Lobbies
- Conference Centers
- Board Rooms
- Cruise Ship
- Anywhere an upscale, richly finished look is required
FL-500P-2.25" | QTY/BOX |
KO TRADE SIZE | |
1/2" / 3/4" CONCENTRIC | 12 |
The cable access door can be easily removed by lifting the integrated U-Access handle to quickly access the interior compartment, connectors, and cables.
• 11-gauge finished steel cover with choice of carpet edging
• Mitered brass or aluminum carpet edging .5” or .25” high
• Stainless steel compression latches
• Hinged U-Access door
Flanging: Height: .25” or .5”
There are a variety of covers to choose from. Options include integrated carpet edging, flat covers for non-carpeted, bare floor applications, and different finishes. The hinged door of the cover allows full access to internal connector plates and stored cables. The hinged cable exit door flips back to allow the cover to remain in place after connections are made and cables are routed through it. The 0.25” and 0.5” raised edge style and solid covers are UL scrub water approved.
BAA Compliance
FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Buy America/ Build America Act (BABAA) compliant. Look for this logo on our website:
TAA Compliance
FSR floor box products meet TAA and BABAA requirements.
*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.
15357, 17553 | |
2.25" Deep FL-500P Box w/ 1/4" Painted Carpet Flange-Clay |
The FL-500P-2.25 floor box combines rugged construction and an elegant design for use in carpet, tile or wood covered floors over poured concrete applications. This floor box has ample compartment room to accommodate power, audio, video, telecommunications and data in one elegant and practical box.
The innovation continues to the configurable
back box. The FL-500P's internal brackets can be arranged to provide numerous options for both high and low voltage standard gang openings making it the most flexible and easiest to install floor box available. The FL-500P floor box is designed to handle the rigors of a floor environment and still maintains flexibility and elegance.
The 2.25 depth have special gang configurations.
Notes: This floor box is not applicable for direct contact with grade (soil or gravel). For grade applications, use the FL-GRD2/4pour pan as a foundation before box installation. These floor boxes are designed for the UL safety standard for scrub water. The standard only applied to boxed installed in concrete, not raised access boxes.
Applications:
- Hotel Lobbies
- Conference Centers
- Board Rooms
- Cruise Ship
- Anywhere an upscale, richly finished look is required
FL-500P-2.25" | QTY/BOX |
KO TRADE SIZE | |
1/2" / 3/4" CONCENTRIC | 12 |
This high quality FL-500P Cover has a 1/4" Black Painted Carpet Flange with our unique hinged U-Access door.
The cable access door can be easily removed by lifting the integrated U-Access handle to quickly access the interior compartment, connectors, and cables.
• 11-gauge finished steel cover with choice of carpet edging
• Mitered brass or aluminum carpet edging .5” or .25” high
• Stainless steel compression latches
• Hinged U-Access door
Flanging: Height: .25” or .5”
There are a variety of covers to choose from. Options include integrated carpet edging, flat covers for non-carpeted, bare floor applications, and different finishes. The hinged door of the cover allows full access to internal connector plates and stored cables. The hinged cable exit door flips back to allow the cover to remain in place after connections are made and cables are routed through it. The 0.25” and 0.5” raised edge style and solid covers are UL scrub water approved.
BAA Compliance
FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Buy America/ Build America Act (BABAA) compliant. Look for this logo on our website:
TAA Compliance
FSR floor box products meet TAA and BABAA requirements.
*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.
15357, 18447 | |
2.25" Deep FL-500P Box w/ Hinged Cover with 1/4" Painted Carpet Flange- Black |
The FL-500P-2.25 floor box combines rugged construction and an elegant design for use in carpet, tile or wood covered floors over poured concrete applications. This floor box has ample compartment room to accommodate power, audio, video, telecommunications and data in one elegant and practical box.
The innovation continues to the configurable
back box. The FL-500P's internal brackets can be arranged to provide numerous options for both high and low voltage standard gang openings making it the most flexible and easiest to install floor box available. The FL-500P floor box is designed to handle the rigors of a floor environment and still maintains flexibility and elegance.
The 2.25 depths have special gang configurations.
Notes: This floor box is not applicable for direct contact with grade (soil or gravel). For grade applications, use the FL-GRD2/4pour pan as a foundation before box installation. These floor boxes are designed for the UL safety standard for scrub water. The standard only applied to boxed installed in concrete, not raised access boxes.
Applications:
- Hotel Lobbies
- Conference Centers
- Board Rooms
- Cruise Ship
- Anywhere an upscale, richly finished look is required
FL-500P-2.25" | QTY/BOX |
KO TRADE SIZE | |
1/2" / 3/4" CONCENTRIC | 12 |
The cable access door can be easily removed by lifting the integrated U-Access handle to quickly access the interior compartment, connectors, and cables.
• 11-gauge finished steel cover with choice of carpet edging
• Mitered brass or aluminum carpet edging .5” or .25” high
• Stainless steel compression latches
• Hinged U-Access door
Flanging: Height: .25” or .5”
There are a variety of covers to choose from. Options include integrated carpet edging, flat covers for non-carpeted, bare floor applications, and different finishes. The hinged door of the cover allows full access to internal connector plates and stored cables. The hinged cable exit door flips back to allow the cover to remain in place after connections are made and cables are routed through it. The 0.25” and 0.5” raised edge style and solid covers are UL scrub water approved.
BAA Compliance
FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Buy America/ Build America Act (BABAA) compliant. Look for this logo on our website:
TAA Compliance
FSR floor box products meet TAA and BABAA requirements.
*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.
15357, 18450 | |
2.25" Deep FL-500P Box w/ Solid Hinged Cover w/ Cable Exit (No Trim) - Aluminum |
The FL-500P-2.25 floor box combines rugged construction and an elegant design for use in carpet, tile or wood covered floors over poured concrete applications. This floor box has ample compartment room to accommodate power, audio, video, telecommunications and data in one elegant and practical box.
The innovation continues to the configurable
back box. The FL-500P's internal brackets can be arranged to provide numerous options for both high and low voltage standard gang openings making it the most flexible and easiest to install floor box available. The FL-500P floor box is designed to handle the rigors of a floor environment and still maintains flexibility and elegance.
The 2.25 depth have special gang configurations.
Notes: This floor box is not applicable for direct contact with grade (soil or gravel). For grade applications, use the FL-GRD2/4 pour pan as a foundation before box installation. These floor boxes are designed for the UL safety standard for scrub water. The standard only applied to boxed installed in concrete, not raised access boxes.
Applications:
- Hotel Lobbies
- Conference Centers
- Board Rooms
- Cruise Ship
- Anywhere an upscale, richly finished look is required
FL-500P-2.25" | QTY/BOX |
KO TRADE SIZE | |
1/2" / 3/4" CONCENTRIC | 12 |
This high quality FL-500P Black Solid Cover has our unique hinged U-Access door.
The cable access door can be easily removed by lifting the integrated U-Access handle to quickly access the interior compartment, connectors, and cables.
• 11-gauge finished steel cover with choice of carpet edging
• Mitered brass or aluminum carpet edging .5” or .25” high
• Stainless steel compression latches
• Hinged U-Access door
Flanging: Height: .25” or .5”
There are a variety of covers to choose from. Options include integrated carpet edging, flat covers for non-carpeted, bare floor applications, and different finishes. The hinged door of the cover allows full access to internal connector plates and stored cables. The hinged cable exit door flips back to allow the cover to remain in place after connections are made and cables are routed through it. The 0.25” and 0.5” raised edge style and solid covers are UL scrub water approved.
BAA Compliance
FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Buy America/ Build America Act (BABAA) compliant. Look for this logo on our website:
TAA Compliance
FSR floor box products meet TAA and BABAA requirements.
*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.
15357, 18451 | |
2.25" Deep FL-500P Box w/ Solid Hinged Cover w/ Cable Exit (No Trim) - Black |
The FL-500P-2.25 floor box combines rugged construction and an elegant design for use in carpet, tile or wood covered floors over poured concrete applications. This floor box has ample compartment room to accommodate power, audio, video, telecommunications and data in one elegant and practical box.
The innovation continues to the configurable
back box. The FL-500P's internal brackets can be arranged to provide numerous options for both high and low voltage standard gang openings making it the most flexible and easiest to install floor box available. The FL-500P floor box is designed to handle the rigors of a floor environment and still maintains flexibility and elegance.
The 2.25 depth have special gang configurations.
Notes: This floor box is not applicable for direct contact with grade (soil or gravel). For grade applications, use the FL-GRD2/4pour pan as a foundation before box installation. These floor boxes are designed for the UL safety standard for scrub water. The standard only applied to boxed installed in concrete, not raised access boxes.
Applications:
- Hotel Lobbies
- Conference Centers
- Board Rooms
- Cruise Ship
- Anywhere an upscale, richly finished look is required
FL-500P-2.25" | QTY/BOX |
KO TRADE SIZE | |
1/2" / 3/4" CONCENTRIC | 12 |
*Limited Stock*
This high quality FL-500P Solid Clay Cover has our unique hinged U-Access door.
Flanging: Height: .25” or .5”
There are a variety of covers to choose from. Options include integrated carpet edging, flat covers for non-carpeted, bare floor applications, and different finishes. The hinged door of the cover allows full access to internal connector plates and stored cables. The hinged cable exit door flips back to allow the cover to remain in place after connections are made and cables are routed through it. The 0.25” and 0.5” raised edge style and solid covers are UL scrub water approved.
• 11-gauge finished steel cover with choice of carpet edging
• Mitered brass or aluminum carpet edging .5” or .25” high
• Stainless steel compression latches
• Hinged U-Access door
BAA Compliance
FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Buy America/ Build America Act (BABAA) compliant. Look for this logo on our website:
TAA Compliance
FSR floor box products meet TAA and BABAA requirements.
*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.
15357, 15557 | |
2.25" Deep FL-500P Box w/ Clay Solid Cover |
The FL-500P-2.25 floor box combines rugged construction and an elegant design for use in carpet, tile or wood covered floors over poured concrete applications. This floor box has ample compartment room to accommodate power, audio, video, telecommunications and data in one elegant and practical box.
The innovation continues to the configurable
back box. The FL-500P's internal brackets can be arranged to provide numerous options for both high and low voltage standard gang openings making it the most flexible and easiest to install floor box available. The FL-500P floor box is designed to handle the rigors of a floor environment and still maintains flexibility and elegance.
The 2.25 depth have special gang configurations.
Notes: This floor box is not applicable for direct contact with grade (soil or gravel). For grade applications, use the FL-GRD2/4pour pan as a foundation before box installation. These floor boxes are designed for the UL safety standard for scrub water. The standard only applied to boxed installed in concrete, not raised access boxes.
Applications:
- Hotel Lobbies
- Conference Centers
- Board Rooms
- Cruise Ship
- Anywhere an upscale, richly finished look is required
FL-500P-2.25" | QTY/BOX |
KO TRADE SIZE | |
1/2" / 3/4" CONCENTRIC | 12 |
This high quality FL-500P Solid Grey Cover has our unique hinged U-Access door.
The cable access door can be easily removed by lifting the integrated U-Access handle to quickly access the interior compartment, connectors, and cables.
• 11-gauge finished steel cover with choice of carpet edging
• Mitered brass or aluminum carpet edging .5” or .25” high
• Stainless steel compression latches
• Hinged U-Access door
Flanging: Height: .25” or .5”
There are a variety of covers to choose from. Options include integrated carpet edging, flat covers for non-carpeted, bare floor applications, and different finishes. The hinged door of the cover allows full access to internal connector plates and stored cables. The hinged cable exit door flips back to allow the cover to remain in place after connections are made and cables are routed through it. The 0.25” and 0.5” raised edge style and solid covers are UL scrub water approved.
BAA Compliance
FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Buy America/ Build America Act (BABAA) compliant. Look for this logo on our website:
TAA Compliance
FSR floor box products meet TAA and BABAA requirements.
*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.
15357, 18453 | |
2.25" Deep FL-500P Box w/ Solid Hinged Cover w/ Cable Exit (No Trim) - Grey |
The FL-500P-2.25 floor box combines rugged construction and an elegant design for use in carpet, tile or wood covered floors over poured concrete applications. This floor box has ample compartment room to accommodate power, audio, video, telecommunications and data in one elegant and practical box.
The innovation continues to the configurable
back box. The FL-500P's internal brackets can be arranged to provide numerous options for both high and low voltage standard gang openings making it the most flexible and easiest to install floor box available. The FL-500P floor box is designed to handle the rigors of a floor environment and still maintains flexibility and elegance.
The 2.25 depth have special gang configurations.
Notes: This floor box is not applicable for direct contact with grade (soil or gravel). For grade applications, use the FL-GRD2/4pour pan as a foundation before box installation. These floor boxes are designed for the UL safety standard for scrub water. The standard only applied to boxed installed in concrete, not raised access boxes.
Applications:
- Hotel Lobbies
- Conference Centers
- Board Rooms
- Cruise Ship
- Anywhere an upscale, richly finished look is required
FL-500P-2.25" | QTY/BOX |
KO TRADE SIZE | |
1/2" / 3/4" CONCENTRIC | 12 |
This high quality FL-500P Cover has a 1/4" Square Aluminum Flange with our unique hinged U-Access door.
The cable access door can be easily removed by lifting the integrated U-Access handle to quickly access the interior compartment, connectors, and cables.
• 11-gauge finished steel cover with choice of carpet edging
• Mitered brass or aluminum carpet edging .5” or .25” high
• Stainless steel compression latches
• Hinged U-Access door
Flanging: Height: .25” or .5”
There are a variety of covers to choose from. Options include integrated carpet edging, flat covers for non-carpeted, bare floor applications, and different finishes. The hinged door of the cover allows full access to internal connector plates and stored cables. The hinged cable exit door flips back to allow the cover to remain in place after connections are made and cables are routed through it. The 0.25” and 0.5” raised edge style and solid covers are UL scrub water approved.
BAA Compliance
FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Buy America/ Build America Act (BABAA) compliant. Look for this logo on our website:
TAA Compliance
FSR floor box products meet TAA and BABAA requirements.
*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.
15357, 18445 | |
2.25" Deep FL-500P Box w/ Hinged Cover 1/4" Square Aluminum Flange |
The FL-500P-2.25 floor box combines rugged construction and an elegant design for use in carpet, tile or wood covered floors over poured concrete applications. This floor box has ample compartment room to accommodate power, audio, video, telecommunications and data in one elegant and practical box.
The innovation continues to the configurable
back box. The FL-500P's internal brackets can be arranged to provide numerous options for both high and low voltage standard gang openings making it the most flexible and easiest to install floor box available. The FL-500P floor box is designed to handle the rigors of a floor environment and still maintains flexibility and elegance.
The 2.25 depth have special gang configurations.
Notes: This floor box is not applicable for direct contact with grade (soil or gravel). For grade applications, use the FL-GRD2/4pour pan as a foundation before box installation. These floor boxes are designed for the UL safety standard for scrub water. The standard only applied to boxed installed in concrete, not raised access boxes.
Applications:
- Hotel Lobbies
- Conference Centers
- Board Rooms
- Cruise Ship
- Anywhere an upscale, richly finished look is required
FL-500P-2.25" | QTY/BOX |
KO TRADE SIZE | |
1/2" / 3/4" CONCENTRIC | 12 |
This high quality FL-500P Cover has a 1/4" Square Brass Flange with our unique tool-less lift off door.
The cable access door can be easily removed by lifting the integrated U-Access handle to quickly access the interior compartment, connectors, and cables.
• 11-gauge finished steel cover with choice of carpet edging
• Mitered brass or aluminum carpet edging .5” or .25” high
• Stainless steel compression latches
• Lift-off full access door
Flanging: Height: .25” or .5”
There are a variety of covers to choose from. Options include integrated carpet edging, flat covers for non-carpeted, bare floor applications, and different finishes. The lift-off section of the cover allows full access to internal connector plates and stored cables. The hinged cable exit door flips back to allow the cover to remain in place after connections are made and cables are routed through it. The 0.25” and 0.5” raised edge style and solid covers are UL scrub water approved.
BAA Compliance
FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Buy America/ Build America Act (BABAA) compliant. Look for this logo on our website:
TAA Compliance
FSR floor box products meet TAA and BABAA requirements.
*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.
15357, 18443 | |
2.25" Deep FL-500P Box w/ 1/4" Square Brass Flange |
The FL-500P-3 Floor box combines rugged construction and an elegant design for use in carpet, tile or wood covered floors over poured concrete applications. This floor box has ample compartment room to accommodate power, audio, video, telecommunications and data in one elegant and practical box.
The FL-500P floor box is not only UL and CUL Listed but has also passed the latest UL test for scrub water. Because of FSR's unique engineering and manufacturing ability, FSR floor boxes pass for carpeted floors as well as tile and wood! The hinged u-access cover allows full access to internal connector plates and stored cables, and the smaller hinged cable access door flips back to create the cableexit. When the floor box is not in use, the cover is completely closed allowing unencumbered travel in the area with only the handmitered, elegant carpet edge visible. The low profile edging is 1/4” or 1/2” high and is available in brass or aluminum.
The innovation continues to the configurable
back box. The FL-500P's internal brackets can be arranged to provide numerous options for both high and low voltage standard gang openings making it the most flexible and easiest to install floor box available. The FL-500P floor box is designed to handle the rigors of a floor environment and still maintains flexibility and elegance.
The 3" depth have special gang configurations.
Notes: This floor box is not applicable for direct contact with grade (soil or gravel). For grade applications, use the FL-GRD2/4pour pan as a foundation before box installation. These floor boxes are designed for the UL safety standard for scrub water. The standard only applied to boxed installed in concrete, not raised access boxes.
Each floorbox comes with a temporary construction cover. Boxes and covers are sold separately.
Applications:
- Hotel Lobbies
- Conference Centers
- Board Rooms
- Cruise Ship
- Anywhere an upscale, richly finished look is required
BAA Compliance
FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Buy America/ Build America Act (BABAA) compliant. Look for this logo on our website:
TAA Compliance
FSR floor box products meet TAA and BABAA requirements.
*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.
FL-500P-3" | QTY/BOX |
KO TRADE SIZE | |
1/2" | 8 |
1.00"/ 1-1/4" CONCENTRIC | 4 |
17282 | |
3" Deep FL-500P Box with a temporary cover (thickness of .12") |
The FL-500P-3 floor box combines rugged construction and an elegant design for use in carpet, tile or wood covered floors over poured concrete applications. This floor box has ample compartment room to accommodate power, audio, video, telecommunications and data in one elegant and practical box.
The innovation continues to the configurable
back box. The FL-500P's internal brackets can be arranged to provide numerous options for both high and low voltage standard gang openings making it the most flexible and easiest to install floor box available. The FL-500P floor box is designed to handle the rigors of a floor environment and still maintains flexibility and elegance.
The 3" depth have special gang configurations.
Notes: This floor box is not applicable for direct contact with grade (soil or gravel). For grade applications, use the FL-GRD2/4pour pan as a foundation before box installation. These floor boxes are designed for the UL safety standard for scrub water. The standard only applied to boxed installed in concrete, not raised access boxes.
Applications:
- Hotel Lobbies
- Conference Centers
- Board Rooms
- Cruise Ship
- Anywhere an upscale, richly finished look is required
FL-500P-3" | QTY/BOX |
KO TRADE SIZE | |
1/2" | 8 |
1.00"/ 1-1/4" CONCENTRIC |
This high quality FL-500P Oak Sandtex Cover has our unique tool-less lift off door.
• 11-gauge finished steel cover with choice of carpet edging
• Mitered brass or aluminum carpet edging .5” or .25” high
• Stainless steel compression latches
• Lift-off full access door
Flanging: Height: .25” or .5”
There are a variety of covers to choose from. Options include integrated carpet edging, flat covers for non-carpeted, bare floor applications, and different finishes. The lift-off section of the cover allows full access to internal connector plates and stored cables. The hinged cable exit door flips back to allow the cover to remain in place after connections are made and cables are routed through it. The 0.25” and 0.5” raised edge style and solid covers are UL scrub water approved.
BAA Compliance
FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Buy America/ Build America Act (BABAA) compliant. Look for this logo on our website:
TAA Compliance
FSR floor box products meet TAA and BABAA requirements.
*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.
3" Deep FL-500P Box w/ Oak Sandtex Cover |
The FL-500P-3 floor box combines rugged construction and an elegant design for use in carpet, tile or wood covered floors over poured concrete applications. This floor box has ample compartment room to accommodate power, audio, video, telecommunications and data in one elegant and practical box.
The innovation continues to the configurable
back box. The FL-500P's internal brackets can be arranged to provide numerous options for both high and low voltage standard gang openings making it the most flexible and easiest to install floor box available. The FL-500P floor box is designed to handle the rigors of a floor environment and still maintains flexibility and elegance.
The 3" depth have special gang configurations.
Notes: This floor box is not applicable for direct contact with grade (soil or gravel). For grade applications, use the FL-GRD2/4pour pan as a foundation before box installation. These floor boxes are designed for the UL safety standard for scrub water. The standard only applied to boxed installed in concrete, not raised access boxes.
Applications:
- Hotel Lobbies
- Conference Centers
- Board Rooms
- Cruise Ship
- Anywhere an upscale, richly finished look is required
FL-500P-3" | QTY/BOX |
KO TRADE SIZE | |
1/2" | 8 |
1.00"/ 1-1/4" CONCENTRIC | 4 |
This high quality FL-500P Black Sandtex Cover has our unique hinged U-Access door.
• 11-gauge finished steel cover with choice of carpet edging
• Mitered brass or aluminum carpet edging .5” or .25” high
• Stainless steel compression latches
• Hinged U-Access door
Flanging: Height: .25” or .5”
There are a variety of covers to choose from. Options include integrated carpet edging, flat covers for non-carpeted, bare floor applications, and different finishes. The hinged door of the cover allows full access to internal connector plates and stored cables. The hinged cable exit door flips back to allow the cover to remain in place after connections are made and cables are routed through it. The 0.25” and 0.5” raised edge style and solid covers are UL scrub water approved.
BAA Compliance
FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Buy America/ Build America Act (BABAA) compliant. Look for this logo on our website:
TAA Compliance
FSR floor box products meet TAA and BABAA requirements.
*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.
17282, 15075 | |
3" Deep FL-500P Box w/ Hinged Door in Black Sandtex |
The FL-500P-3 floor box combines rugged construction and an elegant design for use in carpet, tile or wood covered floors over poured concrete applications. This floor box has ample compartment room to accommodate power, audio, video, telecommunications and data in one elegant and practical box.
The innovation continues to the configurable
back box. The FL-500P's internal brackets can be arranged to provide numerous options for both high and low voltage standard gang openings making it the most flexible and easiest to install floor box available. The FL-500P floor box is designed to handle the rigors of a floor environment and still maintains flexibility and elegance.
The 3" depth have special gang configurations.
Notes: This floor box is not applicable for direct contact with grade (soil or gravel). For grade applications, use the FL-GRD2/4pour pan as a foundation before box installation. These floor boxes are designed for the UL safety standard for scrub water. The standard only applied to boxed installed in concrete, not raised access boxes.
Applications:
- Hotel Lobbies
- Conference Centers
- Board Rooms
- Cruise Ship
- Anywhere an upscale, richly finished look is required
FL-500P-3" | QTY/BOX |
KO TRADE SIZE | |
1/2" | 8 |
1.00"/ 1-1/4" CONCENTRIC | 4 |
This high quality FL-500P Silver Painted Cover has our unique hinged U-Access door.
• 11-gauge finished steel cover with choice of carpet edging
• Mitered brass or aluminum carpet edging .5” or .25” high
• Stainless steel compression latches
• Hinged U-Access door
Flanging: Height: .25” or .5”
There are a variety of covers to choose from. Options include integrated carpet edging, flat covers for non-carpeted, bare floor applications, and different finishes. The hinged door of the cover allows full access to internal connector plates and stored cables. The hinged cable exit door flips back to allow the cover to remain in place after connections are made and cables are routed through it. The 0.25” and 0.5” raised edge style and solid covers are UL scrub water approved.
BAA Compliance
FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Buy America/ Build America Act (BABAA) compliant. Look for this logo on our website:
TAA Compliance
FSR floor box products meet TAA and BABAA requirements.
*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.
17282, 18153 | |
3" Deep FL-500P Box w/ Painted Silver Cover |
The FL-500P-3 floor box combines rugged construction and an elegant design for use in carpet, tile or wood covered floors over poured concrete applications. This floor box has ample compartment room to accommodate power, audio, video, telecommunications and data in one elegant and practical box.
The innovation continues to the configurable
back box. The FL-500P's internal brackets can be arranged to provide numerous options for both high and low voltage standard gang openings making it the most flexible and easiest to install floor box available. The FL-500P floor box is designed to handle the rigors of a floor environment and still maintains flexibility and elegance.
The 3" depth have special gang configurations.
Notes: This floor box is not applicable for direct contact with grade (soil or gravel). For grade applications, use the FL-GRD2/4pour pan as a foundation before box installation. These floor boxes are designed for the UL safety standard for scrub water. The standard only applied to boxed installed in concrete, not raised access boxes.
Applications:
- Hotel Lobbies
- Conference Centers
- Board Rooms
- Cruise Ship
- Anywhere an upscale, richly finished look is required
FL-500P-3" | QTY/BOX |
KO TRADE SIZE | |
1/2" | 8 |
1.00"/ 1-1/4" CONCENTRIC | 4 |
This high quality FL-500P Stsinless Steel Cover has our unique hinged U-Access door.
The cable access door can be easily removed by lifting the integrated U-Access handle to quickly access the interior compartment, connectors, and cables.
• 11-gauge finished steel cover with choice of carpet edging
• Mitered brass or aluminum carpet edging .5” or .25” high
• Stainless steel compression latches
• Hinged U-Access door
Flanging: Height: .25” or .5”
There are a variety of covers to choose from. Options include integrated carpet edging, flat covers for non-carpeted, bare floor applications, and different finishes. The hinged door of the cover allows full access to internal connector plates and stored cables. The hinged cable exit door flips back to allow the cover to remain in place after connections are made and cables are routed through it. The 0.25” and 0.5” raised edge style and solid covers are UL scrub water approved.
BAA Compliance
FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Buy America/ Build America Act (BABAA) compliant. Look for this logo on our website:
TAA Compliance
FSR floor box products meet TAA and BABAA requirements.
*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.
17282, 15526 | |
3" Deep FL-500P Box w/ Stainless Steel Cover (No Flange) w/ Hinged Door |
The FL-500P-3 floor box combines rugged construction and an elegant design for use in carpet, tile or wood covered floors over poured concrete applications. This floor box has ample compartment room to accommodate power, audio, video, telecommunications and data in one elegant and practical box.
The FL-500P floor box is not only UL and CUL Listed but has also passed the latest UL test for scrub water. Because of FSR's unique engineering and manufacturing ability, FSR floor boxes pass for carpeted floors as well as tile and wood! The lift-off section of the cover allows full access to internal connector plates and stored cables, and the smaller hinged cable access door flips back to create the cableexit. When the floor box is not in use, the cover is completely closed allowing unencumbered travel in the area with only the handmitered, elegant carpet edge visible. The low profile edging is 1/4” or 1/2” high and is available in brass or aluminum.
The innovation continues to the configurable
back box. The FL-500P's internal brackets can be arranged to provide numerous options for both high and low voltage standard gang openings making it the most flexible and easiest to install floor box available. The FL-500P floor box is designed to handle the rigors of a floor environment and still maintains flexibility and elegance.
The 3" depth have special gang configurations.
Notes: This floor box is not applicable for direct contact with grade (soil or gravel). For grade applications, use the FL-GRD2/4pour pan as a foundation before box installation. These floor boxes are designed for the UL safety standard for scrub water. The standard only applied to boxed installed in concrete, not raised access boxes.
Applications:
- Hotel Lobbies
- Conference Centers
- Board Rooms
- Cruise Ship
- Anywhere an upscale, richly finished look is required
FL-500P-3" | QTY/BOX |
KO TRADE SIZE | |
1/2" | 8 |
1.00"/ 1-1/4" CONCENTRIC | 4 |
This high quality FL-500P Solid Brass Cover has our unique hinged U-Access door.
The cable access door can be easily removed by lifting the integrated U-Access handle to quickly access the interior compartment, connectors, and cables.
• 11-gauge finished steel cover with choice of carpet edging
• Mitered brass or aluminum carpet edging .5” or .25” high
• Stainless steel compression latches
• Hinged U-Access door
Flanging: Height: .25” or .5”
There are a variety of covers to choose from. Options include integrated carpet edging, flat covers for non-carpeted, bare floor applications, and different finishes. The hinged door of the cover allows full access to internal connector plates and stored cables. The hinged cable exit door flips back to allow the cover to remain in place after connections are made and cables are routed through it. The 0.25” and 0.5” raised edge style and solid covers are UL scrub water approved.
BAA Compliance
FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Buy America/ Build America Act (BABAA) compliant. Look for this logo on our website:
TAA Compliance
FSR floor box products meet TAA and BABAA requirements.
*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.
17282, 16221 | |
3" Deep FL-500P Box w/ Brass Solid Cover |
The FL-500P-3 floor box combines rugged construction and an elegant design for use in carpet, tile or wood covered floors over poured concrete applications. This floor box has ample compartment room to accomodate power, audio, video, telecommunications and data in one elegant and pratical box.
The innovation continues to the configurable
back box. The FL-500P's internal brackets can be arranged to provide numerous options for both high and low voltage standard gang openings making it the most flexible and easiest to install floor box available. The FL-500P floor box is designed to handle the rigors of a floor environment and still maintains flexibility and elegance.
The 3" depth have special gang configurations.
Notes: This floor box is not applicable for direct contact with grade (soil or gravel). For grade applications, use the FL-GRD2/4pour pan as a foundationbefore box installation.These floor boxes are designed for the UL safety standard for scrub water. The standard only applied to boxed installed in concrete, not raised access boxes.
Applications:
- Hotel Lobbies
- Conference Centers
- Board Rooms
- Cruise Ship
- Anywhere an upscale, richly finished look is required
FL-500P-3" | QTY/BOX |
KO TRADE SIZE | |
1/2" | 8 |
1.00"/ 1-1/4" CONCENTRIC | 4 |
This high quality FL-500P 1/4" Brass Carpet Flange with our unique hinged U-Access door.
• 11-gauge finished steel cover with choice of carpet edging
• Mitered brass or aluminum carpet edging .5” or .25” high
• Stainless steel compression latches
• Hinged U-Access door
Flanging: Height: .25” or .5”
There are a variety of covers to choose from. Options include integrated carpet edging, flat covers for non-carpeted, bare floor applications, and different finishes. The hinged door of the cover allows full access to internal connector plates and stored cables. The hinged cable exit door flips back to allow the cover to remain in place after connections are made and cables are routed through it. The 0.25” and 0.5” raised edge style and solid covers are UL scrub water approved.
BAA Compliance
FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Buy America/ Build America Act (BABAA) compliant. Look for this logo on our website:
TAA Compliance
FSR floor box products meet TAA and BABAA requirements.
*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.
17282, 18442 | |
3" Deep FL-500P Box w/ Hinged Cover 1/4" Brass Carpet Flange |
The FL-500P-3 floor box combines rugged construction and an elegant design for use in carpet, tile or wood covered floors over poured concrete applications. This floor box has ample compartment room to accommodate power, audio, video, telecommunications and data in one elegant and practical box.
The innovation continues to the configurable
back box. The FL-500P's internal brackets can be arranged to provide numerous options for both high and low voltage standard gang openings making it the most flexible and easiest to install floor box available. The FL-500P floor box is designed to handle the rigors of a floor environment and still maintains flexibility and elegance.
The 3" depth have special gang configurations.
Notes: This floor box is not applicable for direct contact with grade (soil or gravel). For grade applications, use the FL-GRD2/4 pour pan as a foundation before box installation. These floor boxes are designed for the UL safety standard for scrub water. The standard only applied to boxed installed in concrete, not raised access boxes.
Applications:
- Hotel Lobbies
- Conference Centers
- Board Rooms
- Cruise Ship
- Anywhere an upscale, richly finished look is required
FL-500P-3" | QTY/BOX |
KO TRADE SIZE | |
1/2" | 8 |
1.00"/ 1-1/4" CONCENTRIC | 4 |
This high quality FL-500P 1/2" Brass Carpet Flange with our unique hinged U-Access door.
The cable access door can be easily removed by lifting the integrated U-Access handle to quickly access the interior compartment, connectors, and cables.
• 11-gauge finished steel cover with choice of carpet edging
• Mitered brass or aluminum carpet edging .5” or .25” high
• Stainless steel compression latches
• Hinged U-Access door
Flanging: Height: .25” or .5”
There are a variety of covers to choose from. Options include integrated carpet edging, flat covers for non-carpeted, bare floor applications, and different finishes. The hinged door of the cover allows full access to internal connector plates and stored cables. The hinged cable exit door flips back to allow the cover to remain in place after connections are made and cables are routed through it. The 0.25” and 0.5” raised edge style and solid covers are UL scrub water approved.
BAA Compliance
FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Buy America/ Build America Act (BABAA) compliant. Look for this logo on our website:
TAA Compliance
FSR floor box products meet TAA and BABAA requirements.
*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.
17282, 18444 | |
3" Deep FL-500P Box w/ Hinged Cover 1/2" Brass Carpet Flange |
The FL-500P-3 floor box combines rugged construction and an elegant design for use in carpet, tile or wood covered floors over poured concrete applications. This floor box has ample compartment room to accommodate power, audio, video, telecommunications and data in one elegant and practical box.
The innovation continues to the configurable
back box. The FL-500P's internal brackets can be arranged to provide numerous options for both high and low voltage standard gang openings making it the most flexible and easiest to install floor box available. The FL-500P floor box is designed to handle the rigors of a floor environment and still maintains flexibility and elegance.
The 3" depth have special gang configurations.
Notes: This floor box is not applicable for direct contact with grade (soil or gravel). For grade applications, use the FL-GRD2/4pour pan as a foundation before box installation. These floor boxes are designed for the UL safety standard for scrub water. The standard only applied to boxed installed in concrete, not raised access boxes.
Applications:
- Hotel Lobbies
- Conference Centers
- Board Rooms
- Cruise Ship
- Anywhere an upscale, richly finished look is required
FL-500P-3" | QTY/BOX |
KO TRADE SIZE | |
1/2" | 8 |
1.00"/ 1-1/4" CONCENTRIC | 4 |
The cable access door can be easily removed by lifting the integrated U-Access handle to quickly access the interior compartment, connectors, and cables.
• 11-gauge finished steel cover with choice of carpet edging
• Mitered brass or aluminum carpet edging .5” or .25” high
• Stainless steel compression latches
• Hinged U-Access door
Flanging: Height: .25” or .5”
There are a variety of covers to choose from. Options include integrated carpet edging, flat covers for non-carpeted, bare floor applications, and different finishes. The hinged door of the cover allows full access to internal connector plates and stored cables. The hinged cable exit door flips back to allow the cover to remain in place after connections are made and cables are routed through it. The 0.25” and 0.5” raised edge style and solid covers are UL scrub water approved.
BAA Compliance
FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Buy America/ Build America Act (BABAA) compliant. Look for this logo on our website:
TAA Compliance
FSR floor box products meet TAA and BABAA requirements.
*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.
17282, 18446 | |
3" Deep FL-500P Box w/ Hinged Cover w/ 1/2" Aluminum Carpet Flange |
The FL-500P-3 floor box combines rugged construction and an elegant design for use in carpet, tile or wood covered floors over poured concrete applications. This floor box has ample compartment room to accommodate power, audio, video, telecommunications and data in one elegant and practical box.
The innovation continues to the configurable
back box. The FL-500P's internal brackets can be arranged to provide numerous options for both high and low voltage standard gang openings making it the most flexible and easiest to install floor box available. The FL-500P floor box is designed to handle the rigors of a floor environment and still maintains flexibility and elegance.
The 3" depth have special gang configurations.
Notes: This floor box is not applicable for direct contact with grade (soil or gravel). For grade applications, use the FL-GRD2/4pour pan as a foundation before box installation. These floor boxes are designed for the UL safety standard for scrub water. The standard only applied to boxed installed in concrete, not raised access boxes.
Applications:
- Hotel Lobbies
- Conference Centers
- Board Rooms
- Cruise Ship
- Anywhere an upscale, richly finished look is required
FL-500P-3" | QTY/BOX |
KO TRADE SIZE | |
1/2" | 8 |
1.00"/ 1-1/4" CONCENTRIC | 4 |
This high quality FL-500P 1/4" Aluminum Carpet Flange with our unique hinged U-Access door.
The cable access door can be easily removed by lifting the integrated U-Access handle to quickly access the interior compartment, connectors, and cables.
• 11-gauge finished steel cover with choice of carpet edging
• Mitered brass or aluminum carpet edging .5” or .25” high
• Stainless steel compression latches
• Hinged U-Access door
Flanging: Height: .25” or .5”
There are a variety of covers to choose from. Options include integrated carpet edging, flat covers for non-carpeted, bare floor applications, and different finishes. The hinged door of the cover allows full access to internal connector plates and stored cables. The hinged cable exit door flips back to allow the cover to remain in place after connections are made and cables are routed through it. The 0.25” and 0.5” raised edge style and solid covers are UL scrub water approved.
BAA Compliance
FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Buy America/ Build America Act (BABAA) compliant. Look for this logo on our website:
TAA Compliance
FSR floor box products meet TAA and BABAA requirements.
*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.
17282, 18353 | |
3" Deep FL-500P Box w/ Hinged U-Access Cover 1/4" Aluminum Carpet Flange |
The FL-500P-3 floor box combines rugged construction and an elegant design for use in carpet, tile or wood covered floors over poured concrete applications. This floor box has ample compartment room to accommodate power, audio, video, telecommunications and data in one elegant and practical box.
The innovation continues to the configurable
back box. The FL-500P's internal brackets can be arranged to provide numerous options for both high and low voltage standard gang openings making it the most flexible and easiest to install floor box available. The FL-500P floor box is designed to handle the rigors of a floor environment and still maintains flexibility and elegance.
The 3" depth have special gang configurations.
Notes: This floor box is not applicable for direct contact with grade (soil or gravel). For grade applications, use the FL-GRD2/4pour pan as a foundation before box installation. These floor boxes are designed for the UL safety standard for scrub water. The standard only applied to boxed installed in concrete, not raised access boxes.
Applications:
- Hotel Lobbies
- Conference Centers
- Board Rooms
- Cruise Ship
- Anywhere an upscale, richly finished look is required
FL-500P-3" | QTY/BOX |
KO TRADE SIZE | |
1/2" | 8 |
1.00"/ 1-1/4" CONCENTRIC | 4 |
This high quality FL-500P 1/4" Grey Painted Carpet Flange with our unique hinged U-Access door.
• 11-gauge finished steel cover with choice of carpet edging
• Mitered brass or aluminum carpet edging .5” or .25” high
• Stainless steel compression latches
• Hinged U-Access door
Flanging: Height: .25” or .5”
There are a variety of covers to choose from. Options include integrated carpet edging, flat covers for non-carpeted, bare floor applications, and different finishes. The hinged door of the cover allows full access to internal connector plates and stored cables. The hinged cable exit door flips back to allow the cover to remain in place after connections are made and cables are routed through it. The 0.25” and 0.5” raised edge style and solid covers are UL scrub water approved.
BAA Compliance
FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Buy America/ Build America Act (BABAA) compliant. Look for this logo on our website:
TAA Compliance
FSR floor box products meet TAA and BABAA requirements.
*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.
17282, 18449 | |
3" Deep FL-500P Box w/ Hinged Cover w/ 1/4" Painted Carpet Flange- Gray |
The FL-500P-3 floor box combines rugged construction and an elegant design for use in carpet, tile or wood covered floors over poured concrete applications. This floor box has ample compartment room to accommodate power, audio, video, telecommunications and data in one elegant and practical box.
The innovation continues to the configurable
back box. The FL-500P's internal brackets can be arranged to provide numerous options for both high and low voltage standard gang openings making it the most flexible and easiest to install floor box available. The FL-500P floor box is designed to handle the rigors of a floor environment and still maintains flexibility and elegance.
The 3" depth have special gang configurations.
Notes: This floor box is not applicable for direct contact with grade (soil or gravel). For grade applications, use the FL-GRD2/4pour pan as a foundation before box installation. These floor boxes are designed for the UL safety standard for scrub water. The standard only applied to boxed installed in concrete, not raised access boxes.
Applications:
- Hotel Lobbies
- Conference Centers
- Board Rooms
- Cruise Ship
- Anywhere an upscale, richly finished look is required
FL-500P-3" | QTY/BOX |
KO TRADE SIZE | |
1/2" | 8 |
1.00"/ 1-1/4" CONCENTRIC | 4 |
*Limited Stock*
This high quality FL-500P 1/4" Clay Painted Carpet Flange with our unique hinged U-Access door.
• 11-gauge finished steel cover with choice of carpet edging
• Mitered brass or aluminum carpet edging .5” or .25” high
• Stainless steel compression latches
• Hinged U-Access door
Flanging: Height: .25” or .5”
There are a variety of covers to choose from. Options include integrated carpet edging, flat covers for non-carpeted, bare floor applications, and different finishes. The hinged door of the cover allows full access to internal connector plates and stored cables. The hinged cable exit door flips back to allow the cover to remain in place after connections are made and cables are routed through it. The 0.25” and 0.5” raised edge style and solid covers are UL scrub water approved.
BAA Compliance
FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Buy America/ Build America Act (BABAA) compliant. Look for this logo on our website:
TAA Compliance
FSR floor box products meet TAA and BABAA requirements.
*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.
17282, 17553 | |
3" Deep Fl-500P Box w/ Painted Carpet Flange-Clay |
The FL-500P-3 floor box combines rugged construction and an elegant design for use in carpet, tile or wood covered floors over poured concrete applications. This floor box has ample compartment room to accommodate power, audio, video, telecommunications and data in one elegant and practical box.
The innovation continues to the configurable
back box. The FL-500P's internal brackets can be arranged to provide numerous options for both high and low voltage standard gang openings making it the most flexible and easiest to install floor box available. The FL-500P floor box is designed to handle the rigors of a floor environment and still maintains flexibility and elegance.
The 3" depth have special gang configurations.
Notes: This floor box is not applicable for direct contact with grade (soil or gravel). For grade applications, use the FL-GRD2/4pour pan as a foundation before box installation. These floor boxes are designed for the UL safety standard for scrub water. The standard only applied to boxed installed in concrete, not raised access boxes.
Applications:
- Hotel Lobbies
- Conference Centers
- Board Rooms
- Cruise Ship
- Anywhere an upscale, richly finished look is required
FL-500P-3" | QTY/BOX |
KO TRADE SIZE | |
1/2" | 8 |
1.00"/ 1-1/4" CONCENTRIC | 4 |
This high quality FL-500P 1/4" Black Painted Carpet Flange with our unique hinged U-Access door.
The cable access door can be easily removed by lifting the integrated U-Access handle to quickly access the interior compartment, connectors, and cables.
• 11-gauge finished steel cover with choice of carpet edging
• Mitered brass or aluminum carpet edging .5” or .25” high
• Stainless steel compression latches
• Hinged U-Access door
Flanging: Height: .25” or .5”
There are a variety of covers to choose from. Options include integrated carpet edging, flat covers for non-carpeted, bare floor applications, and different finishes. The hinged door of the cover allows full access to internal connector plates and stored cables. The hinged cable exit door flips back to allow the cover to remain in place after connections are made and cables are routed through it. The 0.25” and 0.5” raised edge style and solid covers are UL scrub water approved.
BAA Compliance
FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Buy America/ Build America Act (BABAA) compliant. Look for this logo on our website:
TAA Compliance
FSR floor box products meet TAA and BABAA requirements.
*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.
17282, 18447 | |
3" Deep FL-500P Box w/ Hinged Cover with 1/4" Painted Carpet Flange- Black |
The FL-500P-3 floor box combines rugged construction and an elegant design for use in carpet, tile or wood covered floors over poured concrete applications. This floor box has ample compartment room to accommodate power, audio, video, telecommunications and data in one elegant and practical box.
The innovation continues to the configurable
back box. The FL-500P's internal brackets can be arranged to provide numerous options for both high and low voltage standard gang openings making it the most flexible and easiest to install floor box available. The FL-500P floor box is designed to handle the rigors of a floor environment and still maintains flexibility and elegance.
The 3" depth have special gang configurations.
Notes: This floor box is not applicable for direct contact with grade (soil or gravel). For grade applications, use the FL-GRD2/4pour pan as a foundation before box installation. These floor boxes are designed for the UL safety standard for scrub water. The standard only applied to boxed installed in concrete, not raised access boxes.
Applications:
- Hotel Lobbies
- Conference Centers
- Board Rooms
- Cruise Ship
- Anywhere an upscale, richly finished look is required
FL-500P-3" | QTY/BOX |
KO TRADE SIZE | |
1/2" | 8 |
1.00"/ 1-1/4" CONCENTRIC | 4 |
This high quality FL-500P Solid Aluminum Cover has our unique hinged U-Access door.
The cable access door can be easily removed by lifting the integrated U-Access handle to quickly access the interior compartment, connectors, and cables.
• 11-gauge finished steel cover with choice of carpet edging
• Mitered brass or aluminum carpet edging .5” or .25” high
• Stainless steel compression latches
• Hinged U-Access door
Flanging: Height: .25” or .5”
There are a variety of covers to choose from. Options include integrated carpet edging, flat covers for non-carpeted, bare floor applications, and different finishes. The hinged door of the cover allows full access to internal connector plates and stored cables. The hinged cable exit door flips back to allow the cover to remain in place after connections are made and cables are routed through it. The 0.25” and 0.5” raised edge style and solid covers are UL scrub water approved.
BAA Compliance
FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Buy America/ Build America Act (BABAA) compliant. Look for this logo on our website:
TAA Compliance
FSR floor box products meet TAA and BABAA requirements.
*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.
17282, 18450 | |
3" Deep FL-500P Box w/ Solid Hinged Cover w/ Cable Exit (No Trim) - Aluminum |
The FL-500P-3 floor box combines rugged construction and an elegant design for use in carpet, tile or wood covered floors over poured concrete applications. This floor box has ample compartment room to accommodate power, audio, video, telecommunications and data in one elegant and practical box.
The innovation continues to the configurable
back box. The FL-500P's internal brackets can be arranged to provide numerous options for both high and low voltage standard gang openings making it the most flexible and easiest to install floor box available. The FL-500P floor box is designed to handle the rigors of a floor environment and still maintains flexibility and elegance.
The 3" depth have special gang configurations.
Notes: This floor box is not applicable for direct contact with grade (soil or gravel). For grade applications, use the FL-GRD2/4 pour pan as a foundation before box installation. These floor boxes are designed for the UL safety standard for scrub water. The standard only applied to boxed installed in concrete, not raised access boxes.
Applications:
- Hotel Lobbies
- Conference Centers
- Board Rooms
- Cruise Ship
- Anywhere an upscale, richly finished look is required
FL-500P-3" | QTY/BOX |
KO TRADE SIZE | |
1/2" | 8 |
1.00"/ 1-1/4" CONCENTRIC | 4 |
This high quality FL-500P Black Solid Cover has our unique hinged U-Access door.
• 11-gauge finished steel cover with choice of carpet edging
• Mitered brass or aluminum carpet edging .5” or .25” high
• Stainless steel compression latches
• Hinged U-Access door
Flanging: Height: .25” or .5”
There are a variety of covers to choose from. Options include integrated carpet edging, flat covers for non-carpeted, bare floor applications, and different finishes. The hinged door of the cover allows full access to internal connector plates and stored cables. The hinged cable exit door flips back to allow the cover to remain in place after connections are made and cables are routed through it. The 0.25” and 0.5” raised edge style and solid covers are UL scrub water approved.
BAA Compliance
FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Buy America/ Build America Act (BABAA) compliant. Look for this logo on our website:
TAA Compliance
FSR floor box products meet TAA and BABAA requirements.
*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.
17282, 18451 | |
3" Deep FL-500P Box w/ Solid Hinged Cover w/ Cable Exit (No Trim) - Black |
The FL-500P-3 floor box combines rugged construction and an elegant design for use in carpet, tile or wood covered floors over poured concrete applications. This floor box has ample compartment room to accommodate power, audio, video, telecommunications and data in one elegant and practical box.
The innovation continues to the configurable
back box. The FL-500P's internal brackets can be arranged to provide numerous options for both high and low voltage standard gang openings making it the most flexible and easiest to install floor box available. The FL-500P floor box is designed to handle the rigors of a floor environment and still maintains flexibility and elegance.
The 3" depth have special gang configurations.
Notes: This floor box is not applicable for direct contact with grade (soil or gravel). For grade applications, use the FL-GRD2/4pour pan as a foundation before box installation. These floor boxes are designed for the UL safety standard for scrub water. The standard only applied to boxed installed in concrete, not raised access boxes.
Applications:
- Hotel Lobbies
- Conference Centers
- Board Rooms
- Cruise Ship
- Anywhere an upscale, richly finished look is required
FL-500P-3" | QTY/BOX |
KO TRADE SIZE | |
1/2" | 8 |
1.00"/ 1-1/4" CONCENTRIC | 4 |
*Limited Stock*
This high quality FL-500P Clay Solid Cover has our unique hinged U-Access door.
The cable access door can be easily removed by lifting the integrated U-Access handle to quickly access the interior compartment, connectors, and cables.
• 11-gauge finished steel cover with choice of carpet edging
• Mitered brass or aluminum carpet edging .5” or .25” high
• Stainless steel compression latches
• Hinged U-Access door
Flanging: Height: .25” or .5”
There are a variety of covers to choose from. Options include integrated carpet edging, flat covers for non-carpeted, bare floor applications, and different finishes. The hinged door of the cover allows full access to internal connector plates and stored cables. The hinged cable exit door flips back to allow the cover to remain in place after connections are made and cables are routed through it. The 0.25” and 0.5” raised edge style and solid covers are UL scrub water approved.
BAA Compliance
FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Buy America/ Build America Act (BABAA) compliant. Look for this logo on our website:
TAA Compliance
FSR floor box products meet TAA and BABAA requirements.
*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.
17282, 17557 | |
3" Deep FL-500P Box w/ Clay Solid Cover |
The FL-500P-3 floor box combines rugged construction and an elegant design for use in carpet, tile or wood covered floors over poured concrete applications. This floor box has ample compartment room to accomodate power, audio, video, telecommunications and data in one elegant and pratical box.
The innovation continues to the configurable
back box. The FL-500P's internal brackets can be arranged to provide numerous options for both high and low voltage standard gang openings making it the most flexible and easiest to install floor box available. The FL-500P floor box is designed to handle the rigors of a floor environment and still maintains flexibility and elegance.
The 3" depth have special gang configurations.
Notes: This floor box is not applicable for direct contact with grade (soil or gravel). For grade applications, use the FL-GRD2/4pour pan as a foundation before box installation. These floor boxes are designed for the UL safety standard for scrub water. The standard only applied to boxed installed in concrete, not raised access boxes.
Applications:
- Hotel Lobbies
- Conference Centers
- Board Rooms
- Cruise Ship
- Anywhere an upscale, richly finished look is required
FL-500P-3" | QTY/BOX |
KO TRADE SIZE | |
1/2" | 8 |
1.00"/ 1-1/4" CONCENTRIC | 4 |
This high quality FL-500P Grey Solid Cover has our unique hinged U-Access door.
The cable access door can be easily removed by lifting the integrated U-Access handle to quickly access the interior compartment, connectors, and cables.
• 11-gauge finished steel cover with choice of carpet edging
• Mitered brass or aluminum carpet edging .5” or .25” high
• Stainless steel compression latches
• Hinged U-Access door
Flanging: Height: .25” or .5”
There are a variety of covers to choose from. Options include integrated carpet edging, flat covers for non-carpeted, bare floor applications, and different finishes. The hinged door of the cover allows full access to internal connector plates and stored cables. The hinged cable exit door flips back to allow the cover to remain in place after connections are made and cables are routed through it. The 0.25” and 0.5” raised edge style and solid covers are UL scrub water approved.
BAA Compliance
FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Buy America/ Build America Act (BABAA) compliant. Look for this logo on our website:
TAA Compliance
FSR floor box products meet TAA and BABAA requirements.
*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.
17282, 18453 | |
3" Deep FL-500P Box w/ Solid Hinged Cover w/ Cable Exit (No Trim) - Grey |
The FL-500P-3 floor box combines rugged construction and an elegant design for use in carpet, tile or wood covered floors over poured concrete applications. This floor box has ample compartment room to accommodate power, audio, video, telecommunications and data in one elegant and practical box.
The innovation continues to the configurable
back box. The FL-500P's internal brackets can be arranged to provide numerous options for both high and low voltage standard gang openings making it the most flexible and easiest to install floor box available. The FL-500P floor box is designed to handle the rigors of a floor environment and still maintains flexibility and elegance.
The 3" depth have special gang configurations.
Notes: This floor box is not applicable for direct contact with grade (soil or gravel). For grade applications, use the FL-GRD2/4pour pan as a foundationbefore box installation.These floor boxes are designed for the UL safety standard for scrub water. The standard only applied to boxed installed in concrete, not raised access boxes.
Applications:
- Hotel Lobbies
- Conference Centers
- Board Rooms
- Cruise Ship
- Anywhere an upscale, richly finished look is required
FL-500P-3" | QTY/BOX |
KO TRADE SIZE | |
1/2" | 8 |
1.00"/ 1-1/4" CONCENTRIC | 4 |
This high quality FL-500P 1/4" Square Aluminum Cover with our unique hinged U-Access door.
The cable access door can be easily removed by lifting the integrated U-Access handle to quickly access the interior compartment, connectors, and cables.
• 11-gauge finished steel cover with choice of carpet edging
• Mitered brass or aluminum carpet edging .5” or .25” high
• Stainless steel compression latches
• Hinged U-Access door
Flanging: Height: .25” or .5”
There are a variety of covers to choose from. Options include integrated carpet edging, flat covers for non-carpeted, bare floor applications, and different finishes. The hinged door of the cover allows full access to internal connector plates and stored cables. The hinged cable exit door flips back to allow the cover to remain in place after connections are made and cables are routed through it. The 0.25” and 0.5” raised edge style and solid covers are UL scrub water approved.
BAA Compliance
FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Buy America/ Build America Act (BABAA) compliant. Look for this logo on our website:
TAA Compliance
FSR floor box products meet TAA and BABAA requirements.
*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.
17282, 18445 | |
3" Deep FL-500P Box w/ Hinged Cover 1/4" Square Aluminum Flange |
The FL-500P-3 floor box combines rugged construction and an elegant design for use in carpet, tile or wood covered floors over poured concrete applications. This floor box has ample compartment room to accommodate power, audio, video, telecommunications and data in one elegant and practical box.
The innovation continues to the configurable
back box. The FL-500P's internal brackets can be arranged to provide numerous options for both high and low voltage standard gang openings making it the most flexible and easiest to install floor box available. The FL-500P floor box is designed to handle the rigors of a floor environment and still maintains flexibility and elegance.
The 3" depth have special gang configurations.
Notes: This floor box is not applicable for direct contact with grade (soil or gravel). For grade applications, use the FL-GRD2/4pour pan as a foundation before box installation. These floor boxes are designed for the UL safety standard for scrub water. The standard only applied to boxed installed in concrete, not raised access boxes.
Applications:
- Hotel Lobbies
- Conference Centers
- Board Rooms
- Cruise Ship
- Anywhere an upscale, richly finished look is required
FL-500P-3" | QTY/BOX |
KO TRADE SIZE | |
1/2" | 8 |
1.00"/ 1-1/4" CONCENTRIC | 4 |
This high quality FL-500P Cover has a 1/4" Square Brass Flange with our unique tool-less lift off door.
The cable access door can be easily removed by lifting the integrated U-Access handle to quickly access the interior compartment, connectors, and cables.
• 11-gauge finished steel cover with choice of carpet edging
• Mitered brass or aluminum carpet edging .5” or .25” high
• Stainless steel compression latches
• Lift-off full access door
Flanging: Height: .25” or .5”
There are a variety of covers to choose from. Options include integrated carpet edging, flat covers for non-carpeted, bare floor applications, and different finishes. The lift-off section of the cover allows full access to internal connector plates and stored cables. The hinged cable exit door flips back to allow the cover to remain in place after connections are made and cables are routed through it. The 0.25” and 0.5” raised edge style and solid covers are UL scrub water approved.
BAA Compliance
FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Buy America/ Build America Act (BABAA) compliant. Look for this logo on our website:
TAA Compliance
FSR floor box products meet TAA and BABAA requirements.
*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.
17282, 18443 | |
3" Deep FL-500P Box w/ 1/4" Square Brass Flange |
The FL-500P-4 floor box combines rugged construction and an elegant design for use in carpet, tile or wood covered floors over poured concrete applications. This floor box has ample compartment room to accommodate power, audio, video, telecommunications and data in one elegant and practical box.
The FL-500P floor box is not only UL and CUL Listed but has also passed the latest UL test for scrub water. Because of FSR's unique engineering and manufacturing ability, FSR floor boxes pass for carpeted floors as well as tile and wood! The hinged u-access cover allows full access to internal connector plates and stored cables, and the smaller hinged cable access door flips back to create the cableexit. When the floor box is not in use, the cover is completely closed allowing unencumbered travel in the area with only the handmitered, elegant carpet edge visible. The low profile edging is 1/4” or 1/2” high and is available in brass or aluminum.
The innovation continues to the configurable
back box. The FL-500P's internal brackets can be arranged to provide numerous options for both high and low voltage standard gang openings making it the most flexible and easiest to install floor box available. The FL-500P floor box is designed to handle the rigors of a floor environment and still maintains flexibility and elegance.
Notes: This floor box is not applicable for direct contact with grade (soil or gravel). For grade applications, use the FL-GRD2/4pour pan as a foundationbefore box installation. These floor boxes are designed for the UL safety standard for scrub water. The standard only applied to boxes installed in concrete, not raised access boxes.
Each floorbox comes with a temporary construction cover.Boxes and covers are sold separately.
Applications:
- Hotel Lobbies
- Conference Centers
- Board Rooms
- Cruise Ship
- Anywhere an upscale, richly finished look is required
BAA Compliance
FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Buy America/ Build America Act (BABAA) compliant. Look for this logo on our website:
TAA Compliance
FSR floor box products meet TAA and BABAA requirements.
*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.
FL-500P-4" | QTY/BOX |
KO TRADE SIZE | |
3/4" | 8 |
1.00" / 1-1/4" CONCENTRIC | 4 |
1.00" / 1-1/4" / 1-1/2" CONCENTRIC | 8 |
10064 | |
4" Deep FL-500P Box with a temporary cover (thickness of .12") |
The FL-500P-4 floor box combines rugged construction and an elegant design for use in carpet, tile or wood covered floors over poured concrete applications. This floor box has ample compartment room to accommodate power, audio, video, telecommunications and data in one elegant and practical box.
The innovation continues to the configurable
back box. The FL-500P's internal brackets can be arranged to provide numerous options for both high and low voltage standard gang openings making it the most flexible and easiest to install floor box available. The FL-500P floor box is designed to handle the rigors of a floor environment and still maintains flexibility and elegance.
Notes: This floor box is not applicable for direct contact with grade (soil or gravel). For grade applications, use the FL-GRD2/4pour pan as a foundation before box installation. These floor boxes are designed for the UL safety standard for scrub water. The standard only applied to boxed installed in concrete, not raised access boxes.
Applications:
- Hotel Lobbies
- Conference Centers
- Board Rooms
- Cruise Ship
- Anywhere an upscale, richly finished look is required
FL-500P-4" | QTY/BOX |
KO TRADE SIZE | |
3/4" | 8 |
1.00" / 1-1/4" CONCENTRIC | 4 |
1.00" / 1-1/4" / 1-1/2" CONCENTRIC | 8 |
This high quality FL-500P Oak Sandtex Cover has our unique tool-less lift off door.
• 11-gauge finished steel cover with choice of carpet edging
• Mitered brass or aluminum carpet edging .5” or .25” high
• Stainless steel compression latches
• Lift-off full access door
Flanging: Height: .25” or .5”
There are a variety of covers to choose from. Options include integrated carpet edging, flat covers for non-carpeted, bare floor applications, and different finishes. The lift-off section of the cover allows full access to internal connector plates and stored cables. The hinged cable exit door flips back to allow the cover to remain in place after connections are made and cables are routed through it. The 0.25” and 0.5” raised edge style and solid covers are UL scrub water approved.
BAA Compliance
FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Buy America/ Build America Act (BABAA) compliant. Look for this logo on our website:
TAA Compliance
FSR floor box products meet TAA and BABAA requirements.
*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.
4" Deep FL-500P Box w/ Oak Sandtex Cover |
The FL-500P-4 floor box combines rugged construction and an elegant design for use in carpet, tile or wood covered floors over poured concrete applications. This floor box has ample compartment room to accommodate power, audio, video, telecommunications and data in one elegant and practical box.
The innovation continues to the configurable
back box. The FL-500P's internal brackets can be arranged to provide numerous options for both high and low voltage standard gang openings making it the most flexible and easiest to install floor box available. The FL-500P floor box is designed to handle the rigors of a floor environment and still maintains flexibility and elegance.
Notes: This floor box is not applicable for direct contact with grade (soil or gravel). For grade applications, use the FL-GRD2/4pour pan as a foundation before box installation. These floor boxes are designed for the UL safety standard for scrub water. The standard only applied to boxed installed in concrete, not raised access boxes.
Applications:
- Hotel Lobbies
- Conference Centers
- Board Rooms
- Cruise Ship
- Anywhere an upscale, richly finished look is required
FL-500P-4" | QTY/BOX |
KO TRADE SIZE | |
3/4" | 8 |
1.00" / 1-1/4" CONCENTRIC | 4 |
1.00" / 1-1/4" / 1-1/2" CONCENTRIC | 8 |
This high quality FL-500P Black Sandtex Cover has our unique hinged U-Access door.
• 11-gauge finished steel cover with choice of carpet edging
• Mitered brass or aluminum carpet edging .5” or .25” high
• Stainless steel compression latches
• Hinged U-Access door
Flanging: Height: .25” or .5”
There are a variety of covers to choose from. Options include integrated carpet edging, flat covers for non-carpeted, bare floor applications, and different finishes. The hinged u-access cover allows full access to internal connector plates and stored cables. The hinged cable exit door flips back to allow the cover to remain in place after connections are made and cables are routed through it. The 0.25” and 0.5” raised edge style and solid covers are UL scrub water approved.
BAA Compliance
FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Buy America/ Build America Act (BABAA) compliant. Look for this logo on our website:
TAA Compliance
FSR floor box products meet TAA and BABAA requirements.
*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.
10064, 15075 | |
4" Deep FL-500P Box w/ Hinged Door in Black Sandtex |
The FL-500P-4 floor box combines rugged construction and an elegant design for use in carpet, tile or wood covered floors over poured concrete applications. This floor box has ample compartment room to accommodate power, audio, video, telecommunications and data in one elegant and practical box.
The innovation continues to the configurable
back box. The FL-500P's internal brackets can be arranged to provide numerous options for both high and low voltage standard gang openings making it the most flexible and easiest to install floor box available. The FL-500P floor box is designed to handle the rigors of a floor environment and still maintains flexibility and elegance.
Notes: This floor box is not applicable for direct contact with grade (soil or gravel). For grade applications, use the FL-GRD2/4pour pan as a foundation before box installation. These floor boxes are designed for the UL safety standard for scrub water. The standard only applied to boxed installed in concrete, not raised access boxes.
Applications:
- Hotel Lobbies
- Conference Centers
- Board Rooms
- Cruise Ship
- Anywhere an upscale, richly finished look is required
FL-500P-4" | QTY/BOX |
KO TRADE SIZE | |
3/4" | 8 |
1.00" / 1-1/4" CONCENTRIC | 4 |
1.00" / 1-1/4" / 1-1/2" CONCENTRIC | 8 |
This high quality FL-500P Silver Painted Cover has our unique hinged U-Access door.
• 11-gauge finished steel cover with choice of carpet edging
• Mitered brass or aluminum carpet edging .5” or .25” high
• Stainless steel compression latches
• Hinged U-Access door
Flanging: Height: .25” or .5”
There are a variety of covers to choose from. Options include integrated carpet edging, flat covers for non-carpeted, bare floor applications, and different finishes. The hinged u-access cover allows full access to internal connector plates and stored cables. The hinged cable exit door flips back to allow the cover to remain in place after connections are made and cables are routed through it. The 0.25” and 0.5” raised edge style and solid covers are UL scrub water approved.
BAA Compliance
FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Buy America/ Build America Act (BABAA) compliant. Look for this logo on our website:
TAA Compliance
FSR floor box products meet TAA and BABAA requirements.
*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.
10064, 18153 | |
4" Deep FL-500P Box w/ Painted Silver Cover |
The FL-500P-4 floor box combines rugged construction and an elegant design for use in carpet, tile or wood covered floors over poured concrete applications. This floor box has ample compartment room to accommodate power, audio, video, telecommunications and data in one elegant and practical box.
The innovation continues to the configurable
back box. The FL-500P's internal brackets can be arranged to provide numerous options for both high and low voltage standard gang openings making it the most flexible and easiest to install floor box available. The FL-500P floor box is designed to handle the rigors of a floor environment and still maintains flexibility and elegance.
Notes: This floor box is not applicable for direct contact with grade (soil or gravel). For grade applications, use the FL-GRD2/4pour pan as a foundation before box installation. These floor boxes are designed for the UL safety standard for scrub water. The standard only applied to boxed installed in concrete, not raised access boxes.
Applications:
- Hotel Lobbies
- Conference Centers
- Board Rooms
- Cruise Ship
- Anywhere an upscale, richly finished look is required
FL-500P-4" | QTY/BOX |
KO TRADE SIZE | |
3/4" | 8 |
1.00" / 1-1/4" CONCENTRIC | 4 |
1.00" / 1-1/4" / 1-1/2" CONCENTRIC | 8 |
This high quality FL-500P Stainless Steel Cover has our unique hinged U-Access door.
• 11-gauge finished steel cover with choice of carpet edging
• Mitered brass or aluminum carpet edging .5” or .25” high
• Stainless steel compression latches
• Hinged U-Access door
Flanging: Height: .25” or .5”
There are a variety of covers to choose from. Options include integrated carpet edging, flat covers for non-carpeted, bare floor applications, and different finishes. The hinged u-access cover allows full access to internal connector plates and stored cables. The hinged cable exit door flips back to allow the cover to remain in place after connections are made and cables are routed through it. The 0.25” and 0.5” raised edge style and solid covers are UL scrub water approved.
BAA Compliance
FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Buy America/ Build America Act (BABAA) compliant. Look for this logo on our website:
TAA Compliance
FSR floor box products meet TAA and BABAA requirements.
*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.
10064, 15526 | |
4" Deep FL-500P Box w/ Stainless Steel Cover (No Flange) w/ Hinged Door |
The FL-500P-4 floor box combines rugged construction and an elegant design for use in carpet, tile or wood covered floors over poured concrete applications. This floor box has ample compartment room to accommodate power, audio, video, telecommunications and data in one elegant and practical box.
The innovation continues to the configurable
back box. The FL-500P's internal brackets can be arranged to provide numerous options for both high and low voltage standard gang openings making it the most flexible and easiest to install floor box available. The FL-500P floor box is designed to handle the rigors of a floor environment and still maintains flexibility and elegance.
Notes: This floor box is not applicable for direct contact with grade (soil or gravel). For grade applications, use the FL-GRD2/4pour pan as a foundation before box installation. These floor boxes are designed for the UL safety standard for scrub water. The standard only applied to boxed installed in concrete, not raised access boxes.
Applications:
- Hotel Lobbies
- Conference Centers
- Board Rooms
- Cruise Ship
- Anywhere an upscale, richly finished look is required
FL-500P-4" | QTY/BOX |
KO TRADE SIZE | |
3/4" | 8 |
1.00" / 1-1/4" CONCENTRIC | 4 |
1.00" / 1-1/4" / 1-1/2" CONCENTRIC | 8 |
• 11-gauge finished steel cover with choice of carpet edging
• Mitered brass or aluminum carpet edging .5” or .25” high
• Stainless steel compression latches
• Hinged U-Access door
Flanging: Height: .25” or .5”
There are a variety of covers to choose from. Options include integrated carpet edging, flat covers for non-carpeted, bare floor applications, and different finishes. The hinged u-access cover allows full access to internal connector plates and stored cables. The hinged cable exit door flips back to allow the cover to remain in place after connections are made and cables are routed through it. The 0.25” and 0.5” raised edge style and solid covers are UL scrub water approved.
BAA Compliance
FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Buy America/ Build America Act (BABAA) compliant. Look for this logo on our website:
TAA Compliance
FSR floor box products meet TAA and BABAA requirements.
*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.
10064, 16221 | |
4" Deep FL-500P Box w/ Brass Solid Cover |
The FL-500P-4 floor box combines rugged construction and an elegant design for use in carpet, tile or wood covered floors over poured concrete applications. This floor box has ample compartment room to accommodate power, audio, video, telecommunications and data in one elegant and practical box.
The innovation continues to the configurable
back box. The FL-500P's internal brackets can be arranged to provide numerous options for both high and low voltage standard gang openings making it the most flexible and easiest to install floor box available. The FL-500P floor box is designed to handle the rigors of a floor environment and still maintains flexibility and elegance.
Notes: This floor box is not applicable for direct contact with grade (soil or gravel). For grade applications, use the FL-GRD2/4pour pan as a foundation before box installation. These floor boxes are designed for the UL safety standard for scrub water. The standard only applied to boxed installed in concrete, not raised access boxes.
Applications:
- Hotel Lobbies
- Conference Centers
- Board Rooms
- Cruise Ship
- Anywhere an upscale, richly finished look is required
FL-500P-4" | QTY/BOX |
KO TRADE SIZE | |
3/4" | 8 |
1.00" / 1-1/4" CONCENTRIC | 4 |
1.00" / 1-1/4" / 1-1/2" CONCENTRIC | 8 |
This high quality FL-500P Cover 1/4" Brass Carpet Flange with our unique hinged U-Access door.
• 11-gauge finished steel cover with choice of carpet edging
• Mitered brass or aluminum carpet edging .5” or .25” high
• Stainless steel compression latches
• Hinged U-Access door
Flanging: Height: .25” or .5”
There are a variety of covers to choose from. Options include integrated carpet edging, flat covers for non-carpeted, bare floor applications, and different finishes. The hinged door of the cover allows full access to internal connector plates and stored cables. The hinged cable exit door flips back to allow the cover to remain in place after connections are made and cables are routed through it. The 0.25” and 0.5” raised edge style and solid covers are UL scrub water approved.
BAA Compliance
FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Buy America/ Build America Act (BABAA) compliant. Look for this logo on our website:
TAA Compliance
FSR floor box products meet TAA and BABAA requirements.
*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.
10064, 18442 | |
4" Deep FL-500P Box w/ Hinged Cover 1/4" Brass Carpet Flange |
The FL-500P-4 floor box combines rugged construction and an elegant design for use in carpet, tile or wood covered floors over poured concrete applications. This floor box has ample compartment room to accommodate power, audio, video, telecommunications and data in one elegant and practical box.
The innovation continues to the configurable
back box. The FL-500P's internal brackets can be arranged to provide numerous options for both high and low voltage standard gang openings making it the most flexible and easiest to install floor box available. The FL-500P floor box is designed to handle the rigors of a floor environment and still maintains flexibility and elegance.
Notes: This floor box is not applicable for direct contact with grade (soil or gravel). For grade applications, use the FL-GRD2/4pour pan as a foundationbefore box installation.These floor boxes are designed for the UL safety standard for scrub water. The standard only applied to boxed installed in concrete, not raised access boxes.
Applications:
- Hotel Lobbies
- Conference Centers
- Board Rooms
- Cruise Ship
- Anywhere an upscale, richly finished look is required
FL-500P-4" | QTY/BOX |
KO TRADE SIZE | |
3/4" | 8 |
1.00" / 1-1/4" CONCENTRIC | 4 |
1.00" / 1-1/4" / 1-1/2" CONCENTRIC | 8 |
This high quality FL-500P Cover 1/2" Brass Carpet Flange with our unique hinged U-Access door.
The cable access door can be easily removed by lifting the integrated U-Access handle to quickly access the interior compartment, connectors, and cables.
• 11-gauge finished steel cover with choice of carpet edging
• Mitered brass or aluminum carpet edging .5” or .25” high
• Stainless steel compression latches
• Hinged U-Access door
Flanging: Height: .25” or .5”
There are a variety of covers to choose from. Options include integrated carpet edging, flat covers for non-carpeted, bare floor applications, and different finishes. The hinged door of the cover allows full access to internal connector plates and stored cables. The hinged cable exit door flips back to allow the cover to remain in place after connections are made and cables are routed through it. The 0.25” and 0.5” raised edge style and solid covers are UL scrub water approved.
BAA Compliance
FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Buy America/ Build America Act (BABAA) compliant. Look for this logo on our website:
TAA Compliance
FSR floor box products meet TAA and BABAA requirements.
*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.
10064, 18444 | |
4" Deep FL-500P Box w/ Hinged Cover 1/2" Brass Carpet Flange |
The FL-500P-4 floor box combines rugged construction and an elegant design for use in carpet, tile or wood covered floors over poured concrete applications. This floor box has ample compartment room to accommodate power, audio, video, telecommunications and data in one elegant and practical box.
The innovation continues to the configurable
back box. The FL-500P's internal brackets can be arranged to provide numerous options for both high and low voltage standard gang openings making it the most flexible and easiest to install floor box available. The FL-500P floor box is designed to handle the rigors of a floor environment and still maintains flexibility and elegance.
Notes: This floor box is not applicable for direct contact with grade (soil or gravel). For grade applications, use the FL-GRD2/4pour pan as a foundation before box installation. These floor boxes are designed for the UL safety standard for scrub water. The standard only applied to boxed installed in concrete, not raised access boxes.
Applications:
- Hotel Lobbies
- Conference Centers
- Board Rooms
- Cruise Ship
- Anywhere an upscale, richly finished look is required
FL-500P-4" | QTY/BOX |
KO TRADE SIZE | |
3/4" | 8 |
1.00" / 1-1/4" CONCENTRIC | 4 |
1.00" / 1-1/4" / 1-1/2" CONCENTRIC | 8 |
• 11-gauge finished steel cover with choice of carpet edging
• Mitered brass or aluminum carpet edging .5” or .25” high
• Stainless steel compression latches
• Hinged U-Access door
Flanging: Height: .25” or .5”
There are a variety of covers to choose from. Options include integrated carpet edging, flat covers for non-carpeted, bare floor applications, and different finishes. The hinged door of the cover allows full access to internal connector plates and stored cables. The hinged cable exit door flips back to allow the cover to remain in place after connections are made and cables are routed through it. The 0.25” and 0.5” raised edge style and solid covers are UL scrub water approved.
BAA Compliance
FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Buy America/ Build America Act (BABAA) compliant. Look for this logo on our website:
TAA Compliance
FSR floor box products meet TAA and BABAA requirements.
*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.
10064, 18446 | |
4" Deep FL-500P Box w/ Hinged Cover w/ 1/2" Aluminum Carpet Flange |
The FL-500P-4 floor box combines rugged construction and an elegant design for use in carpet, tile or wood covered floors over poured concrete applications. This floor box has ample compartment room to accommodate power, audio, video, telecommunications and data in one elegant and practical box.
The innovation continues to the configurable
back box. The FL-500P's internal brackets can be arranged to provide numerous options for both high and low voltage standard gang openings making it the most flexible and easiest to install floor box available. The FL-500P floor box is designed to handle the rigors of a floor environment and still maintains flexibility and elegance.
Notes: This floor box is not applicable for direct contact with grade (soil or gravel). For grade applications, use the FL-GRD2/4pour pan as a foundation before box installation. These floor boxes are designed for the UL safety standard for scrub water. The standard only applied to boxed installed in concrete, not raised access boxes.
Applications:
- Hotel Lobbies
- Conference Centers
- Board Rooms
- Cruise Ship
- Anywhere an upscale, richly finished look is required
FL-500P-4" | QTY/BOX |
KO TRADE SIZE | |
3/4" | 8 |
1.00" / 1-1/4" CONCENTRIC | 4 |
1.00" / 1-1/4" / 1-1/2" CONCENTRIC | 8 |
This high quality FL-500P Cover 1/4" Aluminum Carpet Flange with our unique hinged U-Access door.
The cable access door can be easily removed by lifting the integrated U-Access handle to quickly access the interior compartment, connectors, and cables.
• 11-gauge finished steel cover with choice of carpet edging
• Mitered brass or aluminum carpet edging .5” or .25” high
• Stainless steel compression latches
• Hinged U-Access door
Flanging: Height: .25” or .5”
There are a variety of covers to choose from. Options include integrated carpet edging, flat covers for non-carpeted, bare floor applications, and different finishes. The hinged door of the cover allows full access to internal connector plates and stored cables. The hinged cable exit door flips back to allow the cover to remain in place after connections are made and cables are routed through it. The 0.25” and 0.5” raised edge style and solid covers are UL scrub water approved.
BAA Compliance
FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Buy America/ Build America Act (BABAA) compliant. Look for this logo on our website:
TAA Compliance
FSR floor box products meet TAA and BABAA requirements.
*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.
10064, 18353 | |
4" Deep FL-500P Box w/ Hinged U-Access Cover 1/4" Aluminum Carpet Flange |
The FL-500P-4 floor box combines rugged construction and an elegant design for use in carpet, tile or wood covered floors over poured concrete applications. This floor box has ample compartment room to accommodate power, audio, video, telecommunications and data in one elegant and practical box.
The innovation continues to the configurable
back box. The FL-500P's internal brackets can be arranged to provide numerous options for both high and low voltage standard gang openings making it the most flexible and easiest to install floor box available. The FL-500P floor box is designed to handle the rigors of a floor environment and still maintains flexibility and elegance.
Notes: This floor box is not applicable for direct contact with grade (soil or gravel). For grade applications, use the FL-GRD2/4pour pan as a foundation before box installation. These floor boxes are designed for the UL safety standard for scrub water. The standard only applied to boxed installed in concrete, not raised access boxes.
Applications:
- Hotel Lobbies
- Conference Centers
- Board Rooms
- Cruise Ship
- Anywhere an upscale, richly finished look is required
FL-500P-4" | QTY/BOX |
KO TRADE SIZE | |
3/4" | 8 |
1.00" / 1-1/4" CONCENTRIC | 4 |
1.00" / 1-1/4" / 1-1/2" CONCENTRIC | 8 |
This high quality FL-500P Cover 1/4" Grey Painted Carpet Flange with our unique hinged U-Access door.
The cable access door can be easily removed by lifting the integrated U-Access handle to quickly access the interior compartment, connectors, and cables.
• 11-gauge finished steel cover with choice of carpet edging
• Mitered brass or aluminum carpet edging .5” or .25” high
• Stainless steel compression latches
• Hinged U-Access door
Flanging: Height: .25” or .5”
There are a variety of covers to choose from. Options include integrated carpet edging, flat covers for non-carpeted, bare floor applications, and different finishes. The hinged door of the cover allows full access to internal connector plates and stored cables. The hinged cable exit door flips back to allow the cover to remain in place after connections are made and cables are routed through it. The 0.25” and 0.5” raised edge style and solid covers are UL scrub water approved.
BAA Compliance
FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Buy America/ Build America Act (BABAA) compliant. Look for this logo on our website:
TAA Compliance
FSR floor box products meet TAA and BABAA requirements.
*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.
10064, 18449 | |
4" Deep FL-500P Box w/ Hinged Cover w/ 1/4" Painted Carpet Flange- Gray |
The FL-500P-4 floor box combines rugged construction and an elegant design for use in carpet, tile or wood covered floors over poured concrete applications. This floor box has ample compartment room to accommodate power, audio, video, telecommunications and data in one elegant and practical box.
The innovation continues to the configurable
back box. The FL-500P's internal brackets can be arranged to provide numerous options for both high and low voltage standard gang openings making it the most flexible and easiest to install floor box available. The FL-500P floor box is designed to handle the rigors of a floor environment and still maintains flexibility and elegance.
Notes: This floor box is not applicable for direct contact with grade (soil or gravel). For grade applications, use the FL-GRD2/4pour pan as a foundation before box installation. These floor boxes are designed for the UL safety standard for scrub water. The standard only applied to boxed installed in concrete, not raised access boxes.
Applications:
- Hotel Lobbies
- Conference Centers
- Board Rooms
- Cruise Ship
- Anywhere an upscale, richly finished look is required
FL-500P-4" | QTY/BOX |
KO TRADE SIZE | |
3/4" | 8 |
1.00" / 1-1/4" CONCENTRIC | 4 |
1.00" / 1-1/4" / 1-1/2" CONCENTRIC | 8 |
*Limited Stock*
This high quality FL-500P Cover 1/4" Clay Painted Carpet Flange with our unique hinged U-Access door.
• 11-gauge finished steel cover with choice of carpet edging
• Mitered brass or aluminum carpet edging .5” or .25” high
• Stainless steel compression latches
• Hinged U-Access door
Flanging: Height: .25” or .5”
There are a variety of covers to choose from. Options include integrated carpet edging, flat covers for non-carpeted, bare floor applications, and different finishes. The hinged door of the cover allows full access to internal connector plates and stored cables. The hinged cable exit door flips back to allow the cover to remain in place after connections are made and cables are routed through it. The 0.25” and 0.5” raised edge style and solid covers are UL scrub water approved.
BAA Compliance
FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Buy America/ Build America Act (BABAA) compliant. Look for this logo on our website:
TAA Compliance
FSR floor box products meet TAA and BABAA requirements.
*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.
10064, 17553 | |
4" Deep FL-500P Box w/ 1/4" Painted Carpet Flange-Clay |
The FL-500P-4 floor box combines rugged construction and an elegant design for use in carpet, tile or wood covered floors over poured concrete applications. This floor box has ample compartment room to accommodate power, audio, video, telecommunications and data in one elegant and practical box.
The innovation continues to the configurable
back box. The FL-500P's internal brackets can be arranged to provide numerous options for both high and low voltage standard gang openings making it the most flexible and easiest to install floor box available. The FL-500P floor box is designed to handle the rigors of a floor environment and still maintains flexibility and elegance.
Notes: This floor box is not applicable for direct contact with grade (soil or gravel). For grade applications, use the FL-GRD2/4pour pan as a foundation before box installation. These floor boxes are designed for the UL safety standard for scrub water. The standard only applied to boxed installed in concrete, not raised access boxes.
Applications:
- Hotel Lobbies
- Conference Centers
- Board Rooms
- Cruise Ship
- Anywhere an upscale, richly finished look is required
FL-500P-4" | QTY/BOX |
KO TRADE SIZE | |
3/4" | 8 |
1.00" / 1-1/4" CONCENTRIC | 4 |
1.00" / 1-1/4" / 1-1/2" CONCENTRIC | 8 |
This high quality FL-500P Cover 1/4" Black Painted Carpet Flange with our unique hinged U-Access door.
• 11-gauge finished steel cover with choice of carpet edging
• Mitered brass or aluminum carpet edging .5” or .25” high
• Stainless steel compression latches
• Hinged U-Access door
Flanging: Height: .25” or .5”
There are a variety of covers to choose from. Options include integrated carpet edging, flat covers for non-carpeted, bare floor applications, and different finishes. The hinged door of the cover allows full access to internal connector plates and stored cables. The hinged cable exit door flips back to allow the cover to remain in place after connections are made and cables are routed through it. The 0.25” and 0.5” raised edge style and solid covers are UL scrub water approved.
BAA Compliance
FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Buy America/ Build America Act (BABAA) compliant. Look for this logo on our website:
TAA Compliance
FSR floor box products meet TAA and BABAA requirements.
*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.
10064, 18447 | |
4" Deep FL-500P Box w/ Hinged Cover with 1/4" Painted Carpet Flange- Black |
The FL-500P-4 floor box combines rugged construction and an elegant design for use in carpet, tile or wood covered floors over poured concrete applications. This floor box has ample compartment room to accommodate power, audio, video, telecommunications and data in one elegant and practical box.
The innovation continues to the configurable
back box. The FL-500P's internal brackets can be arranged to provide numerous options for both high and low voltage standard gang openings making it the most flexible and easiest to install floor box available. The FL-500P floor box is designed to handle the rigors of a floor environment and still maintains flexibility and elegance.
Notes: This floor box is not applicable for direct contact with grade (soil or gravel). For grade applications, use the FL-GRD2/4pour pan as a foundation before box installation. These floor boxes are designed for the UL safety standard for scrub water. The standard only applied to boxed installed in concrete, not raised access boxes.
Applications:
- Hotel Lobbies
- Conference Centers
- Board Rooms
- Cruise Ship
- Anywhere an upscale, richly finished look is required
FL-500P-4" | QTY/BOX |
KO TRADE SIZE | |
3/4" | 8 |
1.00" / 1-1/4" CONCENTRIC | 4 |
1.00" / 1-1/4" / 1-1/2" CONCENTRIC | 8 |
This high quality FL-500P Solid Aluminum Cover has our unique hinged U-Access door.
The cable access door can be easily removed by lifting the integrated U-Access handle to quickly access the interior compartment, connectors, and cables.
• 11-gauge finished steel cover with choice of carpet edging
• Mitered brass or aluminum carpet edging .5” or .25” high
• Stainless steel compression latches
• Hinged U-Access door
Flanging: Height: .25” or .5”
There are a variety of covers to choose from. Options include integrated carpet edging, flat covers for non-carpeted, bare floor applications, and different finishes. The hinged door of the cover allows full access to internal connector plates and stored cables. The hinged cable exit door flips back to allow the cover to remain in place after connections are made and cables are routed through it. The 0.25” and 0.5” raised edge style and solid covers are UL scrub water approved.
BAA Compliance
FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Buy America/ Build America Act (BABAA) compliant. Look for this logo on our website:
TAA Compliance
FSR floor box products meet TAA and BABAA requirements.
*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.
10064, 18450 | |
4" Deep FL-500P Box w/ Solid Hinged Cover w/ Cable Exit (No Trim) - Aluminum |
The FL-500P-4 floor box combines rugged construction and an elegant design for use in carpet, tile or wood covered floors over poured concrete applications. This floor box has ample compartment room to accommodate power, audio, video, telecommunications and data in one elegant and practical box.
The innovation continues to the configurable
back box. The FL-500P's internal brackets can be arranged to provide numerous options for both high and low voltage standard gang openings making it the most flexible and easiest to install floor box available. The FL-500P floor box is designed to handle the rigors of a floor environment and still maintains flexibility and elegance.
Notes: This floor box is not applicable for direct contact with grade (soil or gravel). For grade applications, use the FL-GRD2/4pour pan as a foundation before box installation. These floor boxes are designed for the UL safety standard for scrub water. The standard only applied to boxed installed in concrete, not raised access boxes.
Applications:
- Hotel Lobbies
- Conference Centers
- Board Rooms
- Cruise Ship
- Anywhere an upscale, richly finished look is required
FL-500P-4" | QTY/BOX |
KO TRADE SIZE | |
3/4" | 8 |
1.00" / 1-1/4" CONCENTRIC | 4 |
1.00" / 1-1/4" / 1-1/2" CONCENTRIC | 8 |
This high quality FL-500P Solid Black Cover has our unique hinged U-Access door.
The cable access door can be easily removed by lifting the integrated U-Access handle to quickly access the interior compartment, connectors, and cables.
• 11-gauge finished steel cover with choice of carpet edging
• Mitered brass or aluminum carpet edging .5” or .25” high
• Stainless steel compression latches
• Hinged U-Access door
Flanging: Height: .25” or .5”
There are a variety of covers to choose from. Options include integrated carpet edging, flat covers for non-carpeted, bare floor applications, and different finishes. The hinged door of the cover allows full access to internal connector plates and stored cables. The hinged cable exit door flips back to allow the cover to remain in place after connections are made and cables are routed through it. The 0.25” and 0.5” raised edge style and solid covers are UL scrub water approved.
BAA Compliance
FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Buy America/ Build America Act (BABAA) compliant. Look for this logo on our website:
TAA Compliance
FSR floor box products meet TAA and BABAA requirements.
*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.
10064, 18451 | |
4" Deep FL-500P Box w/ FL-500P Solid Hinged Cover w/ Cable Exit (No Trim) - Black |
The FL-500P-4 floor box combines rugged construction and an elegant design for use in carpet, tile or wood covered floors over poured concrete applications. This floor box has ample compartment room to accommodate power, audio, video, telecommunications and data in one elegant and practical box.
The innovation continues to the configurable
back box. The FL-500P's internal brackets can be arranged to provide numerous options for both high and low voltage standard gang openings making it the most flexible and easiest to install floor box available. The FL-500P floor box is designed to handle the rigors of a floor environment and still maintains flexibility and elegance.
Notes: This floor box is not applicable for direct contact with grade (soil or gravel). For grade applications, use the FL-GRD2/4pour pan as a foundation before box installation. These floor boxes are designed for the UL safety standard for scrub water. The standard only applied to boxed installed in concrete, not raised access boxes.
Applications:
- Hotel Lobbies
- Conference Centers
- Board Rooms
- Cruise Ship
- Anywhere an upscale, richly finished look is required
FL-500P-4" | QTY/BOX |
KO TRADE SIZE | |
3/4" | 8 |
1.00" / 1-1/4" CONCENTRIC | 4 |
1.00" / 1-1/4" / 1-1/2" CONCENTRIC | 8 |
*Limited Stock*
This high quality FL-500P Solid Clay Cover has our unique hinged U-Access door.
• 11-gauge finished steel cover with choice of carpet edging
• Mitered brass or aluminum carpet edging .5” or .25” high
• Stainless steel compression latches
• Hinged U-Access door
Flanging: Height: .25” or .5”
There are a variety of covers to choose from. Options include integrated carpet edging, flat covers for non-carpeted, bare floor applications, and different finishes. The hinged door of the cover allows full access to internal connector plates and stored cables. The hinged cable exit door flips back to allow the cover to remain in place after connections are made and cables are routed through it. The 0.25” and 0.5” raised edge style and solid covers are UL scrub water approved.
BAA Compliance
FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Buy America/ Build America Act (BABAA) compliant. Look for this logo on our website:
TAA Compliance
FSR floor box products meet TAA and BABAA requirements.
*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.
10064, 17557 | |
4" Deep FL-500P Box w/ Clay Solid Cover |
The FL-500P-4 floor box combines rugged construction and an elegant design for use in carpet, tile or wood covered floors over poured concrete applications. This floor box has ample compartment room to accommodate power, audio, video, telecommunications and data in one elegant and practical box.
The innovation continues to the configurable
back box. The FL-500P's internal brackets can be arranged to provide numerous options for both high and low voltage standard gang openings making it the most flexible and easiest to install floor box available. The FL-500P floor box is designed to handle the rigors of a floor environment and still maintains flexibility and elegance.
Notes: This floor box is not applicable for direct contact with grade (soil or gravel). For grade applications, use the FL-GRD2/4pour pan as a foundation before box installation. These floor boxes are designed for the UL safety standard for scrub water. The standard only applied to boxed installed in concrete, not raised access boxes.
Applications:
- Hotel Lobbies
- Conference Centers
- Board Rooms
- Cruise Ship
- Anywhere an upscale, richly finished look is required
FL-500P-4" | QTY/BOX |
KO TRADE SIZE | |
3/4" | 8 |
1.00" / 1-1/4" CONCENTRIC | 4 |
1.00" / 1-1/4" / 1-1/2" CONCENTRIC | 8 |
This high quality FL-500P Solid Grey Cover has our unique hinged U-Access door.
• 11-gauge finished steel cover with choice of carpet edging
• Mitered brass or aluminum carpet edging .5” or .25” high
• Stainless steel compression latches
• Hinged U-Access door
Flanging: Height: .25” or .5”
There are a variety of covers to choose from. Options include integrated carpet edging, flat covers for non-carpeted, bare floor applications, and different finishes. The hinged door of the cover allows full access to internal connector plates and stored cables. The hinged cable exit door flips back to allow the cover to remain in place after connections are made and cables are routed through it. The 0.25” and 0.5” raised edge style and solid covers are UL scrub water approved.
BAA Compliance
FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Buy America/ Build America Act (BABAA) compliant. Look for this logo on our website:
TAA Compliance
FSR floor box products meet TAA and BABAA requirements.
*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.
10064, 18453 | |
4" Deep FL-500P Box w/ Solid Hinged Cover w/ Cable Exit (No Trim) - Grey |
The FL-500P-4 floor box combines rugged construction and an elegant design for use in carpet, tile or wood covered floors over poured concrete applications. This floor box has ample compartment room to accommodate power, audio, video, telecommunications and data in one elegant and practical box.
The innovation continues to the configurable
back box. The FL-500P's internal brackets can be arranged to provide numerous options for both high and low voltage standard gang openings making it the most flexible and easiest to install floor box available. The FL-500P floor box is designed to handle the rigors of a floor environment and still maintains flexibility and elegance.
Notes: This floor box is not applicable for direct contact with grade (soil or gravel). For grade applications, use the FL-GRD2/4pour pan as a foundation before box installation. These floor boxes are designed for the UL safety standard for scrub water. The standard only applied to boxed installed in concrete, not raised access boxes.
Applications:
- Hotel Lobbies
- Conference Centers
- Board Rooms
- Cruise Ship
- Anywhere an upscale, richly finished look is required
FL-500P-4" | QTY/BOX |
KO TRADE SIZE | |
3/4" | 8 |
1.00" / 1-1/4" CONCENTRIC | 4 |
1.00" / 1-1/4" / 1-1/2" CONCENTRIC | 8 |
This high quality FL-500P Cover 1/4" Square Aluminum Flange with our unique hinged U-Access door.
The cable access door can be easily removed by lifting the integrated U-Access handle to quickly access the interior compartment, connectors, and cables.
• 11-gauge finished steel cover with choice of carpet edging
• Mitered brass or aluminum carpet edging .5” or .25” high
• Stainless steel compression latches
• Hinged U-Access door
Flanging: Height: .25” or .5”
There are a variety of covers to choose from. Options include integrated carpet edging, flat covers for non-carpeted, bare floor applications, and different finishes. The hinged door of the cover allows full access to internal connector plates and stored cables. The hinged cable exit door flips back to allow the cover to remain in place after connections are made and cables are routed through it. The 0.25” and 0.5” raised edge style and solid covers are UL scrub water approved.
BAA Compliance
FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Buy America/ Build America Act (BABAA) compliant. Look for this logo on our website:
TAA Compliance
FSR floor box products meet TAA and BABAA requirements.
*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.
10064, 18445 | |
4" Deep FL-500P Box w/ Hinged Cover 1/4" Square Aluminum Flange |
The FL-500P-4 floor box combines rugged construction and an elegant design for use in carpet, tile or wood covered floors over poured concrete applications. This floor box has ample compartment room to accommodate power, audio, video, telecommunications and data in one elegant and practical box.
The innovation continues to the configurable
back box. The FL-500P's internal brackets can be arranged to provide numerous options for both high and low voltage standard gang openings making it the most flexible and easiest to install floor box available. The FL-500P floor box is designed to handle the rigors of a floor environment and still maintains flexibility and elegance.
Notes: This floor box is not applicable for direct contact with grade (soil or gravel). For grade applications, use the FL-GRD2/4pour pan as a foundation before box installation. These floor boxes are designed for the UL safety standard for scrub water. The standard only applied to boxed installed in concrete, not raised access boxes.
Applications:
- Hotel Lobbies
- Conference Centers
- Board Rooms
- Cruise Ship
- Anywhere an upscale, richly finished look is required
FL-500P-4" | QTY/BOX |
KO TRADE SIZE | |
3/4" | 8 |
1.00" / 1-1/4" CONCENTRIC | 4 |
1.00" / 1-1/4" / 1-1/2" CONCENTRIC | 8 |
This high quality FL-500P Cover has a 1/4" Square Brass Flange with our unique tool-less lift off door.
The cable access door can be easily removed by lifting the integrated U-Access handle to quickly access the interior compartment, connectors, and cables.
• 11-gauge finished steel cover with choice of carpet edging
• Mitered brass or aluminum carpet edging .5” or .25” high
• Stainless steel compression latches
• Lift-off full access door
Flanging: Height: .25” or .5”
There are a variety of covers to choose from. Options include integrated carpet edging, flat covers for non-carpeted, bare floor applications, and different finishes. The lift-off section of the cover allows full access to internal connector plates and stored cables. The hinged cable exit door flips back to allow the cover to remain in place after connections are made and cables are routed through it. The 0.25” and 0.5” raised edge style and solid covers are UL scrub water approved.
BAA Compliance
FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Buy America/ Build America Act (BABAA) compliant. Look for this logo on our website:
TAA Compliance
FSR floor box products meet TAA and BABAA requirements.
*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.
10064, 18443 | |
4" Deep FL-500P Box w/ 1/4" Square Brass Flange |
The FL-500P-5 floor box combines rugged construction and an elegant design for use in carpet, tile or wood covered floors over poured concrete applications. This floor box has ample compartment room to accommodate power, audio, video, telecommunications and data in one elegant and practical box.
The FL-500P floor box is not only UL and CUL Listed but has also passed the latest UL test for scrub water. Because of FSR's unique engineering and manufacturing ability, FSR floor boxes pass for carpeted floors as well as tile and wood! The hinged u-access cover allows full access to internal connector plates and stored cables, and the smaller hinged cable access door flips back to create the cableexit. When the floor box is not in use, the cover is completely closed allowing unencumbered travel in the area with only the handmitered, elegant carpet edge visible. The low profile edging is 1/4” or 1/2” high and is available in brass or aluminum.
The innovation continues to the configurable
back box. The FL-500P's internal brackets can be arranged to provide numerous options for both high and low voltage standard gang openings making it the most flexible and easiest to install floor box available. The FL-500P floor box is designed to handle the rigors of a floor environment and still maintains flexibility and elegance.
Notes: This floor box is not applicable for direct contact with grade (soil or gravel). For grade applications, use the FL-GRD2/4pour pan as a foundationbefore box installation.These floor boxes are designed for the UL safety standard for scrub water. The standard only applied to boxes installed in concrete, not raised access boxes.
Each floorbox comes with a temporary construction cover.Boxes and covers are sold separately.
Applications:
- Hotel Lobbies
- Conference Centers
- Board Rooms
- Cruise Ship
- Anywhere an upscale, richly finished look is required
BAA Compliance
FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Buy America/ Build America Act (BABAA) compliant. Look for this logo on our website:
TAA Compliance
FSR floor box products meet TAA and BABAA requirements.
*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.
FL-500P-5" | QTY/BOX |
KO TRADE SIZE | |
3/4" | 8 |
1.00" / 1-1/4/ 1-1\2" CONCENTRIC | 12 |
18078 | |
5" Deep FL-500P Box with a temporary cover (thickness of .12") |
The FL-500P-5 floor box combines rugged construction and an elegant design for use in carpet, tile or wood covered floors over poured concrete applications. This floor box has ample compartment room to accommodate power, audio, video, telecommunications and data in one elegant and practical box.
The FL-500P floor box is not only UL and CUL Listed but has also passed the latest UL test for scrub water. Because of FSR's unique engineering and manufacturing ability, FSR floor boxes pass for carpeted floors as well as tile and wood! The hinged u-access cover allows full access to internal connector plates and stored cables, and the smaller hinged cable access door flips back to create the cableexit. When the floor box is not in use, the cover is completely closed allowing unencumbered travel in the area with only the handmitered, elegant carpet edge visible. The low profile edging is 1/4” or 1/2” high and is available in brass or aluminum.
The innovation continues to the configurable
back box. The FL-500P's internal brackets can be arranged to provide numerous options for both high and low voltage standard gang openings making it the most flexible and easiest to install floor box available. The FL-500P floor box is designed to handle the rigors of a floor environment and still maintains flexibility and elegance.
Notes: This floor box is not applicable for direct contact with grade (soil or gravel). For grade applications, use the FL-GRD2/4pour pan as a foundationbefore box installation.These floor boxes are designed for the UL safety standard for scrub water. The standard only applied to boxed installed in concrete, not raised access boxes.
Each floorbox comes with a temporary construction cover.Boxes and covers are sold separately.
Applications:
- Hotel Lobbies
- Conference Centers
- Board Rooms
- Cruise Ship
- Anywhere an upscale, richly finished look is required
FL-500P-5" | QTY/BOX |
KO TRADE SIZE | |
3/4" | 8 |
1.00" / 1-1/4/ 1-1\2" CONCENTRIC | 12 |
This high quality FL-500P Black Sandtex Cover has our unique hinged U-Access door.
• 11-gauge finished steel cover with choice of carpet edging
• Mitered brass or aluminum carpet edging .5” or .25” high
• Stainless steel compression latches
• Hinged U-Access door
Flanging: Height: .25” or .5”
There are a variety of covers to choose from. Options include integrated carpet edging, flat covers for non-carpeted, bare floor applications, and different finishes. The hinged u-access cover allows full access to internal connector plates and stored cables. The hinged cable exit door flips back to allow the cover to remain in place after connections are made and cables are routed through it. The 0.25” and 0.5” raised edge style and solid covers are UL scrub water approved.
BAA Compliance
FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Buy America/ Build America Act (BABAA) compliant. Look for this logo on our website:
TAA Compliance
FSR floor box products meet TAA and BABAA requirements.
*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.
18078, 15075 | |
5" Deep FL-500P Box w/ Hinged Door in Black Sandtex |
The FL-500P-5 floor box combines rugged construction and an elegant design for use in carpet, tile or wood covered floors over poured concrete applications. This floor box has ample compartment room to accommodate power, audio, video, telecommunications and data in one elegant and practical box.
The FL-500P floor box is not only UL and CUL Listed but has also passed the latest UL test for scrub water. Because of FSR's unique engineering and manufacturing ability, FSR floor boxes pass for carpeted floors as well as tile and wood! The hinged u-access cover allows full access to internal connector plates and stored cables, and the smaller hinged cable access door flips back to create the cableexit. When the floor box is not in use, the cover is completely closed allowing unencumbered travel in the area with only the handmitered, elegant carpet edge visible. The low profile edging is 1/4” or 1/2” high and is available in brass or aluminum.
The innovation continues to the configurable
back box. The FL-500P's internal brackets can be arranged to provide numerous options for both high and low voltage standard gang openings making it the most flexible and easiest to install floor box available. The FL-500P floor box is designed to handle the rigors of a floor environment and still maintains flexibility and elegance.
Notes: This floor box is not applicable for direct contact with grade (soil or gravel). For grade applications, use the FL-GRD2/4pour pan as a foundationbefore box installation.These floor boxes are designed for the UL safety standard for scrub water. The standard only applied to boxed installed in concrete, not raised access boxes.
Each floorbox comes with a temporary construction cover.Boxes and covers are sold separately.
Applications:
- Hotel Lobbies
- Conference Centers
- Board Rooms
- Cruise Ship
- Anywhere an upscale, richly finished look is required
FL-500P-5" | QTY/BOX |
KO TRADE SIZE | |
3/4" | 8 |
1.00" / 1-1/4/ 1-1\2" CONCENTRIC | 12 |
This high quality FL-500P Painted Silver Cover has our unique hinged U-Access door.
• 11-gauge finished steel cover with choice of carpet edging
• Mitered brass or aluminum carpet edging .5” or .25” high
• Stainless steel compression latches
• Hinged U-Access door
Flanging: Height: .25” or .5”
There are a variety of covers to choose from. Options include integrated carpet edging, flat covers for non-carpeted, bare floor applications, and different finishes. The hinged u-access cover allows full access to internal connector plates and stored cables. The hinged cable exit door flips back to allow the cover to remain in place after connections are made and cables are routed through it. The 0.25” and 0.5” raised edge style and solid covers are UL scrub water approved.
BAA Compliance
FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Buy America/ Build America Act (BABAA) compliant. Look for this logo on our website:
TAA Compliance
FSR floor box products meet TAA and BABAA requirements.
*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.
18078, 18153 | |
5" Deep FL-500P Box w/ Painted Silver Cover |
The FL-500P-5 floor box combines rugged construction and an elegant design for use in carpet, tile or wood covered floors over poured concrete applications. This floor box has ample compartment room to accommodate power, audio, video, telecommunications and data in one elegant and practical box.
The FL-500P floor box is not only UL and CUL Listed but has also passed the latest UL test for scrub water. Because of FSR's unique engineering and manufacturing ability, FSR floor boxes pass for carpeted floors as well as tile and wood! The hinged u-access cover allows full access to internal connector plates and stored cables, and the smaller hinged cable access door flips back to create the cableexit. When the floor box is not in use, the cover is completely closed allowing unencumbered travel in the area with only the handmitered, elegant carpet edge visible. The low profile edging is 1/4” or 1/2” high and is available in brass or aluminum.
The innovation continues to the configurable
back box. The FL-500P's internal brackets can be arranged to provide numerous options for both high and low voltage standard gang openings making it the most flexible and easiest to install floor box available. The FL-500P floor box is designed to handle the rigors of a floor environment and still maintains flexibility and elegance.
Notes: This floor box is not applicable for direct contact with grade (soil or gravel). For grade applications, use the FL-GRD2/4pour pan as a foundationbefore box installation.These floor boxes are designed for the UL safety standard for scrub water. The standard only applied to boxed installed in concrete, not raised access boxes.
Each floorbox comes with a temporary construction cover.Boxes and covers are sold separately.
Applications:
- Hotel Lobbies
- Conference Centers
- Board Rooms
- Cruise Ship
- Anywhere an upscale, richly finished look is required
FL-500P-5" | QTY/BOX |
KO TRADE SIZE | |
3/4" | 8 |
1.00" / 1-1/4/ 1-1\2" CONCENTRIC | 12 |
This high quality FL-500P Stainless Steel Cover has our unique hinged U-Access door.
• 11-gauge finished steel cover with choice of carpet edging
• Mitered brass or aluminum carpet edging .5” or .25” high
• Stainless steel compression latches
• Hinged U-Access door
Flanging: Height: .25” or .5”
There are a variety of covers to choose from. Options include integrated carpet edging, flat covers for non-carpeted, bare floor applications, and different finishes. The hinged u-access cover allows full access to internal connector plates and stored cables. The hinged cable exit door flips back to allow the cover to remain in place after connections are made and cables are routed through it. The 0.25” and 0.5” raised edge style and solid covers are UL scrub water approved.
BAA Compliance
FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Buy America/ Build America Act (BABAA) compliant. Look for this logo on our website:
TAA Compliance
FSR floor box products meet TAA and BABAA requirements.
*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.
18078, 15526 | |
5" Deep FL-500P Box w/ Stainless Steel Cover (No Flange) w/ Hinged Door |
The FL-500P-5 floor box combines rugged construction and an elegant design for use in carpet, tile or wood covered floors over poured concrete applications. This floor box has ample compartment room to accommodate power, audio, video, telecommunications and data in one elegant and practical box.
The FL-500P floor box is not only UL and CUL Listed but has also passed the latest UL test for scrub water. Because of FSR's unique engineering and manufacturing ability, FSR floor boxes pass for carpeted floors as well as tile and wood! The hinged u-access cover allows full access to internal connector plates and stored cables, and the smaller hinged cable access door flips back to create the cableexit. When the floor box is not in use, the cover is completely closed allowing unencumbered travel in the area with only the handmitered, elegant carpet edge visible. The low profile edging is 1/4” or 1/2” high and is available in brass or aluminum.
The innovation continues to the configurable
back box. The FL-500P's internal brackets can be arranged to provide numerous options for both high and low voltage standard gang openings making it the most flexible and easiest to install floor box available. The FL-500P floor box is designed to handle the rigors of a floor environment and still maintains flexibility and elegance.
Notes: This floor box is not applicable for direct contact with grade (soil or gravel). For grade applications, use the FL-GRD2/4pour pan as a foundationbefore box installation.These floor boxes are designed for the UL safety standard for scrub water. The standard only applied to boxed installed in concrete, not raised access boxes.
Each floorbox comes with a temporary construction cover.Boxes and covers are sold separately.
Applications:
- Hotel Lobbies
- Conference Centers
- Board Rooms
- Cruise Ship
- Anywhere an upscale, richly finished look is required
FL-500P-5" | QTY/BOX |
KO TRADE SIZE | |
3/4" | 8 |
1.00" / 1-1/4/ 1-1\2" CONCENTRIC | 12 |
This high quality FL-500P Solid Brass Cover has our unique hinged U-Access door.
• 11-gauge finished steel cover with choice of carpet edging
• Mitered brass or aluminum carpet edging .5” or .25” high
• Stainless steel compression latches
• Hinged U-Access door
Flanging: Height: .25” or .5”
There are a variety of covers to choose from. Options include integrated carpet edging, flat covers for non-carpeted, bare floor applications, and different finishes. The hinged u-access cover allows full access to internal connector plates and stored cables. The hinged cable exit door flips back to allow the cover to remain in place after connections are made and cables are routed through it. The 0.25” and 0.5” raised edge style and solid covers are UL scrub water approved.
BAA Compliance
FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Buy America/ Build America Act (BABAA) compliant. Look for this logo on our website:
TAA Compliance
FSR floor box products meet TAA and BABAA requirements.
*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.
18078, 16221 | |
5" Deep FL-500P Box w/ Brass Solid Cover |
The FL-500P-5 floor box combines rugged construction and an elegant design for use in carpet, tile or wood covered floors over poured concrete applications. This floor box has ample compartment room to accommodate power, audio, video, telecommunications and data in one elegant and practical box.
The FL-500P floor box is not only UL and CUL Listed but has also passed the latest UL test for scrub water. Because of FSR's unique engineering and manufacturing ability, FSR floor boxes pass for carpeted floors as well as tile and wood! The hinged u-access cover allows full access to internal connector plates and stored cables, and the smaller hinged cable access door flips back to create the cableexit. When the floor box is not in use, the cover is completely closed allowing unencumbered travel in the area with only the handmitered, elegant carpet edge visible. The low profile edging is 1/4” or 1/2” high and is available in brass or aluminum.
The innovation continues to the configurable
back box. The FL-500P's internal brackets can be arranged to provide numerous options for both high and low voltage standard gang openings making it the most flexible and easiest to install floor box available. The FL-500P floor box is designed to handle the rigors of a floor environment and still maintains flexibility and elegance.
Notes: This floor box is not applicable for direct contact with grade (soil or gravel). For grade applications, use the FL-GRD2/4pour pan as a foundationbefore box installation.These floor boxes are designed for the UL safety standard for scrub water. The standard only applied to boxed installed in concrete, not raised access boxes.
Each floorbox comes with a temporary construction cover.Boxes and covers are sold separately.
Applications:
- Hotel Lobbies
- Conference Centers
- Board Rooms
- Cruise Ship
- Anywhere an upscale, richly finished look is required
FL-500P-5" | QTY/BOX |
KO TRADE SIZE | |
3/4" | 8 |
1.00" / 1-1/4/ 1-1\2" CONCENTRIC | 12 |
This high quality FL-500P Cover 1/4" Brass Carpet Flange has our unique hinged U-Access door.
• 11-gauge finished steel cover with choice of carpet edging
• Mitered brass or aluminum carpet edging .5” or .25” high
• Stainless steel compression latches
• Hinged U-Access door
Flanging: Height: .25” or .5”
There are a variety of covers to choose from. Options include integrated carpet edging, flat covers for non-carpeted, bare floor applications, and different finishes. The hinged u-access cover allows full access to internal connector plates and stored cables. The hinged cable exit door flips back to allow the cover to remain in place after connections are made and cables are routed through it. The 0.25” and 0.5” raised edge style and solid covers are UL scrub water approved.
BAA Compliance
FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Buy America/ Build America Act (BABAA) compliant. Look for this logo on our website:
TAA Compliance
FSR floor box products meet TAA and BABAA requirements.
*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.
18078, 18442 | |
5" Deep FL-500P Box w/ Hinged Cover 1/4" Brass Carpet Flange |
The FL-500P-5 floor box combines rugged construction and an elegant design for use in carpet, tile or wood covered floors over poured concrete applications. This floor box has ample compartment room to accommodate power, audio, video, telecommunications and data in one elegant and practical box.
The FL-500P floor box is not only UL and CUL Listed but has also passed the latest UL test for scrub water. Because of FSR's unique engineering and manufacturing ability, FSR floor boxes pass for carpeted floors as well as tile and wood! The hinged u-access cover allows full access to internal connector plates and stored cables, and the smaller hinged cable access door flips back to create the cableexit. When the floor box is not in use, the cover is completely closed allowing unencumbered travel in the area with only the handmitered, elegant carpet edge visible. The low profile edging is 1/4” or 1/2” high and is available in brass or aluminum.
The innovation continues to the configurable
back box. The FL-500P's internal brackets can be arranged to provide numerous options for both high and low voltage standard gang openings making it the most flexible and easiest to install floor box available. The FL-500P floor box is designed to handle the rigors of a floor environment and still maintains flexibility and elegance.
Notes: This floor box is not applicable for direct contact with grade (soil or gravel). For grade applications, use the FL-GRD2/4pour pan as a foundationbefore box installation.These floor boxes are designed for the UL safety standard for scrub water. The standard only applied to boxed installed in concrete, not raised access boxes.
Each floorbox comes with a temporary construction cover.Boxes and covers are sold separately.
Applications:
- Hotel Lobbies
- Conference Centers
- Board Rooms
- Cruise Ship
- Anywhere an upscale, richly finished look is required
FL-500P-5" | QTY/BOX |
KO TRADE SIZE | |
3/4" | 8 |
1.00" / 1-1/4/ 1-1\2" CONCENTRIC | 12 |
This high quality FL-500P Cover 1/2" Brass Carpet Flange has our unique hinged U-Access door.
• 11-gauge finished steel cover with choice of carpet edging
• Mitered brass or aluminum carpet edging .5” or .25” high
• Stainless steel compression latches
• Hinged U-Access door
Flanging: Height: .25” or .5”
There are a variety of covers to choose from. Options include integrated carpet edging, flat covers for non-carpeted, bare floor applications, and different finishes. The hinged u-access cover allows full access to internal connector plates and stored cables. The hinged cable exit door flips back to allow the cover to remain in place after connections are made and cables are routed through it. The 0.25” and 0.5” raised edge style and solid covers are UL scrub water approved.
BAA Compliance
FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Buy America/ Build America Act (BABAA) compliant. Look for this logo on our website:
TAA Compliance
FSR floor box products meet TAA and BABAA requirements.
*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.
18078, 18444 | |
5" Deep FL-500P Box w/ 1/4" Brass Carpet Flange |
The FL-500P-5 floor box combines rugged construction and an elegant design for use in carpet, tile or wood covered floors over poured concrete applications. This floor box has ample compartment room to accommodate power, audio, video, telecommunications and data in one elegant and practical box.
The FL-500P floor box is not only UL and CUL Listed but has also passed the latest UL test for scrub water. Because of FSR's unique engineering and manufacturing ability, FSR floor boxes pass for carpeted floors as well as tile and wood! The hinged u-access cover allows full access to internal connector plates and stored cables, and the smaller hinged cable access door flips back to create the cableexit. When the floor box is not in use, the cover is completely closed allowing unencumbered travel in the area with only the handmitered, elegant carpet edge visible. The low profile edging is 1/4” or 1/2” high and is available in brass or aluminum.
The innovation continues to the configurable
back box. The FL-500P's internal brackets can be arranged to provide numerous options for both high and low voltage standard gang openings making it the most flexible and easiest to install floor box available. The FL-500P floor box is designed to handle the rigors of a floor environment and still maintains flexibility and elegance.
Notes: This floor box is not applicable for direct contact with grade (soil or gravel). For grade applications, use the FL-GRD2/4pour pan as a foundationbefore box installation.These floor boxes are designed for the UL safety standard for scrub water. The standard only applied to boxed installed in concrete, not raised access boxes.
Each floorbox comes with a temporary construction cover.Boxes and covers are sold separately.
Applications:
- Hotel Lobbies
- Conference Centers
- Board Rooms
- Cruise Ship
- Anywhere an upscale, richly finished look is required
FL-500P-5" | QTY/BOX |
KO TRADE SIZE | |
3/4" | 8 |
1.00" / 1-1/4/ 1-1\2" CONCENTRIC | 12 |
This high quality FL-500P Cover 1/2" Aluminum Carpet Flange has our unique hinged U-Access door.
• 11-gauge finished steel cover with choice of carpet edging
• Mitered brass or aluminum carpet edging .5” or .25” high
• Stainless steel compression latches
• Hinged U-Access door
Flanging: Height: .25” or .5”
There are a variety of covers to choose from. Options include integrated carpet edging, flat covers for non-carpeted, bare floor applications, and different finishes. The hinged u-access cover allows full access to internal connector plates and stored cables. The hinged cable exit door flips back to allow the cover to remain in place after connections are made and cables are routed through it. The 0.25” and 0.5” raised edge style and solid covers are UL scrub water approved.
BAA Compliance
FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Buy America/ Build America Act (BABAA) compliant. Look for this logo on our website:
TAA Compliance
FSR floor box products meet TAA and BABAA requirements.
*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.
18078, 18446 | |
5" Deep FL-500P Box w/ Hinged Cover w/ 1/2" Aluminum Carpet Flange |
The FL-500P-5 floor box combines rugged construction and an elegant design for use in carpet, tile or wood covered floors over poured concrete applications. This floor box has ample compartment room to accommodate power, audio, video, telecommunications and data in one elegant and practical box.
The FL-500P floor box is not only UL and CUL Listed but has also passed the latest UL test for scrub water. Because of FSR's unique engineering and manufacturing ability, FSR floor boxes pass for carpeted floors as well as tile and wood! The hinged u-access cover allows full access to internal connector plates and stored cables, and the smaller hinged cable access door flips back to create the cableexit. When the floor box is not in use, the cover is completely closed allowing unencumbered travel in the area with only the handmitered, elegant carpet edge visible. The low profile edging is 1/4” or 1/2” high and is available in brass or aluminum.
The innovation continues to the configurable
back box. The FL-500P's internal brackets can be arranged to provide numerous options for both high and low voltage standard gang openings making it the most flexible and easiest to install floor box available. The FL-500P floor box is designed to handle the rigors of a floor environment and still maintains flexibility and elegance.
Notes: This floor box is not applicable for direct contact with grade (soil or gravel). For grade applications, use the FL-GRD2/4pour pan as a foundationbefore box installation.These floor boxes are designed for the UL safety standard for scrub water. The standard only applied to boxed installed in concrete, not raised access boxes.
Each floorbox comes with a temporary construction cover.Boxes and covers are sold separately.
Applications:
- Hotel Lobbies
- Conference Centers
- Board Rooms
- Cruise Ship
- Anywhere an upscale, richly finished look is required
FL-500P-5" | QTY/BOX |
KO TRADE SIZE | |
3/4" | 8 |
1.00" / 1-1/4/ 1-1\2" CONCENTRIC | 12 |
This high quality FL-500P Cover 1/4" Aluminum Carpet Flange has our unique hinged U-Access door.
• 11-gauge finished steel cover with choice of carpet edging
• Mitered brass or aluminum carpet edging .5” or .25” high
• Stainless steel compression latches
• Hinged U-Access door
Flanging: Height: .25” or .5”
There are a variety of covers to choose from. Options include integrated carpet edging, flat covers for non-carpeted, bare floor applications, and different finishes. The hinged u-access cover allows full access to internal connector plates and stored cables. The hinged cable exit door flips back to allow the cover to remain in place after connections are made and cables are routed through it. The 0.25” and 0.5” raised edge style and solid covers are UL scrub water approved.
BAA Compliance
FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Buy America/ Build America Act (BABAA) compliant. Look for this logo on our website:
TAA Compliance
FSR floor box products meet TAA and BABAA requirements.
*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.
18078, 18353 | |
5" Deep FL-500P Box w/ 1/4" Aluminum Carpet Flange |
The FL-500P-5 floor box combines rugged construction and an elegant design for use in carpet, tile or wood covered floors over poured concrete applications. This floor box has ample compartment room to accommodate power, audio, video, telecommunications and data in one elegant and practical box.
The FL-500P floor box is not only UL and CUL Listed but has also passed the latest UL test for scrub water. Because of FSR's unique engineering and manufacturing ability, FSR floor boxes pass for carpeted floors as well as tile and wood! The hinged u-access cover allows full access to internal connector plates and stored cables, and the smaller hinged cable access door flips back to create the cableexit. When the floor box is not in use, the cover is completely closed allowing unencumbered travel in the area with only the handmitered, elegant carpet edge visible. The low profile edging is 1/4” or 1/2” high and is available in brass or aluminum.
The innovation continues to the configurable
back box. The FL-500P's internal brackets can be arranged to provide numerous options for both high and low voltage standard gang openings making it the most flexible and easiest to install floor box available. The FL-500P floor box is designed to handle the rigors of a floor environment and still maintains flexibility and elegance.
Notes: This floor box is not applicable for direct contact with grade (soil or gravel). For grade applications, use the FL-GRD2/4pour pan as a foundationbefore box installation.These floor boxes are designed for the UL safety standard for scrub water. The standard only applied to boxed installed in concrete, not raised access boxes.
Each floorbox comes with a temporary construction cover.Boxes and covers are sold separately.
Applications:
- Hotel Lobbies
- Conference Centers
- Board Rooms
- Cruise Ship
- Anywhere an upscale, richly finished look is required
FL-500P-5" | QTY/BOX |
KO TRADE SIZE | |
3/4" | 8 |
1.00" / 1-1/4/ 1-1\2" CONCENTRIC | 12 |
This high quality FL-500P Cover 1/4" Painted Grey Carpet Flange has our unique hinged U-Access door.
• 11-gauge finished steel cover with choice of carpet edging
• Mitered brass or aluminum carpet edging .5” or .25” high
• Stainless steel compression latches
• Hinged U-Access door
Flanging: Height: .25” or .5”
There are a variety of covers to choose from. Options include integrated carpet edging, flat covers for non-carpeted, bare floor applications, and different finishes. The hinged u-access cover allows full access to internal connector plates and stored cables. The hinged cable exit door flips back to allow the cover to remain in place after connections are made and cables are routed through it. The 0.25” and 0.5” raised edge style and solid covers are UL scrub water approved.
BAA Compliance
FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Buy America/ Build America Act (BABAA) compliant. Look for this logo on our website:
TAA Compliance
FSR floor box products meet TAA and BABAA requirements.
*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.
18078, 18449 | |
5" Deep FL-500P Box w/ Hinged Cover w/ 1/4" Painted Carpet Flange- Gray |
The FL-500P-5 floor box combines rugged construction and an elegant design for use in carpet, tile or wood covered floors over poured concrete applications. This floor box has ample compartment room to accommodate power, audio, video, telecommunications and data in one elegant and practical box.
The FL-500P floor box is not only UL and CUL Listed but has also passed the latest UL test for scrub water. Because of FSR's unique engineering and manufacturing ability, FSR floor boxes pass for carpeted floors as well as tile and wood! The hinged u-access cover allows full access to internal connector plates and stored cables, and the smaller hinged cable access door flips back to create the cableexit. When the floor box is not in use, the cover is completely closed allowing unencumbered travel in the area with only the handmitered, elegant carpet edge visible. The low profile edging is 1/4” or 1/2” high and is available in brass or aluminum.
The innovation continues to the configurable
back box. The FL-500P's internal brackets can be arranged to provide numerous options for both high and low voltage standard gang openings making it the most flexible and easiest to install floor box available. The FL-500P floor box is designed to handle the rigors of a floor environment and still maintains flexibility and elegance.
Notes: This floor box is not applicable for direct contact with grade (soil or gravel). For grade applications, use the FL-GRD2/4pour pan as a foundationbefore box installation.These floor boxes are designed for the UL safety standard for scrub water. The standard only applied to boxed installed in concrete, not raised access boxes.
Each floorbox comes with a temporary construction cover.Boxes and covers are sold separately.
Applications:
- Hotel Lobbies
- Conference Centers
- Board Rooms
- Cruise Ship
- Anywhere an upscale, richly finished look is required
FL-500P-5" | QTY/BOX |
KO TRADE SIZE | |
3/4" | 8 |
1.00" / 1-1/4/ 1-1\2" CONCENTRIC | 12 |
*Limited Stock*
This high quality FL-500P Cover 1/4" Painted Clay Carpet Flange has our unique hinged U-Access door.
• 11-gauge finished steel cover with choice of carpet edging
• Mitered brass or aluminum carpet edging .5” or .25” high
• Stainless steel compression latches
• Hinged U-Access door
Flanging: Height: .25” or .5”
There are a variety of covers to choose from. Options include integrated carpet edging, flat covers for non-carpeted, bare floor applications, and different finishes. The hinged u-access cover allows full access to internal connector plates and stored cables. The hinged cable exit door flips back to allow the cover to remain in place after connections are made and cables are routed through it. The 0.25” and 0.5” raised edge style and solid covers are UL scrub water approved.
BAA Compliance
FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Buy America/ Build America Act (BABAA) compliant. Look for this logo on our website:
TAA Compliance
FSR floor box products meet TAA and BABAA requirements.
*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.
18078, 17553 | |
5" Deep FL-500P Box w/ 1/4" Painted Carpet Flange-Clay |
