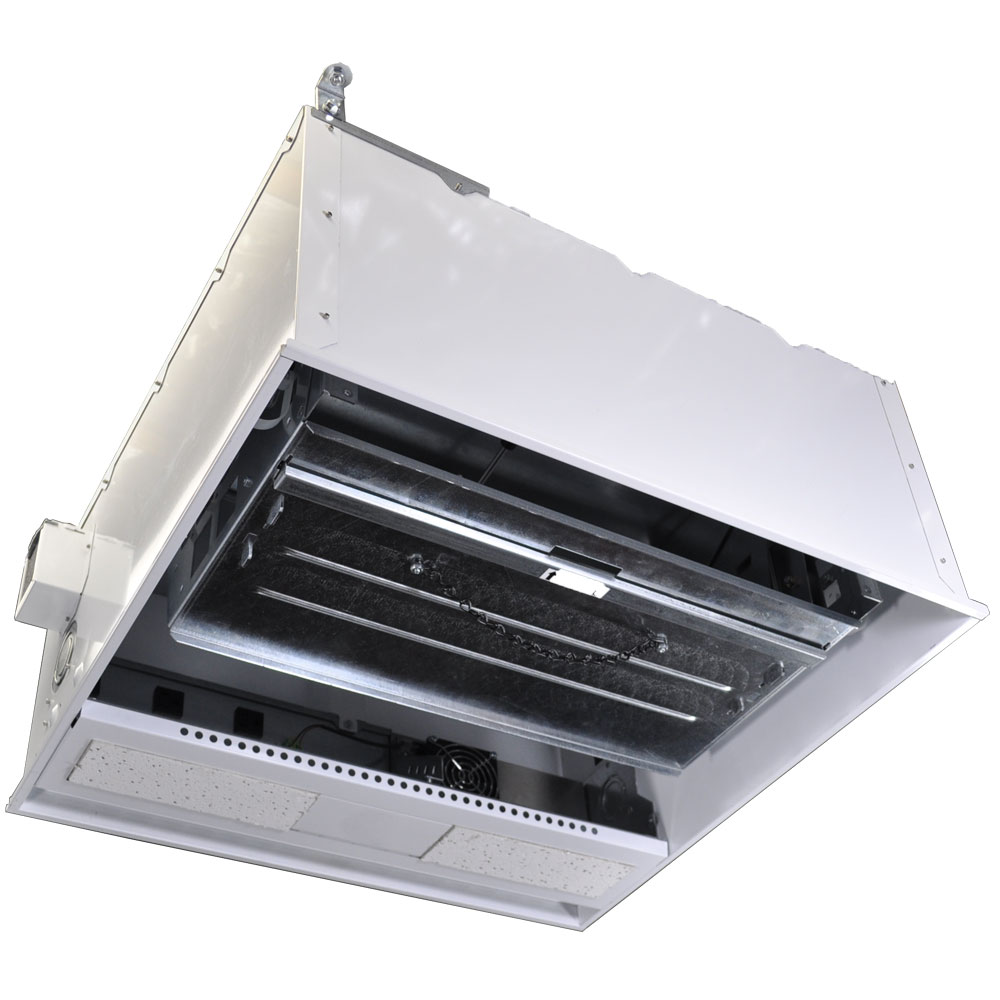

The CB-224 ceiling box has been designed with a new advanced feature 4-RU rack. The CB-224 series has a deeper box design to carry the pull down 4-RU rack cage. This advanced feature rack cage is also capable of carrying 25 lbs. of electronic equipment.
The CB-224 ceiling box is available in 4 versions: non-pole mount, pole-mount, both with or without "smart" electronics. Each side of the box has an edge protected bundled cable inlet cavity, filled with flame retardant foam seal. The CB-224 has 5 internal outlets and 1 external outlet.
Features:
Deeper box design to carry pull-down 4-RU rack cage that is 12" high, and capable of carrying 25lbs. of electric equiptment
Available in 4 versions, nonpole mount and pole mount, both with or without "smart" electronics
Pull down handle
Cable guides
4-RU rack cage with gas spring assisted ball-bearing slide
Edge-protected bundled cable inlet cavity on each side of the box, filled the flame retardant foam seal.
1"/1.25"/1.50" trade size KO's for line voltage wiring.
1 3/8" clear space on both sides of rack cage when inside the box, to allow for wire bundles.
2-RU of angle-adjustable rack mounting surfaces to facilitate mounting and visibility of 1-RU/2-RU patch panels.
5 Internal Outlets
1 External Outlet
Smart Module with fan *Smart Module with fan comes with the CB-224S & CB-224SP*
17231, 17232, 17233, 17234
Choose your box size from the drop down above
2x2 High Capacity Ceiling Box with 4RU Drop-Down Cage: Select One...
CB-224_1231
The CB-224 ceiling box has been designed with a new advanced feature 4-RU rack. The CB-224 series has a deeper box design to carry the pull down 4-RU rack cage. This advanced feature rack cage is also capable of carrying 25 lbs. of electronic equipment.
The CB-224 ceiling box is available in 4 versions: non-pole mount, pole-mount, both with or without "smart" electronics. Each side of the box has an edge protected bundled cable inlet cavity, filled with flame retardant foam seal. The CB-224 has 5 internal outlets and 1 external outlet.
Features:
Deeper box design to carry pull-down 4-RU rack cage that is 12" high, and capable of carrying 25lbs. of electric equiptment
Available in 4 versions, nonpole mount and pole mount, both with or without "smart" electronics
Pull down handle
Cable guides
4-RU rack cage with gas spring assisted ball-bearing slide
Edge-protected bundled cable inlet cavity on each side of the box, filled the flame retardant foam seal.
1"/1.25"/1.50" trade size KO's for line voltage wiring.
1 3/8" clear space on both sides of rack cage when inside the box, to allow for wire bundles.
2-RU of angle-adjustable rack mounting surfaces to facilitate mounting and visibility of 1-RU/2-RU patch panels.
5 Internal Outlets
1 External Outlet
Smart Module with fan *Smart Module with fan comes with the CB-224S & CB-224SP*
17231, 17232, 17233, 17234
Choose your box size from the drop down above
2x2 High Capacity Ceiling Box with 4RU Drop-Down Cage: CB-224
CB-224_274
The CB-224 ceiling box has been designed with a new advanced feature 4-RU rack. The CB-224 series has a deeper box design to carry the pull-down 4-RU rack cage. This advanced feature rack cage is also capable of carrying 25 lbs. of electronic equipment.
The CB-224 ceiling box is available in 4 versions: non-pole mount, pole-mount, both with or without "smart" electronics. Each side of the box has an edge-protected bundled cable inlet cavity, filled with flame retardant foam seal. The interior of the CB-224 is complete with 5 internal outlets, 1 external outlet, and a fan.
Features:
Deeper box design to carry pull-down 4-RU rack cage that is 12" high, and capable of carrying 25lbs. of electric equiptment
Available in 4 versions, non-pole mount and pole mount, both with or without"smart" electronics
Pull down handle
Cable guides
4-RU rack cage with gas spring assisted ball-bearing slide
Edge protected bundled cable inlet cavity on each side of the box, filled the flame retardant foam seal.
1"/1.25"/1.50" trade-size KO's for line voltage wiring.
1 3/8" clear space on both sides of rack cage when inside the box, to allow for wire bundles.
2-RU of angle-adjustable rack mounting surfaces to facilitate mounting and visibility of 1-RU/2-RU patch panels.
5 Internal Outlets
1 External Outlet
17231, 17232, 17233, 17234
2'x2' CB w/ 4 1RU Mounts and 6 AC Outlets
2x2 High Capacity Ceiling Box with 4RU Drop-Down Cage: CB-224P
CB-224_275
The CB-224P ceiling box has been designed with a new advanced feature 4-RU rack. The CB-224P has a deeper box design to carry the pull-down 4-RU rack cage. This advanced feature rack cage is also capable of carrying 25 lbs. of electronic equipment. Each side of the box has an edge-protected bundled cable inlet cavity, filled with flame retardant foam seal. The interior of the CB-224P is complete with 5 internal outlets, 1 external outlet, and a fan.
The ‘P’ option adds an adapter for projector pole mounting. This allows cabling to pass from inside the ceiling box, down the pole and to the projector, providing a nice clean installation.
Features:
Deeper box design to carry pull-down 4-RU rack cage that is 12" high, and capable of carrying 25lbs. of electric equiptment
Available in 4 versions, non-pole mount and pole mount, both with or without "smart" electronics
Pull-down handle
Cable guides
4-RU rack cage with gas spring assisted ball-bearing slide
Edge protected bundled cable inlet cavity on each side of the box, filled the flame retardant foam seal.
1"/1.25"/1.50" trade-size KO's for line voltage wiring.
1 3/8" clear space on both sides of rack cage when inside the box, to allow for wire bundles.
2-RU of angle-adjustable rack mounting surfaces to facilitate mounting and visibility of 1-RU/2-RU patch panels.
5 Internal Outlets
1 External Outlet
17231, 17232, 17233, 17234
2'x2' CB w/ 4 1RU Mounts, 6 AC Outlets and Proj. Pole Adapter
2x2 High Capacity Ceiling Box with 4RU Drop-Down Cage: CB-224S
CB-224_276
*Smart Module with fan comes with the CB-224S & CB-224SP*
The CB-224S ceiling box has been designed with a new advanced feature 4-RU rack. The CB-224S has a deeper box design to carry the pull down 4-RU rack cage. This advanced feature rack cage is also capable of carrying 25 lbs. of electronic equipment. Each side of the box has an edge protected bundled cable inlet cavity, filled with flame retardant foam seal. The interior of the CB-224S is complete with 5 internal outlets, 1 external outlet, and a fan.
The ‘S’ option adds cooling fans and the Smart Power module. This module allows the power in the box to be either remotely controlled or switched based on the current draw of specific outlets. In this energy saving mode, the power in the box is switched on and off automatically with the projector to conserve power.
Features:
Deeper box design to carry pull down 4-RU rack cage that is 12" high, and capable of carrying 25lbs. of electric equiptment
Available in 4 versions, non-pole mount and pole mount, both with or without "smart" electronics
Pull-down handle
Cable guides
4-RU rack cage with gas spring assisted ball-bearing slide
Edge protected bundled cable inlet cavity on each side of the box, filled the flame retardant foam seal.
1"/1.25"/1.50" trade size KO's for line voltage wiring.
1 3/8" clear space on both sides of rack cage when inside the box, to allow for wire bundles.
2-RU of angle adjustable rack mounting surfaces to facilitate mounting and visibility of 1-RU/2-RU patch panels.
5 Internal Outlets
1 External Outlet
Smart Module with fan *Smart Module with fan comes with the CB-224S & CB-224SP*
17231, 17232, 17233, 17234
2'x2' CB w/ 4 1RU Mounts, Smart AC and Fan
*Smart Module with fan comes with the CB-224S & CB-224SP*
2x2 High Capacity Ceiling Box with 4RU Drop-Down Cage: CB-224SP
CB-224_277
*Smart Module with fan comes with the CB-224S & CB-224SP*
The CB-224SP ceiling box has been designed with a new advanced feature 4-RU rack. The CB-224SP has a deeper box design to carry the pull down 4-RU rack cage. This advanced feature rack cage is also capable of carrying 25 lbs. of electronic equipment. Each side of the box has an edge-protected bundled cable inlet cavity, filled with flame retardant foam seal. The interior of the CB-224SP is complete with 5 internal outlets, 1 external outlet, and a fan.
The ‘SP’ option adds an adapter for projector pole mounting, cooling fans and the Smart Power module. The ‘S’ option adds This module allows the power in the box to be either remotely controlled or switched based on the current draw of specific outlets. In this energy saving mode, the power in the box is switched on and off automatically with the projector to conserve power. The pole allows cabling to pass from inside the ceiling box, down the pole and to the projector, providing a nice clean installation.
Features:
Deeper box design to carry pull down 4-RU rack cage that is 12" high, and capable of carrying 25lbs. of electric equiptment
Available in 4 versions, non-pole mount and pole mount, both with or without"smart" electronics
Pull down handle
Cable guides
4-RU rach cage with gas-spring assisted ball-bearing slide
Edge-protected bundled cable inlet cavity on each side of the box, filled the flame retardant foam seal.
1"/1.25"/1.50" trade size KO's for line voltage wiring.
1 3/8" clear space on both sides of rack cage when inside the box, to allow for wire bundles.
2-RU of angle-adjustable rack mounting surfaces to facilitate mounting and visibility of 1-RU/2-RU patch panels.
5 Internal Outlets
1 External Outlet
Smart Module with fan *Smart Module with fan comes with the CB-224S & CB-224SP*
17231, 17232, 17233, 17234
2'x2' CB w/ 4 1 RU Mounts, Smart AC, Fan and Proj Pole Adapter
*Smart Module with fan comes with the CB-224S & CB-224SP*
