FL-500P Floor Boxes and Covers: FL-500P-3-B FL-500P-PLP-GRY-C Hinged Cover FL-500P_3_80

FSR's Flagship UL Listed Floor Box. The FL-500P floor box combines rugged construction and an elegant design for use in carpet, tile or wood covered floors over poured concrete applications. This floor box has ample compartment room to accommodate power, audio, video, telecommunications and data in one elegant and practical box.

These floor boxes are not only UL and CUL listed but has also passed the latest UL test for scrub water. The standard only applied to boxes installed in concrete, not raised-access boxes. Because of our unique engineering and manufacturing ability, FSR floor boxes pass for carpeted floors as well as tile and wood! The hinged door section of the cover allows full access to internal connector plates and stored cables, and the smaller hinged cable access door flips back to create the cable exit. When the floor box is not in use, the cover is completely closed allowing unencumbered travel in the area with only the hand mitered, elegant carpet edge visible. The low profile edging is 1/4” or 1/2” high and is available in brass or aluminum.

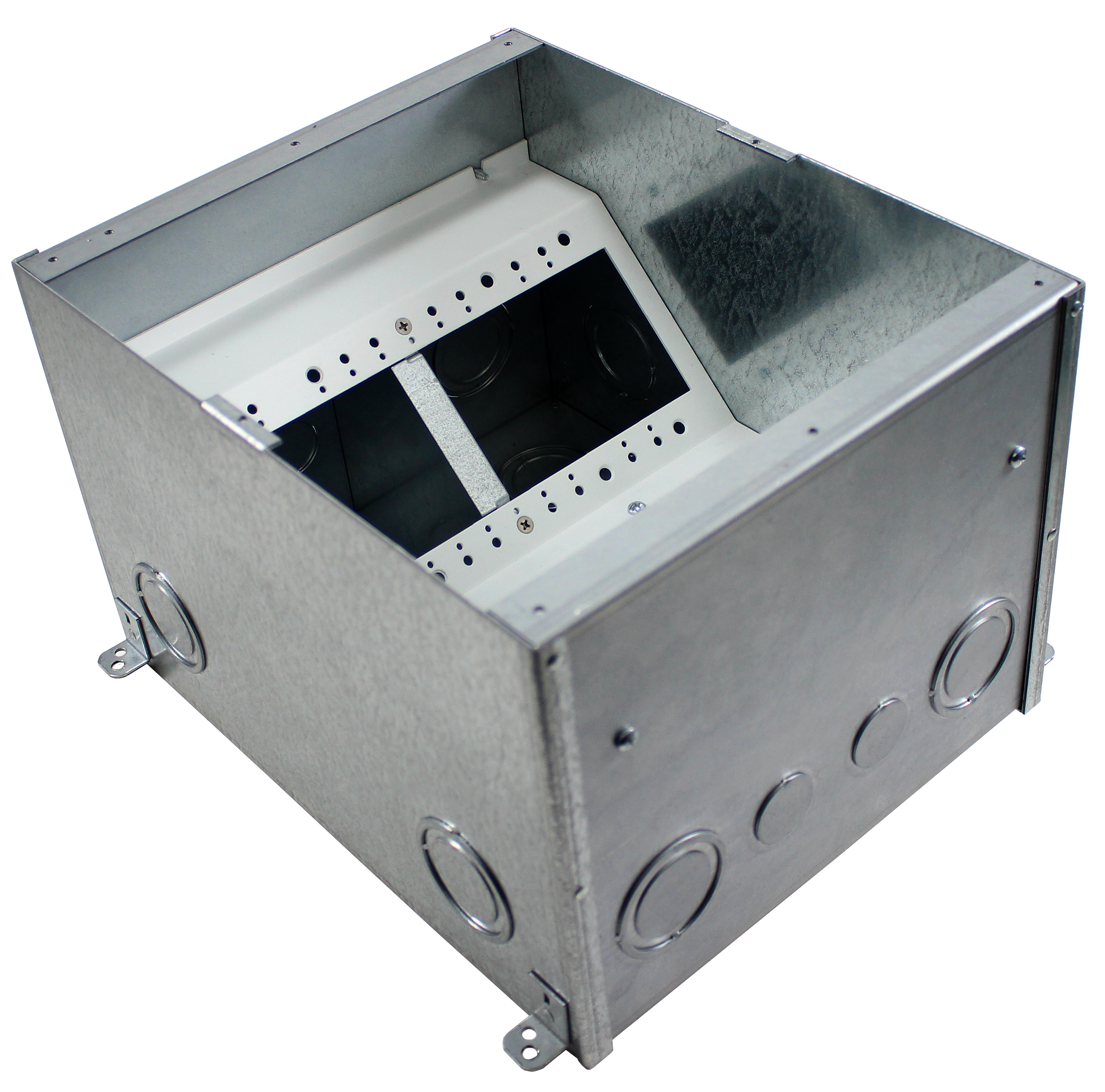

The innovation continues to the configurable back box. The FL-500P's internal brackets can be arranged to provide numerous options for both high and low voltage standard gang openings making it the most flexible and easiest to install floor box available. The FL-500P floor box is designed to handle the rigors of a floor environment and still maintains flexibility and elegance.

The Floor Boxes are available in the following depths: 2.25, 3, 4, 6, 8, 10". The 2.25 and 3" depths have special gang configurations. Each floor box comes with a temporary construction cover. Boxes and covers are sold separately.

6, 8, 10"- U.S. PAT. 7,989,710

Notes: This floor box is not applicable for direct contact with grade (soil or gravel). For grade applications, use the FL-GRD2/4 pour pan as a foundation before box installation.

 **BABAA and TAA compliance by model, which may vary over time due to changes in legislation and/or manufacturing plans. Be sure to ask for certification at the time of order.

The FL-500-SF8-C accessory bracket shown below enables usage of a round cover with our FL-500 floor box.

KNOCKOUT SPECIFICATIONS

This high quality FL-500P cover has a hinged door in black sandtex with our unique hinged U-Access door.

The cable access door can be easily opened by lifting the integrated U-Access handle to quickly access the interior compartment, connectors, and cables.

•    11-gauge finished steel cover with choice of carpet edging
•    Mitered brass or aluminum carpet edging  .5” or .25” high
•    Stainless steel compression latches
•    Hinged U-Access door

Flanging:  Height: .25” or .5”

There are a variety of covers to choose from. Options include integrated carpet edging, flat covers for non-carpeted, bare floor applications, and different finishes. The hinged cover allows full access to internal connector plates and stored cables. The hinged cable exit door flips back to allow the cover to remain in place after connections are made and cables are routed through it. The 0.25” and 0.5” raised edge style and solid covers are UL scrub water approved.

The FL-500P floor box is not only UL and CUL Listed but has also passed the latest UL test for scrub water. Because of FSR's unique engineering and manufacturing ability, FSR floor boxes pass for carpeted floors as well as tile and wood!

The hinged cover allows full access to internal connector plates and stored cables, and the smaller hinged cable access door flips back to create the cable exit. When the floor box is not in use, the cover is completely closed allowing unencumbered travel in the area with only the hand mitered, elegant carpet edge visible. The low profile edging is 1/4” or 1/2” high and is available in brass or aluminum.

BABAA Compliance

FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Build America Buy America Act (BABAA) compliant. Look for this logo on our website:

TAA Compliance

FSR floor box products meet TAA and BABAA requirements.

*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.

This high quality FL-500P Cover is flat painted silver with our unique hinged U-Access door.

The cable access door can be easily opened by lifting the integrated U-Access handle to quickly access the interior compartment, connectors, and cables.

•    11-gauge finished steel cover with choice of carpet edging
•    Mitered brass or aluminum carpet edging  .5” or .25” high
•    Stainless steel compression latches
•    Hinged U-Access door

Flanging:  Height: .25” or .5”

There are a variety of covers to choose from. Options include integrated carpet edging, flat covers for non-carpeted, bare floor applications, and different finishes. The hinged cover allows full access to internal connector plates and stored cables. The hinged cable exit door flips back to allow the cover to remain in place after connections are made and cables are routed through it. The 0.25” and 0.5” raised edge style and solid covers are UL scrub water approved.

The FL-500P floor box is not only UL and CUL Listed but has also passed the latest UL test for scrub water. Because of FSR's unique engineering and manufacturing ability, FSR floor boxes pass for carpeted floors as well as tile and wood!

The hinged cover allows full access to internal connector plates and stored cables, and the smaller hinged cable access door flips back to create the cable exit. When the floor box is not in use, the cover is completely closed allowing unencumbered travel in the area with only the hand mitered, elegant carpet edge visible. The low profile edging is 1/4” or 1/2” high and is available in brass or aluminum.

BABAA Compliance

FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Build America Buy America Act (BABAA) compliant. Look for this logo on our website:

TAA Compliance

FSR floor box products meet TAA and BABAA requirements.

*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.

This high quality FL-500P Cover is stainless steel with our unique hinged U-Access door.

The cable access door can be easily opened by lifting the integrated U-Access handle to quickly access the interior compartment, connectors, and cables.

•    11-gauge finished steel cover with choice of carpet edging
•    Mitered brass or aluminum carpet edging  .5” or .25” high
•    Stainless steel compression latches
•    Hinged U-Access door

Flanging:  Height: .25” or .5”

There are a variety of covers to choose from. Options include integrated carpet edging, flat covers for non-carpeted, bare floor applications, and different finishes. The hinged cover allows full access to internal connector plates and stored cables. The hinged cable exit door flips back to allow the cover to remain in place after connections are made and cables are routed through it. The 0.25” and 0.5” raised edge style and solid covers are UL scrub water approved.

The FL-500P floor box is not only UL and CUL Listed but has also passed the latest UL test for scrub water. Because of FSR's unique engineering and manufacturing ability, FSR floor boxes pass for carpeted floors as well as tile and wood!

The hinged cover allows full access to internal connector plates and stored cables, and the smaller hinged cable access door flips back to create the cable exit. When the floor box is not in use, the cover is completely closed allowing unencumbered travel in the area with only the hand mitered, elegant carpet edge visible. The low profile edging is 1/4” or 1/2” high and is available in brass or aluminum.

BABAA Compliance

FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Build America Buy America Act (BABAA) compliant. Look for this logo on our website:

TAA Compliance

FSR floor box products meet TAA and BABAA requirements.

*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.

This high quality FL-500P Brass Cover has our unique hinged U-Access door.

The cable access door can be easily opened by lifting the integrated U-Access handle to quickly access the interior compartment, connectors, and cables.

•    11-gauge finished steel cover with choice of carpet edging
•    Mitered brass or aluminum carpet edging  .5” or .25” high
•    Stainless steel compression latches
•    Hinged U-Access door

Flanging:  Height: .25” or .5”

There are a variety of covers to choose from. Options include integrated carpet edging, flat covers for non-carpeted, bare floor applications, and different finishes. The hinged cover allows full access to internal connector plates and stored cables. The hinged cable exit door flips back to allow the cover to remain in place after connections are made and cables are routed through it. The 0.25” and 0.5” raised edge style and solid covers are UL scrub water approved.

The FL-500P floor box is not only UL and CUL Listed but has also passed the latest UL test for scrub water. Because of FSR's unique engineering and manufacturing ability, FSR floor boxes pass for carpeted floors as well as tile and wood!

The hinged cover allows full access to internal connector plates and stored cables, and the smaller hinged cable access door flips back to create the cable exit. When the floor box is not in use, the cover is completely closed allowing unencumbered travel in the area with only the hand mitered, elegant carpet edge visible. The low profile edging is 1/4” or 1/2” high and is available in brass or aluminum.

BABAA Compliance

FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Build America Buy America Act (BABAA) compliant. Look for this logo on our website:

TAA Compliance

FSR floor box products meet TAA and BABAA requirements.

*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.

This high quality FL-500P Cover has a 1/4" Brass Carpet Flange with our unique hinged U-Access door.

The cable access door can be easily removed by lifting the integrated U-Access handle to quickly access the interior compartment, connectors, and cables.

•    11-gauge finished steel cover with choice of carpet edging
•    Mitered brass or aluminum carpet edging  .5” or .25” high
•    Stainless steel compression latches
•    Hinged U-Access door

Flanging:  Height: .25” or .5”

There are a variety of covers to choose from. Options include integrated carpet edging, flat covers for non-carpeted, bare floor applications, and different finishes. The hinged cover allows full access to internal connector plates and stored cables. The hinged cable exit door flips back to allow the cover to remain in place after connections are made and cables are routed through it. The 0.25” and 0.5” raised edge style and solid covers are UL scrub water approved.


The FL-500P floor box is not only UL and CUL Listed but has also passed the latest UL test for scrub water. Because of FSR's unique engineering and manufacturing ability, FSR floor boxes pass for carpeted floors as well as tile and wood!

The hinged cover allows full access to internal connector plates and stored cables, and the smaller hinged cable access door flips back to create the cable exit. When the floor box is not in use, the cover is completely closed allowing unencumbered travel in the area with only the hand mitered, elegant carpet edge visible. The low profile edging is 1/4” or 1/2” high and is available in brass or aluminum.

BABAA Compliance

FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Build America Buy America Act (BABAA) compliant. Look for this logo on our website:

TAA Compliance

FSR floor box products meet TAA and BABAA requirements.

*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.

This high quality FL-500P Cover has a 1/2" Brass Carpet Flange with our unique hinged U-Access door.

The cable access door can be easily removed by lifting the integrated U-Access handle to quickly access the interior compartment, connectors, and cables.

•    11-gauge finished steel cover with choice of carpet edging
•    Mitered brass or aluminum carpet edging  .5” or .25” high
•    Stainless steel compression latches
•    Hinged U-Access door

Flanging:  Height: .25” or .5”

There are a variety of covers to choose from. Options include integrated carpet edging, flat covers for non-carpeted, bare floor applications, and different finishes. The hinged cover allows full access to internal connector plates and stored cables. The hinged cable exit door flips back to allow the cover to remain in place after connections are made and cables are routed through it. The 0.25” and 0.5” raised edge style and solid covers are UL scrub water approved.

The FL-500P floor box is not only UL and CUL Listed but has also passed the latest UL test for scrub water. Because of FSR's unique engineering and manufacturing ability, FSR floor boxes pass for carpeted floors as well as tile and wood!

The hinged cover allows full access to internal connector plates and stored cables, and the smaller hinged cable access door flips back to create the cable exit. When the floor box is not in use, the cover is completely closed allowing unencumbered travel in the area with only the hand mitered, elegant carpet edge visible. The low profile edging is 1/4” or 1/2” high and is available in brass or aluminum.

BABAA Compliance

FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Build America Buy America Act (BABAA) compliant. Look for this logo on our website:

TAA Compliance

FSR floor box products meet TAA and BABAA requirements.

*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.

This high quality FL-500P Cover has a 1/2" Aluminum Carpet Flange with our unique hinged U-Access door.

The cable access door can be easily removed by lifting the integrated U-Access handle to quickly access the interior compartment, connectors, and cables.

•    11-gauge finished steel cover with choice of carpet edging
•    Mitered brass or aluminum carpet edging  .5” or .25” high
•    Stainless steel compression latches
•   Hinged U-Access door

Flanging:  Height: .25” or .5”

There are a variety of covers to choose from. Options include integrated carpet edging, flat covers for non-carpeted, bare floor applications, and different finishes. The hinged cover allows full access to internal connector plates and stored cables. The hinged cable exit door flips back to allow the cover to remain in place after connections are made and cables are routed through it. The 0.25” and 0.5” raised edge style and solid covers are UL scrub water approved.

The FL-500P floor box is not only UL and CUL Listed but has also passed the latest UL test for scrub water. Because of FSR's unique engineering and manufacturing ability, FSR floor boxes pass for carpeted floors as well as tile and wood!

The hinged cover allows full access to internal connector plates and stored cables, and the smaller hinged cable access door flips back to create the cable exit. When the floor box is not in use, the cover is completely closed allowing unencumbered travel in the area with only the hand mitered, elegant carpet edge visible. The low profile edging is 1/4” or 1/2” high and is available in brass or aluminum.

BABAA Compliance

FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Build America Buy America Act (BABAA) compliant. Look for this logo on our website:

TAA Compliance

FSR floor box products meet TAA and BABAA requirements.

*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.

This high quality FL-500P Cover has a 1/4" Aluminum Carpet Flange with our unique hinged U-Access door.

The cable access door can be easily opened by lifting the integrated U-Access handle to quickly access the interior compartment, connectors, and cables.

•    11-gauge finished steel cover with choice of carpet edging
•    Mitered brass or aluminum carpet edging  .5” or .25” high
•    Stainless steel compression latches
•    Hinged U-Access door

Flanging:  Height: .25” or .5”

There are a variety of covers to choose from. Options include integrated carpet edging, flat covers for non-carpeted, bare floor applications, and different finishes. The hinged cover allows full access to internal connector plates and stored cables. The hinged cable exit door flips back to allow the cover to remain in place after connections are made and cables are routed through it. The 0.25” and 0.5” raised edge style and solid covers are UL scrub water approved.

The FL-500P floor box is not only UL and CUL Listed but has also passed the latest UL test for scrub water. Because of FSR's unique engineering and manufacturing ability, FSR floor boxes pass for carpeted floors as well as tile and wood!

The hinged cover allows full access to internal connector plates and stored cables, and the smaller hinged cable access door flips back to create the cable exit. When the floor box is not in use, the cover is completely closed allowing unencumbered travel in the area with only the hand mitered, elegant carpet edge visible. The low profile edging is 1/4” or 1/2” high and is available in brass or aluminum.

BABAA Compliance

FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Build America Buy America Act (BABAA) compliant. Look for this logo on our website:

TAA Compliance

FSR floor box products meet TAA and BABAA requirements.

*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.

This high quality FL-500P Cover has a 1/4" Painted Gray Carpet Flange with our unique hinged U-Access door.

The cable access door can be easily opened by lifting the integrated U-Access handle to quickly access the interior compartment, connectors, and cables.

•    11-gauge finished steel cover with choice of carpet edging
•    Mitered brass or aluminum carpet edging  .5” or .25” high
•    Stainless steel compression latches
•    Hinged U-Access door

Flanging:  Height: .25” or .5”

There are a variety of covers to choose from. Options include integrated carpet edging, flat covers for non-carpeted, bare floor applications, and different finishes. The hinged cover allows full access to internal connector plates and stored cables. The hinged cable exit door flips back to allow the cover to remain in place after connections are made and cables are routed through it. The 0.25” and 0.5” raised edge style and solid covers are UL scrub water approved.

The FL-500P floor box is not only UL and CUL Listed but has also passed the latest UL test for scrub water. Because of FSR's unique engineering and manufacturing ability, FSR floor boxes pass for carpeted floors as well as tile and wood!

The hinged cover allows full access to internal connector plates and stored cables, and the smaller hinged cable access door flips back to create the cable exit. When the floor box is not in use, the cover is completely closed allowing unencumbered travel in the area with only the hand mitered, elegant carpet edge visible. The low profile edging is 1/4” or 1/2” high and is available in brass or aluminum.

BABAA Compliance

FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Build America Buy America Act (BABAA) compliant. Look for this logo on our website:

TAA Compliance

FSR floor box products meet TAA and BABAA requirements.

*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.

*Limited Stock*

This high quality FL-500P Cover has a 1/4" Painted Clay Carpet Flange with our hinged U-Access door.

The cable access door can be easily opened by lifting the integrated U-Access handle to quickly access the interior compartment, connectors, and cables.

•    11-gauge finished steel cover with choice of carpet edging
•    Mitered brass or aluminum carpet edging  .5” or .25” high
•    Stainless steel compression latches
•    Hinged U-Access door

Flanging:  Height: .25” or .5”

There are a variety of covers to choose from. Options include integrated carpet edging, flat covers for non-carpeted, bare floor applications, and different finishes. The hinged cover allows full access to internal connector plates and stored cables. The hinged cable exit door flips back to allow the cover to remain in place after connections are made and cables are routed through it. The 0.25” and 0.5” raised edge style and solid covers are UL scrub water approved.

The FL-500P floor box is not only UL and CUL Listed but has also passed the latest UL test for scrub water. Because of FSR's unique engineering and manufacturing ability, FSR floor boxes pass for carpeted floors as well as tile and wood!

The hinged cover allows full access to internal connector plates and stored cables, and the smaller hinged cable access door flips back to create the cable exit. When the floor box is not in use, the cover is completely closed allowing unencumbered travel in the area with only the hand mitered, elegant carpet edge visible. The low profile edging is 1/4” or 1/2” high and is available in brass or aluminum.

BABAA Compliance

FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Build America Buy America Act (BABAA) compliant. Look for this logo on our website:

TAA Compliance

FSR floor box products meet TAA and BABAA requirements.

*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.

This high quality FL-500P Cover has a 1/4" Painted Black Carpet Flange with our unique hinged U-Access door.

The cable access door can be easily opened by lifting the integrated U-Access handle to quickly access the interior compartment, connectors, and cables.

•    11-gauge finished steel cover with choice of carpet edging
•    Mitered brass or aluminum carpet edging  .5” or .25” high
•    Stainless steel compression latches
•    Hinged U-Access door

Flanging:  Height: .25” or .5”

There are a variety of covers to choose from. Options include integrated carpet edging, flat covers for non-carpeted, bare floor applications, and different finishes. The hinged cover allows full access to internal connector plates and stored cables. The hinged cable exit door flips back to allow the cover to remain in place after connections are made and cables are routed through it. The 0.25” and 0.5” raised edge style and solid covers are UL scrub water approved.

The FL-500P floor box is not only UL and CUL Listed but has also passed the latest UL test for scrub water. Because of FSR's unique engineering and manufacturing ability, FSR floor boxes pass for carpeted floors as well as tile and wood!

The hinged cover allows full access to internal connector plates and stored cables, and the smaller hinged cable access door flips back to create the cable exit. When the floor box is not in use, the cover is completely closed allowing unencumbered travel in the area with only the hand mitered, elegant carpet edge visible. The low profile edging is 1/4” or 1/2” high and is available in brass or aluminum.

BABAA Compliance

FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Buy America/ Build America Act (BABAA) compliant. Look for this logo on our website:

TAA Compliance

FSR floor box products meet TAA and BABAA requirements.

*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.

This high quality FL-500P Cover is an Aluminum Solid Cover with our unique hinged U-Access door.

The cable access door can be easily opened by lifting the integrated U-Access handle to quickly access the interior compartment, connectors, and cables.

•    11-gauge finished steel cover with choice of carpet edging
•    Mitered brass or aluminum carpet edging  .5” or .25” high
•    Stainless steel compression latches
•    Hinged U-Access door

Flanging:  Height: .25” or .5”

There are a variety of covers to choose from. Options include integrated carpet edging, flat covers for non-carpeted, bare floor applications, and different finishes. The hinged cover allows full access to internal connector plates and stored cables. The hinged cable exit door flips back to allow the cover to remain in place after connections are made and cables are routed through it. The 0.25” and 0.5” raised edge style and solid covers are UL scrub water approved.

The FL-500P floor box is not only UL and CUL Listed but has also passed the latest UL test for scrub water. Because of FSR's unique engineering and manufacturing ability, FSR floor boxes pass for carpeted floors as well as tile and wood!

The hinged cover allows full access to internal connector plates and stored cables, and the smaller hinged cable access door flips back to create the cable exit. When the floor box is not in use, the cover is completely closed allowing unencumbered travel in the area with only the hand mitered, elegant carpet edge visible. The low profile edging is 1/4” or 1/2” high and is available in brass or aluminum.

BABAA Compliance

FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Build America Buy America Act (BABAA) compliant. Look for this logo on our website:

TAA Compliance

FSR floor box products meet TAA and BABAA requirements.

*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.

This high quality FL-500P Cover is a Black Solid Cover with our unique hinged U-Access door.

The cable access door can be easily opened by lifting the integrated U-Access handle to quickly access the interior compartment, connectors, and cables.

•    11-gauge finished steel cover with choice of carpet edging
•    Mitered brass or aluminum carpet edging  .5” or .25” high
•    Stainless steel compression latches
•    Hinged U-Access door

Flanging:  Height: .25” or .5”

There are a variety of covers to choose from. Options include integrated carpet edging, flat covers for non-carpeted, bare floor applications, and different finishes. The hinged cover allows full access to internal connector plates and stored cables. The hinged cable exit door flips back to allow the cover to remain in place after connections are made and cables are routed through it. The 0.25” and 0.5” raised edge style and solid covers are UL scrub water approved.

The FL-500P floor box is not only UL and CUL Listed but has also passed the latest UL test for scrub water. Because of FSR's unique engineering and manufacturing ability, FSR floor boxes pass for carpeted floors as well as tile and wood!

The hinged cover allows full access to internal connector plates and stored cables, and the smaller hinged cable access door flips back to create the cable exit. When the floor box is not in use, the cover is completely closed allowing unencumbered travel in the area with only the hand mitered, elegant carpet edge visible. The low profile edging is 1/4” or 1/2” high and is available in brass or aluminum.

BABAA Compliance

FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Build America Buy America Act (BABAA) compliant. Look for this logo on our website:

TAA Compliance

FSR floor box products meet TAA and BABAA requirements.

*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.

*Limited Stock*

This high quality FL-500P Cover is a Clay Solid Cover with our unique hinged U-access door.

The cable access door can be easily opened by lifting the integrated U-Access handle to quickly access the interior compartment, connectors, and cables.

•    11-gauge finished steel cover with choice of carpet edging
•    Mitered brass or aluminum carpet edging  .5” or .25” high
•    Stainless steel compression latches
•    Hinged U-Access door

Flanging:  Height: .25” or .5”

There are a variety of covers to choose from. Options include integrated carpet edging, flat covers for non-carpeted, bare floor applications, and different finishes. The hinged cover allows full access to internal connector plates and stored cables. The hinged cable exit door flips back to allow the cover to remain in place after connections are made and cables are routed through it. The 0.25” and 0.5” raised edge style and solid covers are UL scrub water approved.

The FL-500P floor box is not only UL and CUL Listed but has also passed the latest UL test for scrub water. Because of FSR's unique engineering and manufacturing ability, FSR floor boxes pass for carpeted floors as well as tile and wood!

The hinged cover allows full access to internal connector plates and stored cables, and the smaller hinged cable access door flips back to create the cable exit. When the floor box is not in use, the cover is completely closed allowing unencumbered travel in the area with only the hand mitered, elegant carpet edge visible. The low profile edging is 1/4” or 1/2” high and is available in brass or aluminum.

BABAA Compliance

FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Build America Buy America Act (BABAA) compliant. Look for this logo on our website:

TAA Compliance

FSR floor box products meet TAA and BABAA requirements.

*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.

This high quality FL-500P Cover is a Grey Solid Cover with our unique hinged U-Access door.

The cable access door can be easily opened by lifting the integrated U-Access handle to quickly access the interior compartment, connectors, and cables.

•    11-gauge finished steel cover with choice of carpet edging
•    Mitered brass or aluminum carpet edging  .5” or .25” high
•    Stainless steel compression latches
•    Hinged U-Access door

Flanging:  Height: .25” or .5”

There are a variety of covers to choose from. Options include integrated carpet edging, flat covers for non-carpeted, bare floor applications, and different finishes. The hinged cover allows full access to internal connector plates and stored cables. The hinged cable exit door flips back to allow the cover to remain in place after connections are made and cables are routed through it. The 0.25” and 0.5” raised edge style and solid covers are UL scrub water approved.

The FL-500P floor box is not only UL and CUL Listed but has also passed the latest UL test for scrub water. Because of FSR's unique engineering and manufacturing ability, FSR floor boxes pass for carpeted floors as well as tile and wood!

The hinged cover allows full access to internal connector plates and stored cables, and the smaller hinged cable access door flips back to create the cable exit. When the floor box is not in use, the cover is completely closed allowing unencumbered travel in the area with only the hand mitered, elegant carpet edge visible. The low profile edging is 1/4” or 1/2” high and is available in brass or aluminum.

BABAA Compliance

FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Build America Buy America Act (BABAA) compliant. Look for this logo on our website:

TAA Compliance

FSR floor box products meet TAA and BABAA requirements.

*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.

This high quality FL-500P Cover has a 1/4" Square Aluminum Flange with our unique hinged U-Access door.

The cable access door can be easily opened by lifting the integrated U-Access handle to quickly access the interior compartment, connectors, and cables.

•    11-gauge finished steel cover with choice of carpet edging
•    Mitered brass or aluminum carpet edging  .5” or .25” high
•    Stainless steel compression latches
•    Hinged U-Access door

Flanging:  Height: .25” or .5”

There are a variety of covers to choose from. Options include integrated carpet edging, flat covers for non-carpeted, bare floor applications, and different finishes. The hinged cover allows full access to internal connector plates and stored cables. The hinged cable exit door flips back to allow the cover to remain in place after connections are made and cables are routed through it. The 0.25” and 0.5” raised edge style and solid covers are UL scrub water approved.

The FL-500P floor box is not only UL and CUL Listed but has also passed the latest UL test for scrub water. Because of FSR's unique engineering and manufacturing ability, FSR floor boxes pass for carpeted floors as well as tile and wood!

The hinged cover allows full access to internal connector plates and stored cables, and the smaller hinged cable access door flips back to create the cable exit. When the floor box is not in use, the cover is completely closed allowing unencumbered travel in the area with only the hand mitered, elegant carpet edge visible. The low profile edging is 1/4” or 1/2” high and is available in brass or aluminum.

BABAA Compliance

FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Build America Buy America Act (BABAA) compliant. Look for this logo on our website:

TAA Compliance

FSR floor box products meet TAA and BABAA requirements.

*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.

This high quality FL-500P Cover has a 1/4" Square Brass Flange with our unique tool-less lift off door.

The cable access door can be easily removed by lifting the integrated U-Access handle to quickly access the interior compartment, connectors, and cables.

•    11-gauge finished steel cover with choice of carpet edging
•    Mitered brass or aluminum carpet edging  .5” or .25” high
•    Stainless steel compression latches
•    Lift-off full access door

Flanging:  Height: .25” or .5”

There are a variety of covers to choose from. Options include integrated carpet edging, flat covers for non-carpeted, bare floor applications, and different finishes. The lift-off section of the cover allows full access to internal connector plates and stored cables. The hinged cable exit door flips back to allow the cover to remain in place after connections are made and cables are routed through it. The 0.25” and 0.5” raised edge style and solid covers are UL scrub water approved.

The FL-500P floor box is not only UL and CUL Listed but has also passed the latest UL test for scrub water. Because of FSR's unique engineering and manufacturing ability, FSR floor boxes pass for carpeted floors as well as tile and wood!

The lift-off section of the cover allows full access to internal connector plates and stored cables, and the smaller hinged cable access door flips back to create the cable exit. When the floor box is not in use, the cover is completely closed allowing unencumbered travel in the area with only the hand mitered, elegant carpet edge visible. The low profile edging is 1/4” or 1/2” high and is available in brass or aluminum.

BABAA Compliance

FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Build America Buy America Act (BABAA) compliant. Look for this logo on our website:

TAA Compliance

FSR floor box products meet TAA and BABAA requirements.

*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.

The FL-500P-2.25 floor box combines rugged construction and an elegant design for use in carpet, tile or wood covered floors over poured concrete applications. This floor box has ample compartment room to accommodate power, audio, video, telecommunications and data in one elegant and practical box.

 The innovation continues to the configurable back box. The FL-500P's internal brackets can be arranged to provide numerous options for both high and low voltage standard gang openings making it the most flexible and easiest to install floor box available. The FL-500P floor box is designed to handle the rigors of a floor environment and still maintains flexibility and elegance.

The 2.25 depths have special gang configurations.

Notes: This floor box is not applicable for direct contact with grade (soil or gravel). For grade applications, use the FL-GRD2/4 pour pan as a foundation before box installation. These floor boxes are designed for the UL safety standard for scrub water. The standard only applied to boxed installed in concrete, not raised access boxes.

Applications:

• Hotel Lobbies
• Conference Centers
• Board Rooms
• Cruise Ship
• Anywhere an upscale, richly finished look is required

The FL-500P-2.25 floor box combines rugged construction and an elegant design for use in carpet, tile or wood covered floors over poured concrete applications. This floor box has ample compartment room to accommodate power, audio, video, telecommunications and data in one elegant and practical box.

The FL-500P floor box is not only UL and CUL Listed but has also passed the latest UL test for scrub water. Because of FSR's unique engineering and manufacturing ability, FSR floor boxes pass for carpeted floors as well as tile and wood! The lift-off section of the cover allows full access to internal connector plates and stored cables, and the smaller hinged cable access door flips back to create the cableexit. When the floor box is not in use, the cover is completely closed allowing unencumbered travel in the area with only the handmitered, elegant carpet edge visible. The low profile edging is 1/4” or 1/2” high and is available in brass or aluminum.

The innovation continues to the configurable back box. The FL-500P's internal brackets can be arranged to provide numerous options for both high and low voltage standard gang openings making it the most flexible and easiest to install floor box available. The FL-500P floor box is designed to handle the rigors of a floor environment and still maintains flexibility and elegance.

The 2.25  depth have special gang configurations.

Notes: This floor box is not applicable for direct contact with grade (soil or gravel). For grade applications, use the FL-GRD2/4pour pan as a foundation before box installation. Each floorbox comes with a temporary construction cover. Boxes and covers are sold separately. These floor boxes are designed for the UL safety standard for scrub water. The standard only applied to boxed installed in concrete, not raised access boxes.

Applications:

• Hotel Lobbies
• Conference Centers
• Board Rooms
• Cruise Ship
• Anywhere an upscale, richly finished look is required

BABAA Compliance

FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Build America Buy America Act (BABAA) compliant. Look for this logo on our website:

TAA Compliance

FSR floor box products meet TAA and BABAA requirements.

*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.

The FL-500P-2.25 floor box combines rugged construction and an elegant design for use in carpet, tile or wood covered floors over poured concrete applications. This floor box has ample compartment room to accommodate power, audio, video, telecommunications and data in one elegant and practical box.

The innovation continues to the configurable back box. The FL-500P's internal brackets can be arranged to provide numerous options for both high and low voltage standard gang openings making it the most flexible and easiest to install floor box available. The FL-500P floor box is designed to handle the rigors of a floor environment and still maintains flexibility and elegance.

The 2.25 depth have special gang configurations.

Notes: This floor box is not applicable for direct contact with grade (soil or gravel). For grade applications, use the FL-GRD2/4  pour pan as a foundation before box installation. These floor boxes are designed for the UL safety standard for scrub water. The standard only applied to boxed installed in concrete, not raised access boxes.

Applications:

• Hotel Lobbies
• Conference Centers
• Board Rooms
• Cruise Ship
• Anywhere an upscale, richly finished look is required

This high quality FL-500P Black Sandtex Cover has our unique tool-less hinged U-Access door.

The FL-500P-2.25 floor box combines rugged construction and an elegant design for use in carpet, tile or wood covered floors over poured concrete applications. This floor box has ample compartment room to accommodate power, audio, video, telecommunications and data in one elegant and practical box.

The FL-500P-2.25 floor box combines rugged construction and an elegant design for use in carpet, tile or wood covered floors over poured concrete applications. This floor box has ample compartment room to accommodate power, audio, video, telecommunications and data in one elegant and practical box.

The innovation continues to the configurable back box. The FL-500P's internal brackets can be arranged to provide numerous options for both high and low voltage standard gang openings making it the most flexible and easiest to install floor box available. The FL-500P floor box is designed to handle the rigors of a floor environment and still maintains flexibility and elegance.

The 2.25 depth have special gang configurations.

Notes: This floor box is not applicable for direct contact with grade (soil or gravel). For grade applications, use the FL-GRD2/4pour pan as a foundation before box installation. These floor boxes are designed for the UL safety standard for scrub water. The standard only applied to boxed installed in concrete, not raised access boxes.

Applications:

• Hotel Lobbies
• Conference Centers
• Board Rooms
• Cruise Ship
• Anywhere an upscale, richly finished look is required

This high quality FL-500P Stainless Steel Cover has our unique hinged U-Access door.

The cable access door can be easily removed by lifting the integrated U-Access handle to quickly access the interior compartment, connectors, and cables.

•    11-gauge finished steel cover with choice of carpet edging
•    Mitered brass or aluminum carpet edging  .5” or .25” high
•    Stainless steel compression latches
•    Hinged U-Access door

Flanging:  Height: .25” or .5”

There are a variety of covers to choose from. Options include integrated carpet edging, flat covers for non-carpeted, bare floor applications, and different finishes. The hinged door of the cover allows full access to internal connector plates and stored cables. The hinged cable exit door flips back to allow the cover to remain in place after connections are made and cables are routed through it. The 0.25” and 0.5” raised edge style and solid covers are UL scrub water approved.

BABAA Compliance

FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Build America Buy America Act (BABAA) compliant. Look for this logo on our website:

TAA Compliance

FSR floor box products meet TAA and BABAA requirements.

*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.

The FL-500P-2.25 floor box combines rugged construction and an elegant design for use in carpet, tile or wood covered floors over poured concrete applications. This floor box has ample compartment room to accommodate power, audio, video, telecommunications and data in one elegant and practical box.

The innovation continues to the configurable back box. The FL-500P's internal brackets can be arranged to provide numerous options for both high and low voltage standard gang openings making it the most flexible and easiest to install floor box available. The FL-500P floor box is designed to handle the rigors of a floor environment and still maintains flexibility and elegance.

The 2.25 depth have special gang configurations.

Notes: This floor box is not applicable for direct contact with grade (soil or gravel). For grade applications, use the FL-GRD2/4pour pan as a foundation before box installation. These floor boxes are designed for the UL safety standard for scrub water. The standard only applied to boxed installed in concrete, not raised access boxes.

This high quality FL-500P Solid Brass Cover has our unique hinged U-Access door.

The cable access door can be easily removed by lifting the integrated U-Access handle to quickly access the interior compartment, connectors, and cables.

•    11-gauge finished steel cover with choice of carpet edging
•    Mitered brass or aluminum carpet edging  .5” or .25” high
•    Stainless steel compression latches
•    Hinged U-Access door

Flanging:  Height: .25” or .5”

There are a variety of covers to choose from. Options include integrated carpet edging, flat covers for non-carpeted, bare floor applications, and different finishes. The hinged door of the cover allows full access to internal connector plates and stored cables. The hinged cable exit door flips back to allow the cover to remain in place after connections are made and cables are routed through it. The 0.25” and 0.5” raised edge style and solid covers are UL scrub water approved.

BABAA Compliance

FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Build America Buy America Act (BABAA) compliant. Look for this logo on our website:

TAA Compliance

FSR floor box products meet TAA and BABAA requirements.

*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.

The FL-500P-2.25 floor box combines rugged construction and an elegant design for use in carpet, tile or wood covered floors over poured concrete applications. This floor box has ample compartment room to accommodate power, audio, video, telecommunications and data in one elegant and practical box.

The innovation continues to the configurable back box. The FL-500P's internal brackets can be arranged to provide numerous options for both high and low voltage standard gang openings making it the most flexible and easiest to install floor box available. The FL-500P floor box is designed to handle the rigors of a floor environment and still maintains flexibility and elegance.

The 2.25 depth have special gang configurations.

Notes: This floor box is not applicable for direct contact with grade (soil or gravel). For grade applications, use the FL-GRD2/4pour pan as a foundation before box installation. These floor boxes are designed for the UL safety standard for scrub water. The standard only applied to boxed installed in concrete, not raised access boxes.

Applications:

• Hotel Lobbies
• Conference Centers
• Board Rooms
• Cruise Ship
• Anywhere an upscale, richly finished look is required

This high quality FL-500P Cover has a 1/4" Brass Carpet Flange with our unique hinged U-Access door.

The cable access door can be easily removed by lifting the integrated U-Access handle to quickly access the interior compartment, connectors, and cables.

•    11-gauge finished steel cover with choice of carpet edging
•    Mitered brass or aluminum carpet edging  .5” or .25” high
•    Stainless steel compression latches
•    Hinged U-Access door

Flanging:  Height: .25” or .5”

There are a variety of covers to choose from. Options include integrated carpet edging, flat covers for non-carpeted, bare floor applications, and different finishes. The hinged door of the cover allows full access to internal connector plates and stored cables. The hinged cable exit door flips back to allow the cover to remain in place after connections are made and cables are routed through it. The 0.25” and 0.5” raised edge style and solid covers are UL scrub water approved.

BABAA Compliance

FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Buy America/ Build America Act  (BABAA) compliant. Look for this logo on our website:

TAA Compliance

FSR floor box products meet TAA and BABAA requirements.

*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.

The FL-500P-2.25 floor box combines rugged construction and an elegant design for use in carpet, tile or wood covered floors over poured concrete applications. This floor box has ample compartment room to accommodate power, audio, video, telecommunications and data in one elegant and practical box.

The innovation continues to the configurable back box. The FL-500P's internal brackets can be arranged to provide numerous options for both high and low voltage standard gang openings making it the most flexible and easiest to install floor box available. The FL-500P floor box is designed to handle the rigors of a floor environment and still maintains flexibility and elegance.

The 2.25 depth have special gang configurations.

Notes: This floor box is not applicable for direct contact with grade (soil or gravel). For grade applications, use the FL-GRD2/4pour pan as a foundation before box installation. These floor boxes are designed for the UL safety standard for scrub water. The standard only applied to boxed installed in concrete, not raised access boxes.

Applications:

• Hotel Lobbies
• Conference Centers
• Board Rooms
• Cruise Ship
• Anywhere an upscale, richly finished look is required

The FL-500P-2.25 floor box combines rugged construction and an elegant design for use in carpet, tile or wood covered floors over poured concrete applications. This floor box has ample compartment room to accommodate power, audio, video, telecommunications and data in one elegant and practical box.

The innovation continues to the configurable back box. The FL-500P's internal brackets can be arranged to provide numerous options for both high and low voltage standard gang openings making it the most flexible and easiest to install floor box available. The FL-500P floor box is designed to handle the rigors of a floor environment and still maintains flexibility and elegance.

The 2.25 depth have special gang configurations.

Notes: This floor box is not applicable for direct contact with grade (soil or gravel). For grade applications, use the FL-GRD2/4pour pan as a foundation before box installation. These floor boxes are designed for the UL safety standard for scrub water. The standard only applied to boxed installed in concrete, not raised access boxes.

Applications:

• Hotel Lobbies
• Conference Centers
• Board Rooms
• Cruise Ship
• Anywhere an upscale, richly finished look is required

The FL-500P-2.25 floor box combines rugged construction and an elegant design for use in carpet, tile or wood covered floors over poured concrete applications. This floor box has ample compartment room to accommodate power, audio, video, telecommunications and data in one elegant and practical box.

The innovation continues to the configurable back box. The FL-500P's internal brackets can be arranged to provide numerous options for both high and low voltage standard gang openings making it the most flexible and easiest to install floor box available. The FL-500P floor box is designed to handle the rigors of a floor environment and still maintains flexibility and elegance.

The 2.25 depth have special gang configurations.

Notes: This floor box is not applicable for direct contact with grade (soil or gravel). For grade applications, use the FL-GRD2/4pour pan as a foundation before box installation. These floor boxes are designed for the UL safety standard for scrub water. The standard only applied to boxed installed in concrete, not raised access boxes.

The FL-500P-2.25 floor box combines rugged construction and an elegant design for use in carpet, tile or wood covered floors over poured concrete applications. This floor box has ample compartment room to accommodate power, audio, video, telecommunications and data in one elegant and practical box.

The innovation continues to the configurable back box. The FL-500P's internal brackets can be arranged to provide numerous options for both high and low voltage standard gang openings making it the most flexible and easiest to install floor box available. The FL-500P floor box is designed to handle the rigors of a floor environment and still maintains flexibility and elegance.

The 2.25 depth have special gang configurations.

Notes: This floor box is not applicable for direct contact with grade (soil or gravel). For grade applications, use the FL-GRD2/4pour pan as a foundation before box installation. These floor boxes are designed for the UL safety standard for scrub water. The standard only applied to boxed installed in concrete, not raised access boxes.

Applications:

• Hotel Lobbies
• Conference Centers
• Board Rooms
• Cruise Ship
• Anywhere an upscale, richly finished look is required

This high quality FL-500P Cover has a 1/4" Grey Painted  Carpet Flange with our unique hinged U-Access door.

The cable access door can be easily removed by lifting the integrated U-Access handle to quickly access the interior compartment, connectors, and cables.

•    11-gauge finished steel cover with choice of carpet edging
•    Mitered brass or aluminum carpet edging  .5” or .25” high
•    Stainless steel compression latches
•    Hinged U-Access door

Flanging:  Height: .25” or .5”

There are a variety of covers to choose from. Options include integrated carpet edging, flat covers for non-carpeted, bare floor applications, and different finishes. The hinged door of the cover allows full access to internal connector plates and stored cables. The hinged cable exit door flips back to allow the cover to remain in place after connections are made and cables are routed through it. The 0.25” and 0.5” raised edge style and solid covers are UL scrub water approved.

BABAA Compliance

FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Build America Buy America Act (BABAA) compliant. Look for this logo on our website:

TAA Compliance

FSR floor box products meet TAA and BABAA requirements.

*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.

The FL-500P-2.25 floor box combines rugged construction and an elegant design for use in carpet, tile or wood covered floors over poured concrete applications. This floor box has ample compartment room to accommodate power, audio, video, telecommunications and data in one elegant and practical box.

The innovation continues to the configurable back box. The FL-500P's internal brackets can be arranged to provide numerous options for both high and low voltage standard gang openings making it the most flexible and easiest to install floor box available. The FL-500P floor box is designed to handle the rigors of a floor environment and still maintains flexibility and elegance.

The 2.25 depth have special gang configurations.

Notes: This floor box is not applicable for direct contact with grade (soil or gravel). For grade applications, use the FL-GRD2/4pour pan as a foundation before box installation. These floor boxes are designed for the UL safety standard for scrub water. The standard only applied to boxed installed in concrete, not raised access boxes.

The cable access door can be easily removed by lifting the integrated U-Access handle to quickly access the interior compartment, connectors, and cables.

•    11-gauge finished steel cover with choice of carpet edging
•    Mitered brass or aluminum carpet edging  .5” or .25” high
•    Stainless steel compression latches
•    Hinged U-Access door

Flanging:  Height: .25” or .5”

There are a variety of covers to choose from. Options include integrated carpet edging, flat covers for non-carpeted, bare floor applications, and different finishes. The hinged door of the cover allows full access to internal connector plates and stored cables. The hinged cable exit door flips back to allow the cover to remain in place after connections are made and cables are routed through it. The 0.25” and 0.5” raised edge style and solid covers are UL scrub water approved.

BABAA Compliance

FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Build America Buy America Act (BABAA) compliant. Look for this logo on our website:

TAA Compliance

FSR floor box products meet TAA and BABAA requirements.

*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.

The FL-500P-2.25 floor box combines rugged construction and an elegant design for use in carpet, tile or wood covered floors over poured concrete applications. This floor box has ample compartment room to accommodate power, audio, video, telecommunications and data in one elegant and practical box.

The innovation continues to the configurable back box. The FL-500P's internal brackets can be arranged to provide numerous options for both high and low voltage standard gang openings making it the most flexible and easiest to install floor box available. The FL-500P floor box is designed to handle the rigors of a floor environment and still maintains flexibility and elegance.

The 2.25 depth have special gang configurations.

Notes: This floor box is not applicable for direct contact with grade (soil or gravel). For grade applications, use the FL-GRD2/4pour pan as a foundation before box installation. These floor boxes are designed for the UL safety standard for scrub water. The standard only applied to boxed installed in concrete, not raised access boxes.

Applications:

• Hotel Lobbies
• Conference Centers
• Board Rooms
• Cruise Ship
• Anywhere an upscale, richly finished look is required

This high quality FL-500P Cover has a 1/4" Black Painted Carpet Flange with our unique hinged U-Access door.

The cable access door can be easily removed by lifting the integrated U-Access handle to quickly access the interior compartment, connectors, and cables.

•    11-gauge finished steel cover with choice of carpet edging
•    Mitered brass or aluminum carpet edging  .5” or .25” high
•    Stainless steel compression latches
•    Hinged U-Access door

Flanging:  Height: .25” or .5”

There are a variety of covers to choose from. Options include integrated carpet edging, flat covers for non-carpeted, bare floor applications, and different finishes. The hinged door of the cover allows full access to internal connector plates and stored cables. The hinged cable exit door flips back to allow the cover to remain in place after connections are made and cables are routed through it. The 0.25” and 0.5” raised edge style and solid covers are UL scrub water approved.

BABAA Compliance

FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Build America Buy America Act (BABAA) compliant. Look for this logo on our website:

TAA Compliance

FSR floor box products meet TAA and BABAA requirements.

*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.

The FL-500P-2.25 floor box combines rugged construction and an elegant design for use in carpet, tile or wood covered floors over poured concrete applications. This floor box has ample compartment room to accommodate power, audio, video, telecommunications and data in one elegant and practical box.

The innovation continues to the configurable back box. The FL-500P's internal brackets can be arranged to provide numerous options for both high and low voltage standard gang openings making it the most flexible and easiest to install floor box available. The FL-500P floor box is designed to handle the rigors of a floor environment and still maintains flexibility and elegance.

The 2.25 depths have special gang configurations.

Notes: This floor box is not applicable for direct contact with grade (soil or gravel). For grade applications, use the FL-GRD2/4pour pan as a foundation before box installation. These floor boxes are designed for the UL safety standard for scrub water. The standard only applied to boxed installed in concrete, not raised access boxes.

Applications:

• Hotel Lobbies
• Conference Centers
• Board Rooms
• Cruise Ship
• Anywhere an upscale, richly finished look is required

The cable access door can be easily removed by lifting the integrated U-Access handle to quickly access the interior compartment, connectors, and cables.

•    11-gauge finished steel cover with choice of carpet edging
•    Mitered brass or aluminum carpet edging  .5” or .25” high
•    Stainless steel compression latches
•    Hinged U-Access door

Flanging:  Height: .25” or .5”

There are a variety of covers to choose from. Options include integrated carpet edging, flat covers for non-carpeted, bare floor applications, and different finishes. The hinged door of the cover allows full access to internal connector plates and stored cables. The hinged cable exit door flips back to allow the cover to remain in place after connections are made and cables are routed through it. The 0.25” and 0.5” raised edge style and solid covers are UL scrub water approved.

BABAA Compliance

FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Build America Buy America Act (BABAA) compliant. Look for this logo on our website:

TAA Compliance

FSR floor box products meet TAA and BABAA requirements.

*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.

The FL-500P-2.25 floor box combines rugged construction and an elegant design for use in carpet, tile or wood covered floors over poured concrete applications. This floor box has ample compartment room to accommodate power, audio, video, telecommunications and data in one elegant and practical box.

The innovation continues to the configurable back box. The FL-500P's internal brackets can be arranged to provide numerous options for both high and low voltage standard gang openings making it the most flexible and easiest to install floor box available. The FL-500P floor box is designed to handle the rigors of a floor environment and still maintains flexibility and elegance.

The 2.25 depth have special gang configurations.

Notes: This floor box is not applicable for direct contact with grade (soil or gravel). For grade applications, use the FL-GRD2/4 pour pan as a foundation before box installation. These floor boxes are designed for the UL safety standard for scrub water. The standard only applied to boxed installed in concrete, not raised access boxes.

Applications:

• Hotel Lobbies
• Conference Centers
• Board Rooms
• Cruise Ship
• Anywhere an upscale, richly finished look is required

 This high quality FL-500P Black Solid Cover has our unique hinged U-Access door.

The cable access door can be easily removed by lifting the integrated U-Access handle to quickly access the interior compartment, connectors, and cables.

•    11-gauge finished steel cover with choice of carpet edging
•    Mitered brass or aluminum carpet edging  .5” or .25” high
•    Stainless steel compression latches
•    Hinged U-Access door

Flanging:  Height: .25” or .5”

There are a variety of covers to choose from. Options include integrated carpet edging, flat covers for non-carpeted, bare floor applications, and different finishes. The hinged door of the cover allows full access to internal connector plates and stored cables. The hinged cable exit door flips back to allow the cover to remain in place after connections are made and cables are routed through it. The 0.25” and 0.5” raised edge style and solid covers are UL scrub water approved.

BABAA Compliance

FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Build America Buy America Act (BABAA) compliant. Look for this logo on our website:

TAA Compliance

FSR floor box products meet TAA and BABAA requirements.

*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.

The FL-500P-2.25 floor box combines rugged construction and an elegant design for use in carpet, tile or wood covered floors over poured concrete applications. This floor box has ample compartment room to accommodate power, audio, video, telecommunications and data in one elegant and practical box.

The innovation continues to the configurable back box. The FL-500P's internal brackets can be arranged to provide numerous options for both high and low voltage standard gang openings making it the most flexible and easiest to install floor box available. The FL-500P floor box is designed to handle the rigors of a floor environment and still maintains flexibility and elegance.

The 2.25 depth have special gang configurations.

Notes: This floor box is not applicable for direct contact with grade (soil or gravel). For grade applications, use the FL-GRD2/4pour pan as a foundation before box installation. These floor boxes are designed for the UL safety standard for scrub water. The standard only applied to boxed installed in concrete, not raised access boxes.

Applications:

• Hotel Lobbies
• Conference Centers
• Board Rooms
• Cruise Ship
• Anywhere an upscale, richly finished look is required

*Limited Stock*

This high quality FL-500P Solid Clay Cover has our unique hinged U-Access door.

The FL-500P-2.25 floor box combines rugged construction and an elegant design for use in carpet, tile or wood covered floors over poured concrete applications. This floor box has ample compartment room to accommodate power, audio, video, telecommunications and data in one elegant and practical box.

The innovation continues to the configurable back box. The FL-500P's internal brackets can be arranged to provide numerous options for both high and low voltage standard gang openings making it the most flexible and easiest to install floor box available. The FL-500P floor box is designed to handle the rigors of a floor environment and still maintains flexibility and elegance.

The 2.25 depth have special gang configurations.

Notes: This floor box is not applicable for direct contact with grade (soil or gravel). For grade applications, use the FL-GRD2/4pour pan as a foundation before box installation. These floor boxes are designed for the UL safety standard for scrub water. The standard only applied to boxed installed in concrete, not raised access boxes.

Applications:

• Hotel Lobbies
• Conference Centers
• Board Rooms
• Cruise Ship
• Anywhere an upscale, richly finished look is required

This high quality FL-500P Solid Grey Cover has our unique hinged U-Access door.

The cable access door can be easily removed by lifting the integrated U-Access handle to quickly access the interior compartment, connectors, and cables.

•    11-gauge finished steel cover with choice of carpet edging
•    Mitered brass or aluminum carpet edging  .5” or .25” high
•    Stainless steel compression latches
•    Hinged U-Access door

Flanging:  Height: .25” or .5”

There are a variety of covers to choose from. Options include integrated carpet edging, flat covers for non-carpeted, bare floor applications, and different finishes. The hinged door of the cover allows full access to internal connector plates and stored cables. The hinged cable exit door flips back to allow the cover to remain in place after connections are made and cables are routed through it. The 0.25” and 0.5” raised edge style and solid covers are UL scrub water approved.

BABAA Compliance

FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Build America Buy America Act (BABAA) compliant. Look for this logo on our website:

TAA Compliance

FSR floor box products meet TAA and BABAA requirements.

*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.

The FL-500P-2.25 floor box combines rugged construction and an elegant design for use in carpet, tile or wood covered floors over poured concrete applications. This floor box has ample compartment room to accommodate power, audio, video, telecommunications and data in one elegant and practical box.

The innovation continues to the configurable back box. The FL-500P's internal brackets can be arranged to provide numerous options for both high and low voltage standard gang openings making it the most flexible and easiest to install floor box available. The FL-500P floor box is designed to handle the rigors of a floor environment and still maintains flexibility and elegance.

The 2.25 depth have special gang configurations.

Notes: This floor box is not applicable for direct contact with grade (soil or gravel). For grade applications, use the FL-GRD2/4pour pan as a foundation before box installation. These floor boxes are designed for the UL safety standard for scrub water. The standard only applied to boxed installed in concrete, not raised access boxes.

Applications:

• Hotel Lobbies
• Conference Centers
• Board Rooms
• Cruise Ship
• Anywhere an upscale, richly finished look is required

This high quality FL-500P Cover has a 1/4" Square Aluminum Flange with our unique hinged U-Access door.

The cable access door can be easily removed by lifting the integrated U-Access handle to quickly access the interior compartment, connectors, and cables.

•    11-gauge finished steel cover with choice of carpet edging
•    Mitered brass or aluminum carpet edging  .5” or .25” high
•    Stainless steel compression latches
•    Hinged U-Access door

Flanging:  Height: .25” or .5”

There are a variety of covers to choose from. Options include integrated carpet edging, flat covers for non-carpeted, bare floor applications, and different finishes. The hinged door of the cover allows full access to internal connector plates and stored cables. The hinged cable exit door flips back to allow the cover to remain in place after connections are made and cables are routed through it. The 0.25” and 0.5” raised edge style and solid covers are UL scrub water approved.

BABAA Compliance

FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Build America Buy America Act (BABAA) compliant. Look for this logo on our website:

TAA Compliance

FSR floor box products meet TAA and BABAA requirements.

*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.

The FL-500P-2.25 floor box combines rugged construction and an elegant design for use in carpet, tile or wood covered floors over poured concrete applications. This floor box has ample compartment room to accommodate power, audio, video, telecommunications and data in one elegant and practical box.

The innovation continues to the configurable back box. The FL-500P's internal brackets can be arranged to provide numerous options for both high and low voltage standard gang openings making it the most flexible and easiest to install floor box available. The FL-500P floor box is designed to handle the rigors of a floor environment and still maintains flexibility and elegance.

The 2.25 depth have special gang configurations.

Notes: This floor box is not applicable for direct contact with grade (soil or gravel). For grade applications, use the FL-GRD2/4pour pan as a foundation before box installation. These floor boxes are designed for the UL safety standard for scrub water. The standard only applied to boxed installed in concrete, not raised access boxes.

This high quality FL-500P Cover has a 1/4" Square Brass Flange with our unique tool-less lift off door.

The cable access door can be easily removed by lifting the integrated U-Access handle to quickly access the interior compartment, connectors, and cables.

•    11-gauge finished steel cover with choice of carpet edging
•    Mitered brass or aluminum carpet edging  .5” or .25” high
•    Stainless steel compression latches
•    Lift-off full access door

Flanging:  Height: .25” or .5”

There are a variety of covers to choose from. Options include integrated carpet edging, flat covers for non-carpeted, bare floor applications, and different finishes. The lift-off section of the cover allows full access to internal connector plates and stored cables. The hinged cable exit door flips back to allow the cover to remain in place after connections are made and cables are routed through it. The 0.25” and 0.5” raised edge style and solid covers are UL scrub water approved.

BABAA Compliance

FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Build America Buy America Act (BABAA) compliant. Look for this logo on our website:

TAA Compliance

FSR floor box products meet TAA and BABAA requirements.

*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.

The FL-500P-3 Floor box combines rugged construction and an elegant design for use in carpet, tile or wood covered floors over poured concrete applications. This floor box has ample compartment room to accommodate power, audio, video, telecommunications and data in one elegant and practical box.

The FL-500P floor box is not only UL and CUL Listed but has also passed the latest UL test for scrub water. Because of FSR's unique engineering and manufacturing ability, FSR floor boxes pass for carpeted floors as well as tile and wood! The hinged u-access cover allows full access to internal connector plates and stored cables, and the smaller hinged cable access door flips back to create the cableexit. When the floor box is not in use, the cover is completely closed allowing unencumbered travel in the area with only the handmitered, elegant carpet edge visible. The low profile edging is 1/4” or 1/2” high and is available in brass or aluminum.

The innovation continues to the configurable back box. The FL-500P's internal brackets can be arranged to provide numerous options for both high and low voltage standard gang openings making it the most flexible and easiest to install floor box available. The FL-500P floor box is designed to handle the rigors of a floor environment and still maintains flexibility and elegance.

The 3" depth have special gang configurations.

Notes: This floor box is not applicable for direct contact with grade (soil or gravel). For grade applications, use the FL-GRD2/4pour pan as a foundation before box installation. These floor boxes are designed for the UL safety standard for scrub water. The standard only applied to boxed installed in concrete, not raised access boxes.

Each floorbox comes with a temporary construction cover. Boxes and covers are sold separately.

Applications:

• Hotel Lobbies
• Conference Centers
• Board Rooms
• Cruise Ship
• Anywhere an upscale, richly finished look is required

BABAA Compliance

FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Build America Buy America Act (BABAA) compliant. Look for this logo on our website:

TAA Compliance

FSR floor box products meet TAA and BABAA requirements.

*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.

The FL-500P-3 floor box combines rugged construction and an elegant design for use in carpet, tile or wood covered floors over poured concrete applications. This floor box has ample compartment room to accommodate power, audio, video, telecommunications and data in one elegant and practical box.

 The innovation continues to the configurable back box. The FL-500P's internal brackets can be arranged to provide numerous options for both high and low voltage standard gang openings making it the most flexible and easiest to install floor box available. The FL-500P floor box is designed to handle the rigors of a floor environment and still maintains flexibility and elegance.

The 3" depth have special gang configurations.

Notes: This floor box is not applicable for direct contact with grade (soil or gravel). For grade applications, use the FL-GRD2/4pour pan as a foundation before box installation. These floor boxes are designed for the UL safety standard for scrub water. The standard only applied to boxed installed in concrete, not raised access boxes.

Applications:

• Hotel Lobbies
• Conference Centers
• Board Rooms
• Cruise Ship
• Anywhere an upscale, richly finished look is required

This high quality FL-500P Oak Sandtex Cover has our unique tool-less lift off door.

The FL-500P-3 floor box combines rugged construction and an elegant design for use in carpet, tile or wood covered floors over poured concrete applications. This floor box has ample compartment room to accommodate power, audio, video, telecommunications and data in one elegant and practical box.

The innovation continues to the configurable back box. The FL-500P's internal brackets can be arranged to provide numerous options for both high and low voltage standard gang openings making it the most flexible and easiest to install floor box available. The FL-500P floor box is designed to handle the rigors of a floor environment and still maintains flexibility and elegance.

The 3" depth have special gang configurations.

Notes: This floor box is not applicable for direct contact with grade (soil or gravel). For grade applications, use the FL-GRD2/4pour pan as a foundation before box installation. These floor boxes are designed for the UL safety standard for scrub water. The standard only applied to boxed installed in concrete, not raised access boxes.

Applications:

• Hotel Lobbies
• Conference Centers
• Board Rooms
• Cruise Ship
• Anywhere an upscale, richly finished look is required

 This high quality FL-500P Black Sandtex Cover has our unique hinged U-Access door.

The FL-500P-3 floor box combines rugged construction and an elegant design for use in carpet, tile or wood covered floors over poured concrete applications. This floor box has ample compartment room to accommodate power, audio, video, telecommunications and data in one elegant and practical box.

The innovation continues to the configurable back box. The FL-500P's internal brackets can be arranged to provide numerous options for both high and low voltage standard gang openings making it the most flexible and easiest to install floor box available. The FL-500P floor box is designed to handle the rigors of a floor environment and still maintains flexibility and elegance.

The 3" depth have special gang configurations.

Notes: This floor box is not applicable for direct contact with grade (soil or gravel). For grade applications, use the FL-GRD2/4pour pan as a foundation before box installation. These floor boxes are designed for the UL safety standard for scrub water. The standard only applied to boxed installed in concrete, not raised access boxes.

Applications:

• Hotel Lobbies
• Conference Centers
• Board Rooms
• Cruise Ship
• Anywhere an upscale, richly finished look is required

 This high quality FL-500P Silver Painted Cover has our unique hinged U-Access door.

The FL-500P-3 floor box combines rugged construction and an elegant design for use in carpet, tile or wood covered floors over poured concrete applications. This floor box has ample compartment room to accommodate power, audio, video, telecommunications and data in one elegant and practical box.

The innovation continues to the configurable back box. The FL-500P's internal brackets can be arranged to provide numerous options for both high and low voltage standard gang openings making it the most flexible and easiest to install floor box available. The FL-500P floor box is designed to handle the rigors of a floor environment and still maintains flexibility and elegance.

The 3" depth have special gang configurations.

Notes: This floor box is not applicable for direct contact with grade (soil or gravel). For grade applications, use the FL-GRD2/4pour pan as a foundation before box installation. These floor boxes are designed for the UL safety standard for scrub water. The standard only applied to boxed installed in concrete, not raised access boxes.

Applications:

• Hotel Lobbies
• Conference Centers
• Board Rooms
• Cruise Ship
• Anywhere an upscale, richly finished look is required

This high quality FL-500P Stsinless Steel Cover has our unique hinged U-Access door.

The cable access door can be easily removed by lifting the integrated U-Access handle to quickly access the interior compartment, connectors, and cables.

•    11-gauge finished steel cover with choice of carpet edging
•    Mitered brass or aluminum carpet edging  .5” or .25” high
•    Stainless steel compression latches
•    Hinged U-Access door

Flanging:  Height: .25” or .5”

There are a variety of covers to choose from. Options include integrated carpet edging, flat covers for non-carpeted, bare floor applications, and different finishes. The hinged door of the cover allows full access to internal connector plates and stored cables. The hinged cable exit door flips back to allow the cover to remain in place after connections are made and cables are routed through it. The 0.25” and 0.5” raised edge style and solid covers are UL scrub water approved.

BABAA Compliance

FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Build America Buy America Act (BABAA) compliant. Look for this logo on our website:

TAA Compliance

FSR floor box products meet TAA and BABAA requirements.

*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.

The FL-500P-3 floor box combines rugged construction and an elegant design for use in carpet, tile or wood covered floors over poured concrete applications. This floor box has ample compartment room to accommodate power, audio, video, telecommunications and data in one elegant and practical box.

The FL-500P floor box is not only UL and CUL Listed but has also passed the latest UL test for scrub water. Because of FSR's unique engineering and manufacturing ability, FSR floor boxes pass for carpeted floors as well as tile and wood! The lift-off section of the cover allows full access to internal connector plates and stored cables, and the smaller hinged cable access door flips back to create the cableexit. When the floor box is not in use, the cover is completely closed allowing unencumbered travel in the area with only the handmitered, elegant carpet edge visible. The low profile edging is 1/4” or 1/2” high and is available in brass or aluminum.

The innovation continues to the configurable back box. The FL-500P's internal brackets can be arranged to provide numerous options for both high and low voltage standard gang openings making it the most flexible and easiest to install floor box available. The FL-500P floor box is designed to handle the rigors of a floor environment and still maintains flexibility and elegance.

The 3" depth have special gang configurations.

Notes: This floor box is not applicable for direct contact with grade (soil or gravel). For grade applications, use the FL-GRD2/4pour pan as a foundation before box installation. These floor boxes are designed for the UL safety standard for scrub water. The standard only applied to boxed installed in concrete, not raised access boxes.

Applications:

• Hotel Lobbies
• Conference Centers
• Board Rooms
• Cruise Ship
• Anywhere an upscale, richly finished look is required

This high quality FL-500P Solid Brass Cover has our unique hinged U-Access door.

The cable access door can be easily removed by lifting the integrated U-Access handle to quickly access the interior compartment, connectors, and cables.

•    11-gauge finished steel cover with choice of carpet edging
•    Mitered brass or aluminum carpet edging  .5” or .25” high
•    Stainless steel compression latches
•    Hinged U-Access door

Flanging:  Height: .25” or .5”

There are a variety of covers to choose from. Options include integrated carpet edging, flat covers for non-carpeted, bare floor applications, and different finishes. The hinged door of the cover allows full access to internal connector plates and stored cables. The hinged cable exit door flips back to allow the cover to remain in place after connections are made and cables are routed through it. The 0.25” and 0.5” raised edge style and solid covers are UL scrub water approved.

BABAA Compliance

FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Build America Buy America Act (BABAA) compliant. Look for this logo on our website:

TAA Compliance

FSR floor box products meet TAA and BABAA requirements.

*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.

The FL-500P-3 floor box combines rugged construction and an elegant design for use in carpet, tile or wood covered floors over poured concrete applications. This floor box has ample compartment room to accomodate power, audio, video, telecommunications and data in one elegant and pratical box.

The innovation continues to the configurable back box. The FL-500P's internal brackets can be arranged to provide numerous options for both high and low voltage standard gang openings making it the most flexible and easiest to install floor box available. The FL-500P floor box is designed to handle the rigors of a floor environment and still maintains flexibility and elegance.

The 3" depth have special gang configurations.

Notes: This floor box is not applicable for direct contact with grade (soil or gravel). For grade applications, use the FL-GRD2/4pour pan as a foundationbefore box installation.These floor boxes are designed for the UL safety standard for scrub water. The standard only applied to boxed installed in concrete, not raised access boxes.

Applications:

• Hotel Lobbies
• Conference Centers
• Board Rooms
• Cruise Ship
• Anywhere an upscale, richly finished look is required

This high quality FL-500P 1/4" Brass Carpet Flange with our unique hinged U-Access door.

The FL-500P-3 floor box combines rugged construction and an elegant design for use in carpet, tile or wood covered floors over poured concrete applications. This floor box has ample compartment room to accommodate power, audio, video, telecommunications and data in one elegant and practical box.

 The innovation continues to the configurable back box. The FL-500P's internal brackets can be arranged to provide numerous options for both high and low voltage standard gang openings making it the most flexible and easiest to install floor box available. The FL-500P floor box is designed to handle the rigors of a floor environment and still maintains flexibility and elegance.

The 3" depth have special gang configurations.

Notes: This floor box is not applicable for direct contact with grade (soil or gravel). For grade applications, use the FL-GRD2/4 pour pan as a foundation before box installation. These floor boxes are designed for the UL safety standard for scrub water. The standard only applied to boxed installed in concrete, not raised access boxes.

Applications:

• Hotel Lobbies
• Conference Centers
• Board Rooms
• Cruise Ship
• Anywhere an upscale, richly finished look is required

This high quality FL-500P 1/2" Brass Carpet Flange with our unique hinged U-Access door.

The cable access door can be easily removed by lifting the integrated U-Access handle to quickly access the interior compartment, connectors, and cables.

•    11-gauge finished steel cover with choice of carpet edging
•    Mitered brass or aluminum carpet edging  .5” or .25” high
•    Stainless steel compression latches
•    Hinged U-Access door

Flanging:  Height: .25” or .5”

There are a variety of covers to choose from. Options include integrated carpet edging, flat covers for non-carpeted, bare floor applications, and different finishes. The hinged door of the cover allows full access to internal connector plates and stored cables. The hinged cable exit door flips back to allow the cover to remain in place after connections are made and cables are routed through it. The 0.25” and 0.5” raised edge style and solid covers are UL scrub water approved.

BABAA Compliance

FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Build America Buy America Act (BABAA) compliant. Look for this logo on our website:

TAA Compliance

FSR floor box products meet TAA and BABAA requirements.

*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.

The FL-500P-3 floor box combines rugged construction and an elegant design for use in carpet, tile or wood covered floors over poured concrete applications. This floor box has ample compartment room to accommodate power, audio, video, telecommunications and data in one elegant and practical box.

The innovation continues to the configurable back box. The FL-500P's internal brackets can be arranged to provide numerous options for both high and low voltage standard gang openings making it the most flexible and easiest to install floor box available. The FL-500P floor box is designed to handle the rigors of a floor environment and still maintains flexibility and elegance.

The 3" depth have special gang configurations.

Notes: This floor box is not applicable for direct contact with grade (soil or gravel). For grade applications, use the FL-GRD2/4pour pan as a foundation before box installation. These floor boxes are designed for the UL safety standard for scrub water. The standard only applied to boxed installed in concrete, not raised access boxes.

Applications:

• Hotel Lobbies
• Conference Centers
• Board Rooms
• Cruise Ship
• Anywhere an upscale, richly finished look is required

The cable access door can be easily removed by lifting the integrated U-Access handle to quickly access the interior compartment, connectors, and cables.

•    11-gauge finished steel cover with choice of carpet edging
•    Mitered brass or aluminum carpet edging  .5” or .25” high
•    Stainless steel compression latches
•    Hinged U-Access door

Flanging:  Height: .25” or .5”

There are a variety of covers to choose from. Options include integrated carpet edging, flat covers for non-carpeted, bare floor applications, and different finishes. The hinged door of the cover allows full access to internal connector plates and stored cables. The hinged cable exit door flips back to allow the cover to remain in place after connections are made and cables are routed through it. The 0.25” and 0.5” raised edge style and solid covers are UL scrub water approved.

BABAA Compliance

FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Build America Buy America Act (BABAA) compliant. Look for this logo on our website:

TAA Compliance

FSR floor box products meet TAA and BABAA requirements.

*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.

The FL-500P-3 floor box combines rugged construction and an elegant design for use in carpet, tile or wood covered floors over poured concrete applications. This floor box has ample compartment room to accommodate power, audio, video, telecommunications and data in one elegant and practical box.

The innovation continues to the configurable back box. The FL-500P's internal brackets can be arranged to provide numerous options for both high and low voltage standard gang openings making it the most flexible and easiest to install floor box available. The FL-500P floor box is designed to handle the rigors of a floor environment and still maintains flexibility and elegance.

The 3" depth have special gang configurations.

Notes: This floor box is not applicable for direct contact with grade (soil or gravel). For grade applications, use the FL-GRD2/4pour pan as a foundation before box installation. These floor boxes are designed for the UL safety standard for scrub water. The standard only applied to boxed installed in concrete, not raised access boxes.

Applications:

• Hotel Lobbies
• Conference Centers
• Board Rooms
• Cruise Ship
• Anywhere an upscale, richly finished look is required

This high quality FL-500P 1/4" Aluminum Carpet Flange with our unique hinged U-Access door.

The cable access door can be easily removed by lifting the integrated U-Access handle to quickly access the interior compartment, connectors, and cables.

•    11-gauge finished steel cover with choice of carpet edging
•    Mitered brass or aluminum carpet edging  .5” or .25” high
•    Stainless steel compression latches
•    Hinged U-Access door

Flanging:  Height: .25” or .5”

There are a variety of covers to choose from. Options include integrated carpet edging, flat covers for non-carpeted, bare floor applications, and different finishes. The hinged door of the cover allows full access to internal connector plates and stored cables. The hinged cable exit door flips back to allow the cover to remain in place after connections are made and cables are routed through it. The 0.25” and 0.5” raised edge style and solid covers are UL scrub water approved.

BABAA Compliance

FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Build America Buy America Act (BABAA) compliant. Look for this logo on our website:

TAA Compliance

FSR floor box products meet TAA and BABAA requirements.

*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.

The FL-500P-3 floor box combines rugged construction and an elegant design for use in carpet, tile or wood covered floors over poured concrete applications. This floor box has ample compartment room to accommodate power, audio, video, telecommunications and data in one elegant and practical box.

The innovation continues to the configurable back box. The FL-500P's internal brackets can be arranged to provide numerous options for both high and low voltage standard gang openings making it the most flexible and easiest to install floor box available. The FL-500P floor box is designed to handle the rigors of a floor environment and still maintains flexibility and elegance.

The 3" depth have special gang configurations.

Notes: This floor box is not applicable for direct contact with grade (soil or gravel). For grade applications, use the FL-GRD2/4pour pan as a foundation before box installation. These floor boxes are designed for the UL safety standard for scrub water. The standard only applied to boxed installed in concrete, not raised access boxes.

Applications:

• Hotel Lobbies
• Conference Centers
• Board Rooms
• Cruise Ship
• Anywhere an upscale, richly finished look is required

This high quality FL-500P 1/4" Grey Painted Carpet Flange with our unique hinged U-Access door.

The FL-500P-3 floor box combines rugged construction and an elegant design for use in carpet, tile or wood covered floors over poured concrete applications. This floor box has ample compartment room to accommodate power, audio, video, telecommunications and data in one elegant and practical box.

 The innovation continues to the configurable back box. The FL-500P's internal brackets can be arranged to provide numerous options for both high and low voltage standard gang openings making it the most flexible and easiest to install floor box available. The FL-500P floor box is designed to handle the rigors of a floor environment and still maintains flexibility and elegance.

The 3" depth have special gang configurations.

Notes: This floor box is not applicable for direct contact with grade (soil or gravel). For grade applications, use the FL-GRD2/4pour pan as a foundation before box installation. These floor boxes are designed for the UL safety standard for scrub water. The standard only applied to boxed installed in concrete, not raised access boxes.

Applications:

• Hotel Lobbies
• Conference Centers
• Board Rooms
• Cruise Ship
• Anywhere an upscale, richly finished look is required

 *Limited Stock*

This high quality FL-500P 1/4" Clay Painted Carpet Flange with our unique hinged U-Access door.

The FL-500P-3 floor box combines rugged construction and an elegant design for use in carpet, tile or wood covered floors over poured concrete applications. This floor box has ample compartment room to accommodate power, audio, video, telecommunications and data in one elegant and practical box.

The innovation continues to the configurable back box. The FL-500P's internal brackets can be arranged to provide numerous options for both high and low voltage standard gang openings making it the most flexible and easiest to install floor box available. The FL-500P floor box is designed to handle the rigors of a floor environment and still maintains flexibility and elegance.

The 3" depth have special gang configurations.

Notes: This floor box is not applicable for direct contact with grade (soil or gravel). For grade applications, use the FL-GRD2/4pour pan as a foundation before box installation. These floor boxes are designed for the UL safety standard for scrub water. The standard only applied to boxed installed in concrete, not raised access boxes.

Applications:

• Hotel Lobbies
• Conference Centers
• Board Rooms
• Cruise Ship
• Anywhere an upscale, richly finished look is required

This high quality FL-500P 1/4" Black Painted Carpet Flange with our unique hinged U-Access door.

The cable access door can be easily removed by lifting the integrated U-Access handle to quickly access the interior compartment, connectors, and cables.

•    11-gauge finished steel cover with choice of carpet edging
•    Mitered brass or aluminum carpet edging  .5” or .25” high
•    Stainless steel compression latches
•    Hinged U-Access door

Flanging:  Height: .25” or .5”

There are a variety of covers to choose from. Options include integrated carpet edging, flat covers for non-carpeted, bare floor applications, and different finishes. The hinged door of the cover allows full access to internal connector plates and stored cables. The hinged cable exit door flips back to allow the cover to remain in place after connections are made and cables are routed through it. The 0.25” and 0.5” raised edge style and solid covers are UL scrub water approved.

BABAA Compliance

FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Build America Buy America Act (BABAA) compliant. Look for this logo on our website:

TAA Compliance

FSR floor box products meet TAA and BABAA requirements.

*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.

The FL-500P-3 floor box combines rugged construction and an elegant design for use in carpet, tile or wood covered floors over poured concrete applications. This floor box has ample compartment room to accommodate power, audio, video, telecommunications and data in one elegant and practical box.

The innovation continues to the configurable back box. The FL-500P's internal brackets can be arranged to provide numerous options for both high and low voltage standard gang openings making it the most flexible and easiest to install floor box available. The FL-500P floor box is designed to handle the rigors of a floor environment and still maintains flexibility and elegance.

The 3" depth have special gang configurations.

Notes: This floor box is not applicable for direct contact with grade (soil or gravel). For grade applications, use the FL-GRD2/4pour pan as a foundation before box installation. These floor boxes are designed for the UL safety standard for scrub water. The standard only applied to boxed installed in concrete, not raised access boxes.

Applications:

• Hotel Lobbies
• Conference Centers
• Board Rooms
• Cruise Ship
• Anywhere an upscale, richly finished look is required

This high quality FL-500P Solid Aluminum Cover has our unique hinged U-Access door.

The cable access door can be easily removed by lifting the integrated U-Access handle to quickly access the interior compartment, connectors, and cables.

•    11-gauge finished steel cover with choice of carpet edging
•    Mitered brass or aluminum carpet edging  .5” or .25” high
•    Stainless steel compression latches
•    Hinged U-Access door

Flanging:  Height: .25” or .5”

There are a variety of covers to choose from. Options include integrated carpet edging, flat covers for non-carpeted, bare floor applications, and different finishes. The hinged door of the cover allows full access to internal connector plates and stored cables. The hinged cable exit door flips back to allow the cover to remain in place after connections are made and cables are routed through it. The 0.25” and 0.5” raised edge style and solid covers are UL scrub water approved.

BABAA Compliance

FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Build America Buy America Act (BABAA) compliant. Look for this logo on our website:

TAA Compliance

FSR floor box products meet TAA and BABAA requirements.

*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.

The FL-500P-3 floor box combines rugged construction and an elegant design for use in carpet, tile or wood covered floors over poured concrete applications. This floor box has ample compartment room to accommodate power, audio, video, telecommunications and data in one elegant and practical box.

The innovation continues to the configurable back box. The FL-500P's internal brackets can be arranged to provide numerous options for both high and low voltage standard gang openings making it the most flexible and easiest to install floor box available. The FL-500P floor box is designed to handle the rigors of a floor environment and still maintains flexibility and elegance.

The 3" depth have special gang configurations.

Notes: This floor box is not applicable for direct contact with grade (soil or gravel). For grade applications, use the FL-GRD2/4 pour pan as a foundation before box installation. These floor boxes are designed for the UL safety standard for scrub water. The standard only applied to boxed installed in concrete, not raised access boxes.

Applications:

• Hotel Lobbies
• Conference Centers
• Board Rooms
• Cruise Ship
• Anywhere an upscale, richly finished look is required

 This high quality FL-500P Black Solid Cover has our unique hinged U-Access door.

The FL-500P-3 floor box combines rugged construction and an elegant design for use in carpet, tile or wood covered floors over poured concrete applications. This floor box has ample compartment room to accommodate power, audio, video, telecommunications and data in one elegant and practical box.

The innovation continues to the configurable back box. The FL-500P's internal brackets can be arranged to provide numerous options for both high and low voltage standard gang openings making it the most flexible and easiest to install floor box available. The FL-500P floor box is designed to handle the rigors of a floor environment and still maintains flexibility and elegance.

The 3" depth have special gang configurations.

Notes: This floor box is not applicable for direct contact with grade (soil or gravel). For grade applications, use the FL-GRD2/4pour pan as a foundation before box installation. These floor boxes are designed for the UL safety standard for scrub water. The standard only applied to boxed installed in concrete, not raised access boxes.

Applications:

• Hotel Lobbies
• Conference Centers
• Board Rooms
• Cruise Ship
• Anywhere an upscale, richly finished look is required

*Limited Stock*

This high quality FL-500P Clay Solid Cover has our unique hinged U-Access door.

The cable access door can be easily removed by lifting the integrated U-Access handle to quickly access the interior compartment, connectors, and cables.

•    11-gauge finished steel cover with choice of carpet edging
•    Mitered brass or aluminum carpet edging  .5” or .25” high
•    Stainless steel compression latches
•    Hinged U-Access door

Flanging:  Height: .25” or .5”

There are a variety of covers to choose from. Options include integrated carpet edging, flat covers for non-carpeted, bare floor applications, and different finishes. The hinged door of the cover allows full access to internal connector plates and stored cables. The hinged cable exit door flips back to allow the cover to remain in place after connections are made and cables are routed through it. The 0.25” and 0.5” raised edge style and solid covers are UL scrub water approved.

BABAA Compliance

FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Build America Buy America Act (BABAA) compliant. Look for this logo on our website:

TAA Compliance

FSR floor box products meet TAA and BABAA requirements.

*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.

The FL-500P-3 floor box combines rugged construction and an elegant design for use in carpet, tile or wood covered floors over poured concrete applications. This floor box has ample compartment room to accomodate power, audio, video, telecommunications and data in one elegant and pratical box.

The innovation continues to the configurable back box. The FL-500P's internal brackets can be arranged to provide numerous options for both high and low voltage standard gang openings making it the most flexible and easiest to install floor box available. The FL-500P floor box is designed to handle the rigors of a floor environment and still maintains flexibility and elegance.

The 3" depth have special gang configurations.

Notes: This floor box is not applicable for direct contact with grade (soil or gravel). For grade applications, use the FL-GRD2/4pour pan as a foundation before box installation. These floor boxes are designed for the UL safety standard for scrub water. The standard only applied to boxed installed in concrete, not raised access boxes.

Applications:

• Hotel Lobbies
• Conference Centers
• Board Rooms
• Cruise Ship
• Anywhere an upscale, richly finished look is required

This high quality FL-500P Grey Solid Cover has our unique hinged U-Access door.

The cable access door can be easily removed by lifting the integrated U-Access handle to quickly access the interior compartment, connectors, and cables.

•    11-gauge finished steel cover with choice of carpet edging
•    Mitered brass or aluminum carpet edging  .5” or .25” high
•    Stainless steel compression latches
•    Hinged U-Access door

Flanging:  Height: .25” or .5”

There are a variety of covers to choose from. Options include integrated carpet edging, flat covers for non-carpeted, bare floor applications, and different finishes. The hinged door of the cover allows full access to internal connector plates and stored cables. The hinged cable exit door flips back to allow the cover to remain in place after connections are made and cables are routed through it. The 0.25” and 0.5” raised edge style and solid covers are UL scrub water approved.

BABAA Compliance

FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Build America Buy America Act (BABAA) compliant. Look for this logo on our website:

TAA Compliance

FSR floor box products meet TAA and BABAA requirements.

*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.

The FL-500P-3 floor box combines rugged construction and an elegant design for use in carpet, tile or wood covered floors over poured concrete applications. This floor box has ample compartment room to accommodate power, audio, video, telecommunications and data in one elegant and practical box.

The innovation continues to the configurable back box. The FL-500P's internal brackets can be arranged to provide numerous options for both high and low voltage standard gang openings making it the most flexible and easiest to install floor box available. The FL-500P floor box is designed to handle the rigors of a floor environment and still maintains flexibility and elegance.

The 3" depth have special gang configurations.

Notes: This floor box is not applicable for direct contact with grade (soil or gravel). For grade applications, use the FL-GRD2/4pour pan as a foundationbefore box installation.These floor boxes are designed for the UL safety standard for scrub water. The standard only applied to boxed installed in concrete, not raised access boxes.

Applications:

• Hotel Lobbies
• Conference Centers
• Board Rooms
• Cruise Ship
• Anywhere an upscale, richly finished look is required

This high quality FL-500P 1/4" Square Aluminum Cover with our unique hinged U-Access door.

The cable access door can be easily removed by lifting the integrated U-Access handle to quickly access the interior compartment, connectors, and cables.

•    11-gauge finished steel cover with choice of carpet edging
•    Mitered brass or aluminum carpet edging  .5” or .25” high
•    Stainless steel compression latches
•    Hinged U-Access door

Flanging:  Height: .25” or .5”

There are a variety of covers to choose from. Options include integrated carpet edging, flat covers for non-carpeted, bare floor applications, and different finishes. The hinged door of the cover allows full access to internal connector plates and stored cables. The hinged cable exit door flips back to allow the cover to remain in place after connections are made and cables are routed through it. The 0.25” and 0.5” raised edge style and solid covers are UL scrub water approved.

BABAA Compliance

FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Build America Buy America Act (BABAA) compliant. Look for this logo on our website:

TAA Compliance

FSR floor box products meet TAA and BABAA requirements.

*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.

The FL-500P-3 floor box combines rugged construction and an elegant design for use in carpet, tile or wood covered floors over poured concrete applications. This floor box has ample compartment room to accommodate power, audio, video, telecommunications and data in one elegant and practical box.

The innovation continues to the configurable back box. The FL-500P's internal brackets can be arranged to provide numerous options for both high and low voltage standard gang openings making it the most flexible and easiest to install floor box available. The FL-500P floor box is designed to handle the rigors of a floor environment and still maintains flexibility and elegance.

The 3" depth have special gang configurations.

Notes: This floor box is not applicable for direct contact with grade (soil or gravel). For grade applications, use the FL-GRD2/4pour pan as a foundation before box installation. These floor boxes are designed for the UL safety standard for scrub water. The standard only applied to boxed installed in concrete, not raised access boxes.

Applications:

• Hotel Lobbies
• Conference Centers
• Board Rooms
• Cruise Ship
• Anywhere an upscale, richly finished look is required

This high quality FL-500P Cover has a 1/4" Square Brass Flange with our unique tool-less lift off door.

The cable access door can be easily removed by lifting the integrated U-Access handle to quickly access the interior compartment, connectors, and cables.

•    11-gauge finished steel cover with choice of carpet edging
•    Mitered brass or aluminum carpet edging  .5” or .25” high
•    Stainless steel compression latches
•    Lift-off full access door

Flanging:  Height: .25” or .5”

There are a variety of covers to choose from. Options include integrated carpet edging, flat covers for non-carpeted, bare floor applications, and different finishes. The lift-off section of the cover allows full access to internal connector plates and stored cables. The hinged cable exit door flips back to allow the cover to remain in place after connections are made and cables are routed through it. The 0.25” and 0.5” raised edge style and solid covers are UL scrub water approved.
