Project Wall Box for Masonry Walls

8" Block Wall Box
8" Block Wall Box8" Block Wall Box8" Block Wall Box8" Block Wall Box8" Block Wall Box8" Block Wall Box8" Block Wall Box8" Block Wall Box


Flat panel TV project box engineered for installation in 8” block walls.

Patent Pending



InfoComm 2021 PWB-CMU8 Feature

Video Available



The PWB-CMU8 is the first dedicated Masonary Wall Box engineered for installation in 8” block walls. The all-metal CMU8 is designed to replace the front portion of one block and, with the optional paintable cover, provides an attractive surface with no visible jagged block edges. The box has two opposing 2-gang device boxes inside, providing space for power and low voltage devices, including most receivers.

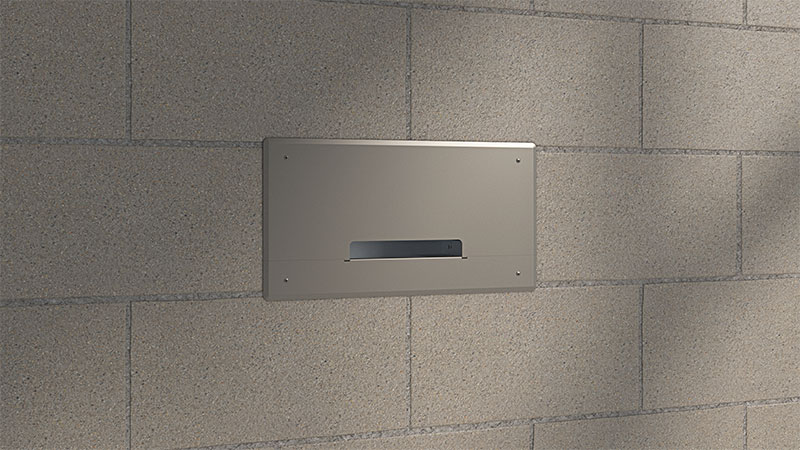

PWB-CMU8 installed in a masonry wall

The CMU 8 has an available 1”, 1.25”, and 1.5” knockouts centered on the opening of the most common two-hole CMU blocks. This wall box ships with a construction cover for the rough out construction phase. Inside the box, its two 2-gang compartments face the middle. These compartments are convertible to a single gang with the provided block-off plates; they are also removable for installing active brick receivers and accommodate standard electrical plates. The gang compartments are oversized to allow for extra service loops and cable storage and with a depth of 3.25” to allow for the largest of the active electronic wall-plates.

The split metal finish cover is painted white and is suitable for over painting as the rest of the room is sprayed. The cover features a beveled edge and cable lash bar to support the exiting cables so the connectors do not dislodge from the wall plates or ware due to movement.

Features:

• Engineered for installation in 8” block walls

• Creates an attractive surface with no visible jagged block edges once painted

• Available knockouts are 1”, 1.25”, and 1.5” centered on the opening of the most common two-hole CMU blocks

• Two oversized 2-gang 3.25" depth compartments (convertible to a single gang)

• Removable compartments for installing active brick receivers and accommodate standard electrical plates

• Cover is painted white and is suitable for over painting

• Cover features beveled edge and cable lash bar to support the exiting cables

Applications:
• K-12 Schools
• Stadiums
• Commercial Facilities
