The CDA-2 is a computer video distribution amplifier. It takes the input signal from the video card of a computer and splits it to be used by a projector and a monitor. This unit not only splits the signal it also buffers it to ensure absolute signal integrity at the receiving device (projector or monitor). With 300 MHz of bandwidth, the CDA-2 can support up to a QXGA (2048 x 1536 @ 60Hz) computer video signal.
15812, 17194, 17195
Choose your Amplifier from the drop down
Computer Video Distribution Amplifier: Select One...
CDA_1251
The CDA-2 is a computer video distribution amplifier. It takes the input signal from the video card of a computer and splits it to be used by a projector and a monitor. This unit not only splits the signal it also buffers it to ensure absolute signal integrity at the receiving device (projector or monitor). With 300 MHz of bandwidth, the CDA-2 can support up to a QXGA (2048 x 1536 @ 60Hz) computer video signal.
15812, 17194, 17195
Choose your Amplifier from the drop down
Computer Video Distribution Amplifier: CDA-2
CDA_573

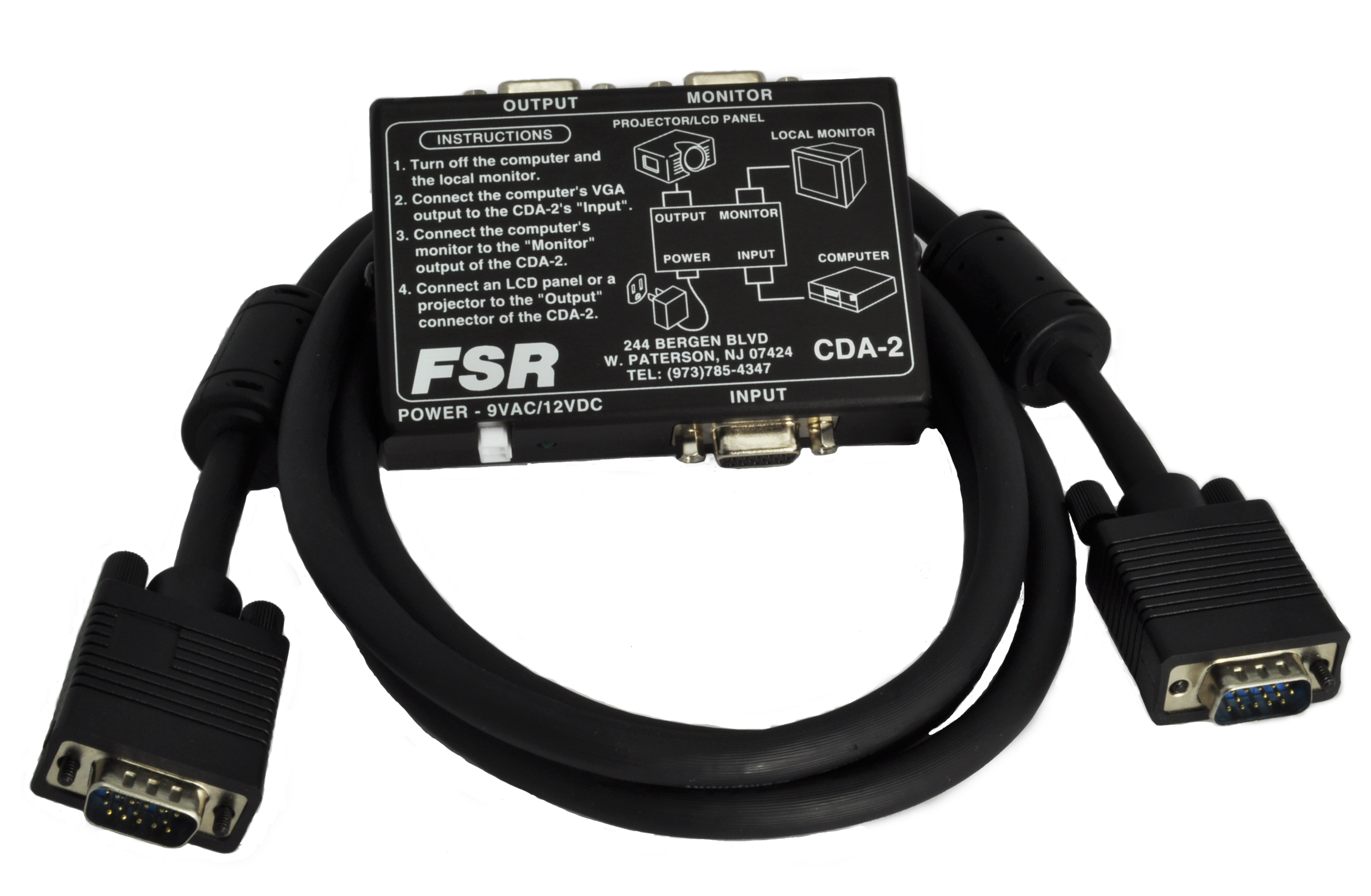

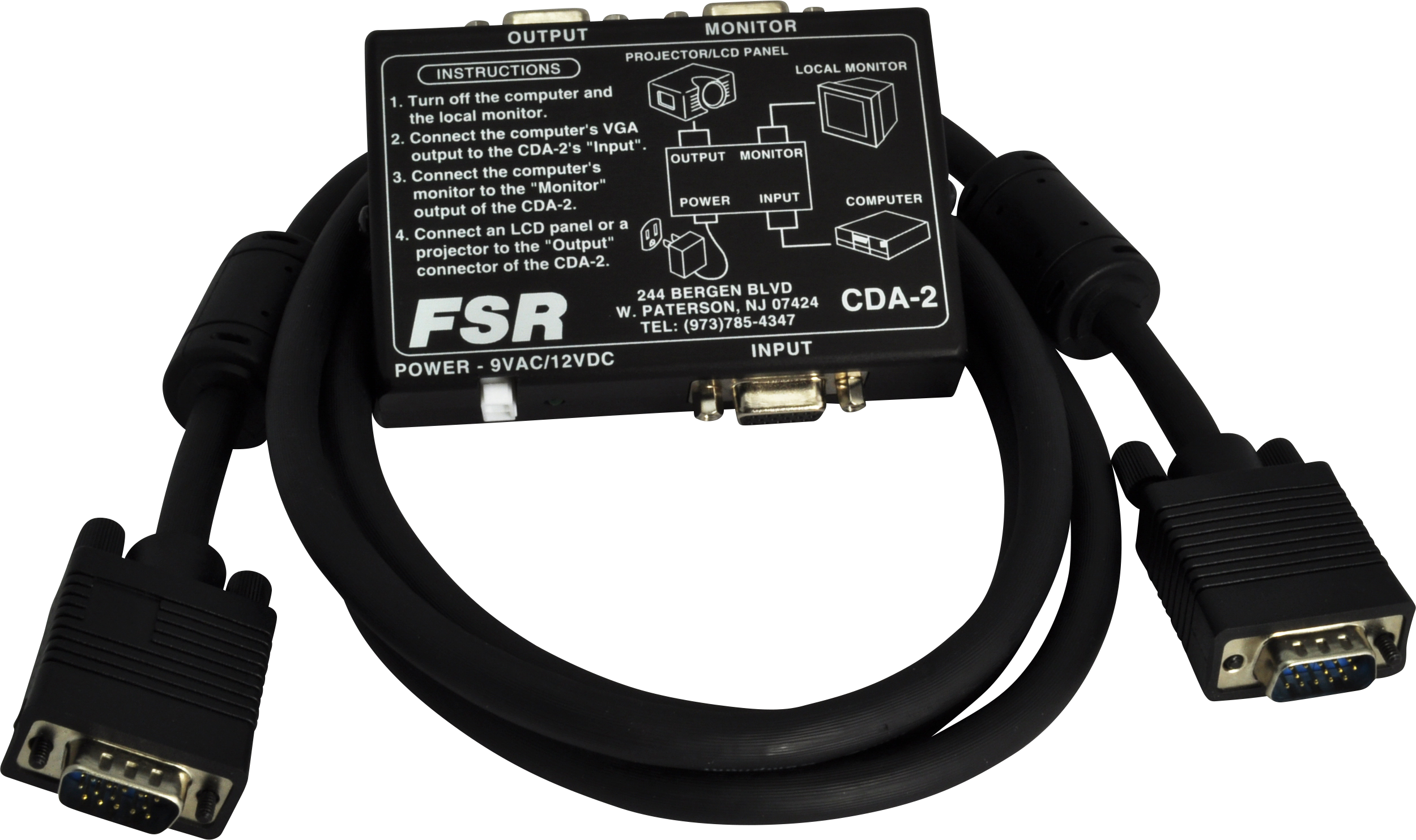

The CDA-2 is a computer video distribution amplifier. It takes the input signal from the video card of a computer and splits it to be used by a projector and a monitor. This unit not only splits the signal it also buffers it to ensure absolute signal integrity at the receiving device (projector or monitor).
With 300 MHz of bandwidth, the CDA-2 can drive any VGA, Super VGA, XGA or QXGA computer video signal.
FEATURES:
• Compatible with LCD panels, projectors and monitors • Two outputs • Metal case provides superior shielding • HD 15-pin 5 ft. male-to-male monitor cable included • 300 MHz video bandwidth • Individually buffered outputs • UL and CSA approved external power supply (wall plug-in) • ID bits passed through to monitor output (permits monitor to determine video resolution) • Locking power connector
15812, 17194, 17195
1x2 Computer DA, HD-15 Connectors, Pocket size
Computer Video Distribution Amplifier: CDA-2EQG
CDA_574

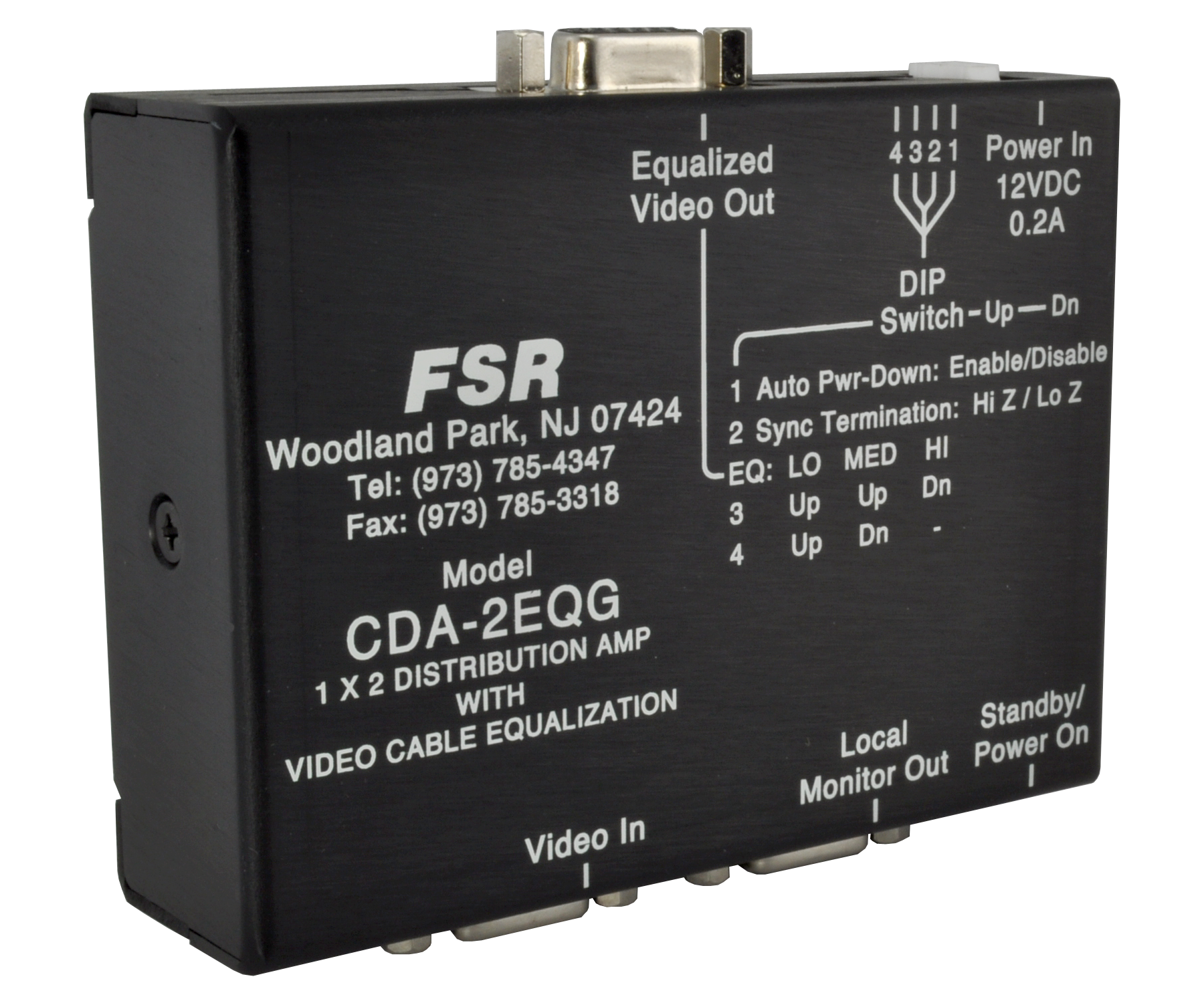

Our new enhanced CDA-2EQG and CDA-2EQGA high resolution 1 x 2 Distribution Amplifiers are designed to satisfy typical applications requiring a local monitor and a remote display device with a long cable run.
The CDA-2EQG/A's local monitor output is fully buffered by an independent amplifier stage to eliminate interaction with the remote output.
The remote output is buffered and equalized to maintain excellent signal integrity with even the highest video resolutions. This means that the signal that you feed into the CDA-2EQG/A will arrive at the far end of the cable with an almost immeasurable amount of loss.
Cable runs of 175' are possible using standard mini hi-res coax cable.
The remote output sync circuitry provides a termination option switch to help overcome display jitter and image loss associated with improper sync termination. Image jitter and loss problems are infrequent, but unpredictable and frustrating issues that result from differences in VGA cable construction and display input termination.
To ensure installed system compatibility, the CDA2EQG/A can obtain EDID display information data from either the local (default setting) or remote monitor by setting the internal jumpers.
The CDA2EQG/A models employ a “green” automatic power down feature that reduces standby power consumption to less than 50 mW, a reduction of over 95%. This mode can be disabled in applications where a horizontal sync signal is not present to support this feature.
CDA-2EQGA incorporates a mini stereo input jack on the front and a 5 position pluggable captive screw terminal on the back for balanced stereo audio output. An active audio balancing circuit ensures long, noise free stereo audio cable" runs from the point of installation to the house sound system.
The FSR CDA-2EQG/A is ideal for laptop or desktop presentations such as PowerPoint® that require the secondary audio and video feeds to run longer distances. It would be a versatile complement to the designers/integrators palette.
Key Features: • Ultra High Bandwidth • Flat Frequency Response • Local Monitor Output • Monitors EDID Data Selector • Integrated Line Driver with Cable EQ • Includes Power Supply and All Mounting Hardware
See data sheet below for further information.
Applications:
Conference / Board Rooms
Classrooms
Courtrooms
Staging and Rental
House of Worship
15812, 17194, 17195
1x2 Computer DA, Cable EQ, Green Auto Shutdown Mode
Computer Video Distribution Amplifier: CDA-2EQGA
CDA_575

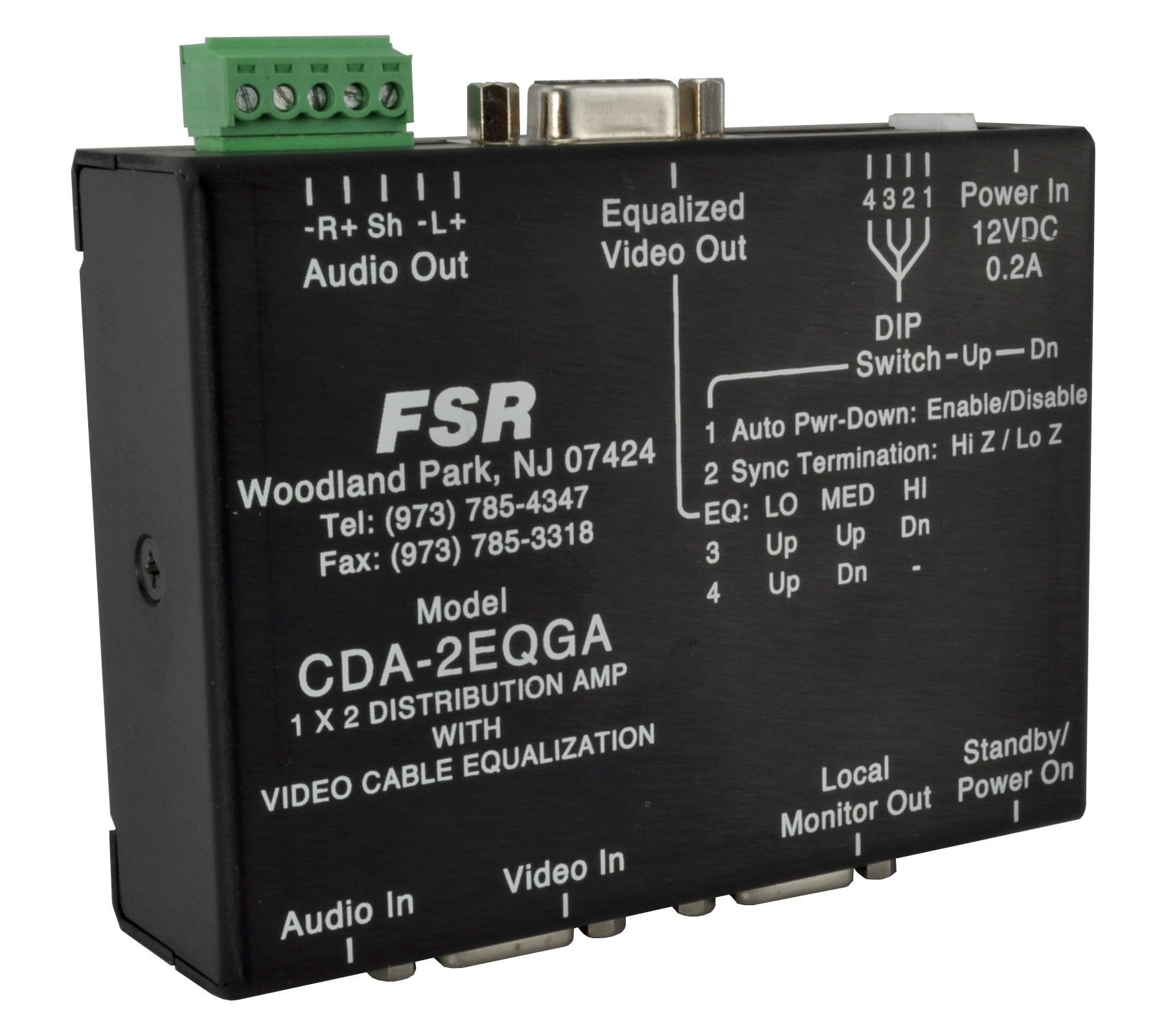

Our new enhanced CDA-2EQG and CDA-2EQGA high resolution 1 x 2 Distribution Amplifiers are designed to satisfy typical applications requiring a local monitor and a remote display device with a long cable run.
The CDA-2EQG/A's local monitor output is fully buffered by an independent amplifier stage to eliminate interaction with the remote output.
The remote output is buffered and equalized to maintain excellent signal integrity with even the highest video resolutions. This means that the signal that you feed into the CDA-2EQG/A will arrive at the far end of the cable with an almost immeasurable amount of loss.
Cable runs of 175' are possible using standard mini hi-res coax cable.
The remote output sync circuitry provides a termination option switch to help overcome display jitter and image loss associated with improper sync termination. Image jitter and loss problems are infrequent, but unpredictable and frustrating issues that result from differences in VGA cable construction and display input termination.
To ensure installed system compatibility, the CDA2EQG/A can obtain EDID display information data from either the local (default setting) or remote monitor by setting the internal jumpers.
The CDA2EQG/A models employ a “green” automatic power down feature that reduces standby power consumption to less than 50 mW, a reduction of over 95%. This mode can be disabled in applications where a horizontal sync signal is not present to support this feature.
CDA-2EQGA incorporates a mini stereo input jack on the front and a 5 position pluggable captive screw terminal on the back for balanced stereo audio output. An active audio balancing circuit ensures long, noise free stereo audio cable" runs from the point of installation to the house sound system.
The FSR CDA-2EQG/A is ideal for laptop or desktop presentations such as PowerPoint® that require the secondary audio and video feeds to run longer distances. It would be a versatile complement to the designers/integrators palette.
Key Features: • Ultra High Bandwidth • Flat Frequency Response • Local Monitor Output • Monitors EDID Data Selector • Integrated Line Driver with Cable EQ • Includes Power Supply and All Mounting Hardware
See data sheet below for further information.
Applications:
Conference / Board Rooms
Classrooms
Courtrooms
Staging and Rental
House of Worship
15812, 17194, 17195
1x2 Computer+St. Audio DA, Cable EQ, Green Audio Shutdown
Computer Video Distribution Amplifier: CDA-2EQ
CDA_579

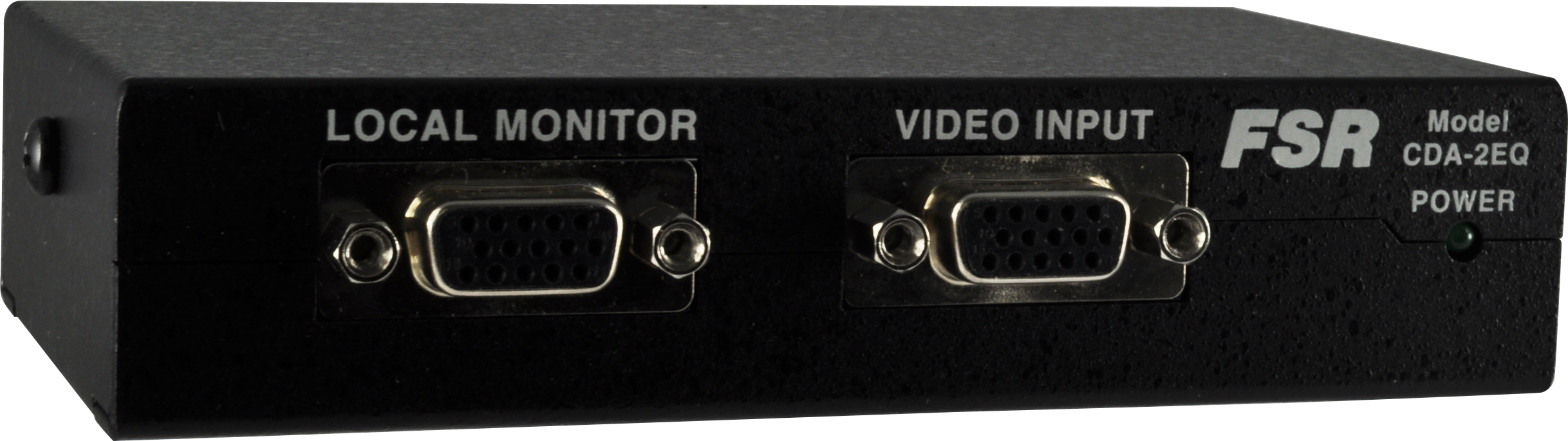

The FSR CDA-2EQ is a high resolution 1 X 2 Distribution Amplifier designed to satisfy a typical application where a local monitor and a remote display device require a long cable run.
The remote output is equalized to maintain excellent signal integrity for even the highest video resolutions. Cable runs of up to 175’ are possible with 170 MHz of full amplitude bandwidth and +/- 0.4dB flatness to a 150 MHz. A half amplitude signal yields 270 MHz of bandwidth and +/- 0.4dB flatness to 235 MHz, nearly 16 times better than cable alone. This means that the signal that you feed into the CDA-2EQ will arrive at the far end of the cable with an almost immeasurable amount of loss and no distortion due to peaking effects.
The local monitor output passes ID bits to the host computer to maintain compatibility with Mac and Windows based computers.
A 9V AC power supply and mounting hardware kit is included for above or below table installation.
The FSR CDA-2EQ is ideal for laptop or desktop presentations such as PowerPoint that require a secondary video feed to run longer distances.
APPLICATIONS: • Conference / Board Rooms • Classrooms • Courtrooms • Staging and Rental • House of Worship
FEATURES: • Ultra High Bandwidth • Flat Frequency Response • Local Monitor Output • Integrated Line Driver with Cable EQ • Includes Power Supply and All Mounting Hardware
15812, 17194, 17195
1x2 Composite DA w/Cable EQ on Each Output
Computer Video Distribution Amplifier: CDA-2EQA
CDA_580
The FSR CDA-2EQA is a high resolution 1 X 2 Distribution Amplifier designed to satisfy a typical application where a local monitor and a remote display device requiring a long cable run are utilized.
The remote output is equalized to maintain excellent signal integrity for even the highest video resolutions. Cable runs of up to 175’ are possible with 170 MHz of full amplitude bandwidth and +/- 0.4dB flatness to a 150 MHz. A half amplitude signal yields 270 MHz of bandwidth and +/- 0.4dB flatness to 235 MHz, nearly 16 times better than cable alone. This means that the signal that you feed into the CDA-2EQA will arrive at the far end of the cable with an almost immeasurable amount of loss and no distortion due to peaking effects.
The local monitor output passes ID bits to the host computer to maintain compatibility with Mac and Windows based computers.
The CDA-2EQA incorporates a mini stereo input jack on the front and a 5 position pluggable captive screw terminal on the back for balanced stereo audio output. An active audio balancing circuit ensures long, noise free stereo audio cable runs from the point of installation to the house sound system.
APPLICATION: • Conference / Board Rooms • Classrooms • Courtrooms • Staging and Rental • House of Worship
FEATURES: • Ultra High Bandwidth • Flat Frequency Response • Local Monitor Output • Integrated Line Driver with Cable EQ • Active Audio Balancing • Includes Power Supply and All Mounting Hardware
15812, 17194, 17195
1x2 Composite & St Audio DA w/Cable EQ on Each Output
