We re-enginnered our FL-500P covers to make ease of accessibility a priority. Our hinge design allows full tool-less access to internal connector plates and stored cables, and the smaller hinged cable access door flips back to create an exit point for cables. When the floor box is not in use, the cover can be completely closed allowing unencumbered travel in the area with only the hand mitered, elegant carpet edge visible. The low profile edging is 1/4” or 1/2” high and is available in brass or aluminum.
Part #
Description
Hinged U-Access Covers - UL Scrub Water Rated for Tile and Carpet Installations
FL-500P-B-C
Hinged U-Access with 1/2" Brass Square Flange
FL-500P-BLP-C
Hinged U-Access with 1/4" Brass Beveled Flange
FL-500P-BSQ-C
Hinged U-Access with 1/4" Brass Square Flange
FL-500P-S-C
Hinged U-Access with 1/2" Aluminum Square Flange
FL-500P-SLP-C
Hinged U-Access with Cover With 1/4" Aluminum Beveled Flange
FL-500P-SSQ-C
Hinged U-Access with 1/4" Aluminum Square Flange
FL-500P-PLP-GRY-C
Hinged U-Access with 1/4" Painted Beveled Flange - Gray
FL-500P-PLP-CLY-C
Hinged U-Access with 1/4" Painted Beveled Flange - Clay

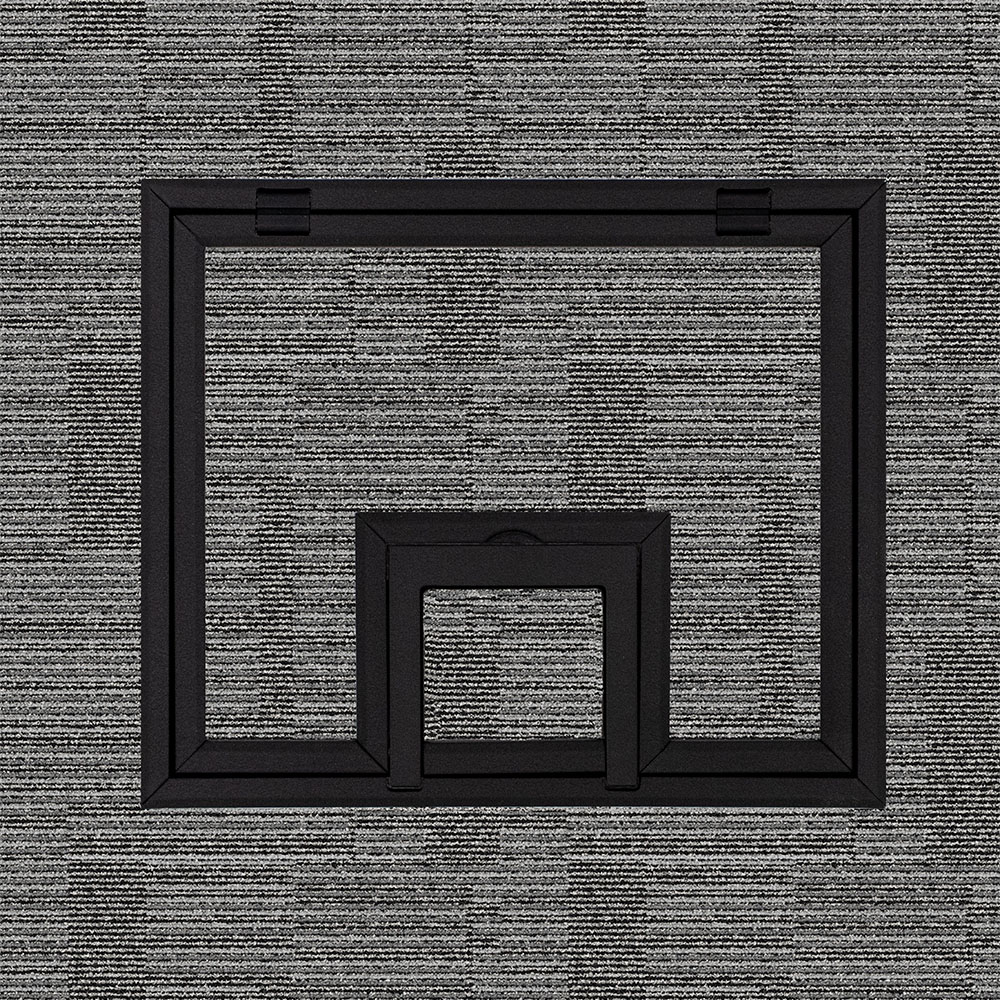

FL-500P-PLP-BLK-C
Hinged U-Access with 1/4" Painted Beveled Flange - Black
Hinged U-Access Covers - UL Scrub Water Rated - No Carpet Trim**
FL-500P-SLD-ALM-C
Hinged U-Access Solid Cover With Cable Exit (No Flange)- Aluminum **Shim kits may be required
FL-500P-SLD-BLK-C
Hinged U-Access Solid Cover With Cable Exit (No Flange)- Black **Shim kits may be required
FL-500P-SLD-CLY-C
Hinged U-Access Solid Cover With Cable Exit (No Flange)- Clay **Shim kits may be required

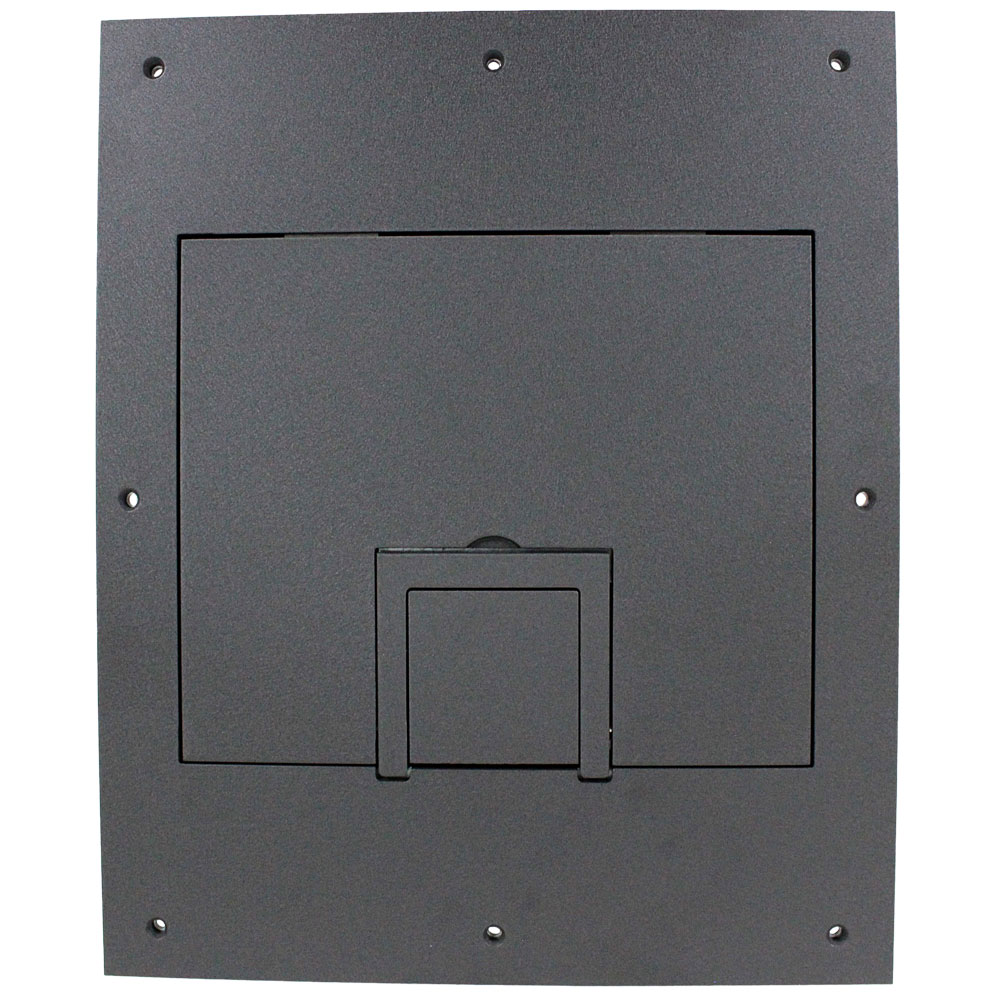

FL-500P-SLD-GRY-C
Hinged U-Access Solid Cover With Cable Exit (No Flange)- Gray **Shim kits may be required
Piano Hinge Flat Covers (Not UL Scrub Water Rated)
FL-500P-BLK-C
Hinged U-Access Cover (No Flange) With Hinged Door in Black Sandtex (maximum permissible static load is 1,000 lbs)
We re-enginnered our FL-500P covers to make ease of accessibility a priority. Our hinge design allows full tool-less access to internal connector plates and stored cables, and the smaller hinged cable access door flips back to create an exit point for cables. When the floor box is not in use, the cover can be completely closed allowing unencumbered travel in the area with only the hand mitered, elegant carpet edge visible. The low profile edging is 1/4” or 1/2” high and is available in brass or aluminum.
Part #
Description
Hinged U-Access Covers - UL Scrub Water Rated for Tile and Carpet Installations
FL-500P-B-C
Hinged U-Access with 1/2" Brass Square Flange
FL-500P-BLP-C
Hinged U-Access with 1/4" Brass Beveled Flange
FL-500P-BSQ-C
Hinged U-Access with 1/4" Brass Square Flange
FL-500P-S-C
Hinged U-Access with 1/2" Aluminum Square Flange
FL-500P-SLP-C
Hinged U-Access with Cover With 1/4" Aluminum Beveled Flange
FL-500P-SSQ-C
Hinged U-Access with 1/4" Aluminum Square Flange
FL-500P-PLP-GRY-C
Hinged U-Access with 1/4" Painted Beveled Flange - Gray
FL-500P-PLP-CLY-C
Hinged U-Access with 1/4" Painted Beveled Flange - Clay
FL-500P-PLP-BLK-C
Hinged U-Access with 1/4" Painted Beveled Flange - Black
Hinged U-Access Covers - UL Scrub Water Rated - No Carpet Trim**

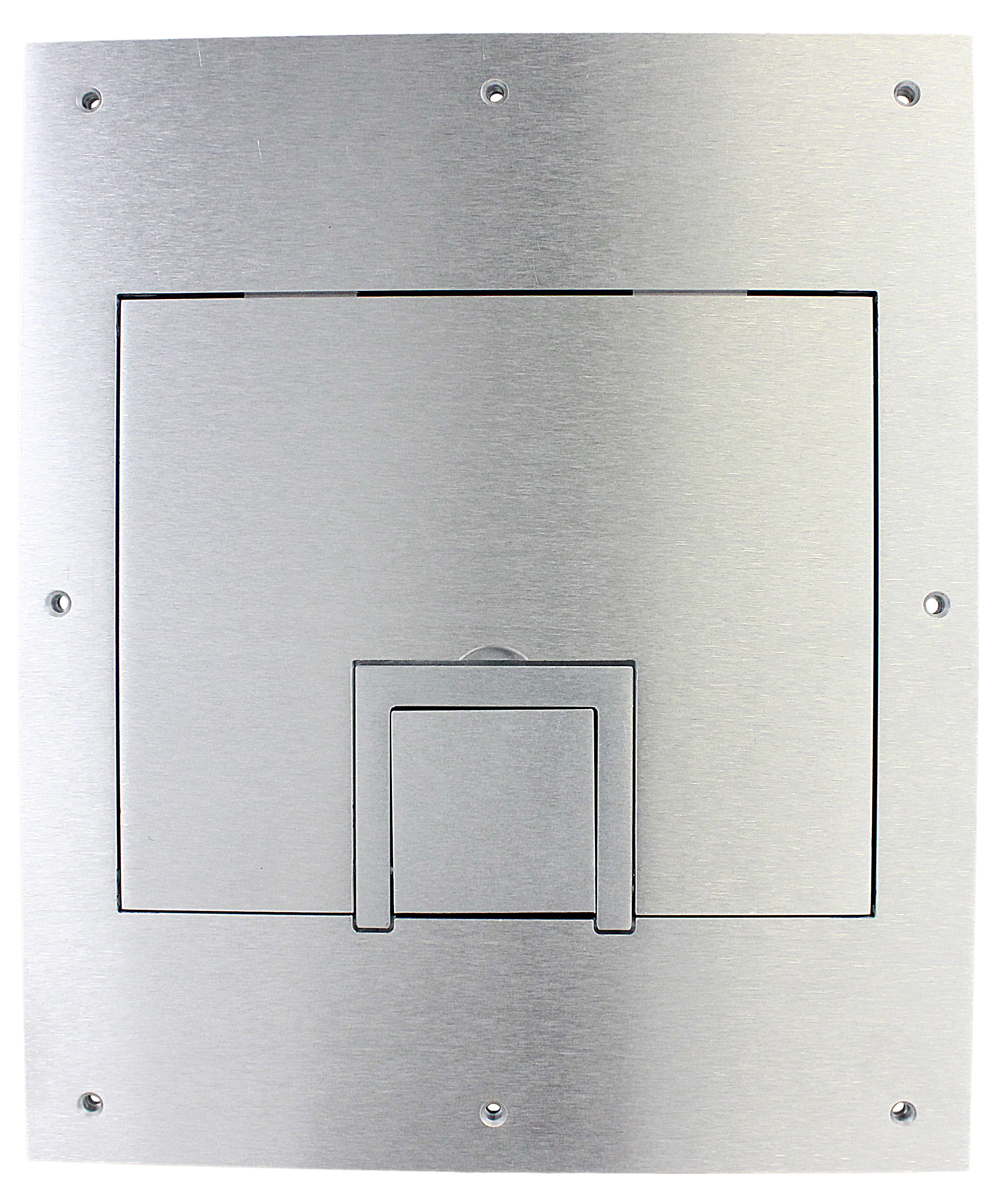

FL-500P-SLD-ALM-C
Hinged U-Access Solid Cover With Cable Exit (No Flange)- Aluminum **Shim kits may be required
FL-500P-SLD-BLK-C
Hinged U-Access Solid Cover With Cable Exit (No Flange)- Black **Shim kits may be required
FL-500P-SLD-CLY-C
Hinged U-Access Solid Cover With Cable Exit (No Flange)- Clay **Shim kits may be required
FL-500P-SLD-GRY-C
Hinged U-Access Solid Cover With Cable Exit (No Flange)- Gray **Shim kits may be required
Piano Hinge Flat Covers (Not UL Scrub Water Rated)
FL-500P-BLK-C
Hinged U-Access Cover (No Flange) With Hinged Door in Black Sandtex (maximum permissible static load is 1,000 lbs)

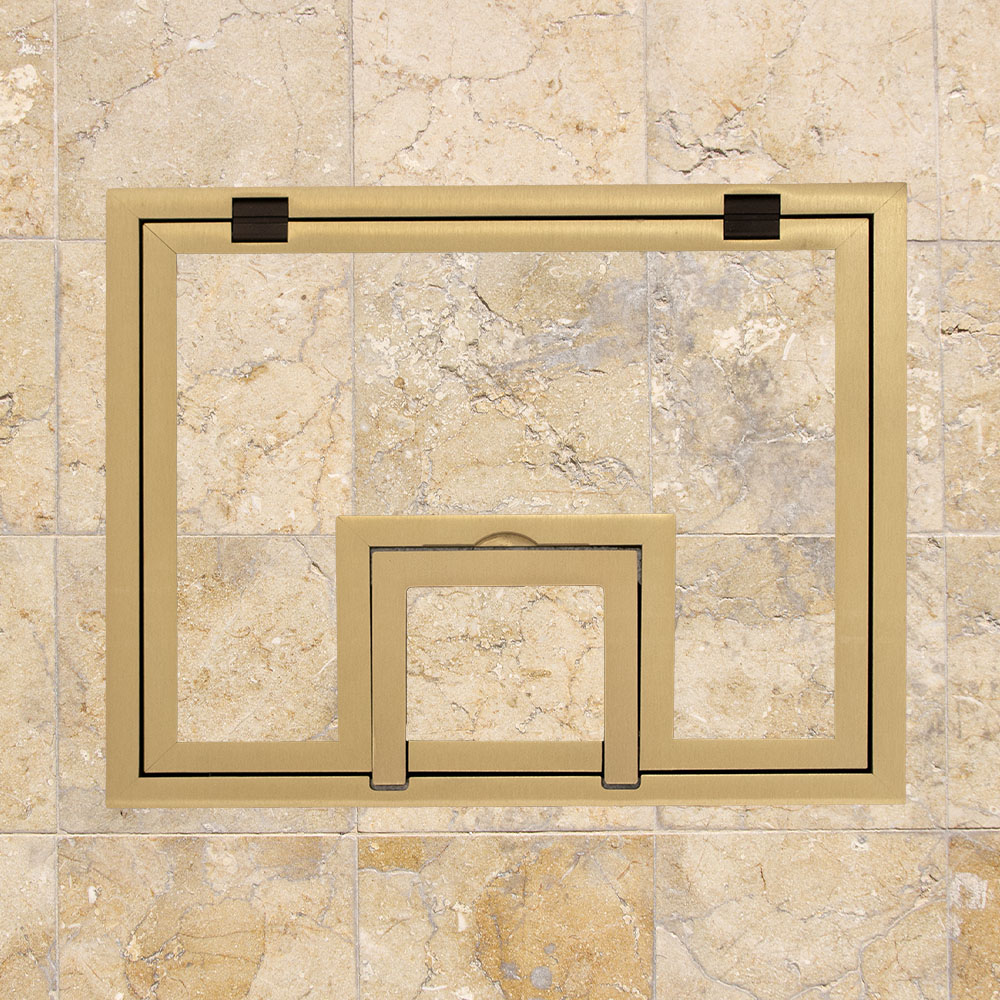

This high-quality floor box cover has a 1/2" Brass Square Flange with our unique hinged U-Access door. The hinged cover allows full access to internal connector plates and stored cables. The hinged cable exit door flips back to allow the cover to remain in place after connections are made and cables are routed through it. The 0.25” and 0.5” raised edge style and solid covers are UL scrub water approved.
There are a variety of covers to choose from. Options include integrated carpet edging, flat covers for non-carpeted, bare floor applications, and different finishes.
• 11-gauge finished steel cover with choice of carpet edging • Mitered brass or aluminum carpet edging .5” or .25” high • Stainless steel compression latches • Hinged U-Access door
Hinge U-Access Cover with 1/2" Brass Square Flange
FL-500P Hinged Floor Box Covers: FL-500P-BLP-C
FL-500P-Covers_1519
This high-quality floor box cover has a 1/4" Brass Carpet Flange with our unique hinged U-Access door. The hinged cover allows full access to internal connector plates and stored cables. The hinged cable exit door flips back to allow the cover to remain in place after connections are made and cables are routed through it. The 0.25” and 0.5” raised edge style and solid covers are UL scrub water approved.
There are a variety of covers to choose from. Options include integrated carpet edging, flat covers for non-carpeted, bare floor applications, and different finishes.
• 11-gauge finished steel cover with choice of carpet edging • Mitered brass or aluminum carpet edging .5” or .25” high • Stainless steel compression latches • Hinged U-Access door
Hinge U-Access Cover with 1/4" Brass Carpet Flange
FL-500P Hinged Floor Box Covers: FL-500P-BSQ-C
FL-500P Floor Box Covers_1520
This high-quality floor box cover has a 1/4" Brass Carpet Square Flange with our unique tool-less Hinge U-Access door. The hinged cover allows full access to internal connector plates and stored cables. The hinged cable exit door flips back to allow the cover to remain in place after connections are made and cables are routed through it. The 0.25” and 0.5” raised edge style and solid covers are UL scrub water approved.
There are a variety of covers to choose from. Options include integrated carpet edging, flat covers for non-carpeted, bare floor applications, and different finishes.
• 11-gauge finished steel cover with choice of carpet edging • Mitered brass or aluminum carpet edging .5” or .25” high • Stainless steel compression latches • Lift-off full access door
Hinge U-Access Cover with 1/4" Square Brass Flange
FL-500P Hinged Floor Box Covers: FL-500P-S-C
FL-500P-Covers_1521

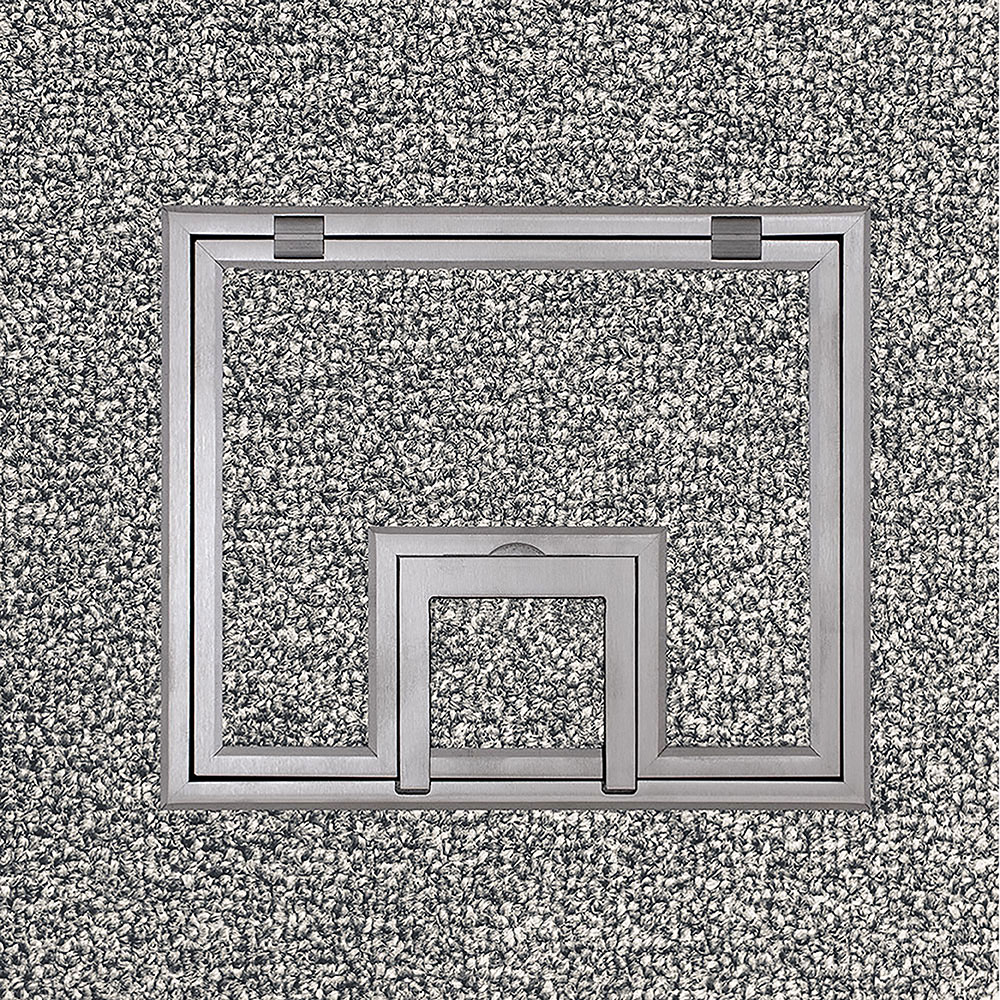

This high-quality floor box cover has a 1/2" Aluminum Square Flange with our unique hinged U-Access door. The hinged cover allows full access to internal connector plates and stored cables. The hinged cable exit door flips back to allow the cover to remain in place after connections are made and cables are routed through it. The 0.25” and 0.5” raised edge style and solid covers are UL scrub water approved.
There are a variety of covers to choose from. Options include integrated carpet edging, flat covers for non-carpeted, bare floor applications, and different finishes.
• 11-gauge finished steel cover with choice of carpet edging • Mitered brass or aluminum carpet edging .5” or .25” high • Stainless steel compression latches • Hinged U-Access door
Hinge U-Access Cover with 1/2" Aluminum Square Flange
FL-500P Hinged Floor Box Covers: FL-500P-SLP-C
FL-500P-Covers_1522
This high-quality floor box cover has a 1/4" Aluminum Square Flange with our unique Hinged U-Access door. The hinged cover allows full access to internal connector plates and stored cables. The hinged cable exit door flips back to allow the cover to remain in place after connections are made and cables are routed through it.
There are a variety of covers to choose from. Options include integrated carpet edging, flat covers for non-carpeted, bare floor applications, and different finishes. The 0.25” and 0.5” raised edge style and solid covers are UL scrub water approved.
• Hinged U-Access Door • 11-gauge finished steel cover with choice of carpet edging • Mitered brass or aluminum carpet edging .5” or .25” high • Stainless steel compression latches
Hinged U-Access Cover with 1/4" Square Aluminum Flange
FL-500P Hinged Floor Box Covers: FL-500P-SSQ-C
FL-500P-Covers_1523
This high-quality floor box cover has a 1/4" Brass Carpet Flange with our unique hinged U-Access door. The hinged cover allows full access to internal connector plates and stored cables. The hinged cable exit door flips back to allow the cover to remain in place after connections are made and cables are routed through it. The 0.25” and 0.5” raised edge style and solid covers are UL scrub water approved.
There are a variety of covers to choose from. Options include integrated carpet edging, flat covers for non-carpeted, bare floor applications, and different finishes.
• 11-gauge finished steel cover with choice of carpet edging • Mitered brass or aluminum carpet edging .5” or .25” high • Stainless steel compression latches • Hinged U-Access door
This high-quality floor box cover has a 1/4" Grey Painted Carpet Flange with our unique hinged U-Access door. TThe hinged cover allows full access to internal connector plates and stored cables. The hinged cable exit door flips back to allow the cover to remain in place after connections are made and cables are routed through it. The 0.25” and 0.5” raised edge style and solid covers are UL scrub water approved.
here are a variety of covers to choose from. Options include integrated carpet edging, flat covers for non-carpeted, bare floor applications, and different finishes.
• 11-gauge finished steel cover with choice of carpet edging • Mitered brass or aluminum carpet edging .5” or .25” high • Stainless steel compression latches • Hinged U-Access door
This high-quality floor box cover has a 1/4" Brass Carpet Flange with our unique hinged U-Access door. The hinged cover allows full access to internal connector plates and stored cables. The hinged cable exit door flips back to allow the cover to remain in place after connections are made and cables are routed through it. The 0.25” and 0.5” raised edge style and solid covers are UL scrub water approved.
There are a variety of covers to choose from. Options include integrated carpet edging, flat covers for non-carpeted, bare floor applications, and different finishes.
• 11-gauge finished steel cover with choice of carpet edging • Mitered brass or aluminum carpet edging .5” or .25” high • Stainless steel compression latches • Hinged U-Access door
This high-quality floor boxover has a 1/4" Brass Carpet Flange with our unique hinged U-Access door. The hinged cover allows full access to internal connector plates and stored cables. The hinged cable exit door flips back to allow the cover to remain in place after connections are made and cables are routed through it. The 0.25” and 0.5” raised edge style and solid covers are UL scrub water approved.
There are a variety of covers to choose from. Options include integrated carpet edging, flat covers for non-carpeted, bare floor applications, and different finishes.
• 11-gauge finished steel cover with choice of carpet edging • Mitered brass or aluminum carpet edging .5” or .25” high • Stainless steel compression latches • Hinged U-Access door
This high-quality floor box cover has a 1/4" Brass Carpet Flange with our unique hinged U-Access door. The hinged cover allows full access to internal connector plates and stored cables. The hinged cable exit door flips back to allow the cover to remain in place after connections are made and cables are routed through it. The 0.25” and 0.5” raised edge style and solid covers are UL scrub water approved.
There are a variety of covers to choose from. Options include integrated carpet edging, flat covers for non-carpeted, bare floor applications, and different finishes.
• 11-gauge finished steel cover with choice of carpet edging • Mitered brass or aluminum carpet edging .5” or .25” high • Stainless steel compression latches • Hinged U-Access door
This high-quality floor box cover has a 1/4" Brass Carpet Flange with our unique hinged U-Access door. The hinged cover allows full access to internal connector plates and stored cables. The hinged cable exit door flips back to allow the cover to remain in place after connections are made and cables are routed through it. The 0.25” and 0.5” raised edge style and solid covers are UL scrub water approved.
There are a variety of covers to choose from. Options include integrated carpet edging, flat covers for non-carpeted, bare floor applications, and different finishes.
• 11-gauge finished steel cover with choice of carpet edging • Mitered brass or aluminum carpet edging .5” or .25” high • Stainless steel compression latches • Hinged U-Access door
This high-quality floor box cover has a 1/4" Brass Carpet Flange with our unique hinged U-Access door. The hinged cover allows full access to internal connector plates and stored cables. The hinged cable exit door flips back to allow the cover to remain in place after connections are made and cables are routed through it. The 0.25” and 0.5” raised edge style and solid covers are UL scrub water approved.
There are a variety of covers to choose from. Options include integrated carpet edging, flat covers for non-carpeted, bare floor applications, and different finishes.
• 11-gauge finished steel cover with choice of carpet edging • Mitered brass or aluminum carpet edging .5” or .25” high • Stainless steel compression latches • Hinged U-Access door
This high quality FL-500P Cover has a 1/4" Brass Carpet Flange with our unique hinged U-Access door.
The cable access door can be easily removed by lifting the integrated U-Access handle to quickly access the interior compartment, connectors, and cables.
• 11-gauge finished steel cover with choice of carpet edging • Mitered brass or aluminum carpet edging .5” or .25” high • Stainless steel compression latches • Hinged U-Access door
Flanging: Height: .25” or .5”
There are a variety of covers to choose from. Options include integrated carpet edging, flat covers for non-carpeted, bare floor applications, and different finishes. The hinged cover allows full access to internal connector plates and stored cables. The hinged cable exit door flips back to allow the cover to remain in place after connections are made and cables are routed through it. The 0.25” and 0.5” raised edge style and solid covers are UL scrub water approved.
This high-quality FL-500P cover has a 1/4" Brass Carpet Flange with our unique piano hinged large door. The cable access door can be easily lifted to quickly access the interior compartment, connectors, and cables.
• 11-gauge finished steel cover with choice of carpet edging • Mitered brass or aluminum carpet edging .5” or .25” high • Stainless steel compression latches • Piano hinge large door

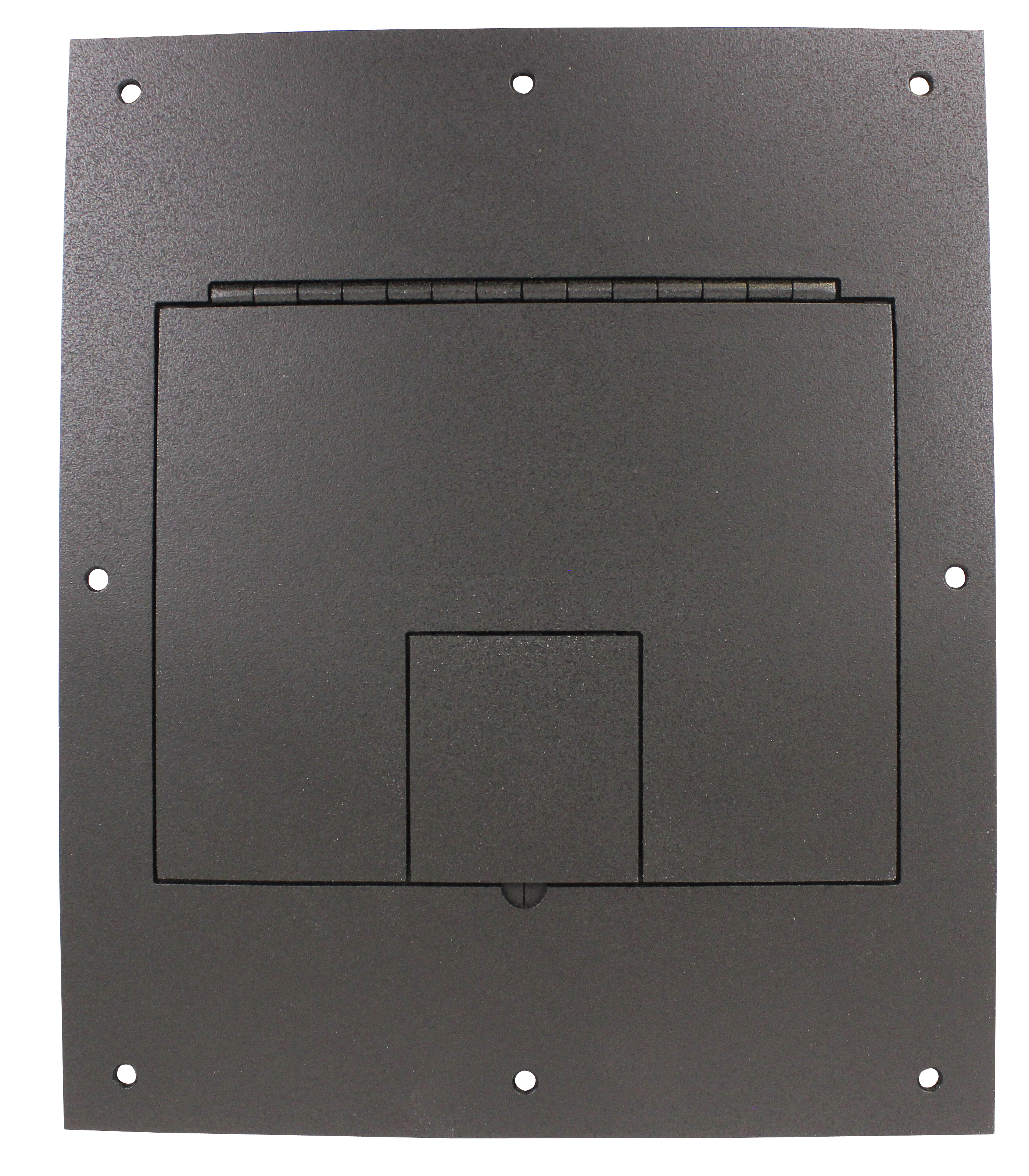

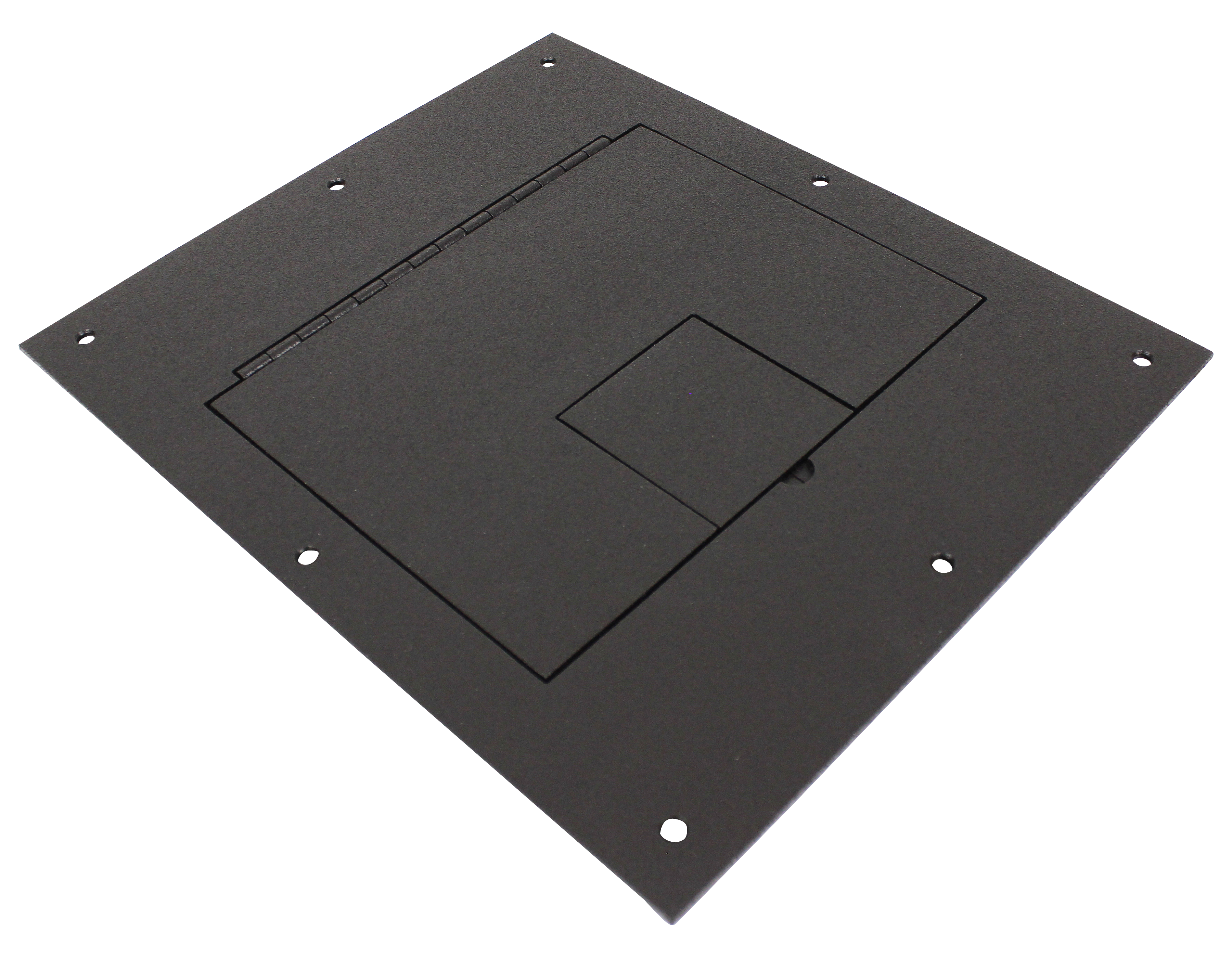

Piano Hinged Black Cover No Flange *maximum permissible static load is 1,000 lbs*
FL-500P Hinged Floor Box Covers: FL-500P-PTSLV
FL-500P-Covers_1837

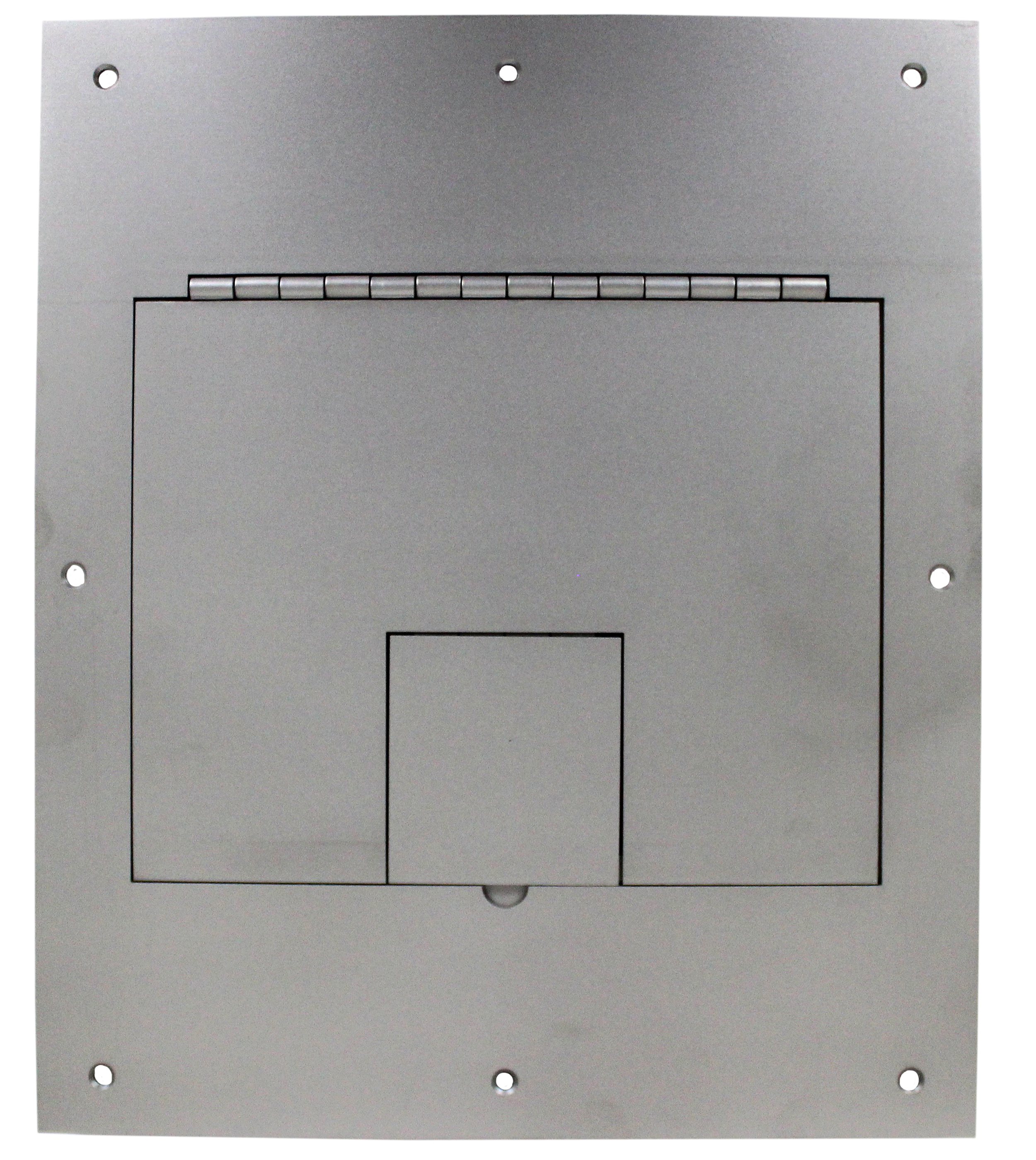

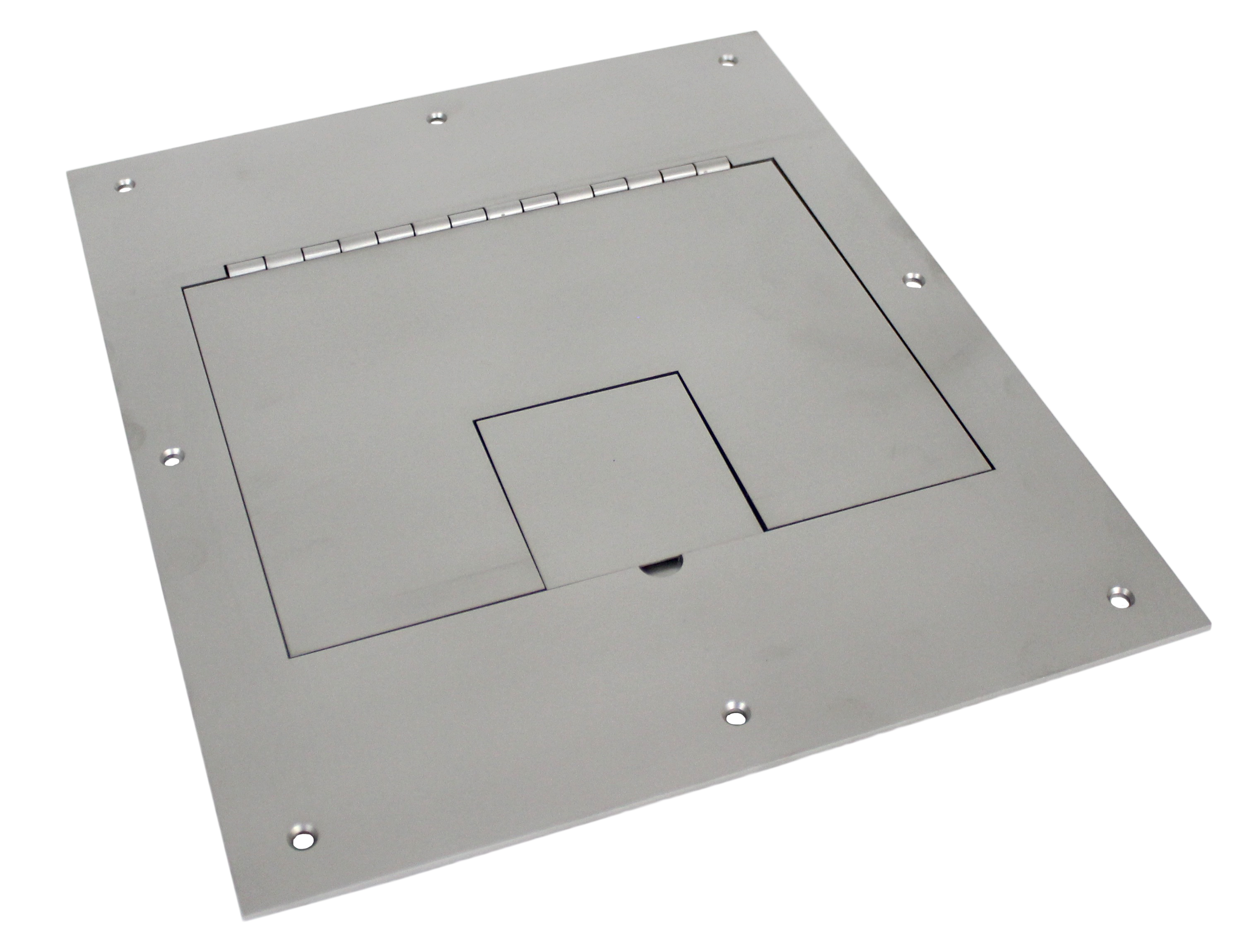

This high-quality FL-500P Cover is flat painted silver with our unique piano hinged large door. The cable access door can be easily lifted to quickly access the interior compartment, connectors, and cables.
• 11-gauge finished steel cover with choice of carpet edging • Mitered brass or aluminum carpet edging .5” or .25” high • Stainless steel compression latches • Piano hinged large door
This high-quality FL-500P Cover has a 1/4" Brass Carpet Flange with our unique piano hinged large door. The cable access door can be easily lifted by to quickly access the interior compartment, connectors, and cables.
• 11-gauge finished steel cover with choice of carpet edging • Mitered brass or aluminum carpet edging .5” or .25” high • Stainless steel compression latches • Piano hinge large door
This high-quality FL-500P Cover has a 1/4" Brass Carpet Flange with our unique piano hinged large door. The cable access door can be easily lifted by the integrated U-Access handle to quickly access the interior compartment, connectors, and cables.
• 11-gauge finished steel cover with choice of carpet edging • Mitered brass or aluminum carpet edging .5” or .25” high • Stainless steel compression latches • Piano Hinge large door
