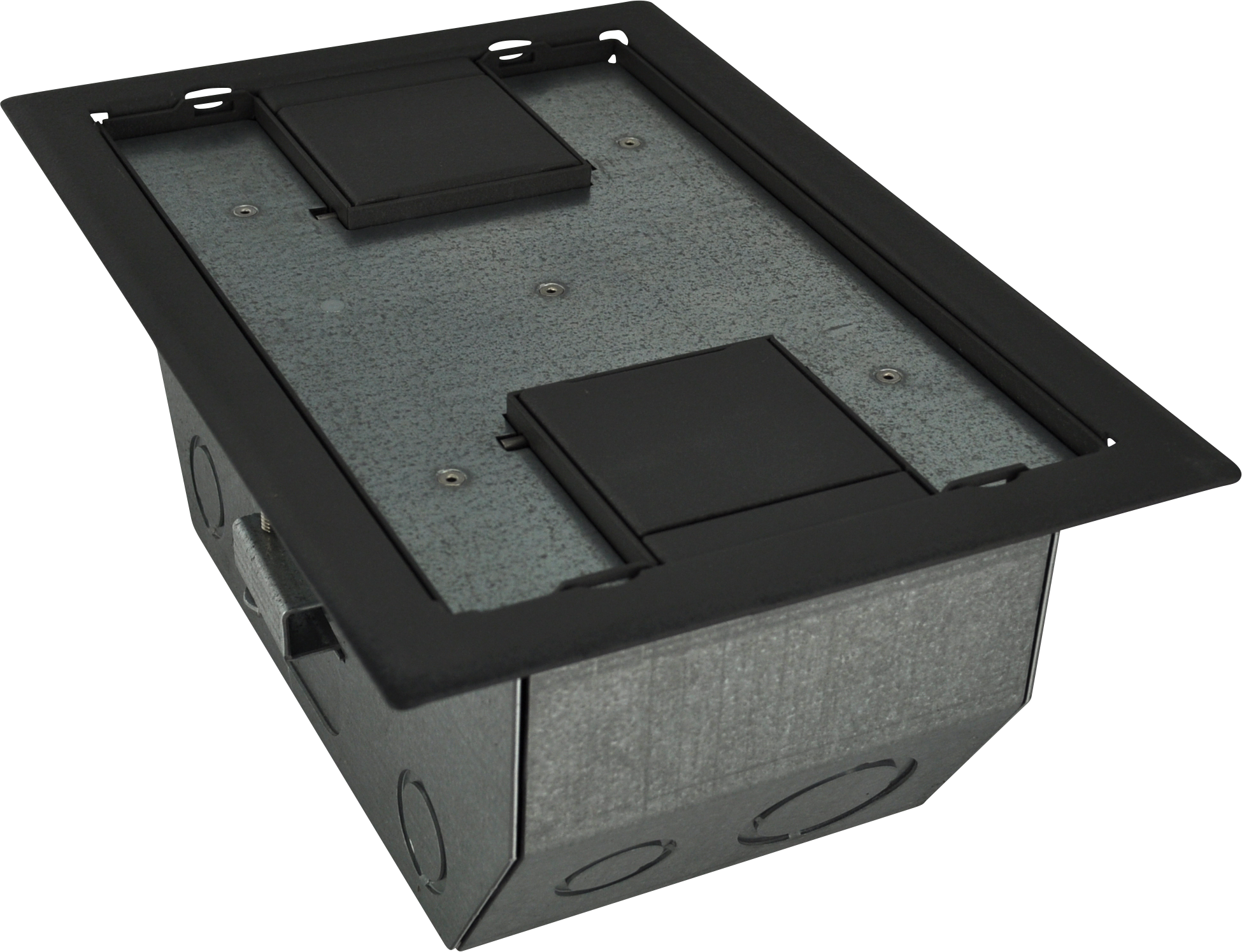

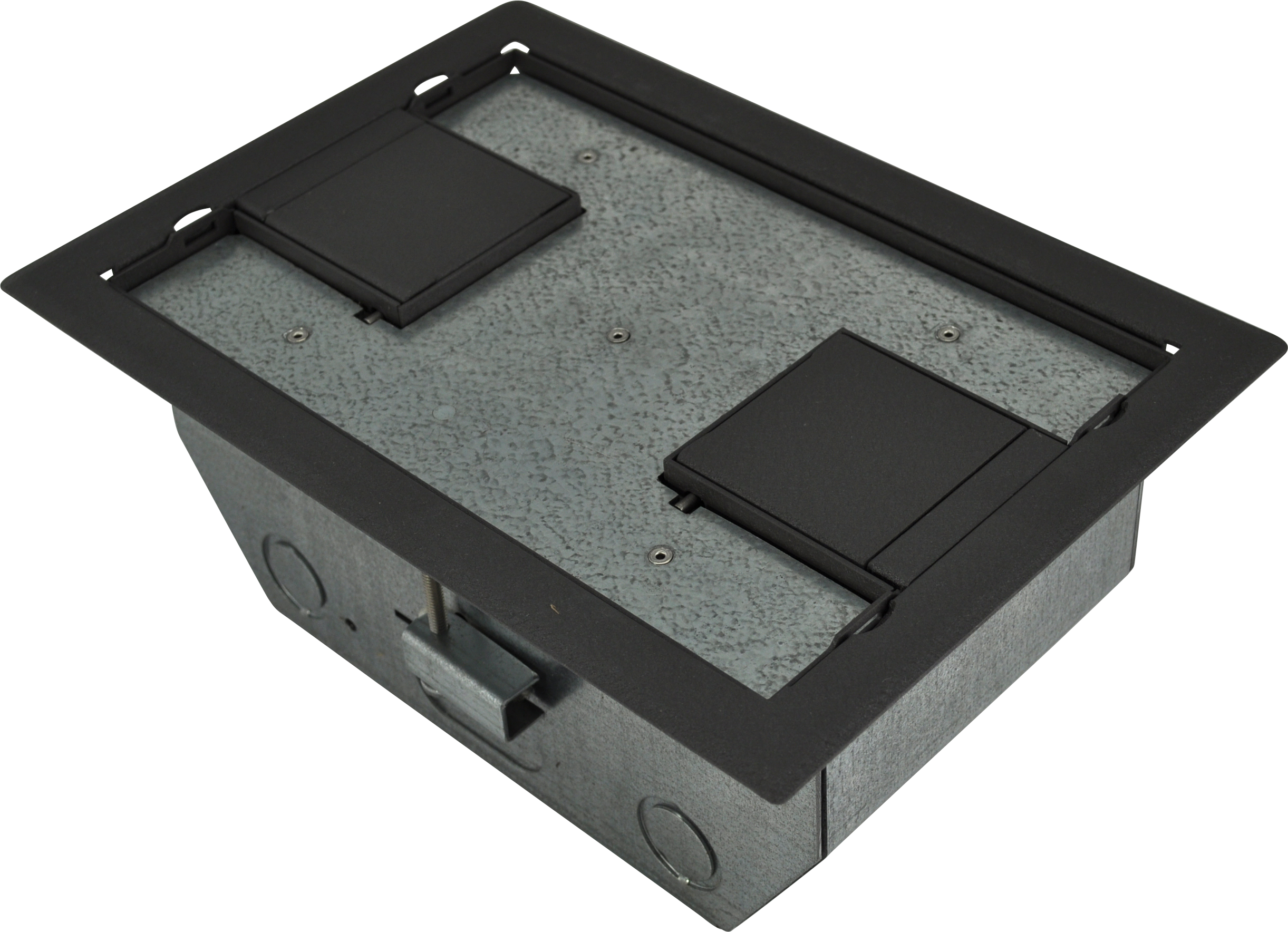

The RFL Series D Raised Access Floor Boxes are designed for flexibility, durability and style. These rugged units safely handle the rigors of high traffic floor environments. There are three cover styles to choose from: Single door carpet trim cover, dual door carpet trim cover or a single door solid cover.
All cover styles are available in three colors with custom colors available on request (Consult factory).
All Series D models feature all steel construction for durability and are designed to install in a 6 1⁄2" X 9 3⁄4" opening in the floor. They are available in either 4 11⁄16" or 3 ¼" box depths.

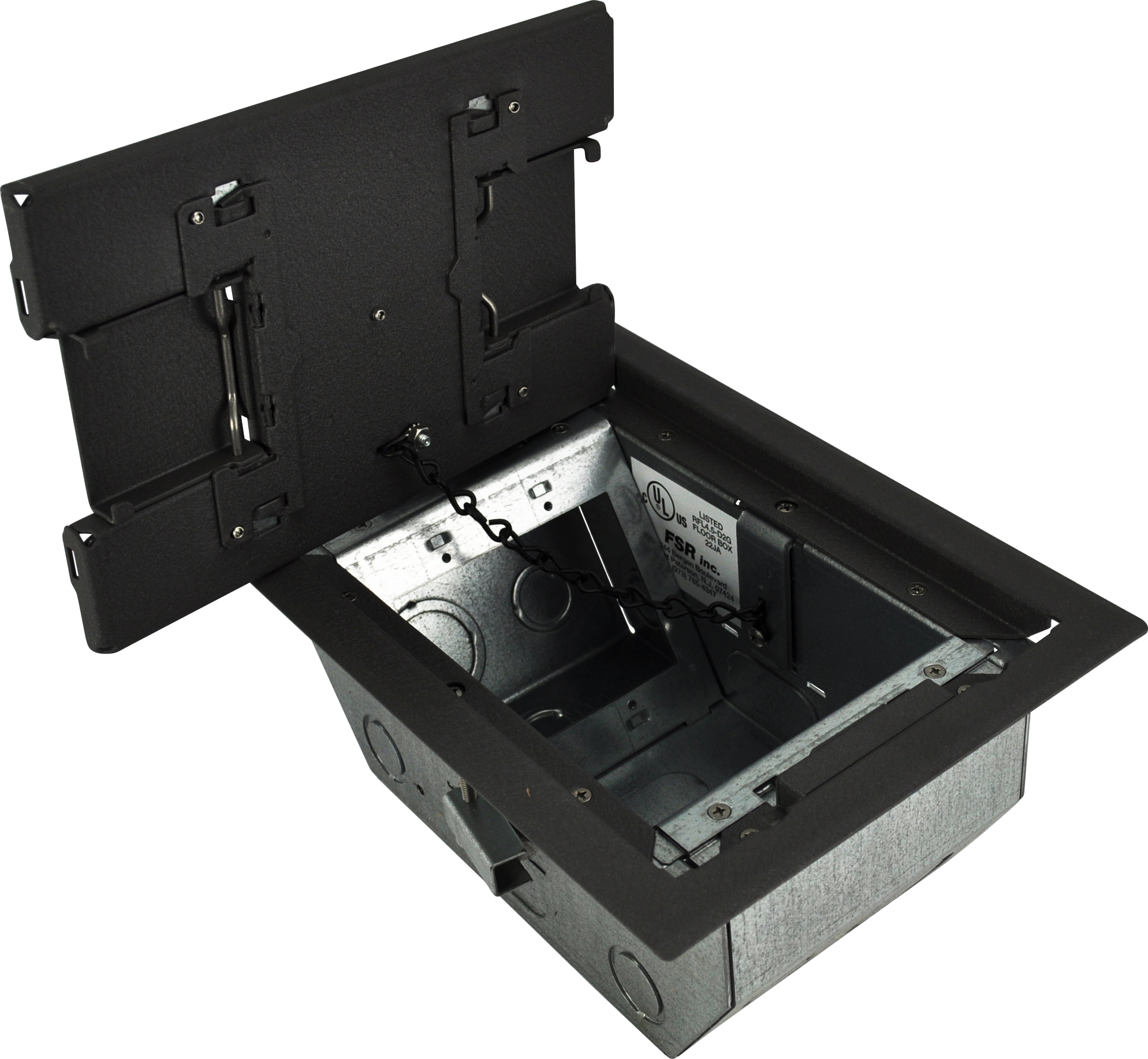

The RFL4.5-D2G is a 4 11⁄16" deep floor box with two standard double gang openings on opposite sides of the box. Either or both of the compartments may be used for power or data.

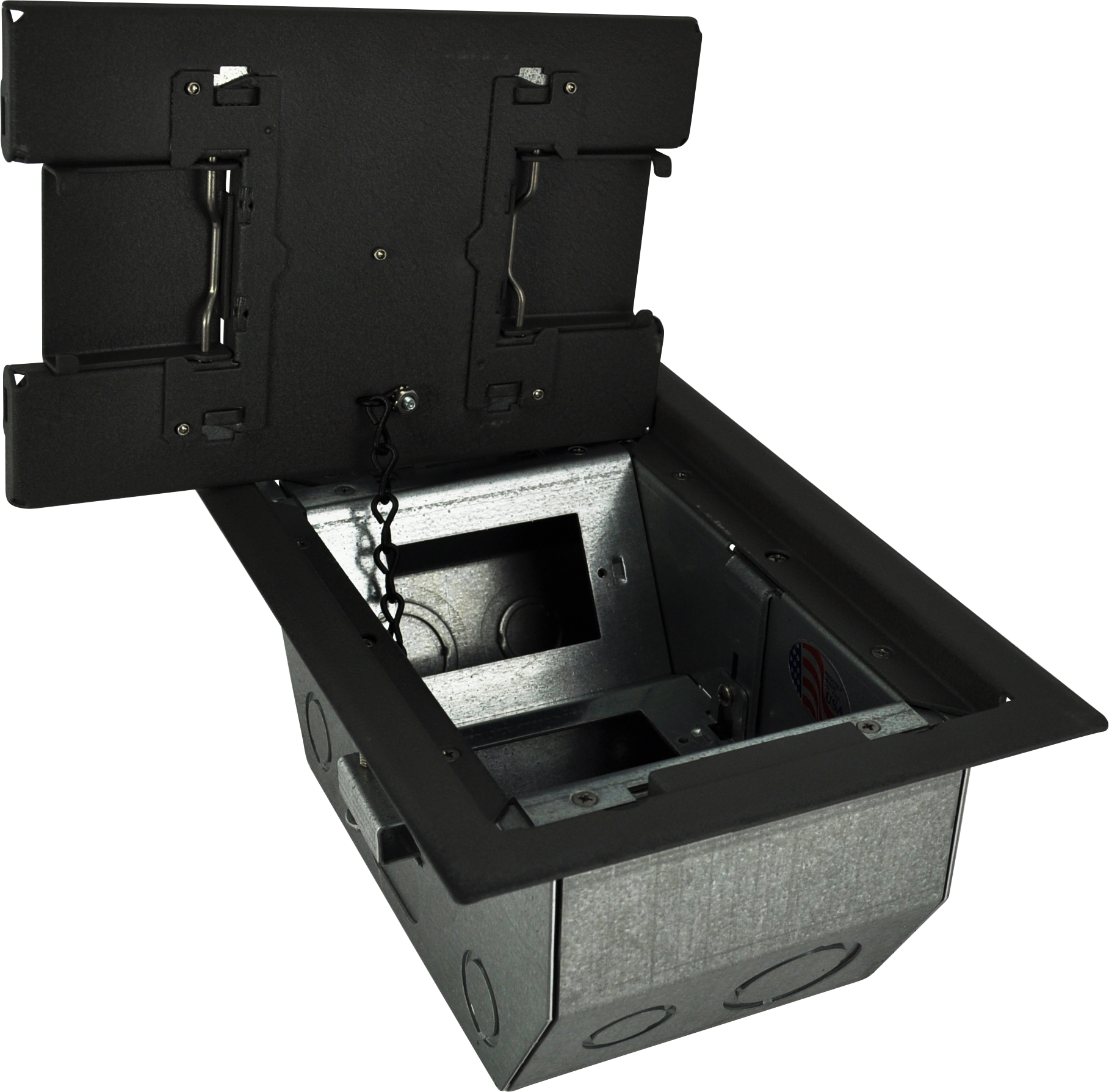

The RFL4.5-D1G is a 4 11⁄16" deep floor box with two standard single gang openings on opposite sides of the box and 1 single gang opening on the bottom for data. The data plate insert is removable for added room in the box.

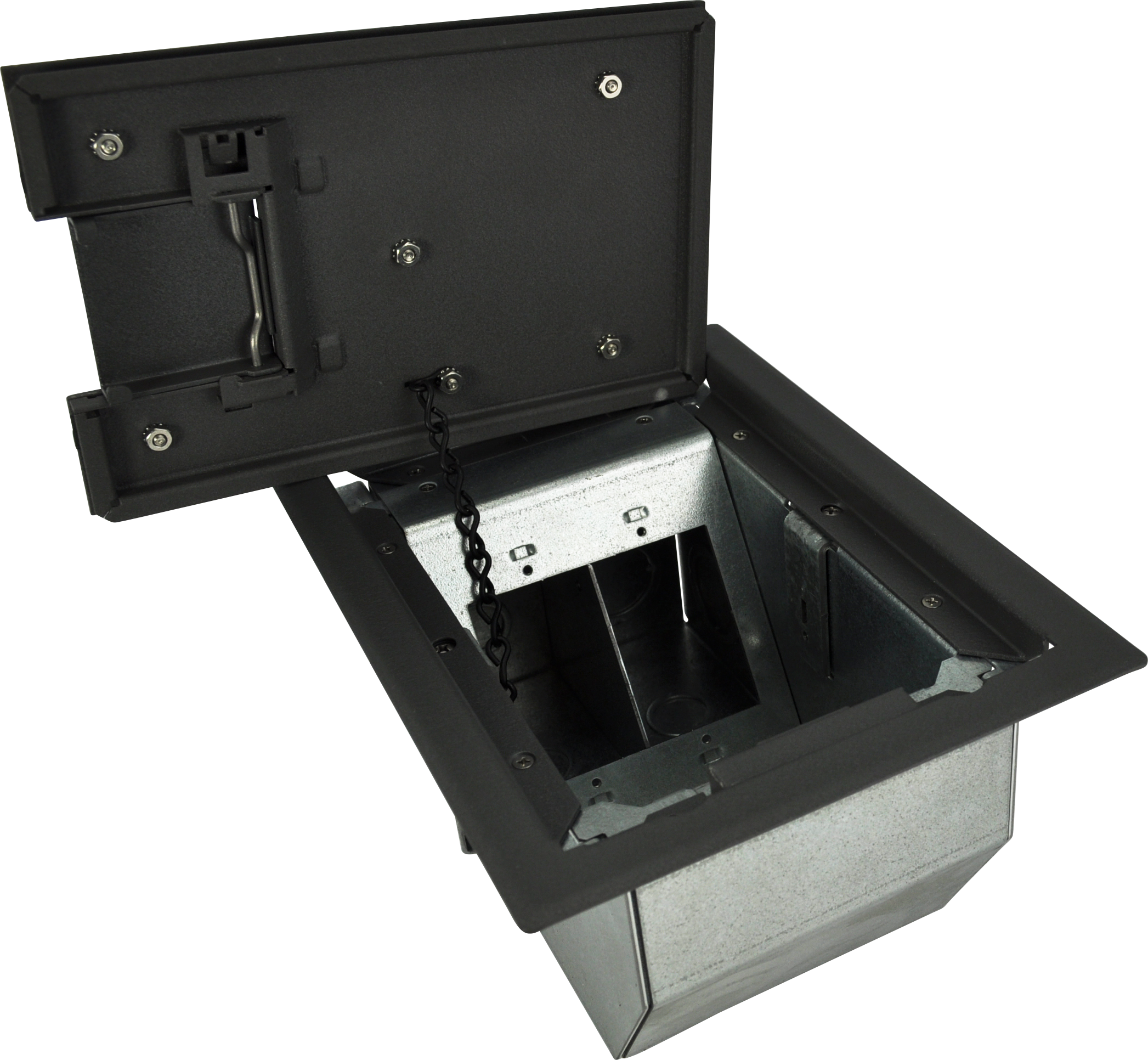

The RFL3-D1G is a 3¼" deep floor box with 2 standard single gang openings on opposite sides of the box. Either or both of the compartments may be used for power or data.
Features:
Patented epoxy wrinkle powder finish, available in 3 colors • Choice of three cover styles; solid, single-door and dual-door • 14-gauge steel construction • Cover thickness 3⁄16" • Oversize cable door(s) • Standard electrical plate openings on all models • Superior mounting clamp design to handle a wide variety of floor thicknesses • Listed by UL to meet US and Canadian safety standards • Large multi-compartment boxes for power, audio, video, data and more! • Multiple knockouts in a variety of sizes • Choice of two box depths • Choice of two gang layout styles
BAA Compliance
FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Build America Buy America Act (BABAA) compliant. Look for this logo on our website:
TAA Compliance
FSR floor box products meet TAA and BABAA requirements.
*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.
RFL D Series Raised Access Floor Box: Select One...
RFL-D_1238
The RFL Series D Raised Access Floor Boxes are designed for flexibility, durability and style. These rugged units safely handle the rigors of high traffic floor environments. There are three cover styles to choose from: Single door carpet trim cover, dual door carpet trim cover or a single door solid cover.
All cover styles are available in three colors with custom colors available on request (Consult factory).
All Series D models feature all steel construction for durability and are designed to install in a 6 1⁄2" X 9 3⁄4" opening in the floor. They are available in either 4 11⁄16" or 3 ¼" box depths.
The RFL4.5-D2G is a 4 11⁄16" deep floor box with two standard double gang openings on opposite sides of the box. Either or both of the compartments may be used for power or data.
The RFL4.5-D1G is a 4 11⁄16" deep floor box with two standard single gang openings on opposite sides of the box and 1 single gang opening on the bottom for data. The data plate insert is removable for added room in the box.
The RFL3-D1G is a 3¼" deep floor box with 2 standard single gang openings on opposite sides of the box. Either or both of the compartments may be used for power or data.
Features:
Patented epoxy wrinkle powder finish, available in 3 colors • Choice of three cover styles; solid, single-door and dual-door • 14-gauge steel construction • Cover thickness 3⁄16" • Oversize cable door(s) • Standard electrical plate openings on all models • Superior mounting clamp design to handle a wide variety of floor thicknesses • Listed by UL to meet US and Canadian safety standards • Large multi-compartment boxes for power, audio, video, data and more! • Multiple knockouts in a variety of sizes • Choice of two box depths • Choice of two gang layout styles
BAA Compliance
FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Build America Buy America Act (BABAA) compliant. Look for this logo on our website:
TAA Compliance
FSR floor box products meet TAA and BABAA requirements.
*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.
The RFL3-D1G is a 3 1/4” deep floor box with 2 standard single gang openings on opposite sides of the box. Either or both of the compartments may be used for power or data.
The RFL Series D Raised Access Floor Boxes are designed for flexibility, durability and style. These rugged units safely handle the rigors of high traffic floor environments. There are three cover styles to choose from: Single door carpet trim cover, dual door carpet trim cover or a single door solid cover.
All Series D models feature all steel construction for durability and are designed to install in a 6 1⁄2" X 9 3⁄4" opening in the floor.
BAA Compliance
FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Build America Buy America Act (BABAA) compliant. Look for this logo on our website:
TAA Compliance
FSR floor box products meet TAA and BABAA requirements.
*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.
The RFL4.5-D1G is a 4 11⁄16" deep floor box with two standard single gang openings on opposite sides of the box and 1 single gang opening on the bottom for data. The data plate insert is removable for added room in the box.
The RFL Series D Raised Access Floor Boxes are designed for flexibility, durability and style. These rugged units safely handle the rigors of high traffic floor environments. There are three cover styles to choose from: Single door carpet trim cover, dual door carpet trim cover or a single door solid cover.
All Series D models feature all steel construction for durability and are designed to install in a 6 1⁄2" X 9 3⁄4" opening in the floor.
BAA Compliance
FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Build America Buy America Act (BABAA) compliant. Look for this logo on our website:
TAA Compliance
FSR floor box products meet TAA and BABAA requirements.
*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.
The RFL4.5-D2G is a 4-11/16” deep floor box with 2 standard double gang openings on opposite sides of the box. Either or both of the compartments may be used for power or data.
The RFL Series D Raised Access Floor Boxes are designed for flexibility, durability and style. These rugged units safely handle the rigors of high traffic floor environments. There are three cover styles to choose from: Single door carpet trim cover, dual door carpet trim cover or a single door solid cover.
All Series D models feature all steel construction for durability and are designed to install in a 6 1⁄2" X 9 3⁄4" opening in the floor.
BAA Compliance
FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Build America Buy America Act (BABAA) compliant. Look for this logo on our website:
TAA Compliance
FSR floor box products meet TAA and BABAA requirements.
*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.
