Floor Box - FL-700 Series Boxes and Covers FL-700_151

FSR's FL-700 Series Boxes and Covers are designed for carpeted floors over concrete in conference rooms, auditoriums, classrooms, and similar spaces where cables may need to pass through the box without interfering with installed connectors. The front-to-back pass-through route helps simplify connected box installations, while the angled bracket design provides isolated openings for power, audio, video, telecom, and data applications.

Note: When this box is used on grade, it should be encased in concrete to prevent contact with the grade. For grade applications, use the FL-GRD2/4 pour pan as a foundation before box installation.

**BABAA and TAA compliance by model, which may vary over time due to changes in legislation and/or manufacturing plans. Be sure to ask for certification at the time of order.

The FL-700 floor box is designed for conference rooms, auditoriums, classrooms, etc. where it may be necessary to pass cables thru the box without interfering with the various connectors. This simplifies installation of wiring when a group of floor boxes must be connected in series. The pass thru route is front to back. The FL-700 floor box is used on carpeted floors over concrete. This floor box provides a practical and safe solution for easy access to cables and connector plates.

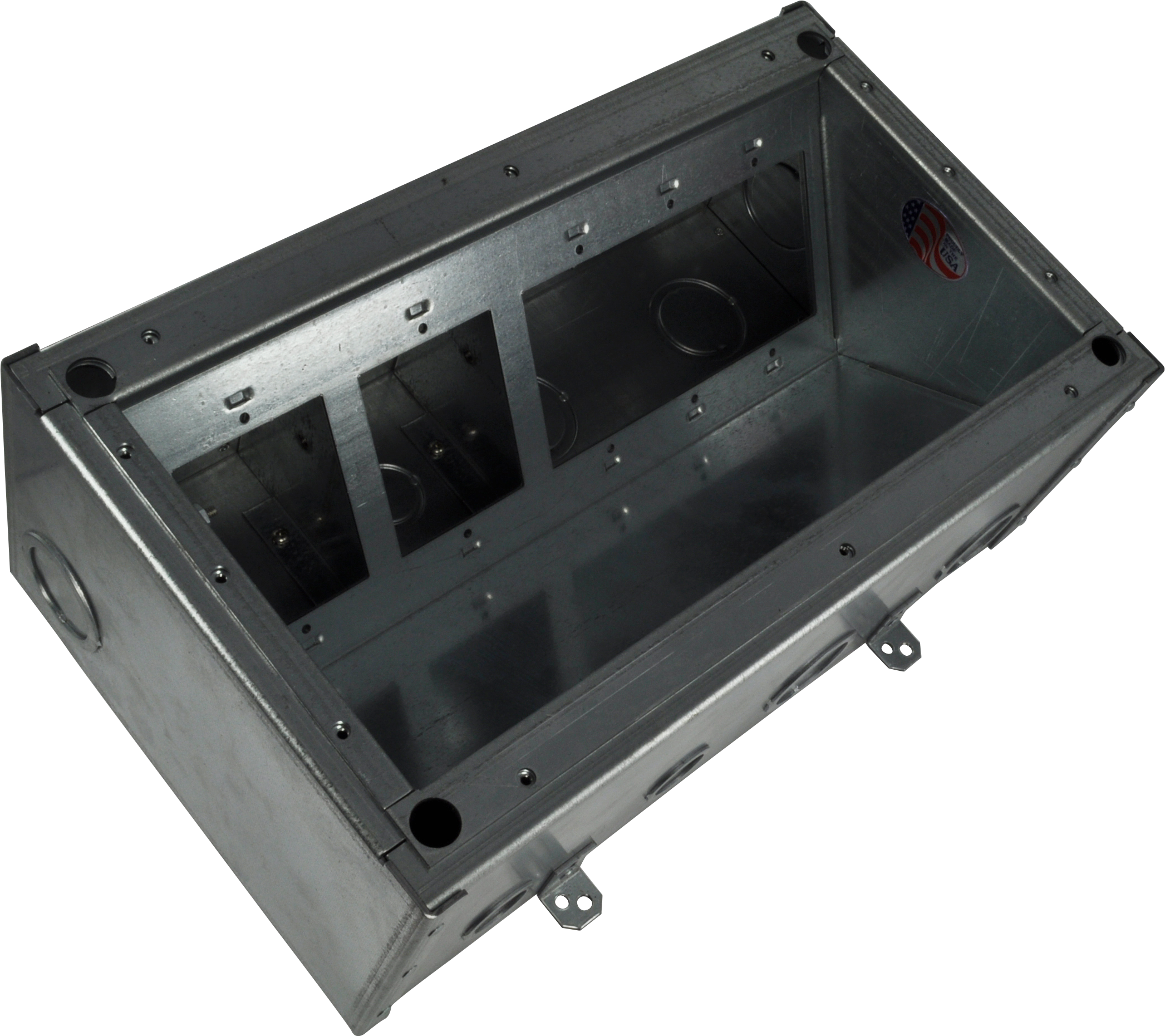

Inside the FL-700 floor box, one angled bracket is provided for cable connections with ample clearance for cable connectors. The angled brackets provide two single- and one triple- gang opening, which are all isolated for maximum safety. The FL-700 floor box is extremely sturdy (steel and welded construction) and has been designed to fit the needs of power, audio, video, telecommunications, and data applications.

Note: When this box is used on grade, it should be encased in concrete to prevent contact with the grade. For grade applications, use the FL-GRD2/4pour pan as a foundation before box installation.

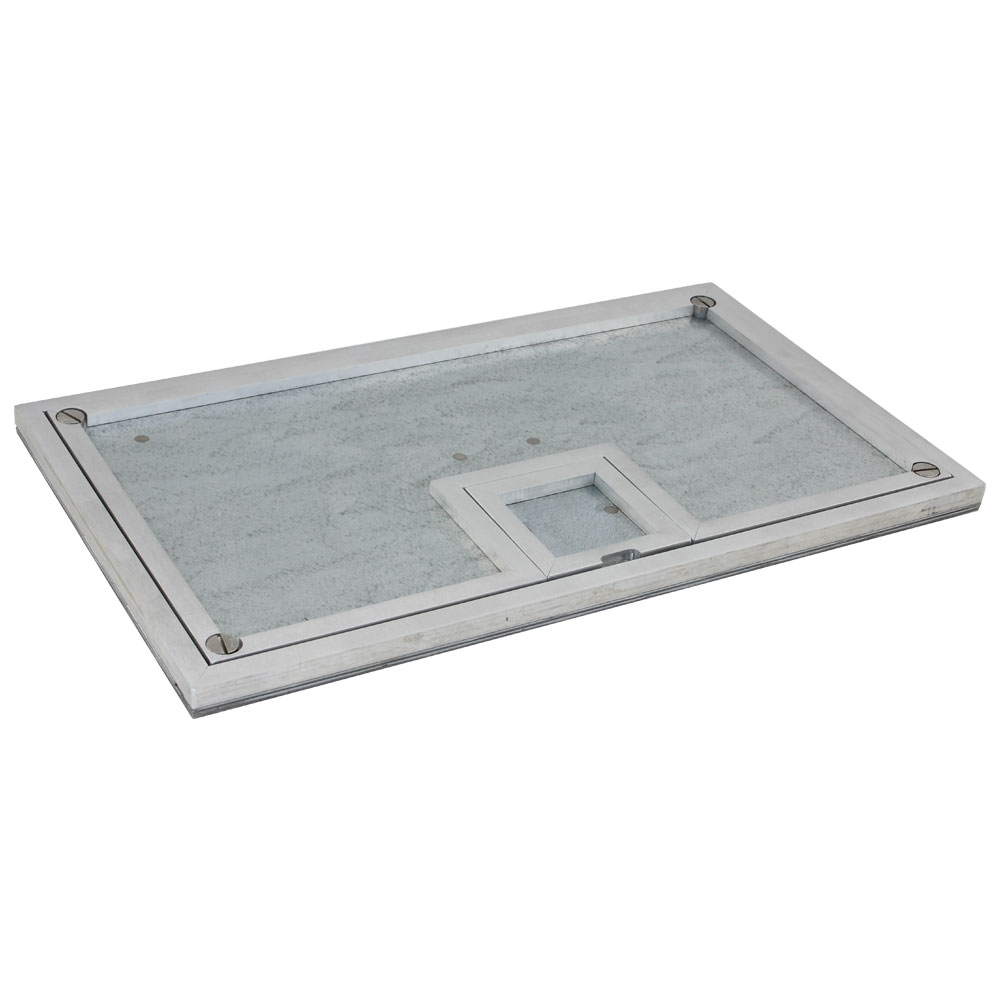

This high quality FL-700 Oak Sandtex Cover has our unique tool-less lift off door.

The lift-off section of the cover allows full access to internal cables and connector plates while a smaller, hinged trapdoor flips back to create a cable exit. All cables can be stored within the box when they are not in use, allowing unencumbered travel in the area.

The sturdy 11 gauge steel cover is installed flush with the floor. The low profile edging is 1/4” high and when the box is not in use, only the elegant, hand mitered carpet edge is visible.

BABAA Compliance

FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Build America Buy America Act (BABAA) compliant. Look for this logo on our website:

TAA Compliance

FSR floor box products meet TAA and BABAA requirements.

*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.

The FL-700 floor box is designed for conference rooms, auditoriums, classrooms, etc. where it may be necessary to pass cables thru the box without interfering with the various connectors. This simplifies installation of wiring when a group of floor boxes must be connected in series. The pass thru route is front to back. The FL-700 floor box is used on carpeted floors over concrete. This floor box provides a practical and safe solution for easy access to cables and connector plates. The lift-off section of the cover allows full access to internal cables and connector plates while a smaller, hinged trapdoor flips back to create a cable exit. All cables can be stored within the box when they are not in use, allowing unencumbered travel in the area.

Inside the FL-700 floor box, one angled bracket is provided for cable connections with ample clearance for cable connectors. The angled brackets provide two single- and one triple- gang opening, which are all isolated for maximum safety. The FL-700 floor box is extremely sturdy (steel and welded construction) and has been designed to fit the needs of power, audio, video, telecommunications, and data applications.

Note: When this box is used on grade, it should be encased in concrete to prevent contact with the grade. For grade applications, use the FL-GRD2/4 pour pan as a foundation before box installation.

This high quality FL-700 Cover has a 1/4" Brass Carpet Flange with our unique tool-less lift off door.

The lift-off section of the cover allows full access to internal cables and connector plates while a smaller, hinged trapdoor flips back to create a cable exit. All cables can be stored within the box when they are not in use, allowing unencumbered travel in the area.

The sturdy 11 gauge steel cover is installed flush with the floor. The low profile edging is 1/4” high and when the box is not in use, only the elegant, hand mitered carpet edge is visible.

BABAA Compliance

FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Build America Buy America Act (BABAA) compliant. Look for this logo on our website:

TAA Compliance

FSR floor box products meet TAA and BABAA requirements.

*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.

The FL-700 floor box is designed for conference rooms, auditoriums, classrooms, etc. where it may be necessary to pass cables thru the box without interfering with the various connectors. This simplifies installation of wiring when a group of floor boxes must be connected in series. The pass thru route is front to back. The FL-700 floor box is used on carpeted floors over concrete. This floor box provides a practical and safe solution for easy access to cables and connector plates.

Inside the FL-700 floor box, one angled bracket is provided for cable connections with ample clearance for cable connectors. The angled brackets provide two single- and one triple- gang opening, which are all isolated for maximum safety. The FL-700 floor box is extremely sturdy (steel and welded construction) and has been designed to fit the needs of power, audio, video, telecommunications, and data applications.

Note: When this box is used on grade, it should be encased in concrete to prevent contact with the grade. For grade applications, use the FL-GRD2/4 pour pan as a foundation before box installation.

This high quality FL-700 Cover has a 1/4" Aluminum Carpet Flange with our unique tool-less lift off door.

The lift-off section of the cover allows full access to internal cables and connector plates while a smaller, hinged trapdoor flips back to create a cable exit. All cables can be stored within the box when they are not in use, allowing unencumbered travel in the area.

The sturdy 11 gauge steel cover is installed flush with the floor. The low profile edging is 1/4” high and when the box is not in use, only the elegant, hand mitered carpet edge is visible.

BABAA Compliance

FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Build America Buy America Act (BABAA) compliant. Look for this logo on our website:

TAA Compliance

FSR floor box products meet TAA and BABAA requirements.

*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.

The FL-700 floor box is designed for conference rooms, auditoriums, classrooms, etc. where it may be necessary to pass cables thru the box without interfering with the various connectors. This simplifies installation of wiring when a group of floor boxes must be connected in series. The pass thru route is front to back. The FL-700 floor box is used on carpeted floors over concrete. This floor box provides a practical and safe solution for easy access to cables and connector plates.

Inside the FL-700 floor box, one angled bracket is provided for cable connections with ample clearance for cable connectors. The angled brackets provide two single- and one triple- gang opening, which are all isolated for maximum safety. The FL-700 floor box is extremely sturdy (steel and welded construction) and has been designed to fit the needs of power, audio, video, telecommunications, and data applications.

Note: When this box is used on grade, it should be encased in concrete to prevent contact with the grade. For grade applications, use the FL-GRD2/4 pour pan as a foundation before box installation.

This high quality FL-700 Cover has a 1/4" Square Aluminum Flange with our unique tool-less lift off door.

The lift-off section of the cover allows full access to internal cables and connector plates while a smaller, hinged trapdoor flips back to create a cable exit. All cables can be stored within the box when they are not in use, allowing unencumbered travel in the area.

The sturdy 11 gauge steel cover is installed flush with the floor. The low profile edging is 1/4” high and when the box is not in use, only the elegant, hand mitered carpet edge is visible.

BABAA Compliance

FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Build America Buy America Act (BABAA) compliant. Look for this logo on our website:

TAA Compliance

FSR floor box products meet TAA and BABAA requirements.

*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.

The FL-700 floor box is designed for conference rooms, auditoriums, classrooms, etc. where it may be necessary to pass cables thru the box without interfering with the various connectors. This simplifies installation of wiring when a group of floor boxes must be connected in series. The pass thru route is front to back. The FL-700 floor box is used on carpeted floors over concrete. This floor box provides a practical and safe solution for easy access to cables and connector plates.

Inside the FL-700 floor box, one angled bracket is provided for cable connections with ample clearance for cable connectors. The angled brackets provide two single- and one triple- gang opening, which are all isolated for maximum safety. The FL-700 floor box is extremely sturdy (steel and welded construction) and has been designed to fit the needs of power, audio, video, telecommunications, and data applications.

Note: When this box is used on grade, it should be encased in concrete to prevent contact with the grade. For grade applications, use the FL-GRD2/4 pour pan as a foundation before box installation.

This high quality FL-700 Black Sandtex Cover has our unique tool-less lift off door.

The lift-off section of the cover allows full access to internal cables and connector plates while a smaller, hinged trapdoor flips back to create a cable exit. All cables can be stored within the box when they are not in use, allowing unencumbered travel in the area.

The sturdy 11 gauge steel cover is installed flush with the floor. The low profile edging is 1/4” high and when the box is not in use, only the elegant, hand mitered carpet edge is visible.

BABAA Compliance

FSR floor, ceiling, table, wall box, and Smart-Way raceway products are Build America Buy America Act (BABAA) compliant. Look for this logo on our website:

TAA Compliance

FSR floor box products meet TAA and BABAA requirements.

*Compliance by model may vary over time due to changes in legislation and/or manufacturing plan. Be sure to ask for certification at the time of order.
