VGA and Stereo Audio Switcher SN-4100


DISCONTINUED The SN-4100 series switcher is a 4 input to 1 output high resolution VGA switcher. The ‘A’ models include balanced stereo audio switching with audio following video. The SN-4100 is ideally suited for stand alone use or as an upstream switcher for a stand alone scaler such as the FSR M ...Read more
sn-4100- high res 4x1 rgbhv (hd-15) switcher contact interface


  • Description
  • Specifications

DISCONTINUED

The SN-4100 series switcher is a 4 input to 1 output high resolution VGA switcher. The ‘A’ models include balanced stereo audio switching with audio following video.

The SN-4100 is ideally suited for stand alone use or as an upstream switcher for a stand alone scaler such as the FSR MAS-3100 or a scaling switcher such as the FSR Compass, Compass S2 or Omni Navigator. The SN- 4100 could also be used to route 4 high resolution signals to a down converter such as the FSR MDC-MK1.

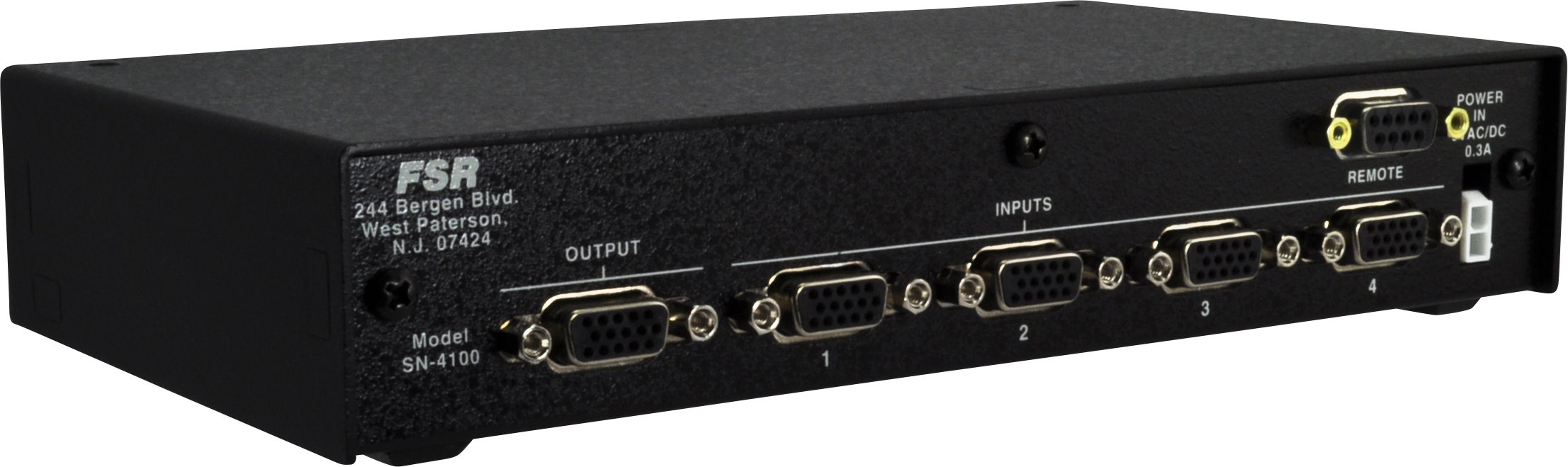

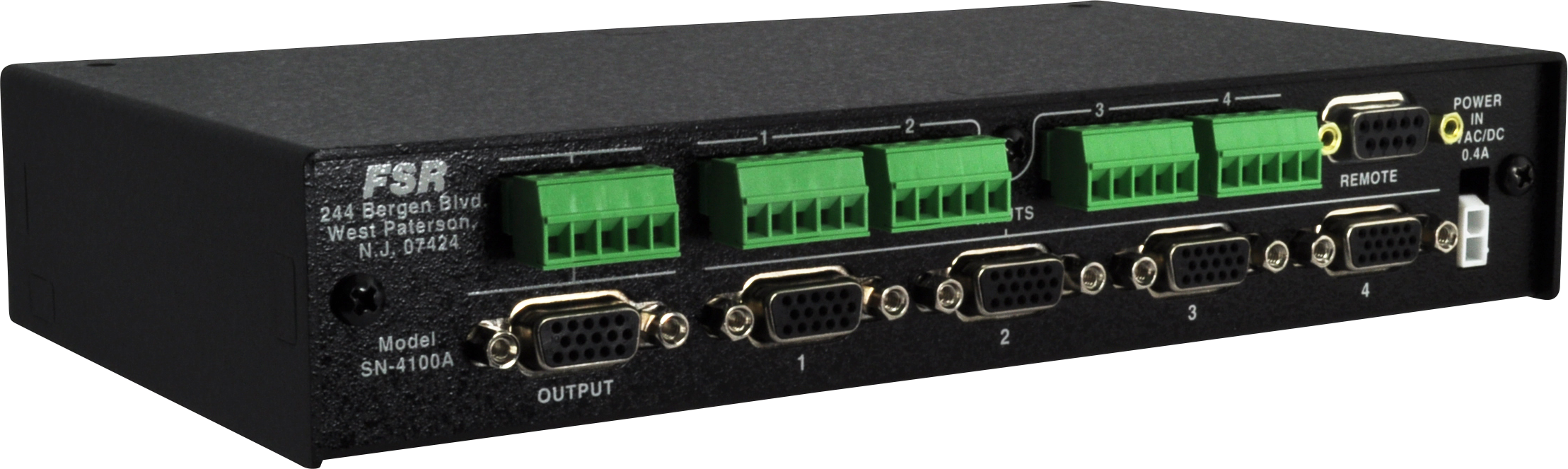

At 1 RU in height, and 1/2 rack wide, the SN-4100 is easy to install and does not require an excessive amount of space. All connections are on the back of the unit using HD-15’s for VGA and 5 position pluggable Phoenix connectors for stereo balanced audio.

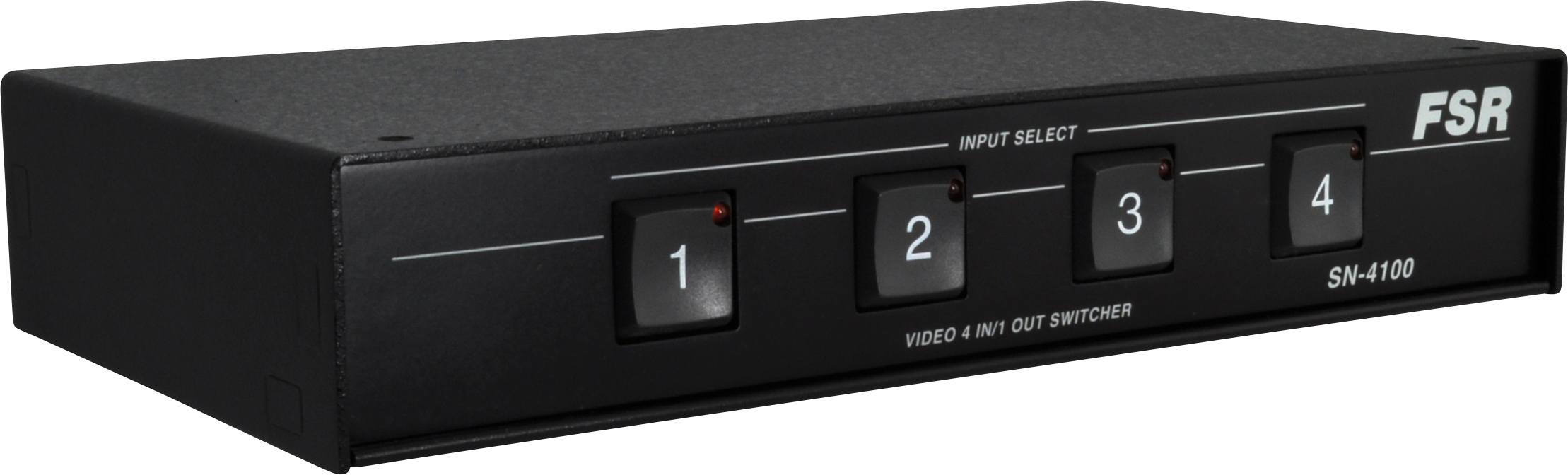

Control of the SN-4100 is available on the front panel through 4, large, easy to see push buttons with an LED that illuminates for the selected input. The SN-4100 also provides a contact closure interface, with lamp feedback, for remote control or to interface to an AMX or Crestron system.
As with all FSR products, the SN-4100 includes all of the necessary accessories for use and installation. The SN-4100 ships with a power supply, manual and a full width rack mount kit with removable blank.

High Res 4x1 RGBHV (HD-15) Switcher Contact Interface
