DISCONTINUED

The HD-HPCWP-Tx 100 Meter HDBaseT HDMI and VGA auto-switching Wall Plate Transmitter. This 2-gang Decora style wall plate is a true HDBaseT 5-Play device that transmits HD Video (up to 4k UHD.), Audio, Bi-Directional Control ( IR & RS-232), Ethernet (100base-T), and POH (Power over HDBaseT™) via 1 CAT-6A shielded cable out to 100 meters.

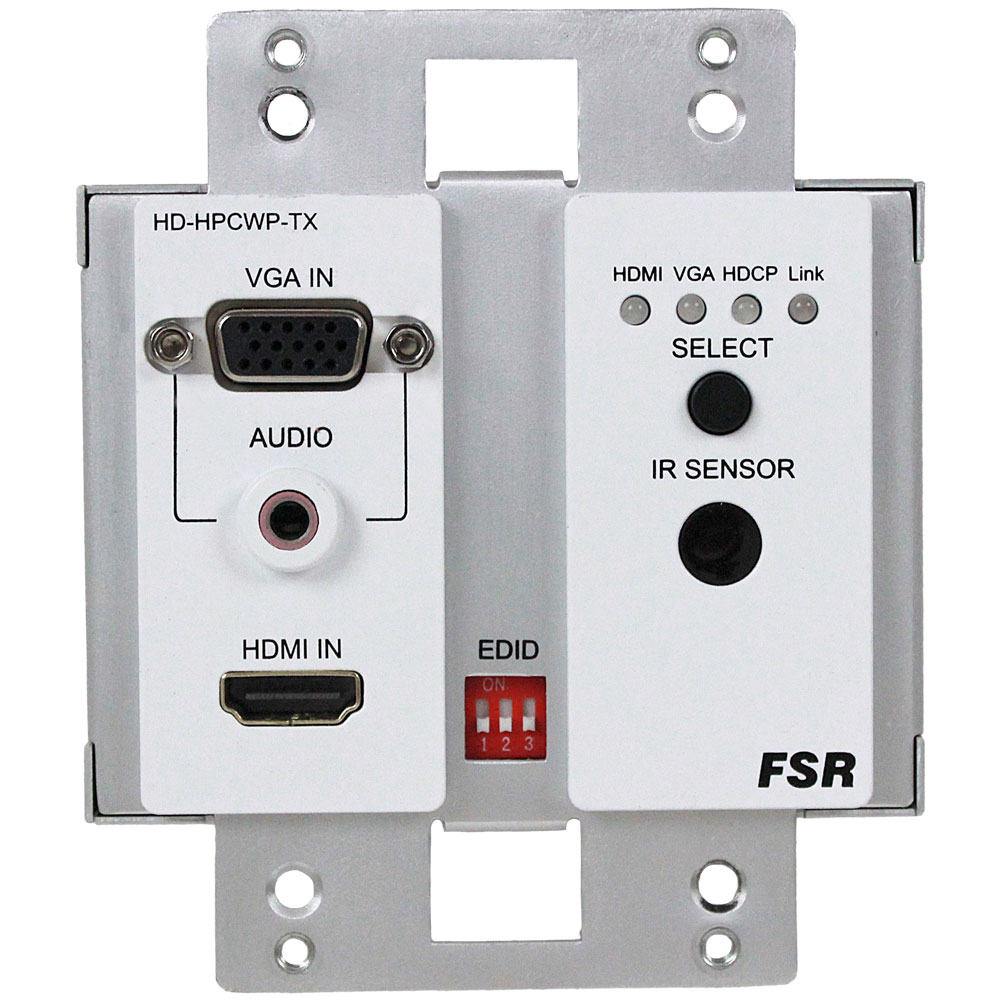

On the front of the wall plate it has an HDMI in & VGA Video In ( HD-15 Female) with Audio In ( 1/8" Mini Jack), IR Reader Window, and input selector button. The HD-HPCWP-Tx is designed to work with any of FSR's 100 Meter HDBaseT receivers and is powered from them as well. It must be used with our USB compatible receivers in order to use the USB functions.

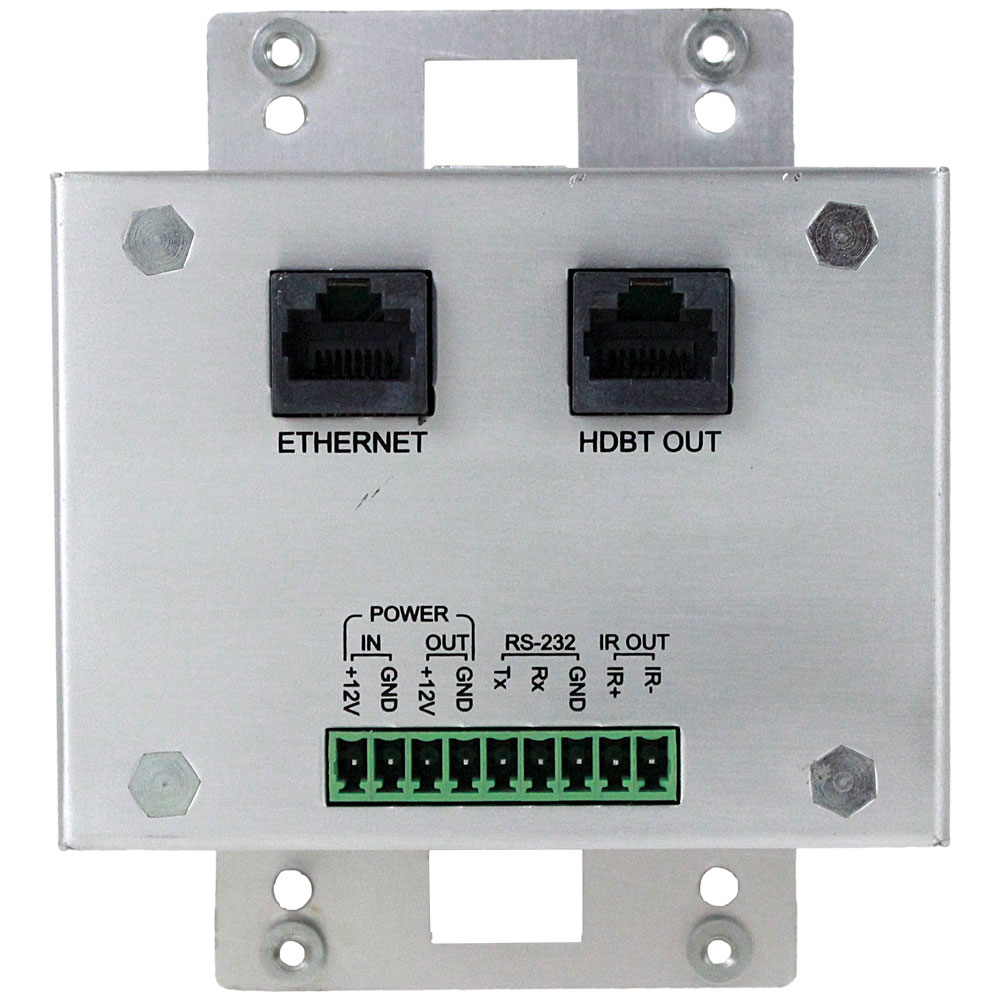

The rear of the wall plate contains Ethernet and HDBaseT RJ-45 Ports as well as captive screw terminals for IR-Out, RS-232, and +12v In&Out. The Ethernet and +12v Out have been designed to be used with FSR's FLEX LT-200 3.5" Color Touch Panel with integrated control system which can communicate back to your rack along with video, audio, and power all over 1 CAT-6A Shielded Cable up to 100m.

HDBaseT Class A Solutions Video
