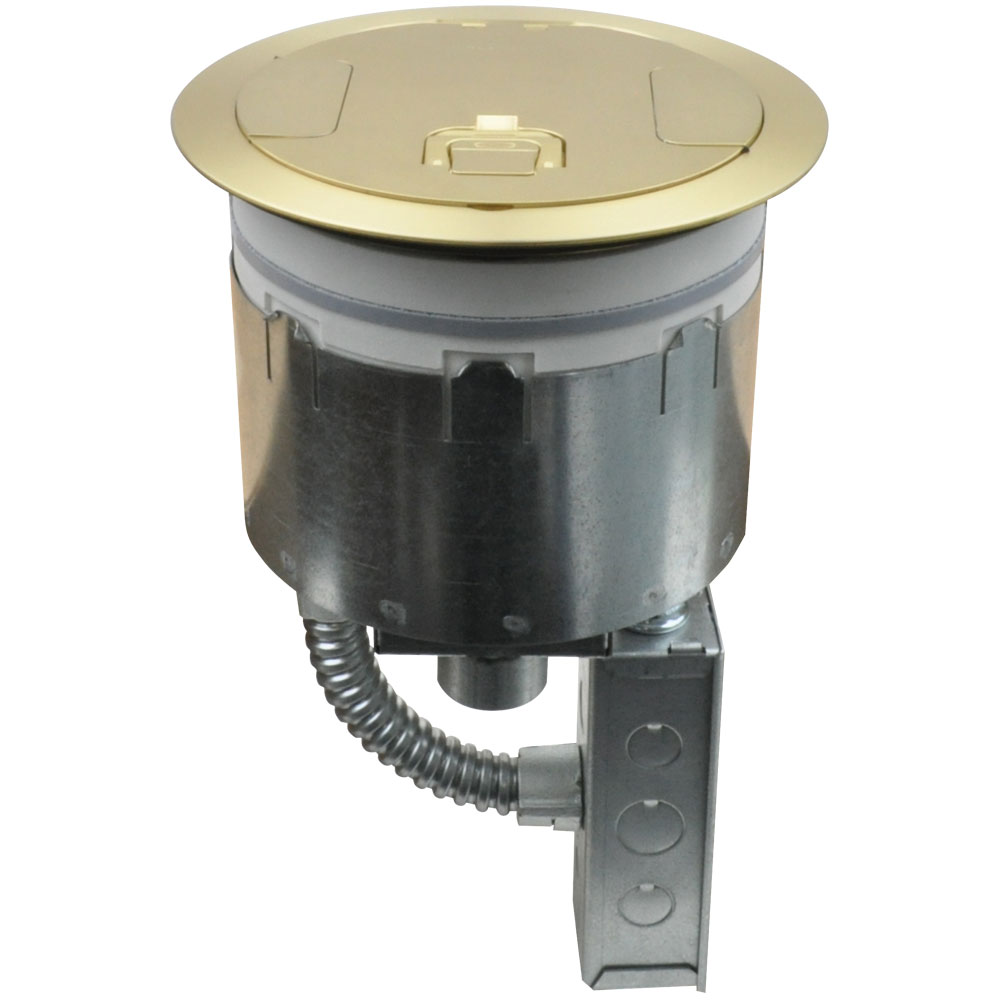

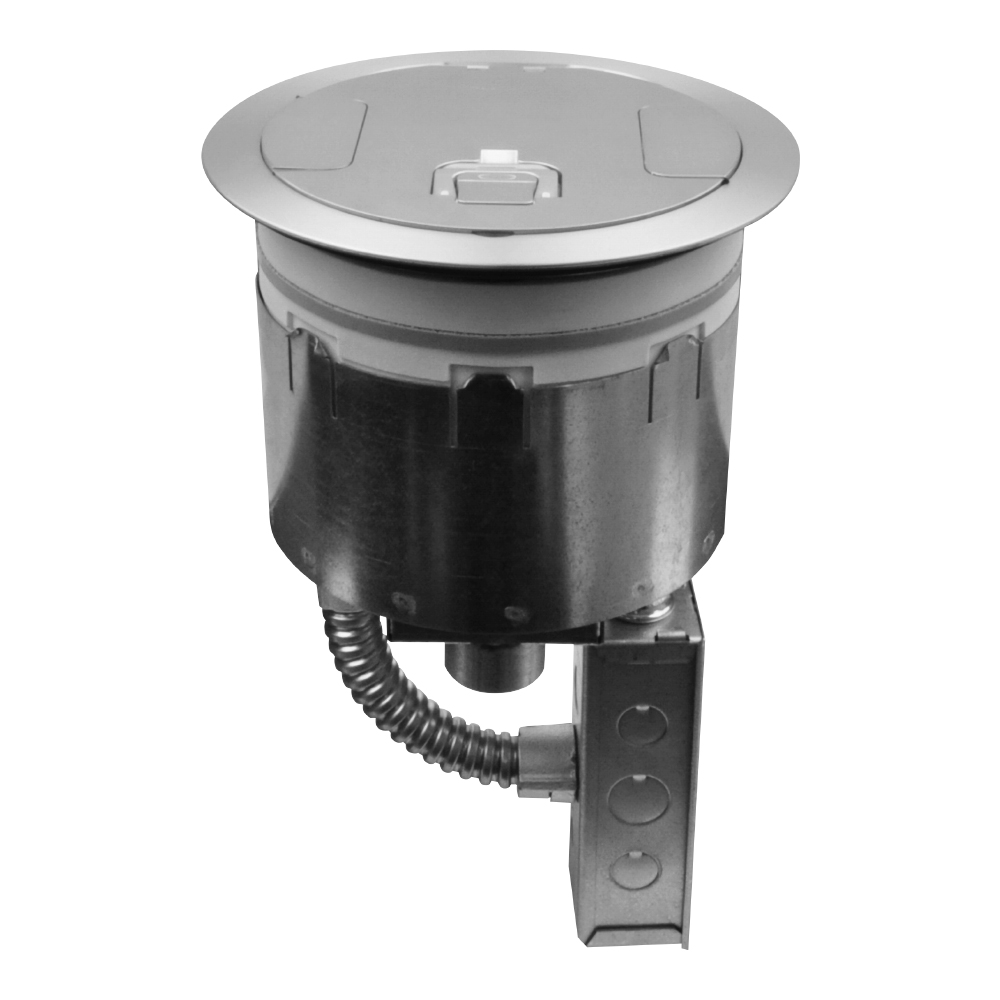

8" Fire Rated Poke Thru Complete Box: SF8-CPT-JNC3-ALM SmartFit-8-Completed_768

Let us help you design your box with our SmartFit Designer.

FSR's SmartFit 8" Fire Rated Poke Thru Complete Box gives installers a complete 8" fire-rated floor box solution with selected box, cover, and connection configurations. Designed for larger power, data, and AV requirements, the system supports device-mounting sub-plates, includes a power wiring junction box, provides a 2-hour fire rating, and uses an ADA-compliant 0.15" flange. The cover opens 180°, smaller cable access doors reduce trip hazards, and the cover is rated for 1000 lb. with a 2x safety factor.

A complete line of sub-plates for device mounting is available to populate the interior middle and end areas of the housing.

Specifications:

• 2-hour fire rating
• 180° access door opening
• Flange height 0.15" and complies with ADA requirements
• Power wiring junction box included
• Complies with UL514A for scrub water test
• 1000lb. cover load rating with 2x safety factor
• ULC and cULus

Features:

• Drop down cable access doors reduce trip hazard
• Pre-pour tubes remove the need for core hole drilling
• Sub-plates accept IPS Plates and third party devices
• NEMA WD6 Device spacing

**BABAA and TAA compliance by model, which may vary over time due to changes in legislation and/or manufacturing plans. Be sure to ask for certification at the time of order.
