Digital/Analog Auto Switching CAT-X Transmitter DV-WPXT-1


DISCONTINUED The DV-WPXT-1Tx wall plate transmitter allows one VGA and one DVI-D/HDMI high quality digital media input to be connected at a distance of up to 150 ft. from a receiver using a single, un-shielded Cat6 network cable. The unit switches automatically to a live video source, operates manu ...Read more
17404_dv_wpxt_1ctx_wht_front
17404_dv_wpxt_1ctx_wht_front17404_dv_wpxt_1ctx_wht_back


  • Description
  • Specifications

DISCONTINUED

The DV-WPXT-1Tx wall plate transmitter allows one VGA and one DVI-D/HDMI high quality digital media input to be connected at a distance of up to 150 ft. from a receiver using a single, un-shielded Cat6 network cable. The unit switches automatically to a live video source, operates manually via a push button on the wall plate face or via RS-232 control.

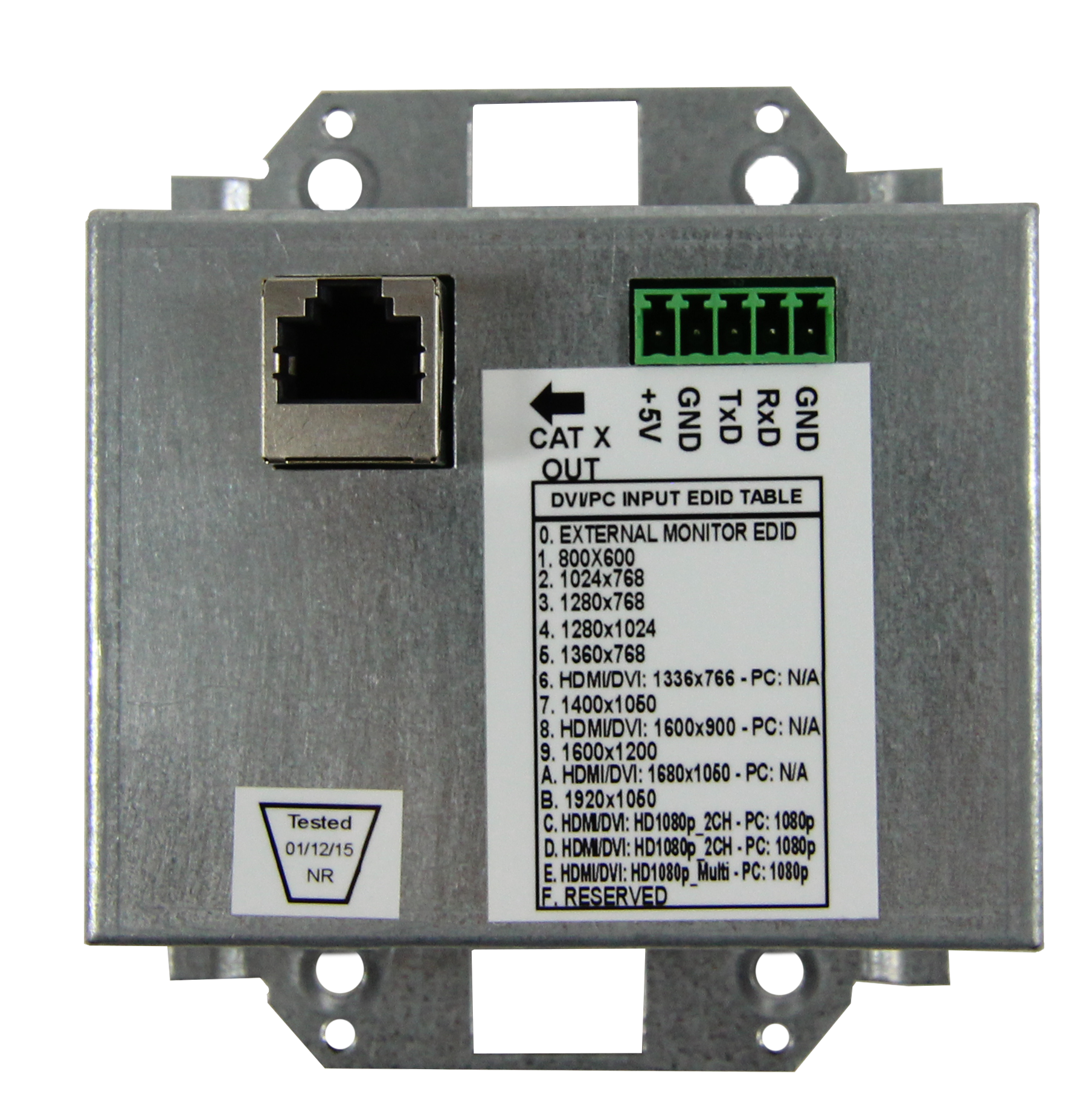

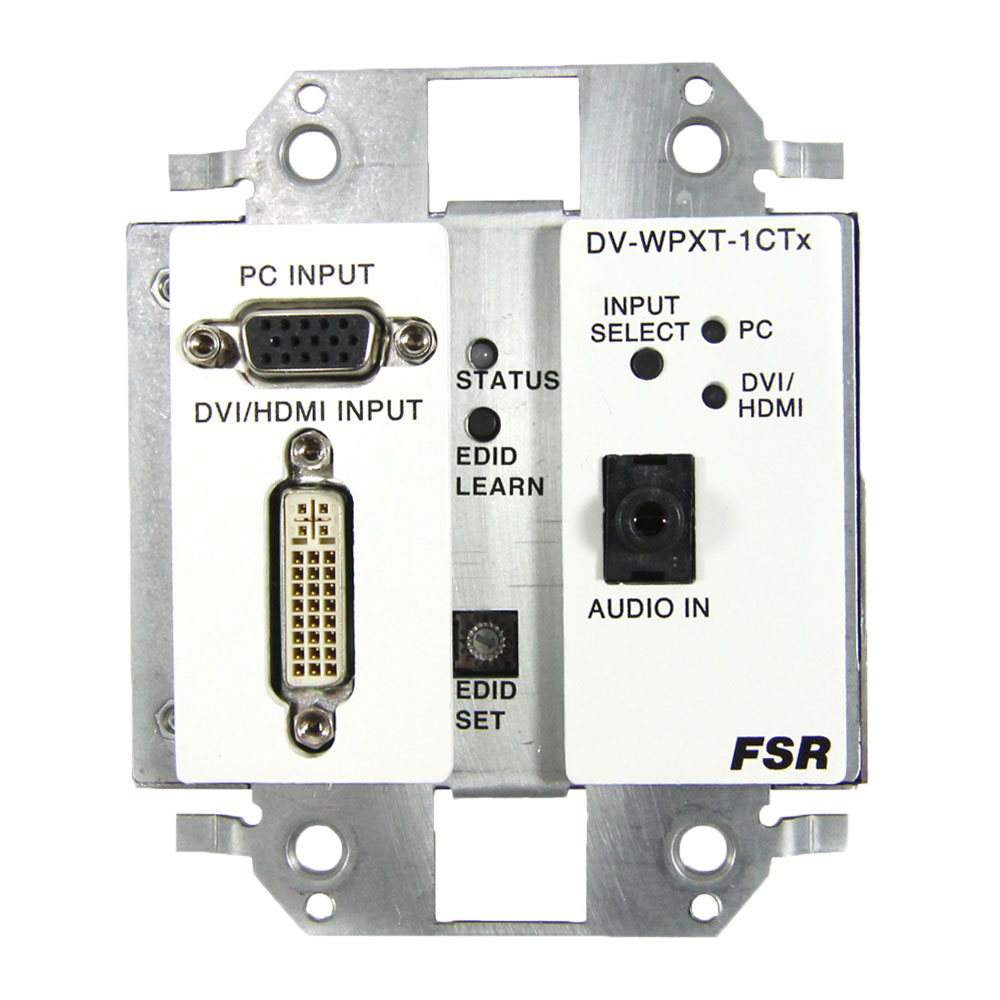

The attractive white wall plate front panel connections include an HD-15 connector, a DVI-D connector and a 3.5mm stereo mini plug. The rear surface hosts an RJ45 output connector and a captive-screw connector for power and RS-232 communication.

The DV-WPXT-1Tx is compatible with FSR's DV-HXT-1Rx CAT-x Receiver and is available as a kit. The transmitter units can be ordered separately when using them in conjunction with FSR's DV-MFSW-94 Presentation Matrix Router.

The DV-WPXT-1Tx is packed with features and combines auto-switching, user control, RS-232 control and superb AV signal transmission in a compact 2-gang wall plate.

DV-WPXT-1(spec_img)

Key Features:

  • Automatically or manually switches to the live video source
  • Allows front panel switching or remote switching via RS-232 control
  • Accepts both analog VGA sources and digital DVI-D/HDMI sources
  • HDCP compliant
  • Convenient wall plate or panel mounting design

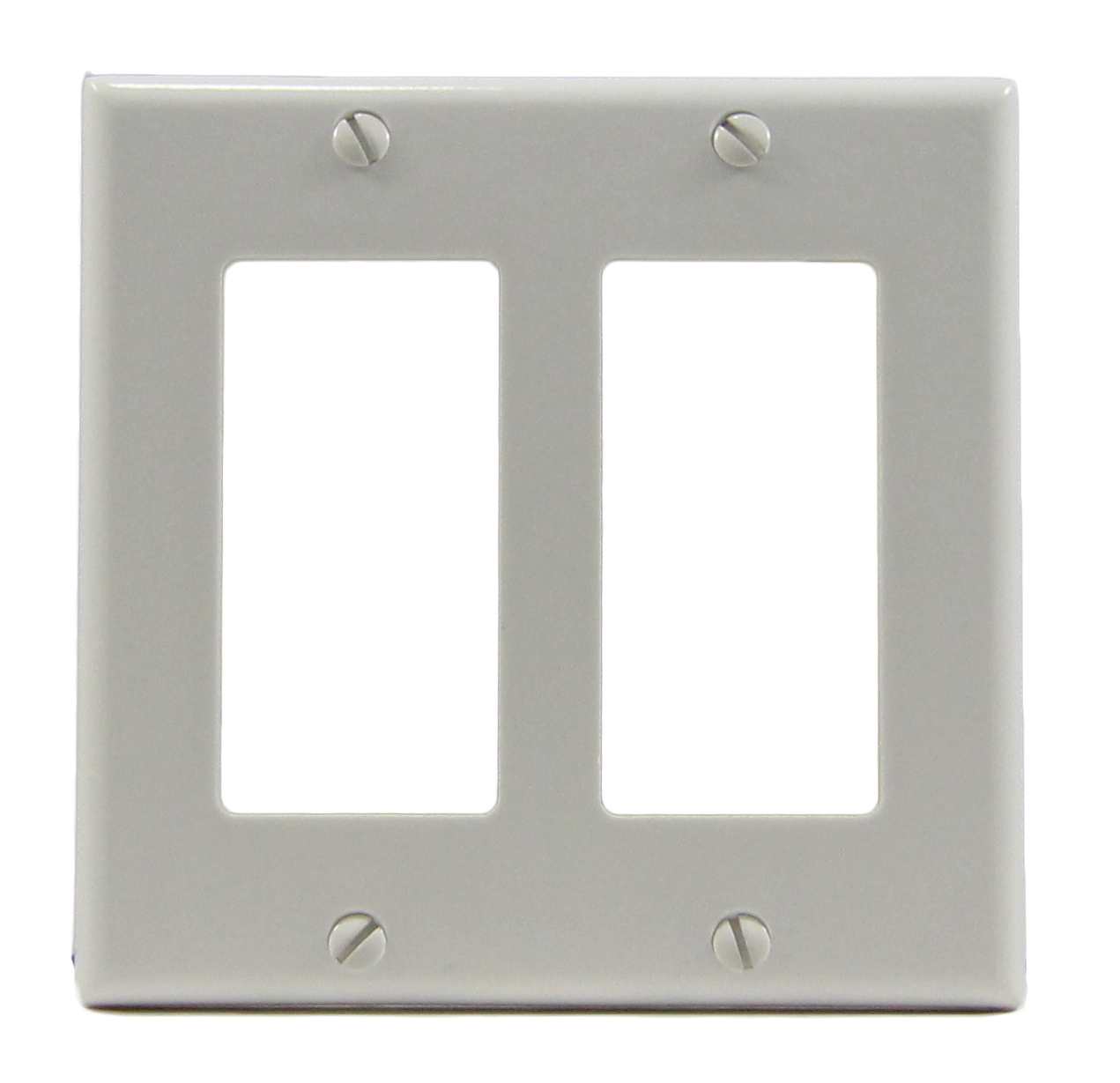

  • Designed to fit in a 2-gang electrical box

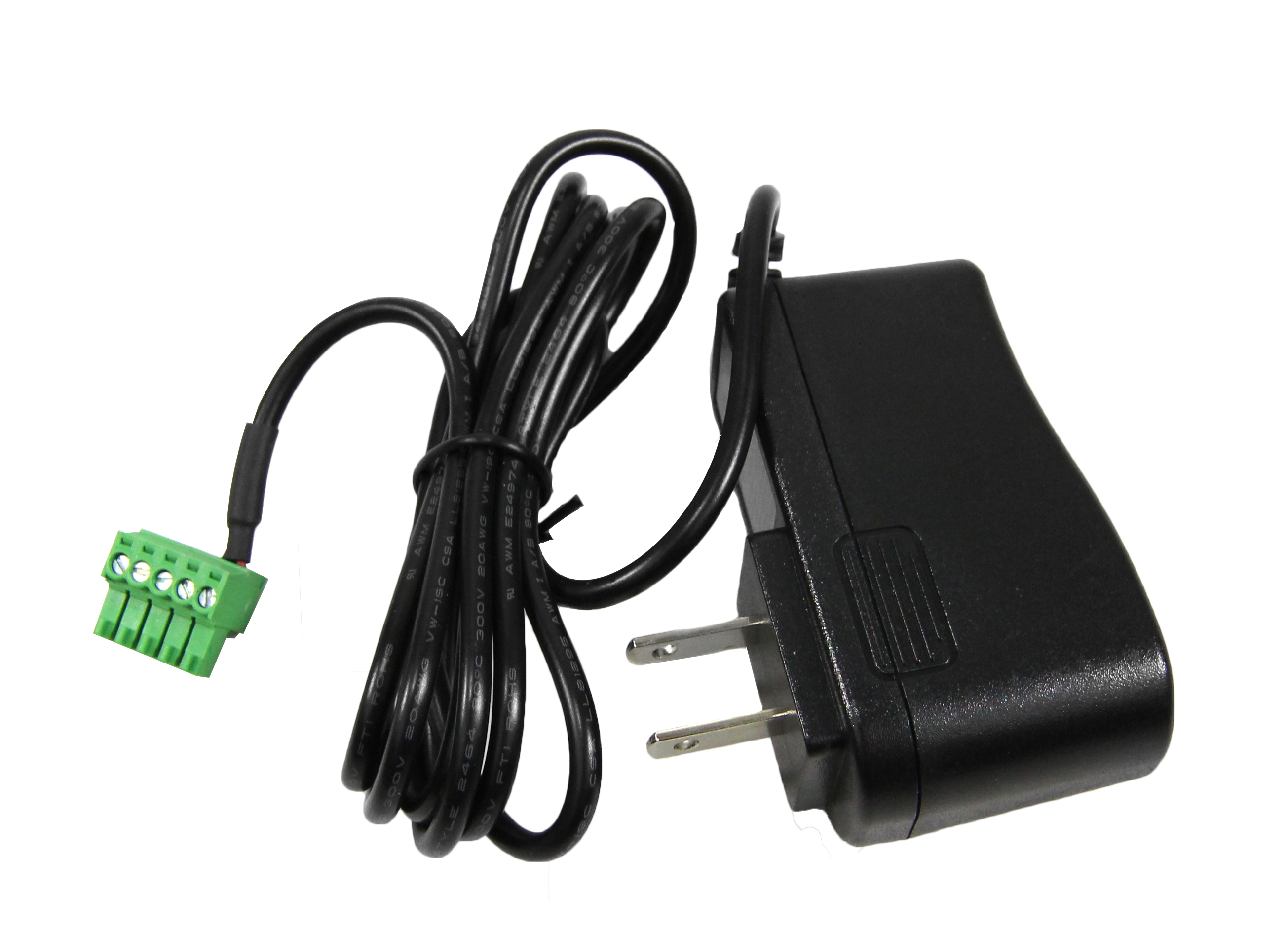

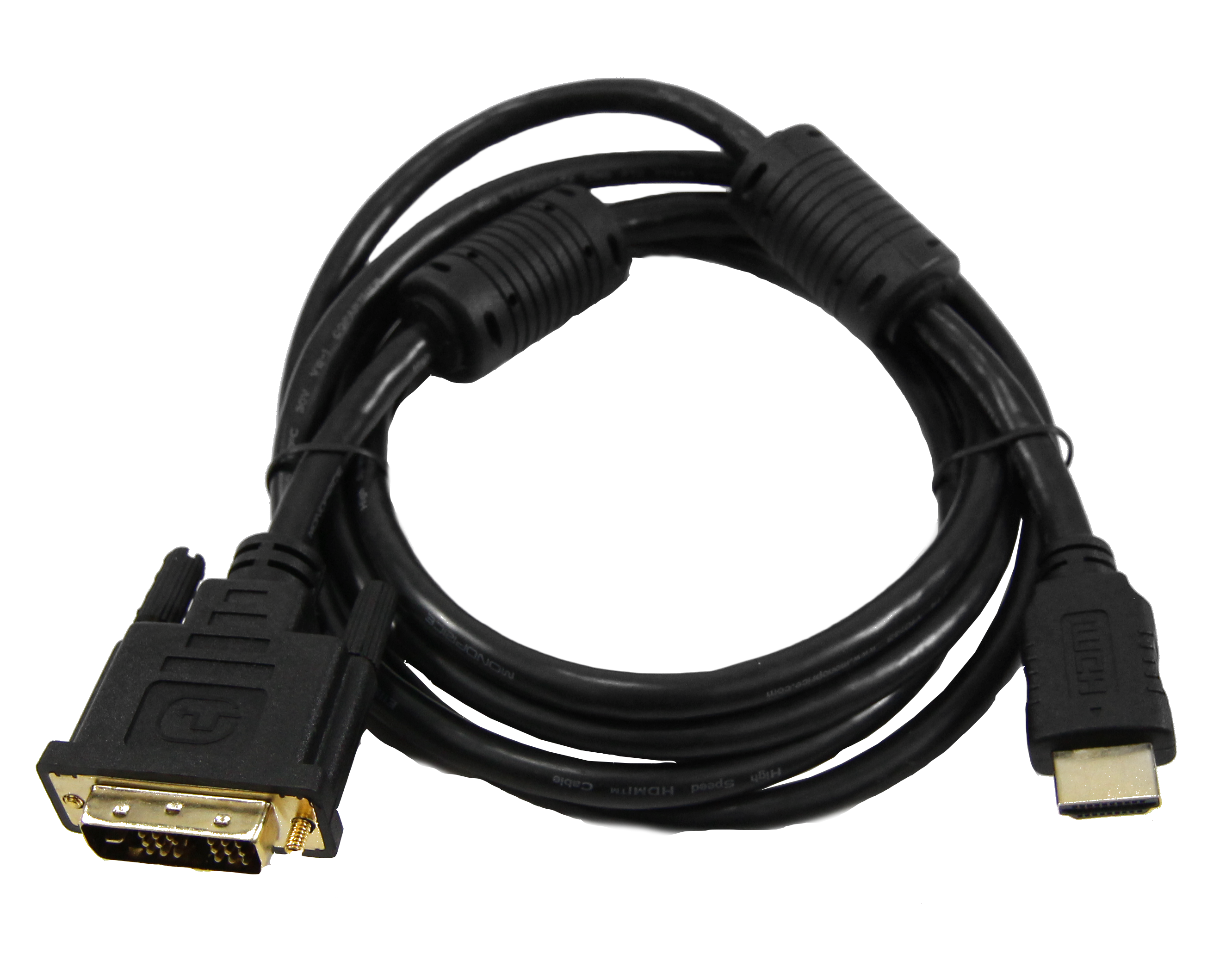

  • Power supply and 6' DVI-D to HDMI cable included

See data sheet below for further information.

Applications:

  • Video Wall System
  • Large LED Sign Board
  • Medical Imaging Equipment
  • TV Broadcast Station
  • Auditorium
  • Conference Room
  • Church Video System
