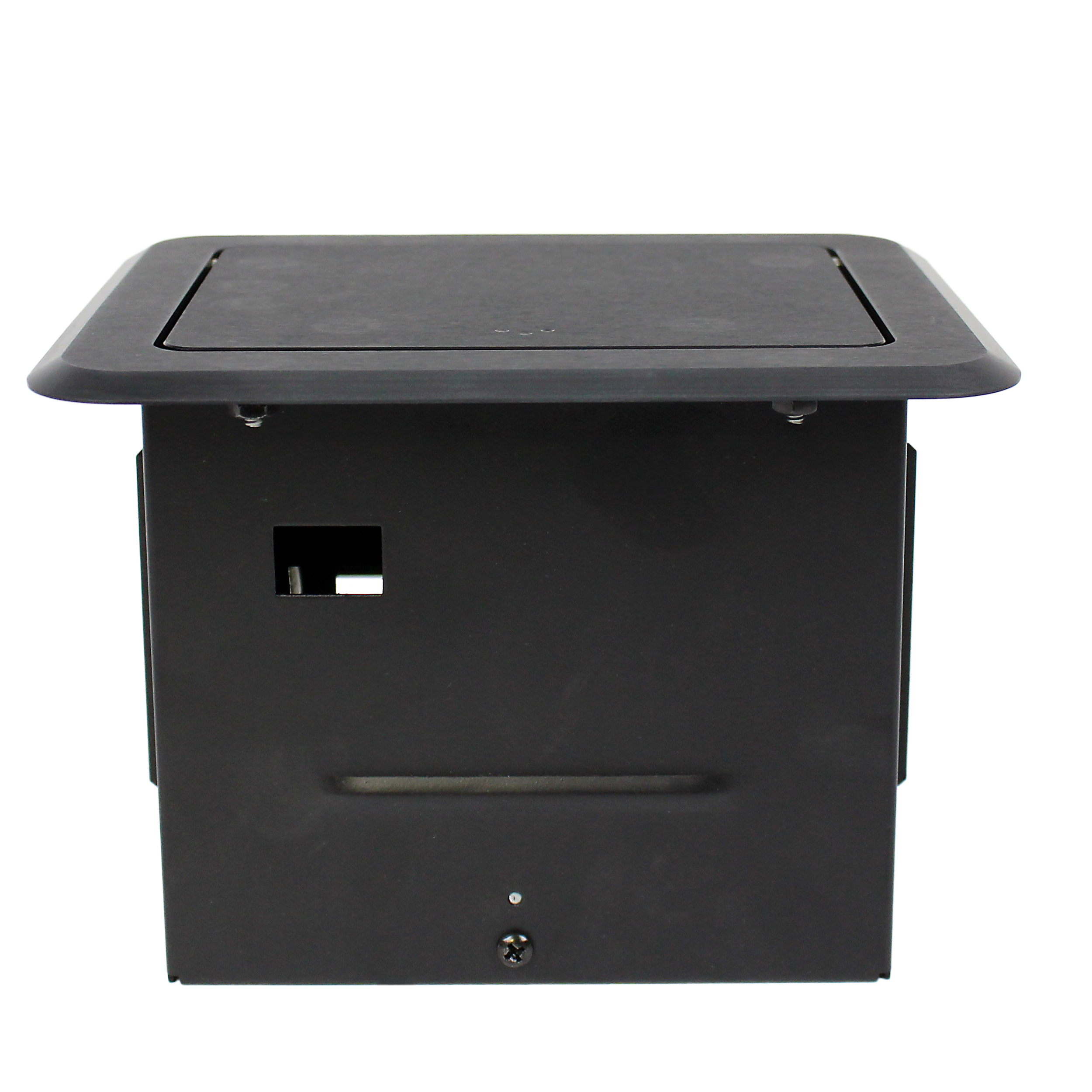

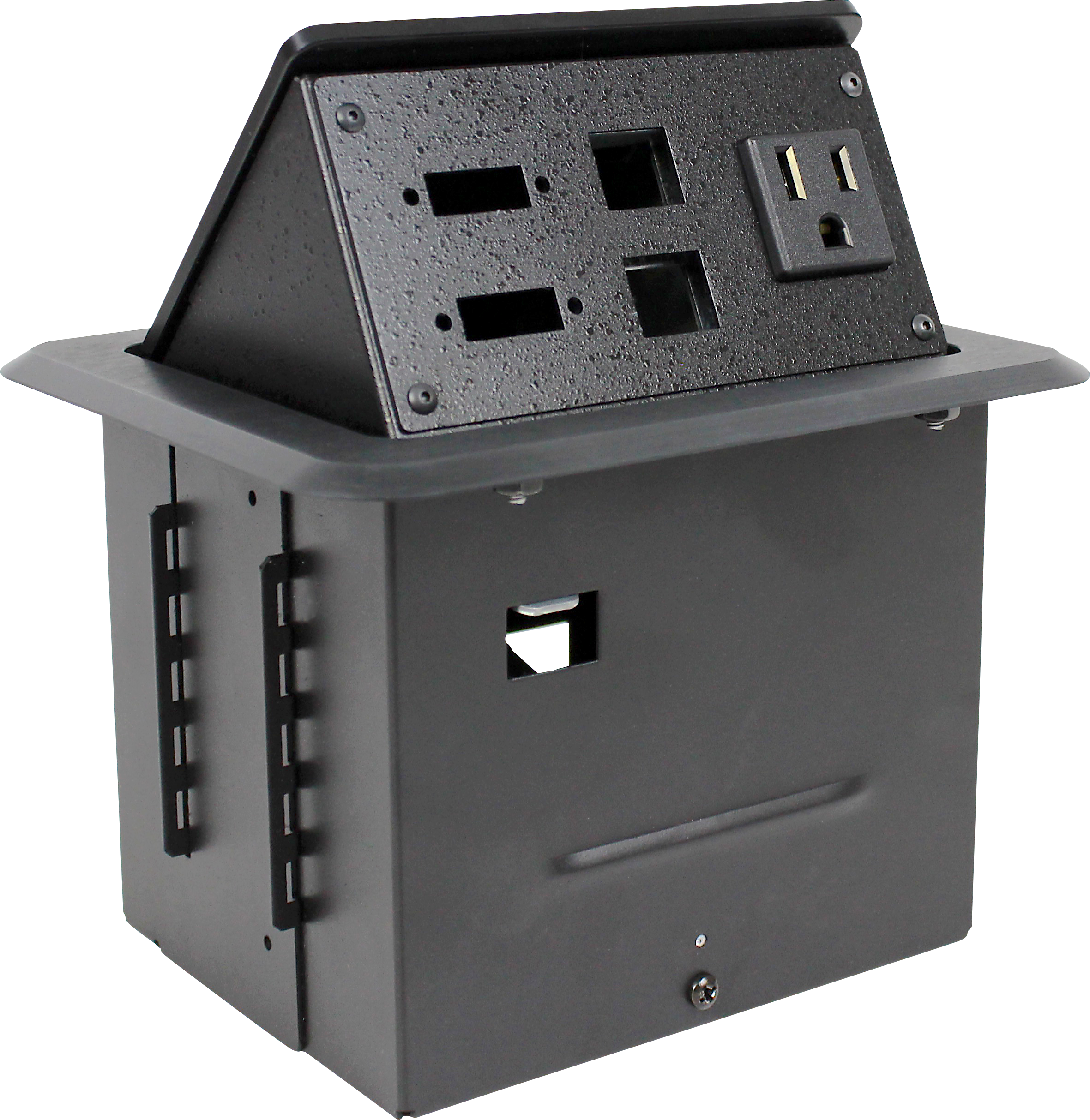

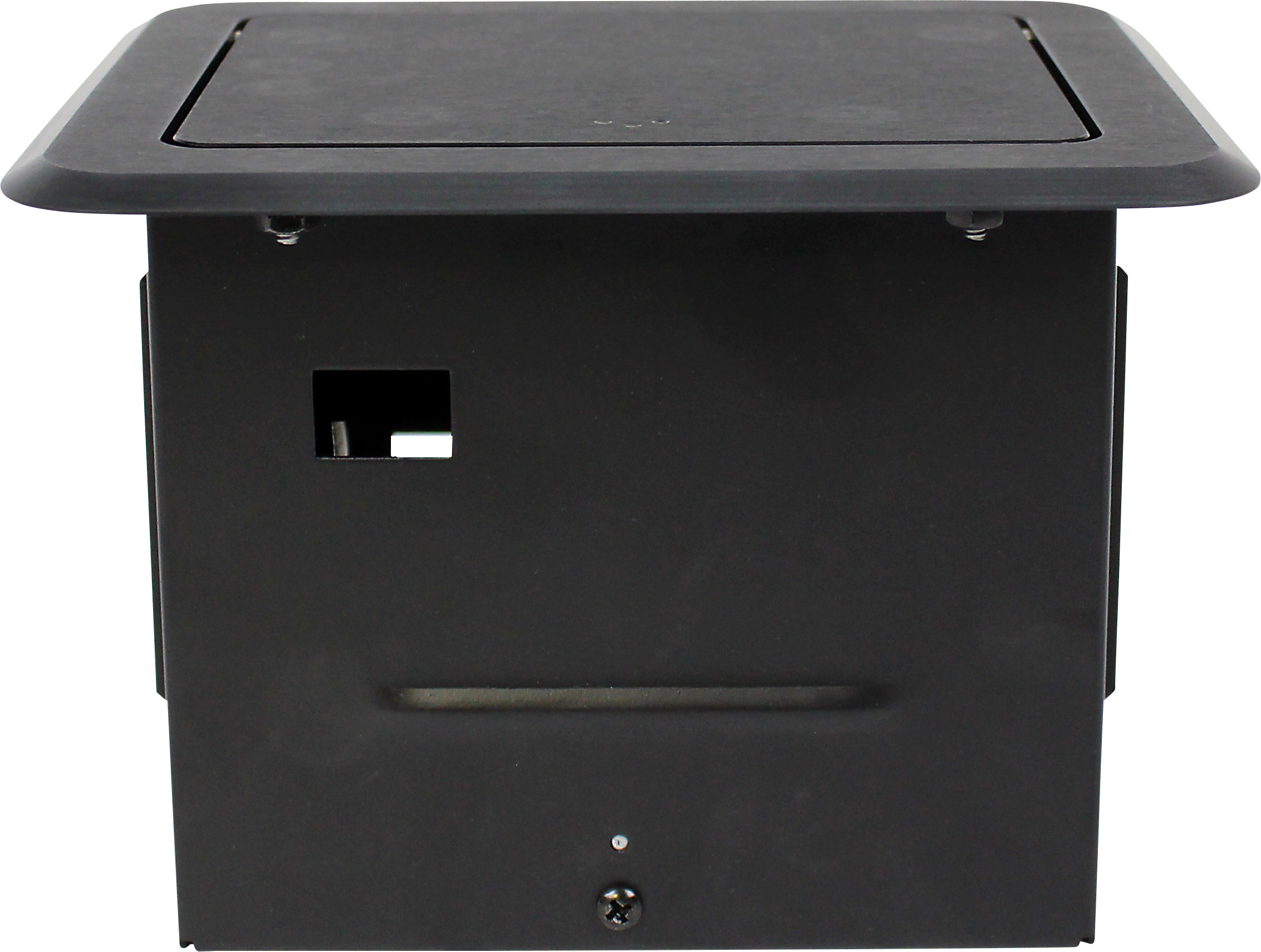

The TB-AVAC serve the needs of a single user at a desk, workstation, huddle area, common area or even multiple locations within a boardroom table. The tilt-up design provides a clean and attractive appearance when the cover is closed, while providing access to the most needed connections when the cover is open. In the open position, the connectors will be at approximately a 35° angle from vertical. This is to accommodate a seated person at the table, with the box being 22” from the edge of the table.

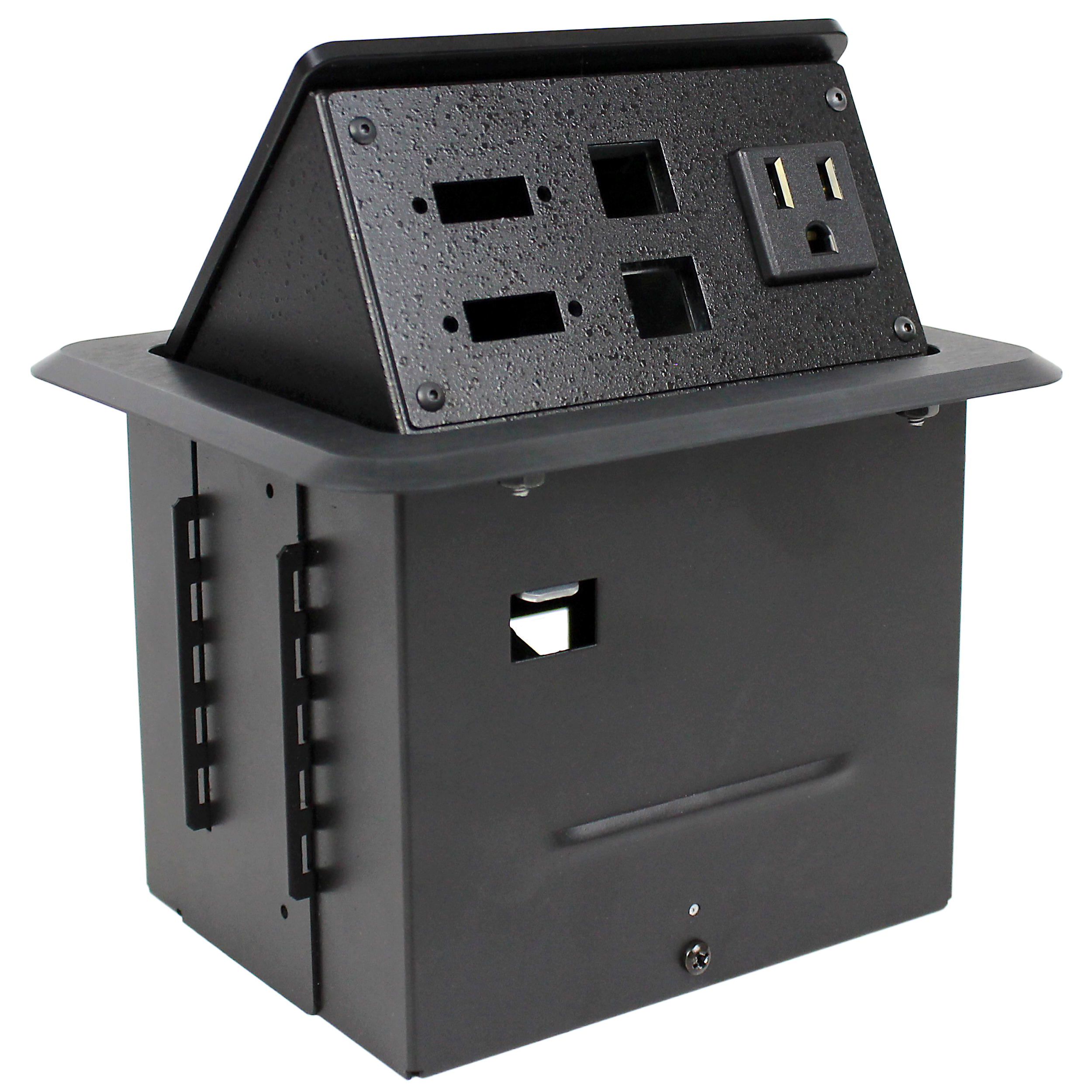

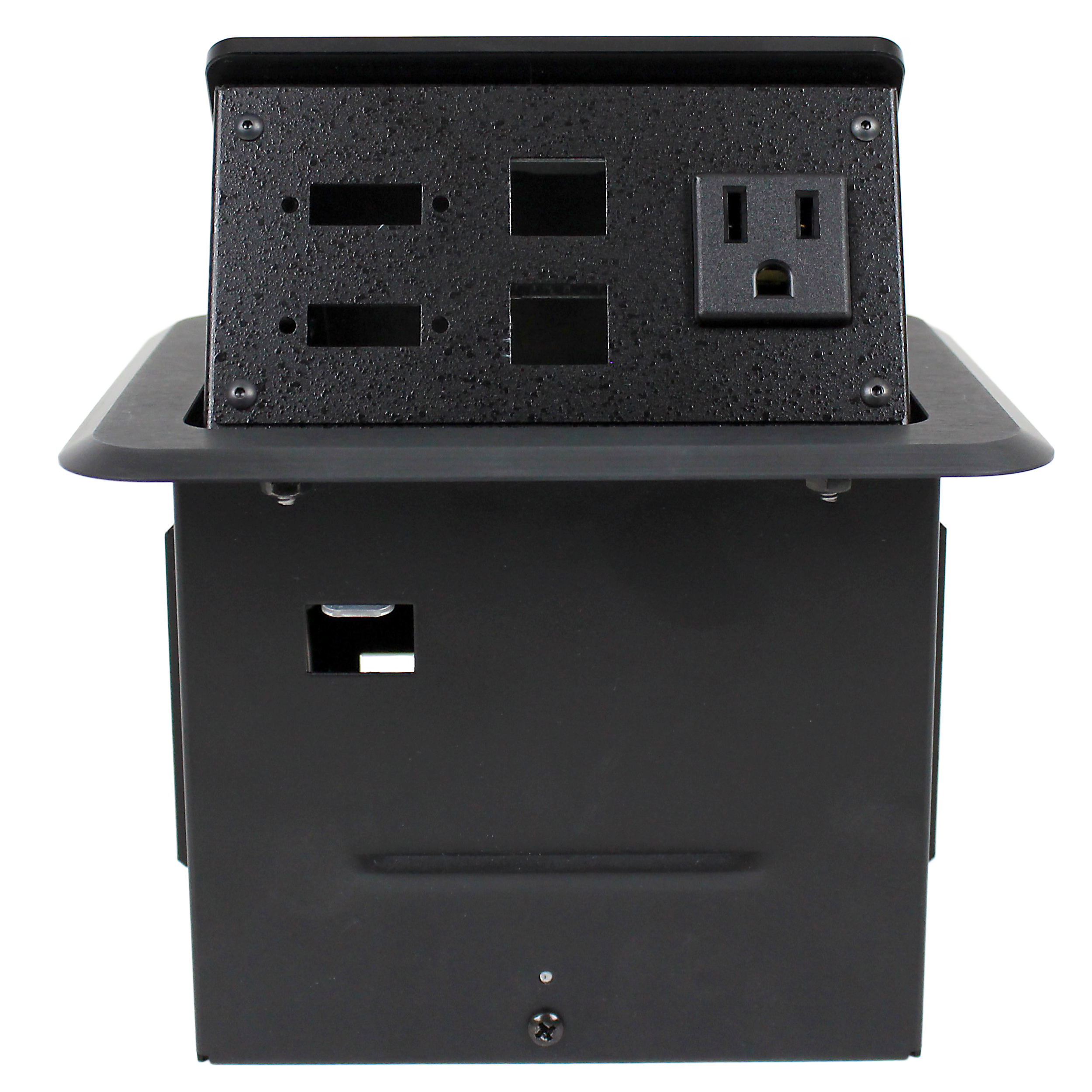

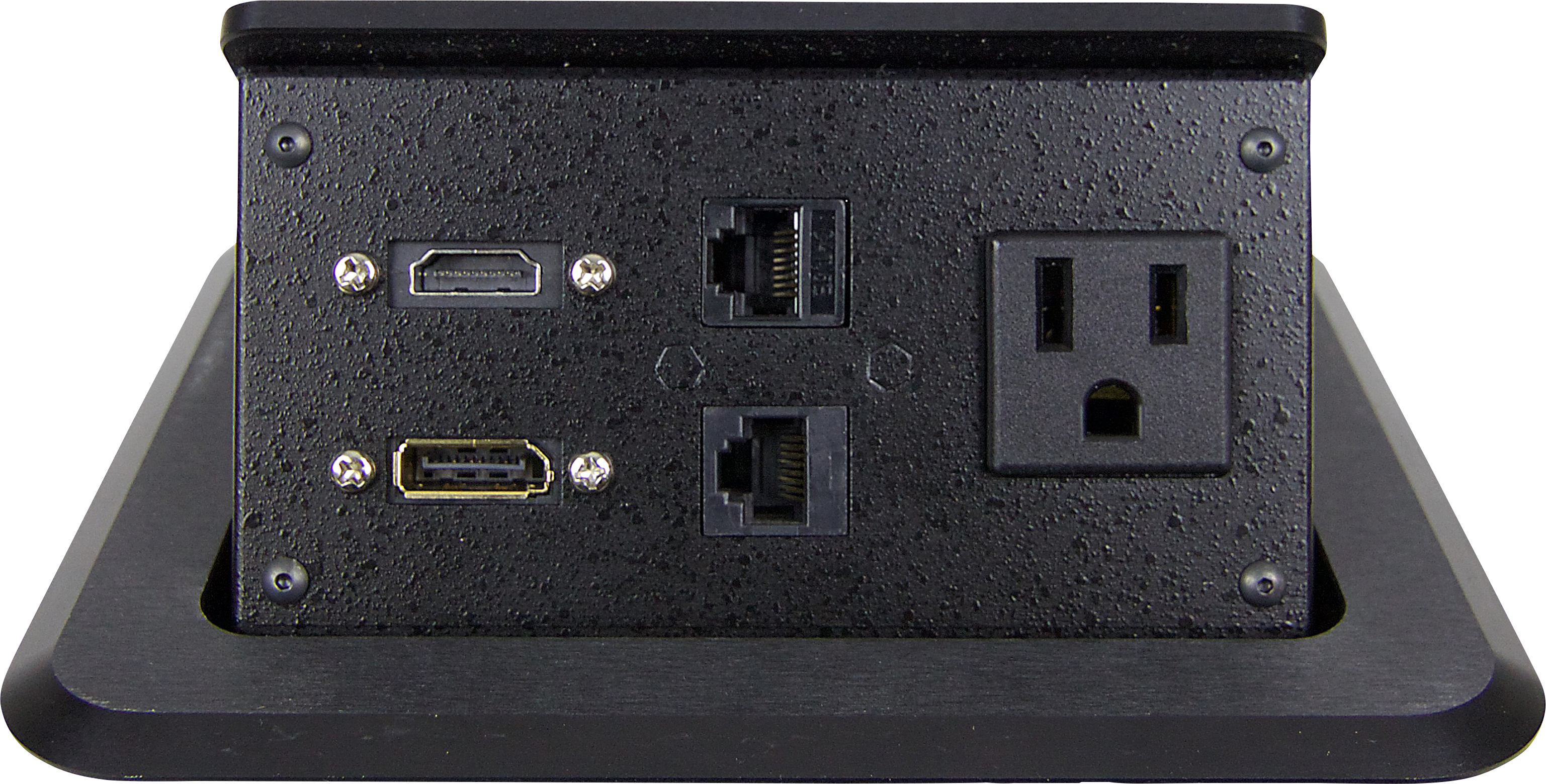

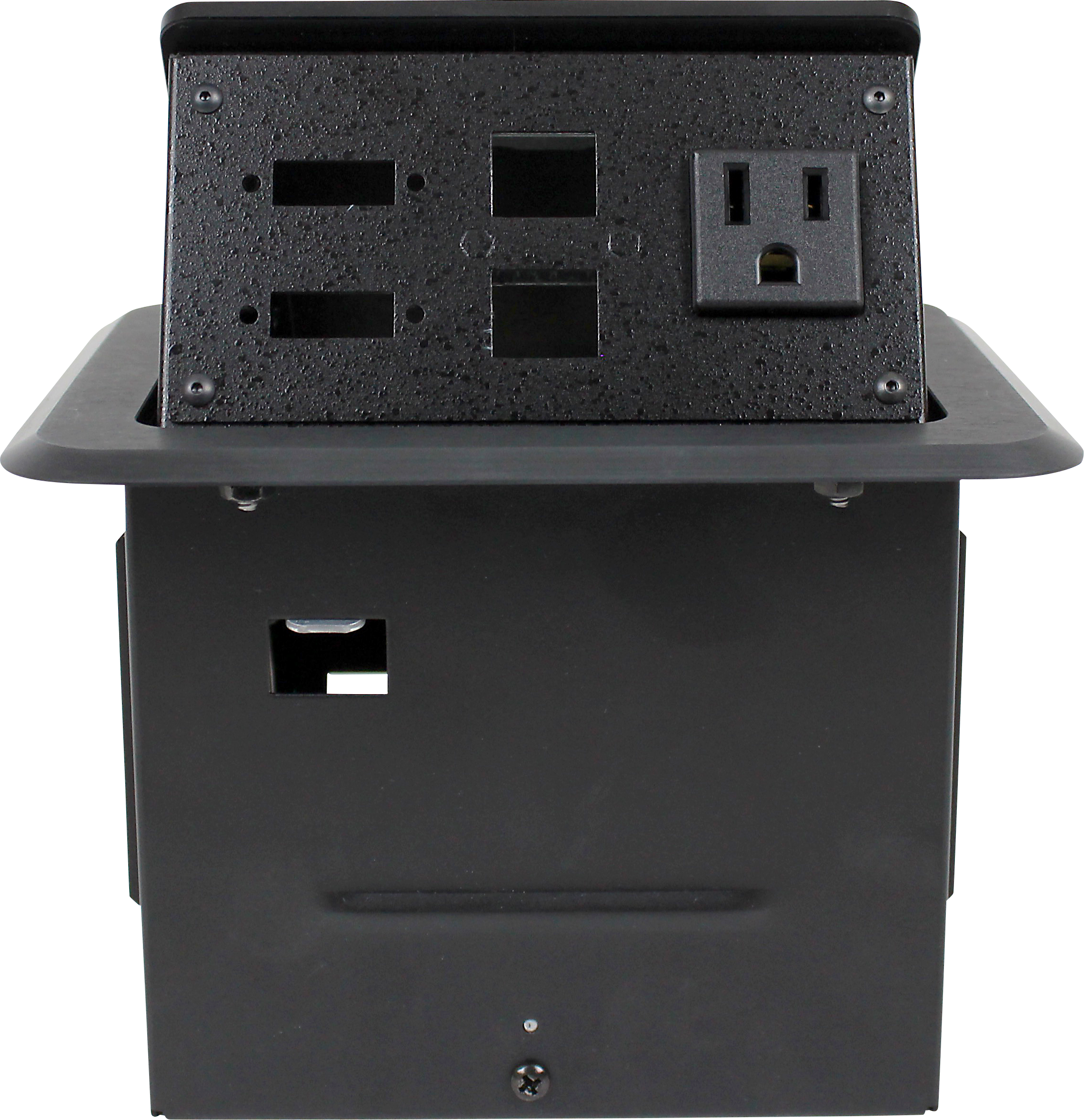

The TB-AVAC table box is designed for AV/IT applications. The box has one integrated UL-Rated AC receptacle and ships with two different connector plates. The first plate is pre-punched to accept two panel-mount HDMI or DisplayPort connectors as well as two keystone connectors. The second plate is pre-punched to accept one panel-mount HDMI or DisplayPort connector, one HD-15 connector and two keystone connectors. Our full line of Simple Solutions (SS) keystone snap-in connectors as well as panel mount HDMI & DisplayPort cables (dongles) can be ordered with the TB-AVAC.
Features:
• Can be mounted in a wide variety of tables with thicknesses ranging from .75” to 2.25” • Connector plates can be populated to match the specific application and customer needs • Both models are ETL listed for furniture installation • 9’ power cord with a standard 3 prong Edison plug • TB-AVAC keystone openings can use FSR’s SS-USB-CHRG snap-in USB Chargers • Can be reconfigured at any time • Available in Black Anodized finish • Two Keystone blanks and one 3.5mm cable mount Keystone included with TB-AVAC model
Applications:
• Office Desks • Workstation • Hotel and Hospitality Common Spaces • Boardrooms • Classrooms
• Conference Centers • Court Rooms • Huddle Areas • Lab Tables • Control Consoles
Choose your Box from the drop down
Small Audio Visual Box: Select One...
TB-AVAC_1109
DISCONTINUED
The TB-AVAC serve the needs of a single user at a desk, workstation, huddle area, common area or even multiple locations within a boardroom table. The tilt-up design provides a clean and attractive appearance when the cover is closed, while providing access to the most needed connections when the cover is open. In the open position, the connectors will be at approximately a 35° angle from vertical. This is to accommodate a seated person at the table, with the box being 22” from the edge of the table.
The TB-AVAC table box is designed for AV/IT applications. The box has one integrated UL-Rated AC receptacle and ships with two different connector plates. The first plate is pre-punched to accept two panel-mount HDMI or DisplayPort connectors as well as two keystone connectors. The second plate is pre-punched to accept one panel-mount HDMI or DisplayPort connector, one HD-15 connector and two keystone connectors. Our full line of Simple Solutions (SS) keystone snap-in connectors as well as panel mount HDMI & DisplayPort cables (dongles) can be ordered with the TB-AVAC.
Features:
• Can be mounted in a wide variety of tables with thicknesses ranging from .75” to 2.25” • Connector plates can be populated to match the specific application and customer needs • Both models are ETL listed for furniture installation • 9’ power cord with a standard 3 prong Edison plug • TB-AVAC keystone openings can use FSR’s SS-USB-CHRG snap-in USB Chargers • Can be reconfigured at any time • Available in Black Anodized finish • Two Keystone blanks and one 3.5mm cable mount Keystone included with TB-AVAC model
Applications:
• Office Desks • Workstation • Hotel and Hospitality Common Spaces • Boardrooms • Classrooms
• Conference Centers • Court Rooms • Huddle Areas • Lab Tables • Control Consoles
Choose your Box from the drop down
Small Audio Visual Box: TB-AVAC-BLK
TB-AVAC_1017
DISCONTINUED
The TB-AVAC serve the needs of a single user at a desk, workstation, huddle area, common area or even multiple locations within a boardroom table. The tilt-up design provides a clean and attractive appearance when the cover is closed, while providing access to the most needed connections when the cover is open. In the open position, the connectors will be at approximately a 35° angle from vertical. This is to accommodate a seated person at the table, with the box being 22” from the edge of the table.
The TB-AVAC table box is designed for AV/IT applications. The box has one integrated UL-Rated AC receptacle and ships with two different connector plates. The first plate is pre-punched to accept two panel-mount HDMI or DisplayPort connectors as well as two keystone connectors. The second plate is pre-punched to accept one panel-mount HDMI or DisplayPort connector, one HD-15 connector and two keystone connectors. Our full line of Simple Solutions (SS) keystone snap-in connectors as well as panel mount HDMI & DisplayPort cables (dongles) can be ordered with the TB-AVAC.
Features:
• Can be mounted in a wide variety of tables with thicknesses ranging from .75” to 2.25” • Connector plates can be populated to match the specific application and customer needs • Both models are ETL listed for furniture installation • 9’ power cord with a standard 3 prong Edison plug • TB-AVAC keystone openings can use FSR’s SS-USB-CHRG snap-in USB Chargers • Can be reconfigured at any time • Available in Black Anodized finish • Two Keystone blanks and one 3.5mm cable mount Keystone included with TB-AVAC model
Applications:
• Office Desks • Workstation • Hotel and Hospitality Common Spaces • Boardrooms • Classrooms
• Conference Centers • Court Rooms • Huddle Areas • Lab Tables • Control Consoles
Small AV Table Box
Small Audio Visual Box: 6' HDMI Cable
TB-AVAC_1106
Cables for use with TB-AVAC TAable Box. Cable is a 6' Female HDMI Chassis Mount to Male.
HDMI F Chassis MNT to M 6FT
Small Audio Visual Box: 6' HD-15 Cable
TB-AVAC_1107
Cables for use with TB-AVAC Table Box. Cable is a 6' Female HD-15 Chassis Mount to Male.
HD-15 F Chassis MNT to M 6FT
Small Audio Visual Box: 6' DisplayPort Cable
TB-AVAC_1108
Cable for use with TB-AVAC Table Box. Cable is a 6' Female DisplayPort Chassis mount to Male.
DisplayPort F Chassis MNT to M 6FT
Small Audio Visual Box: 6' 3.5mm Audio
TB-AVAC_1110
Cables for use with TB-AVAC Table Box. Cable is a 6' 3.5mm Audio Female to Male Cable / Keystone Mount provided with TB-AVAC.
