DISCONTINUED

HDBaseT™ technology, enables a single LAN cable to replace multiple cables and connectors in the home entertainment environment. HDBaseT is optimized for video applications and can

connect all the entertainment devices at home and work by providing the 5Play convergence of uncompressed full HD digtal video, audio, 100BaseT Ethernet, power over cable and various control signals.

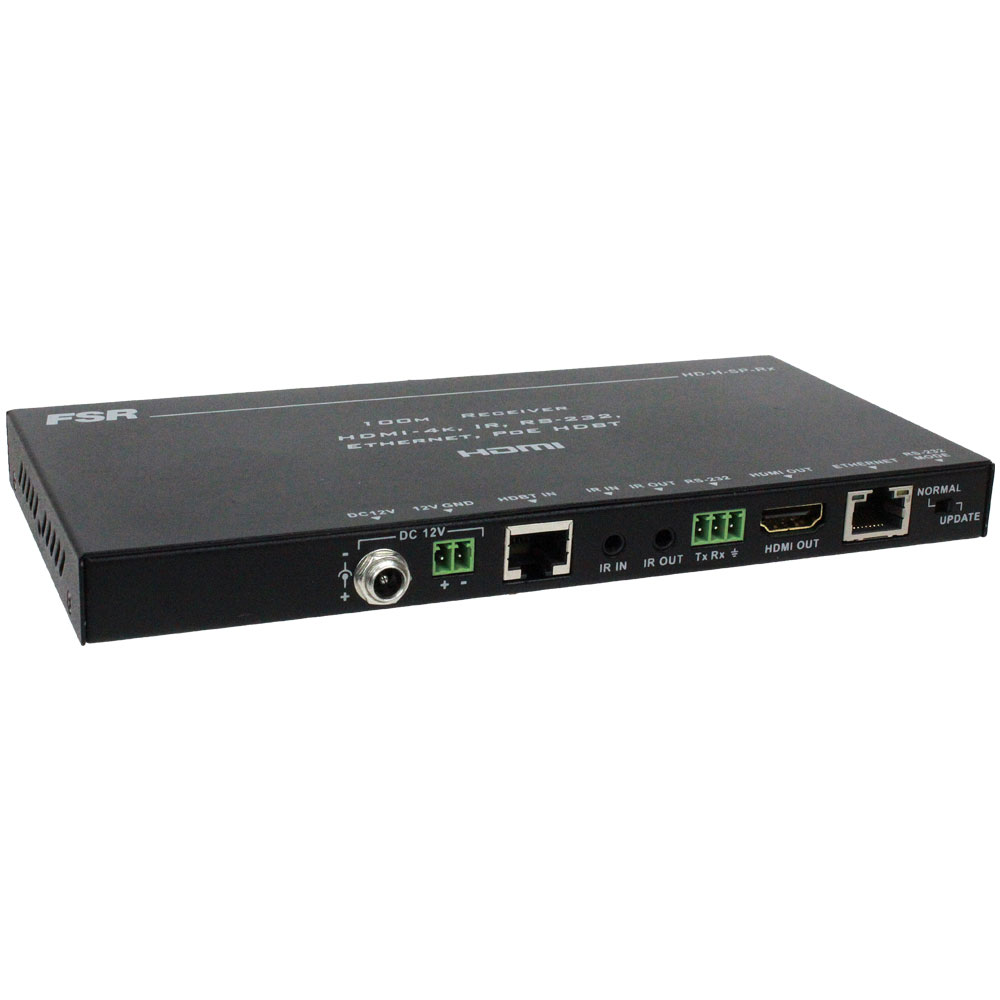

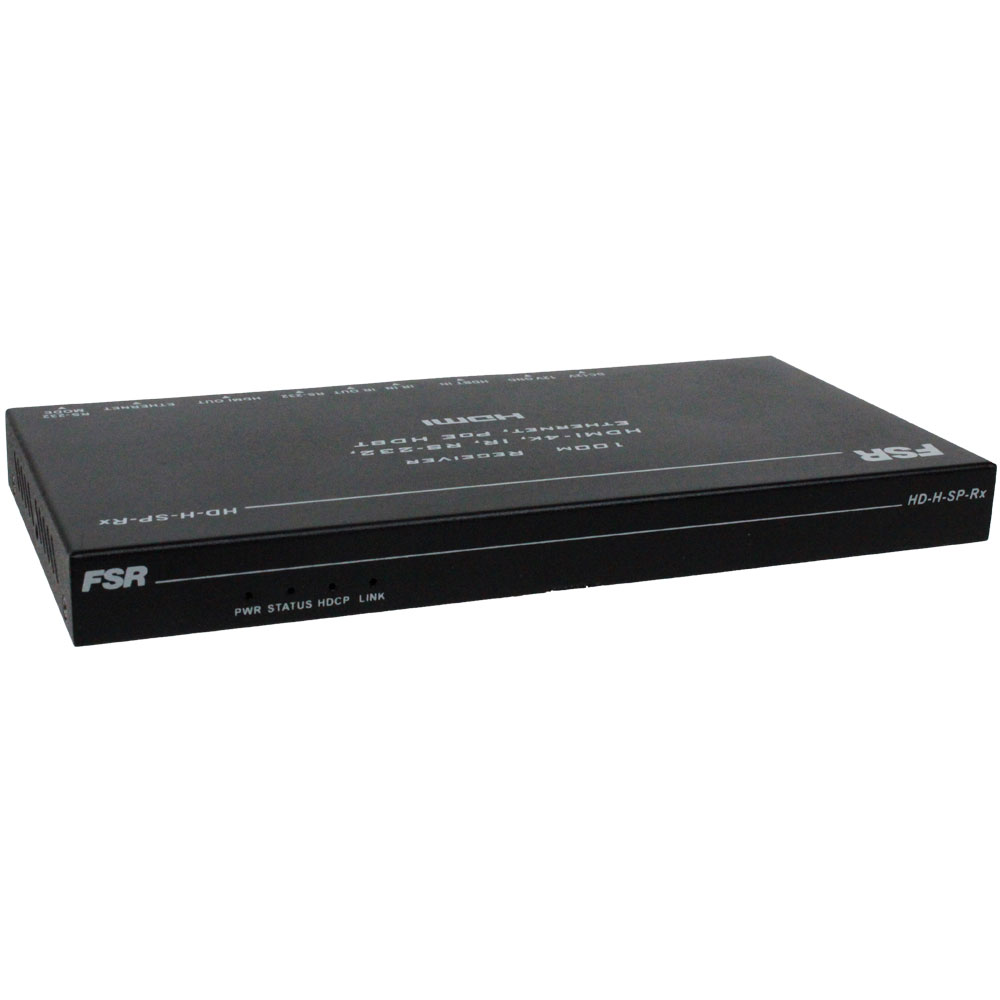

The HD-H-SP-Rx is a 100 Meter HDBaseT Slim-Pack receiver which is HDMI In (RJ-45) to HDBaseT Out. The HD-H-SP-Rx is RS-232 via the 3-Pin captive screw terminal (Tx, Rx, GND). The 1/8" mini jacks support IR for the Rx & Tx models. Power is 12v via the screw connector or 2-pin captive screw terminal (12v & GND). Locking power supply is included. The Receiver also contains an ethernet port (RJ-45). Teamed up with the HD-H-SP-Tx transmitter you'll have everything you need packed into two easy to manage and cost effective units.

HDBaseT 100 Meter Ultra Slim-Pack

Transmitters & Receivers

Any 100 Meter Transmitter (Tx) can be used with any 100 Meter Receiver (Rx)

• 100 Meter units are Class A HDBaseT 5Play™ Units

• Transmits uncompressed full HD digital HDMI video, Audio, Control (Bi-Directional IR & RS-232), 100BaseT Ethernet, and Bi-directional PoE.

• Straight-through cables with RJ-45 connectors wired in TIA/EIA T568B scheme

• Input resolutions: 4k 2160p (3840x2160) /

1080P / 1080i / 720P / 576P / 480P / 576i / 480i

• Cable Distances & Resolutions:

• CAT-5e / CAT-6:

• 100 Meters: 1080p @60 Hz (36 bpp)

• 70 Meters: 1080p @60 Hz (48 bpp) or 3D and

4k 2160p (3840x2160 @ 30 Hz)

• CAT-6a / CAT-7:

• 100 Meters: 1080p @60 Hz (48 bpp) or 3D and

4k 2160p (3840x2160 @ 30 Hz)

• For best resolution and ESD performance Shielded CAT-6A cable is recommended

• Set is powered via 12V 2A DC power supply which allows 2-way powering. You can power the set from the Transmitter or the Receiver (TX-RX or RX-TX) included with each receiver.

• All 100 meter units use Standard PoE (802.11af) compliant power scheme within the HDBaseT Architecture (TX-RX or RX-TX)

• All 100 meter units use the same power supply which allows any of the 100 meter transmitters to be used with any of the 100 meter receivers.

Power supply included with all receivers.

Certified HDBaseT Cables

FSR is now stocking West Penn HDBaseT Certified Category 6A Plenum Cable Assemblies in pre-terminated lengths from 50' to 330' (15 meter to 100 meter). These plenum rated cables come in specific lengths with the shielded connectors already attached and will work with all of our FSR HDBaseT Products.

West Penn Wire Certified HDBaseT Cables: CN-254246AF Category 6A F/UTP (Shielded) Plenum Assemblies are HDBasT Certified and have been tested in an HDBaseT Alliance recognized testing facility and have met the requirements set by HDBaseT Alliance.

Specs & Approvals: 23AWG.-4 pair solid bare copper conductors, shielded with an overall jacket. Assemblies are tested 1-750MHZ - 10 Gig rated.
RJ45 plug to RJ45 plug Cat6A - 10G rated with external ground, C(UL)Us or ETL listed HDBaseT certified. Color: Black

Application: Indoor - 10G- Category 6A Applications - Ethernet, IP Cameras, Digital Integration, DVI, HDMI meets or exceeds TIA/EIA 568C.2 Category 6A specifications.

Specifications are subject to change without notice.

Important Details

HDMI, Serial, IR Tx & Rx, Net, POE Extender
