6" Fire Rated Poke Thru Box and Cover SmartFit-6_1239

Let us help you design your box with our SmartFit Designer.

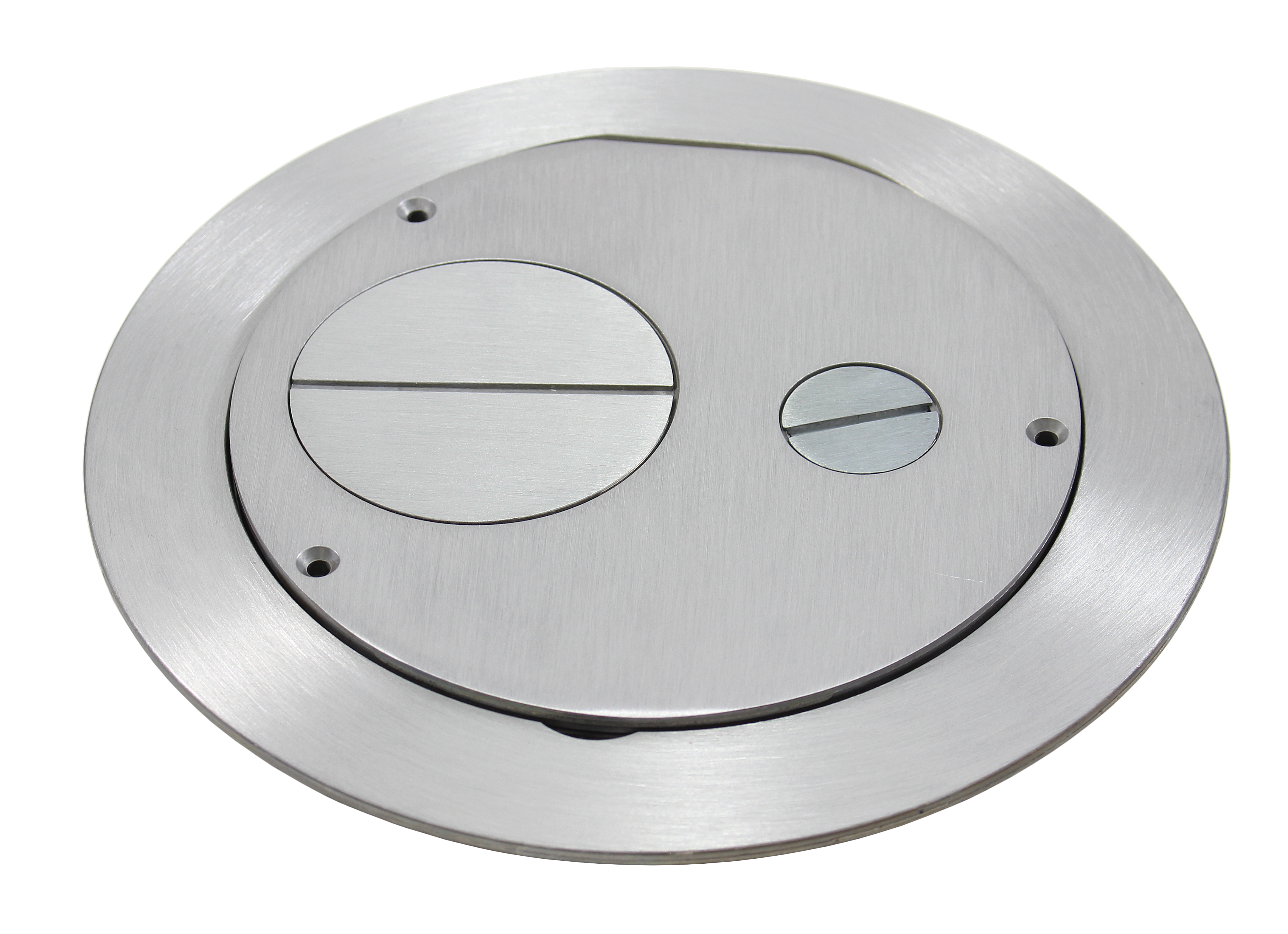

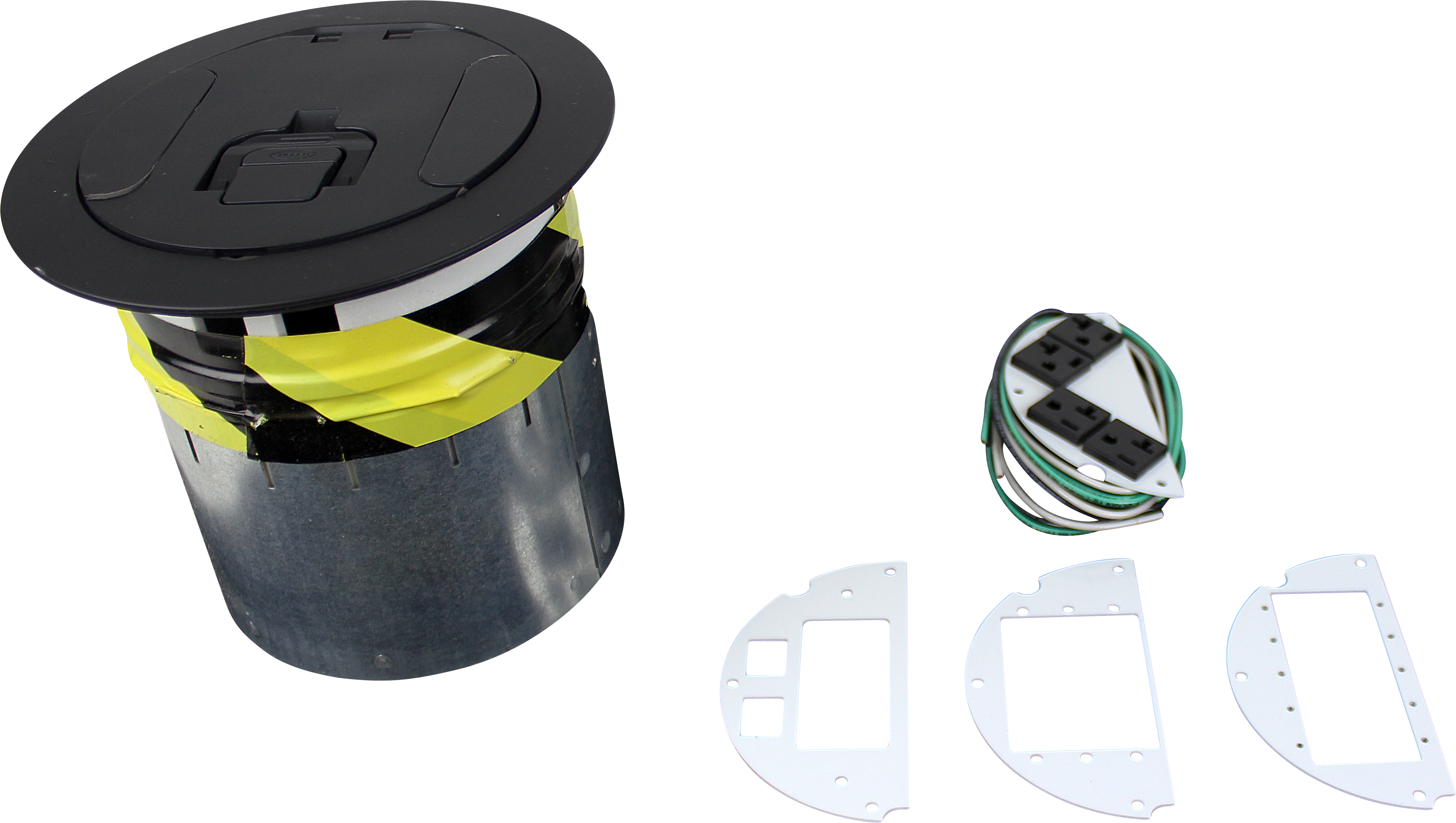

FSR's SmartFit 6" Fire Rated Poke Thru Box and Cover provides flexible in-floor connectivity for power, data, and AV in commercial spaces. The 6" system supports a wide range of sub-plates, including layouts for CAT6 data jacks and 20A AC receptacles, while maintaining a 2-hour fire rating. It includes a power wiring junction box, an ADA-compliant flange, UL514A scrub water compliance, a 1000 lb. cover load rating with a 2x safety factor, drop-down cable doors, and cover finishes in brushed aluminum, brushed brass, and black.

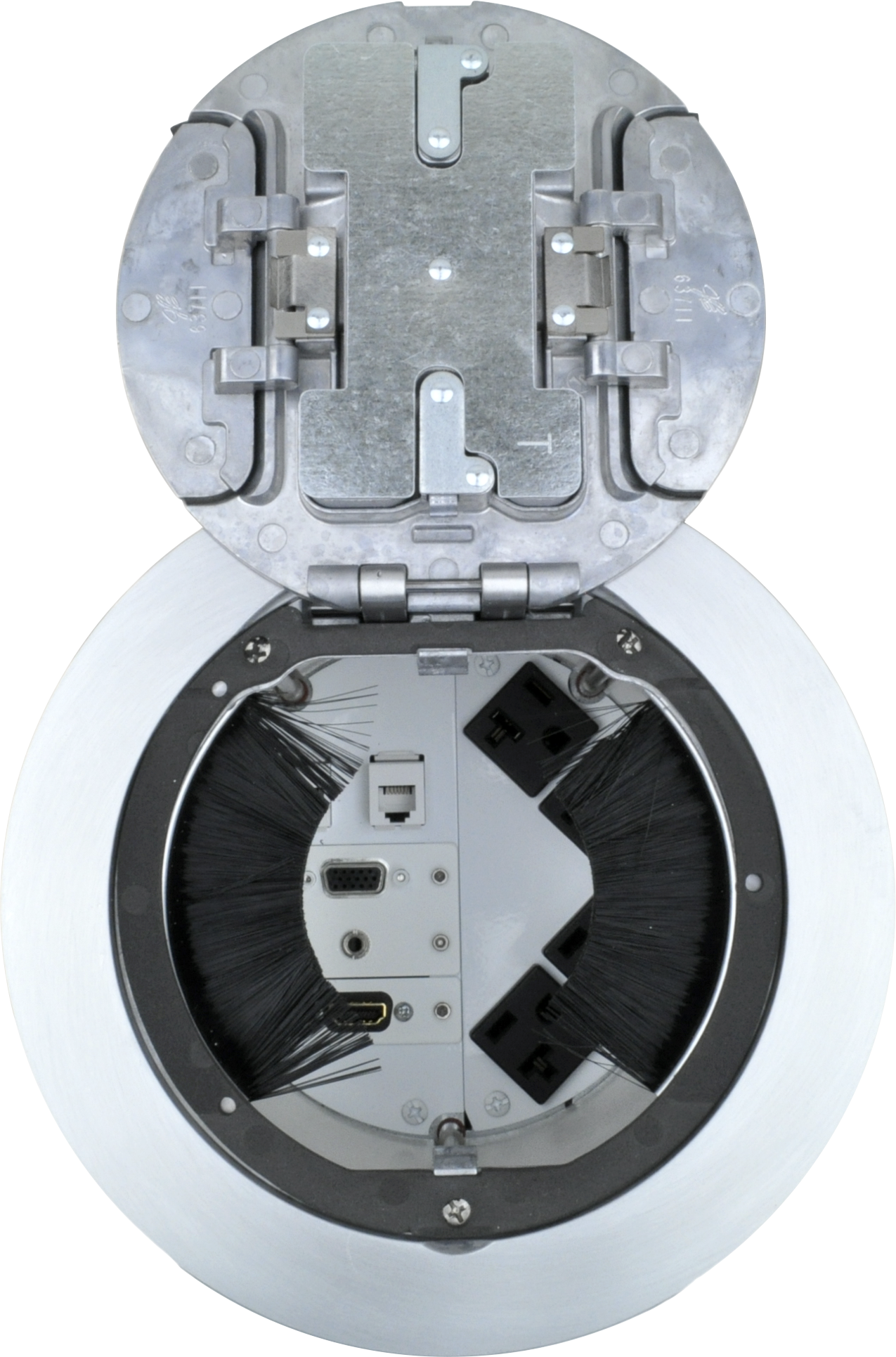

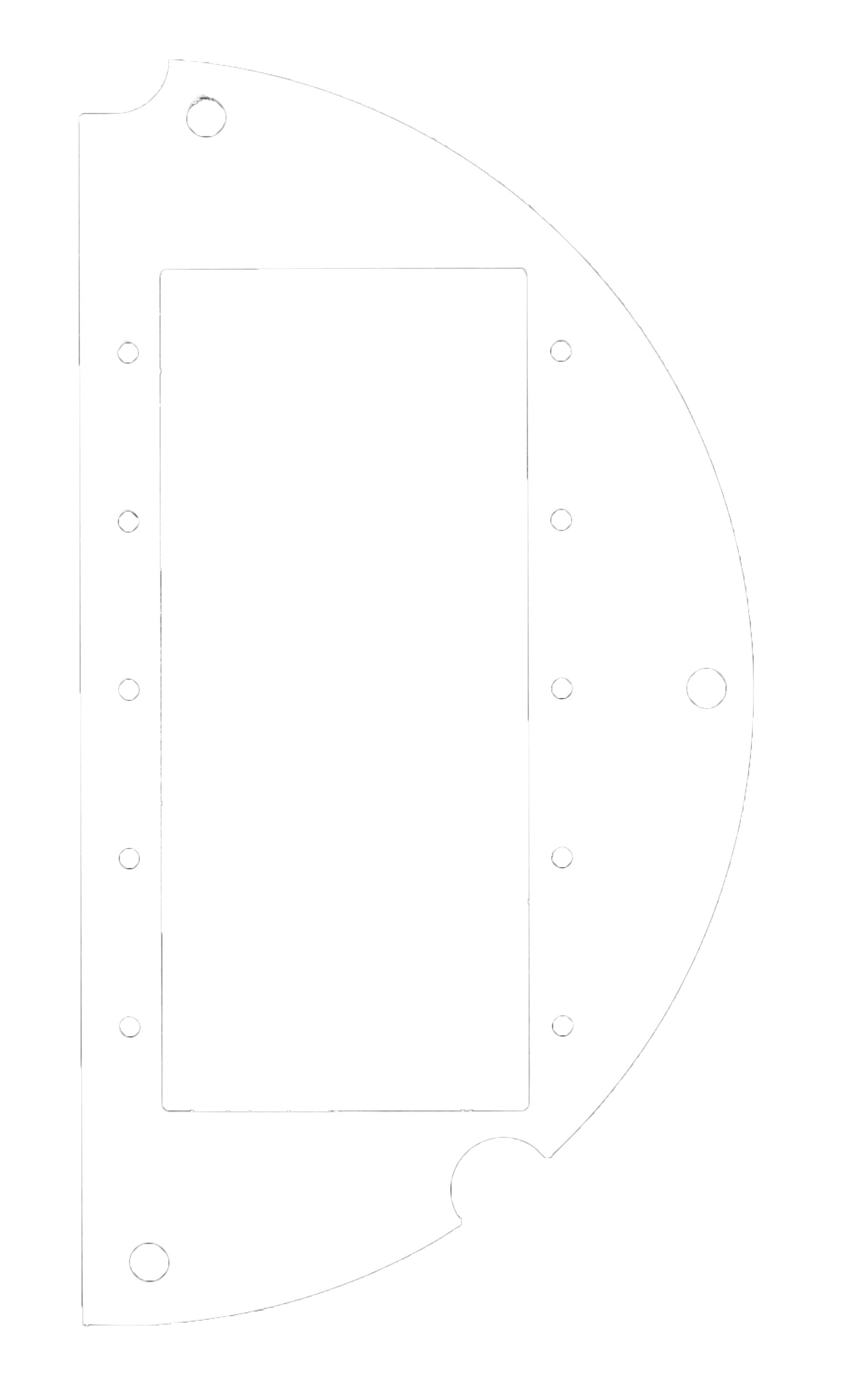

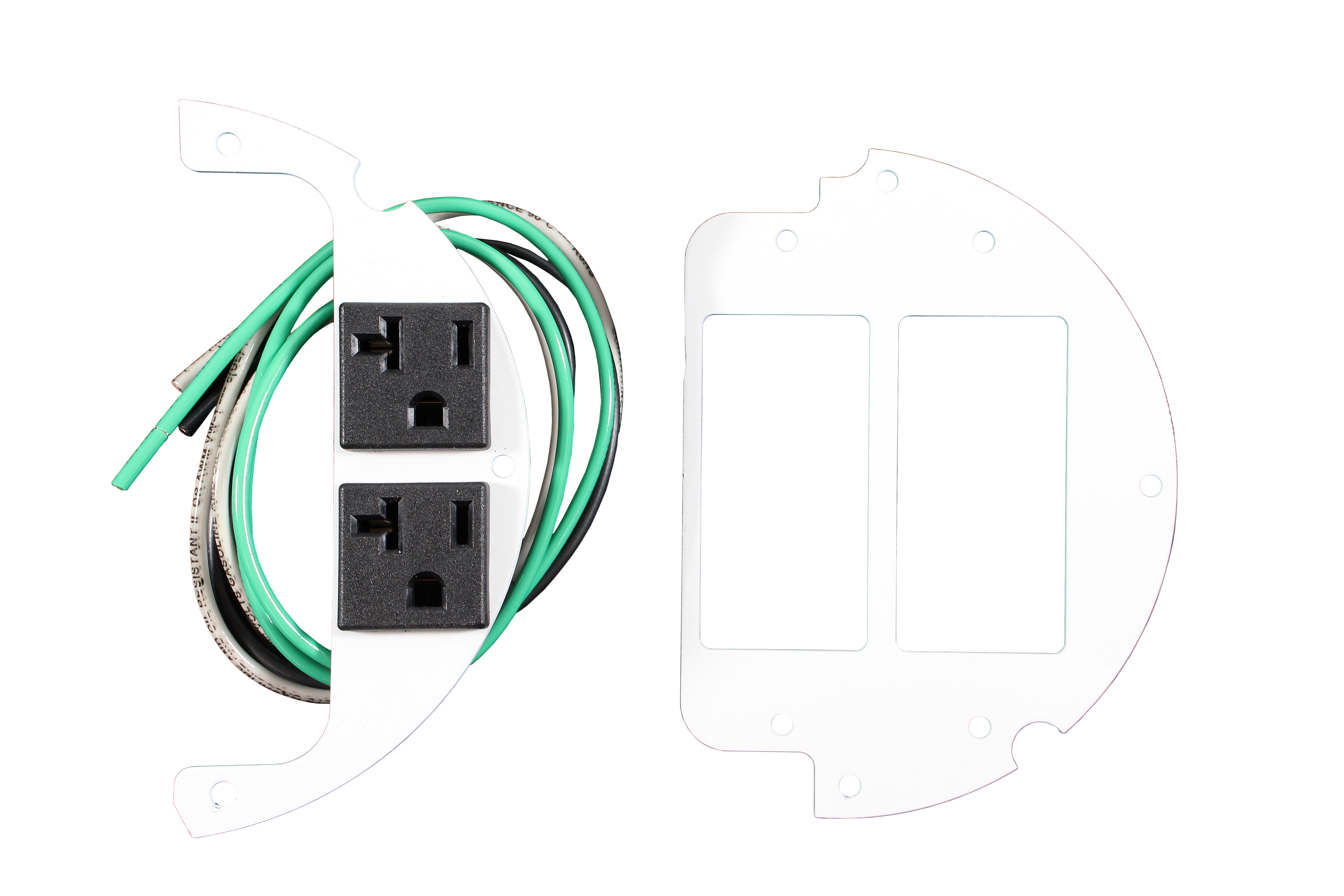

A complete line of sub-plates for device mounting is available. The mounting plates incorporate a unique industry first 60/40 & 50/50 layout for un-paralleled capacity and flexibility: including 12 CAT6 data jacks and 2 or 4 20A AC receptacles. The cover technology exceeds UL scrub water testing requirements.

Specifications:

• 2-hour fire rating
• 180° access door opening
• Flange height 0.15" and complies with ADA requirements
• Power wiring junction box included
• Complies with UL514A for scrub water test
• 1000lb. cover load rating with 2x safety factor
• ULC and cULus

Features:

• Drop down cable access doors reduce trip hazard
• Furniture feed option (6" core hole) for up to 30 CAT6a data cables and ten 10 AWG power wires

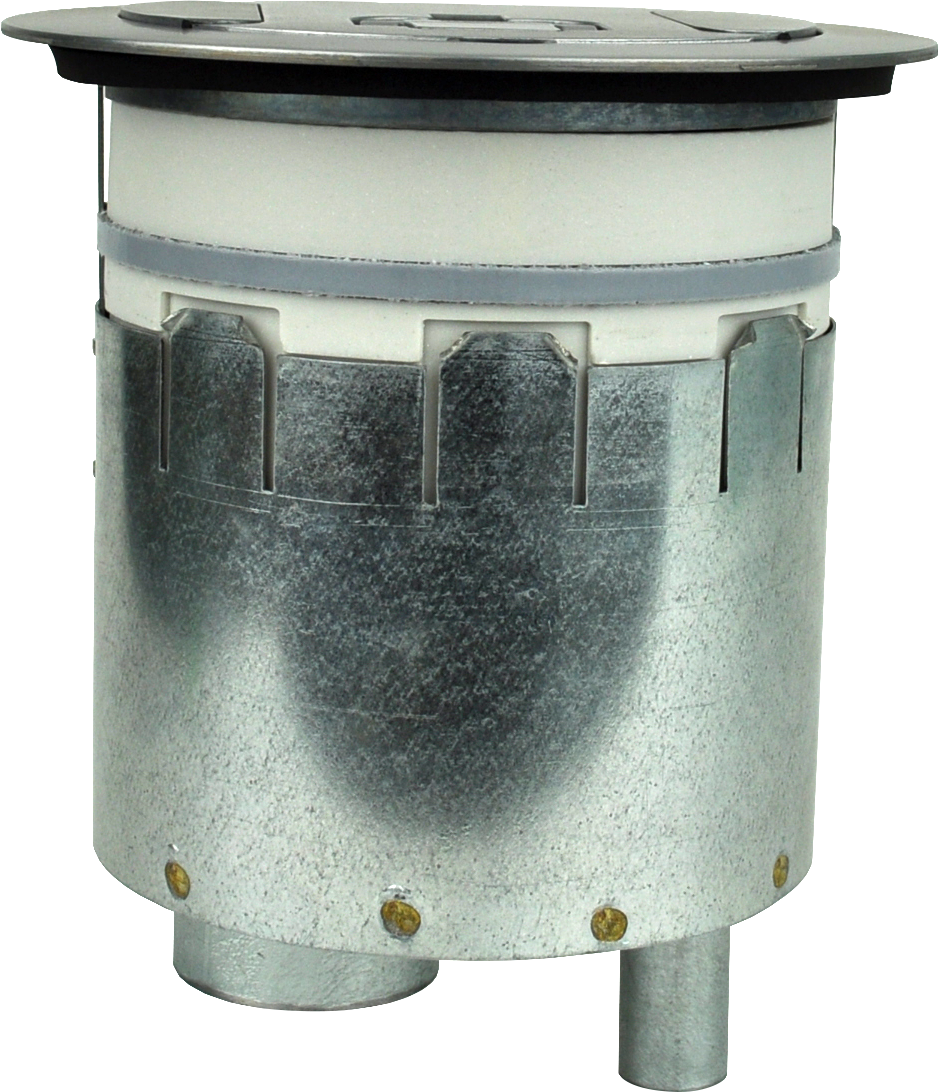

• Pre-pour tubes remove the need for core hole drilling
• Sub-plates accept IPS Plates and third party devices

**BABAA and TAA compliance by model, which may vary over time due to changes in legislation and/or manufacturing plans. Be sure to ask for certification at the time of order.
