Let us help you design your box with our SmartFit Designer.

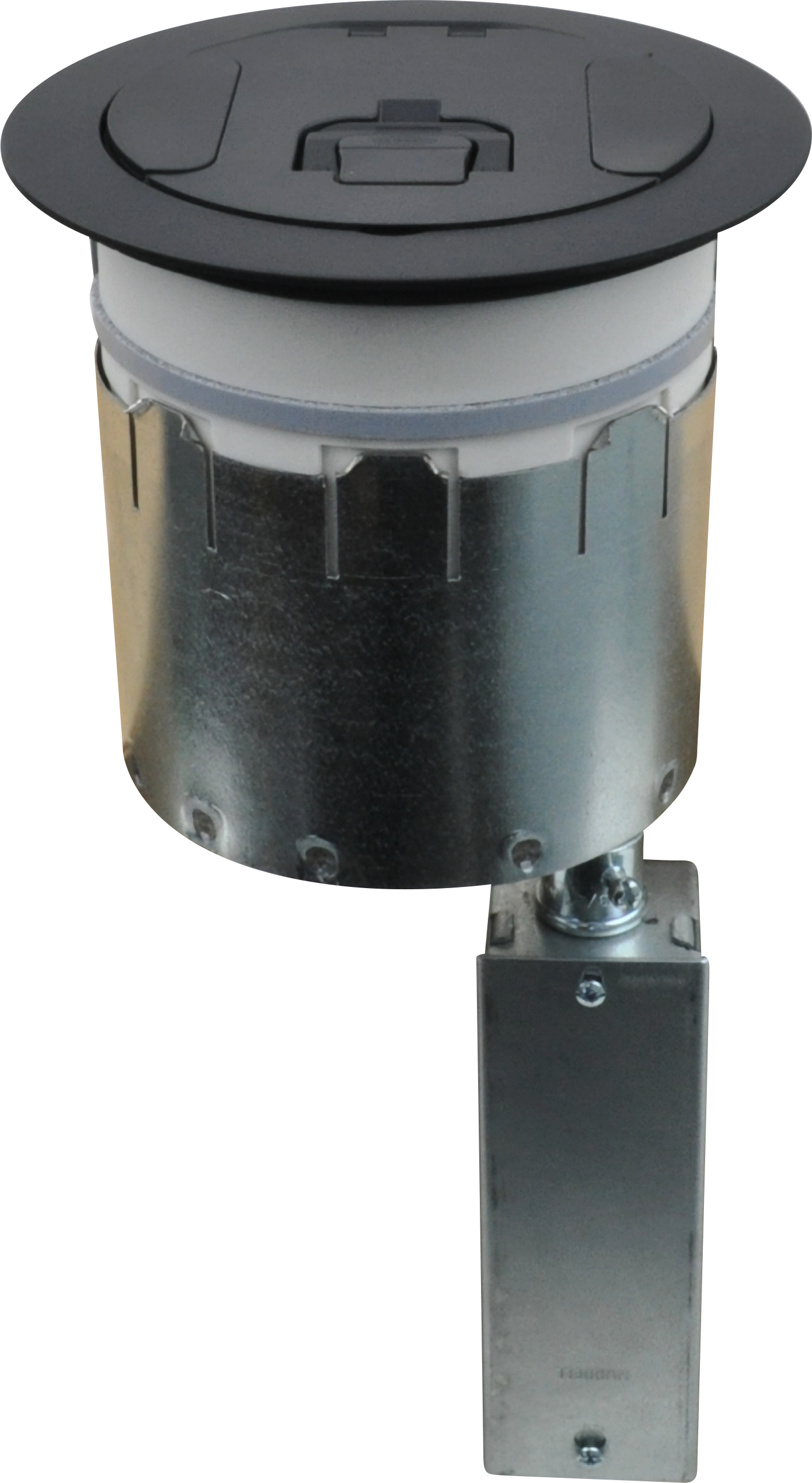

FSR's Fire-Rated "Poke-Thru" floor boxes provide aesthetics and installation ease. These sturdy core hole products combine flexibility via recessed mounting bracketry to accommodate a wide assortment of power, data and audio video connection options. Covers are available in 3 architectural finishes: Brushed Aluminum , Brushed Brass and Black providing an attractive appearance with superior durability. The entire cover door swings open 180° and the smaller cable access doors fold down for cable egress while the cover door is secure.

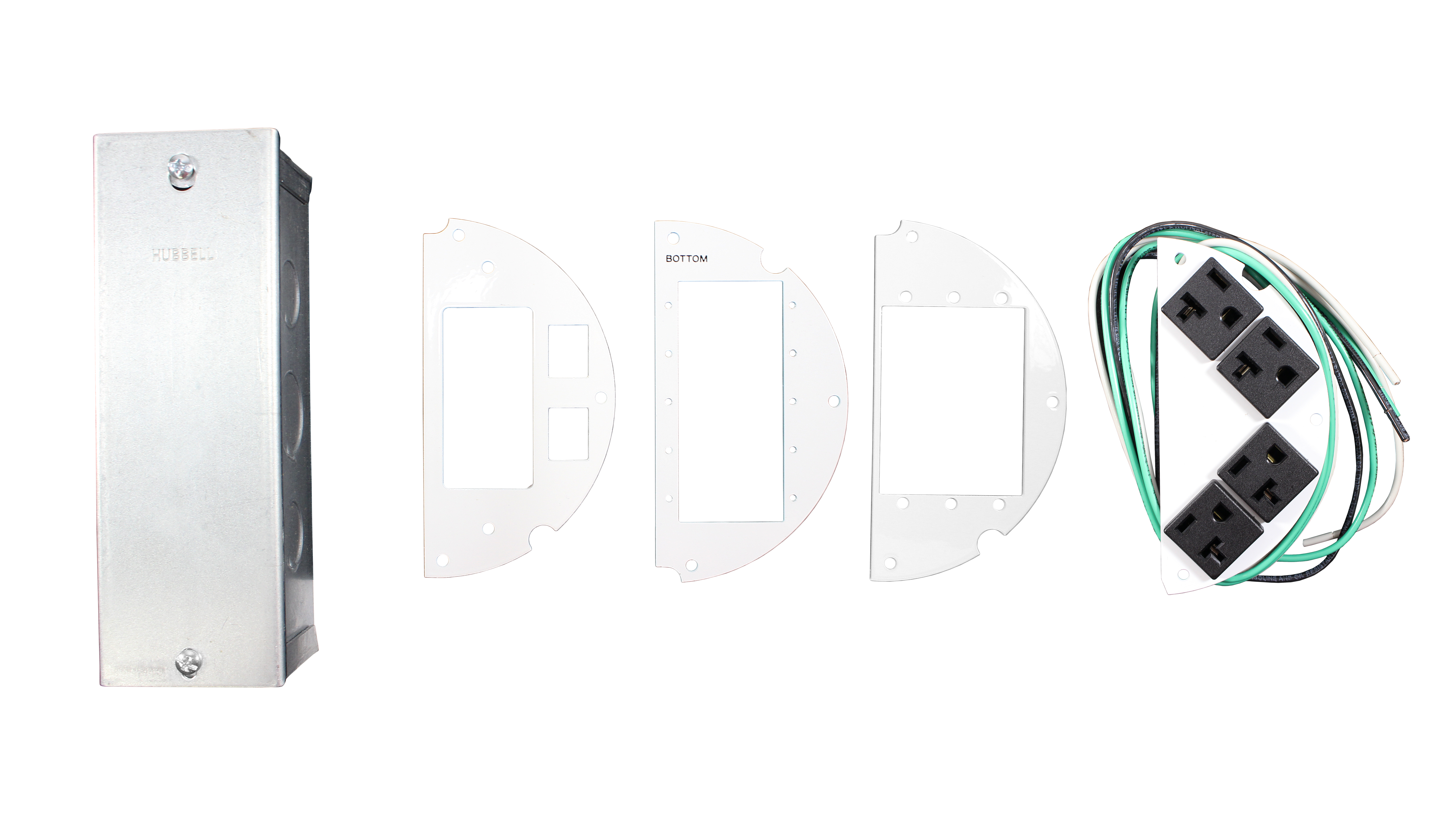

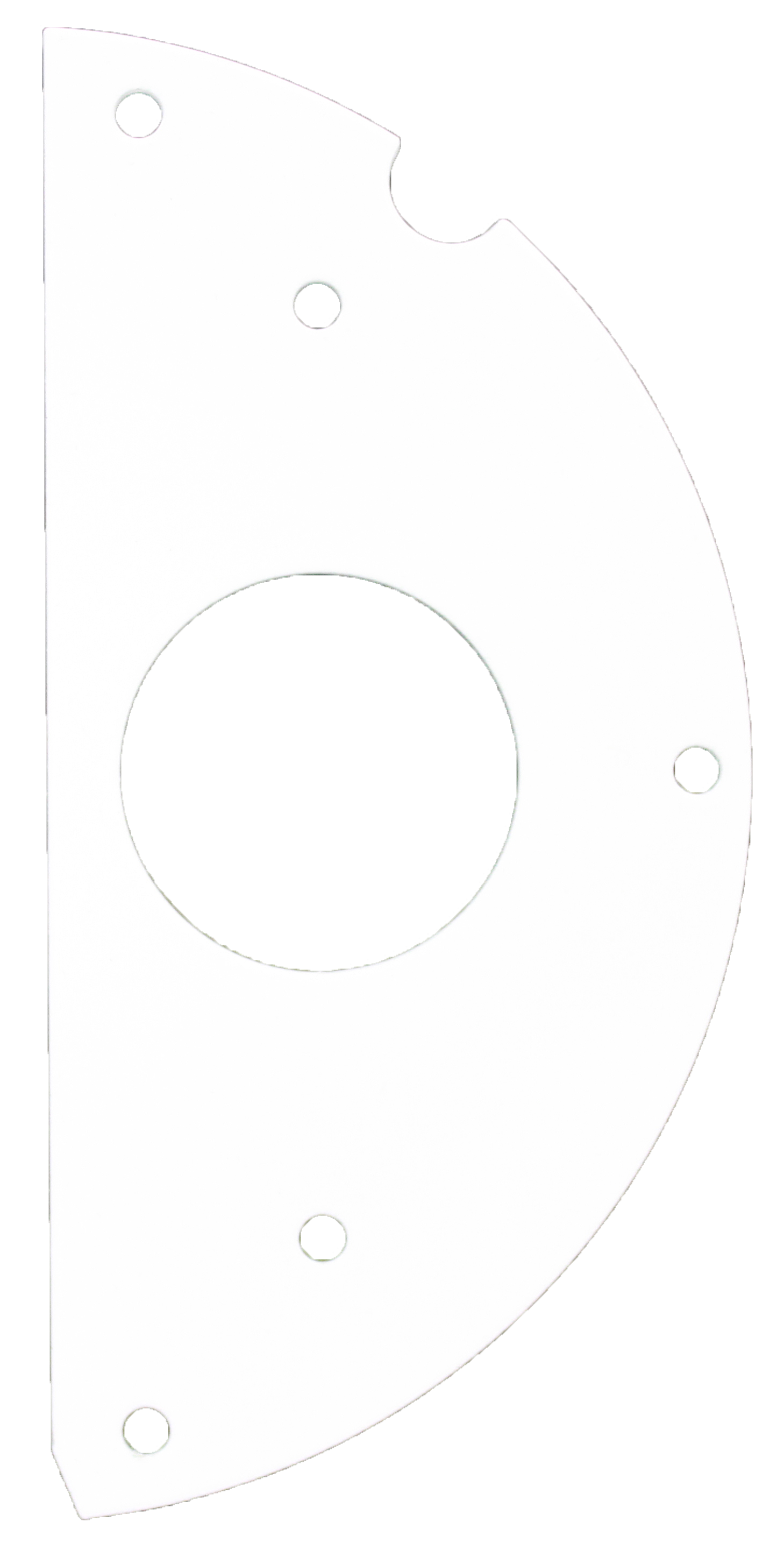

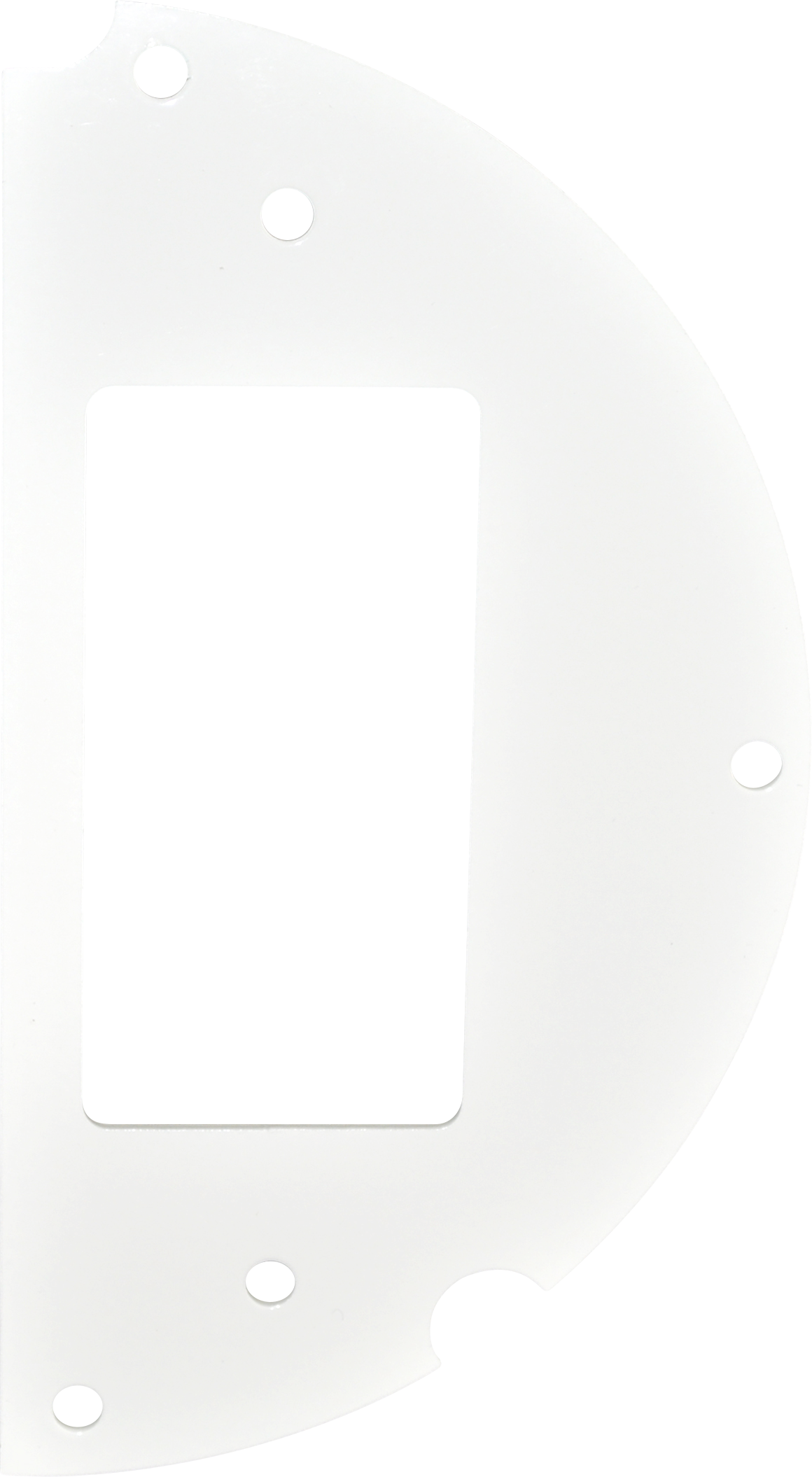

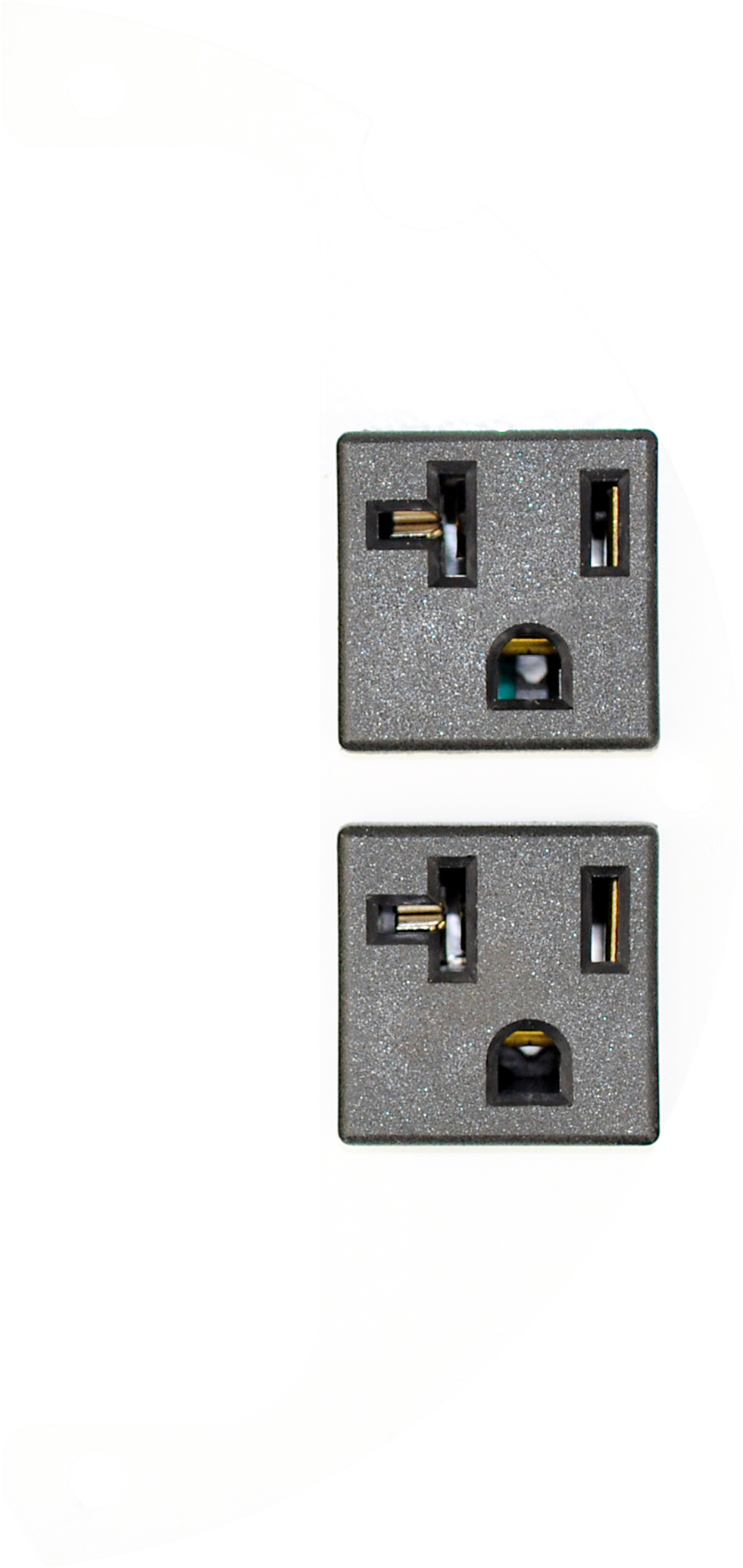

A complete line of sub-plates for device mounting is available. The mounting plates incorporate a unique industry first 60/40 & 50/50 layout for un-paralleled capacity and flexibility: including 12 CAT6 data jacks and 2 or 4 20A AC receptacles. The cover technology exceeds UL scrub water testing requirements.
Specifications:
- 2-hour fire rating
- 180° access door opening
- Flange height 0.15" and complies with ADA requirements
- Power wiring junction box included
- Complies with UL514A for scrub water test
- 1000lb. cover load rating with 2x safety factor
- ULC and cULus
Features:
- Drop down cable access doors reduce trip hazard
- Furniture feed option (6" core hole) for up to 30 CAT6a data cables and ten 10 AWG power wires

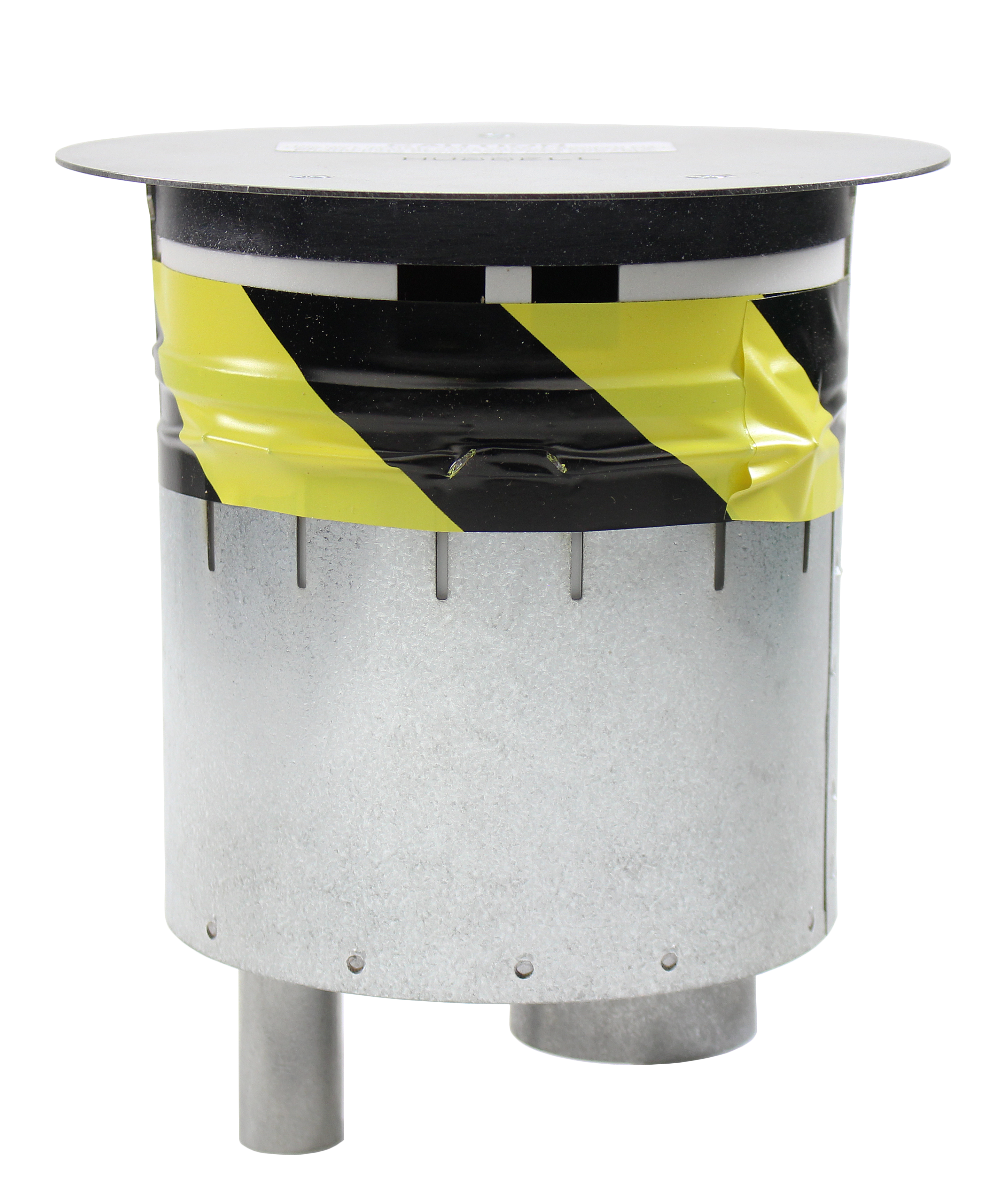

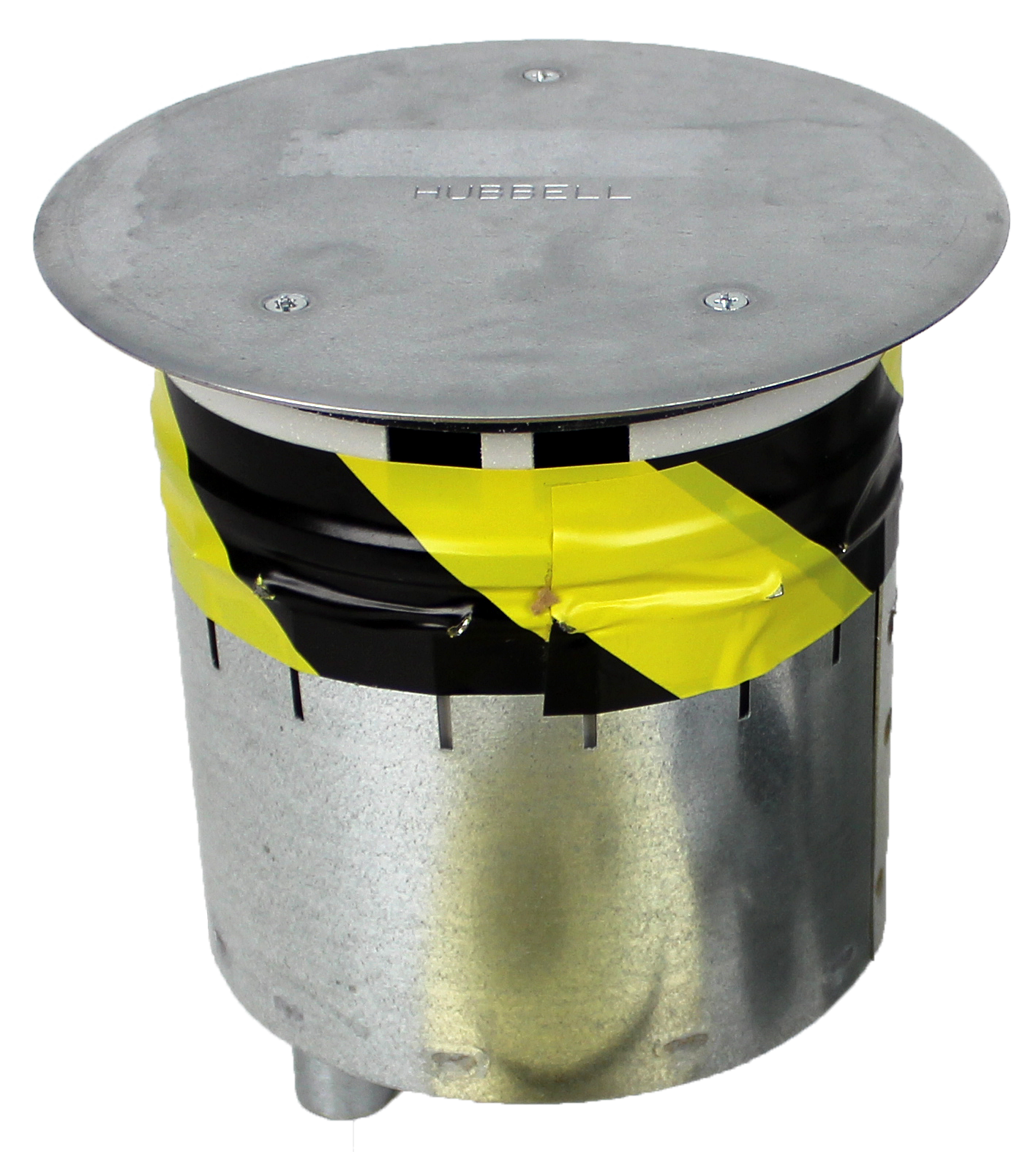

- Pre-pour tubes remove the need for core hole drilling
- Sub-plates accept IPS Plates and third party devices
