Compass 3.0 Presentation Switcher CO-PS_817

Compass 3.0

*DISCONTINUED* FSR is proud to announce the much anticipated return of our Compass Presentation Switcher with the introduction of our new Compass 3.0 Presentation Switcher Family. With 2 models to choose from, the Compass 3.0 Presentation switcher Family are multi-format presentation switchers wit ...Read more
co-ps101- 3-hdmi, dvi, dp, vga, yuv, cv, 2-sdi
co-ps101- 3-hdmi, dvi, dp, vga, yuv, cv, 2-sdico-ps101- 3-hdmi, dvi, dp, vga, yuv, cv, 2-sdi


  • Description
  • Specifications

*DISCONTINUED*

FSR is proud to announce the much anticipated return of our Compass Presentation Switcher with the introduction of our new Compass 3.0 Presentation Switcher Family.

With 2 models to choose from, the Compass 3.0 Presentation switcher Family are multi-format presentation switchers with fully integrated proprietary Ultra 4K image processing technology. Depending on the application, units are available in video only or video and audio switching versions.

A variety of video inputs available:

  • 2x HDMI 4K
  • 1x HDMI HD
  • 1x DisplayPort 4K
  • 1x VGA Analog
  • 2x 3G-SDI (Optional depending on model)
  • 1x Genlock
  • 7x Line level stereo audio via 3.5mm jack
  • 1x Line level stereo audio via 2xRCA
  • 2x microphone input with 48V Phantom Power

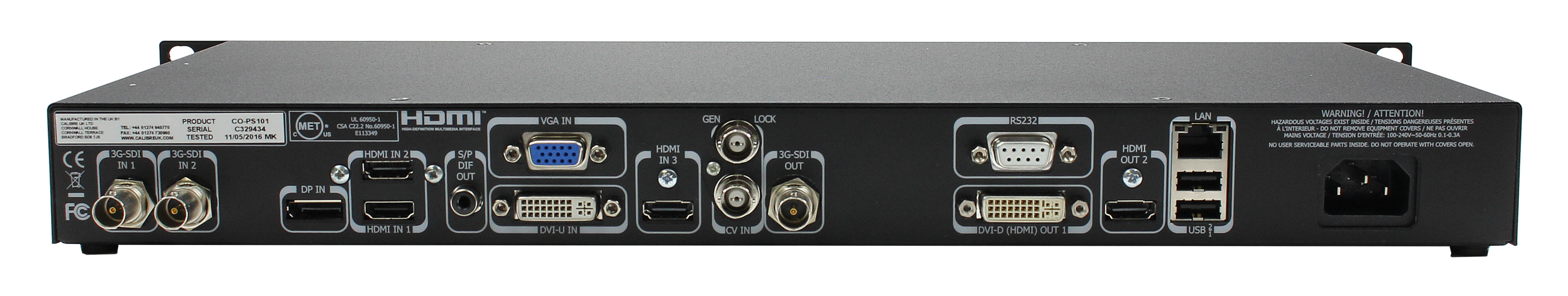

Video outputs:

  • 1x HDMI 4K via HDMI connector
  • 1x DVI/HDMI via DVI connector
  • 1x 3G-SDI (optional depending on model)
  • 1x S/PDIF digital audio via RCA
  • 1x Loudspeaker connector, 2x15w RMS
  • 1x Line level balanced stereo

The 3G-SDI offers full Gen-Lock and Source Lock for in-camera & broadcast applications. The Compass 3.0 switcher offers support 4K UHD resolutions (3840 x 2160p/4096 x 2160p) in 4:2:0 format; audio de-embedded from HDMI, displayPort and 3G-SDI inputs, and is re-embedded onto HDMI outputs, and multiple outputs for local monitoring of a live output feed.

The Compass 3.0 Presentation switcher also offers stereo analog audio inputs and outputs with audio-follow-video capability. There are 2 microphone inputs with phantom power available and internal mixer for talk-over. The internal power amplifier provides 2x15W RMS to directly drive loudspeakers in meeting rooms and smaller conference rooms, plus line level balanced stereo outputs to drive external amplifier or powered loudspeakers.

Features:

  • Perfect scaling with Ultra low-latency 4K best-in-class proprietary
  • UltraFast proprietary typical 0.25 seconds input channel switching technology

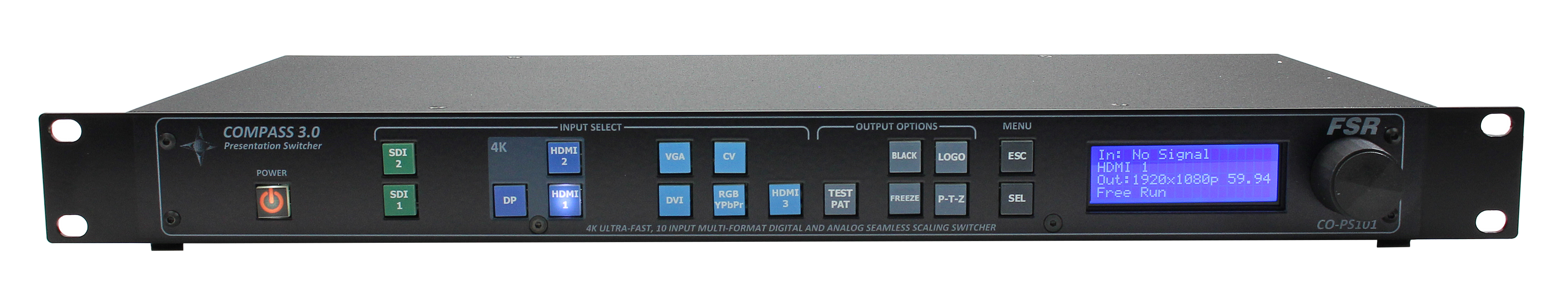

  • Front panel jog-wheel and LCD display for fast easy set-up in the field
  • Brightness, Contrast, Saturation controls for all source types
  • Flexible Aspect Ratio Conversion

Applications:

Compass applications

Give our inside sales a call 1-800-332-3771 for more information or to order a unit for your next project.
